Model Maytag RLN362UW GAS RANGE – Common Parts & Diagrams

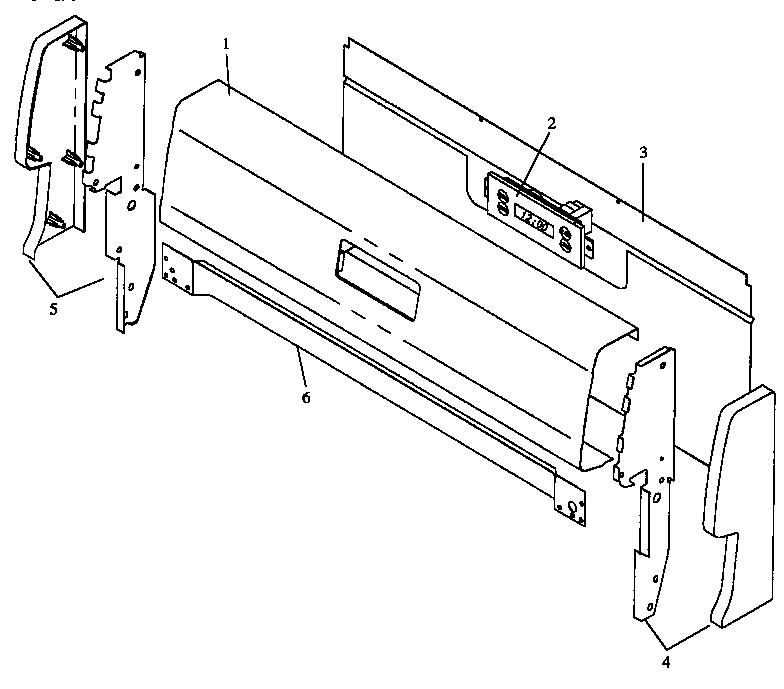

01 - BACKGUARD ASSY

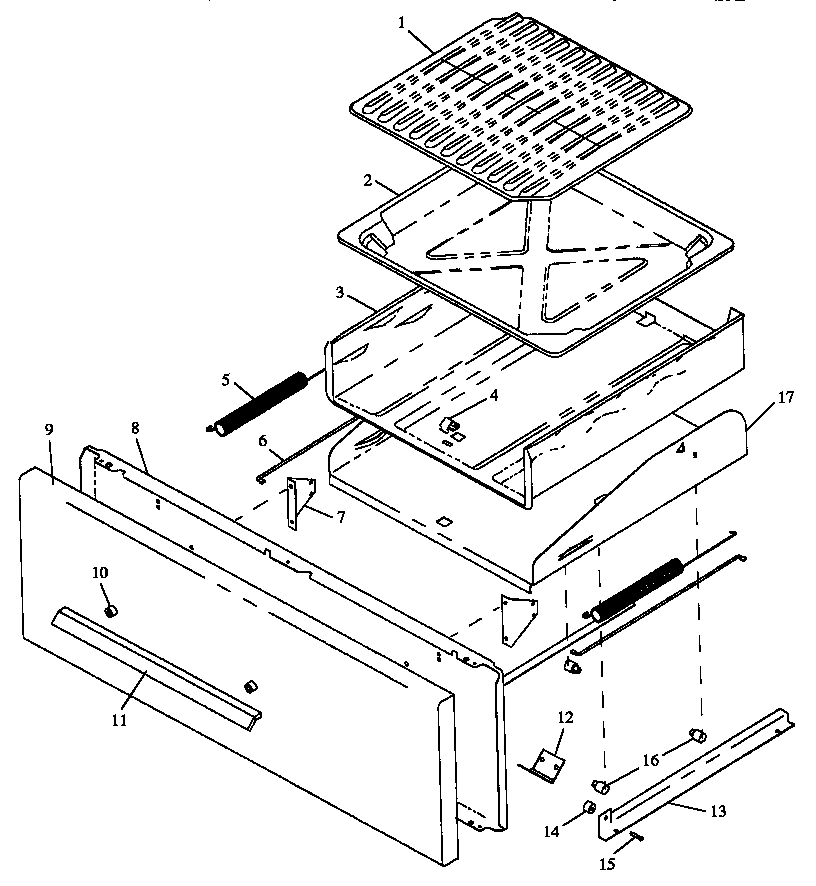

02 - BROILER DRAWER ASSY

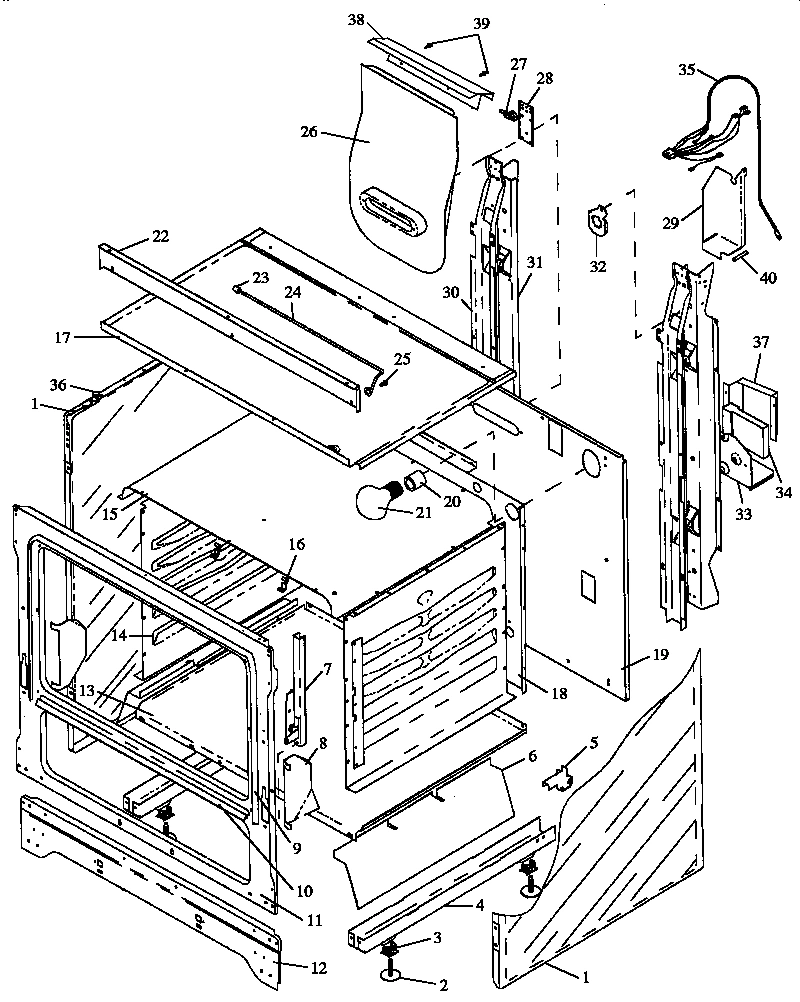

03 - CABINET SECTION

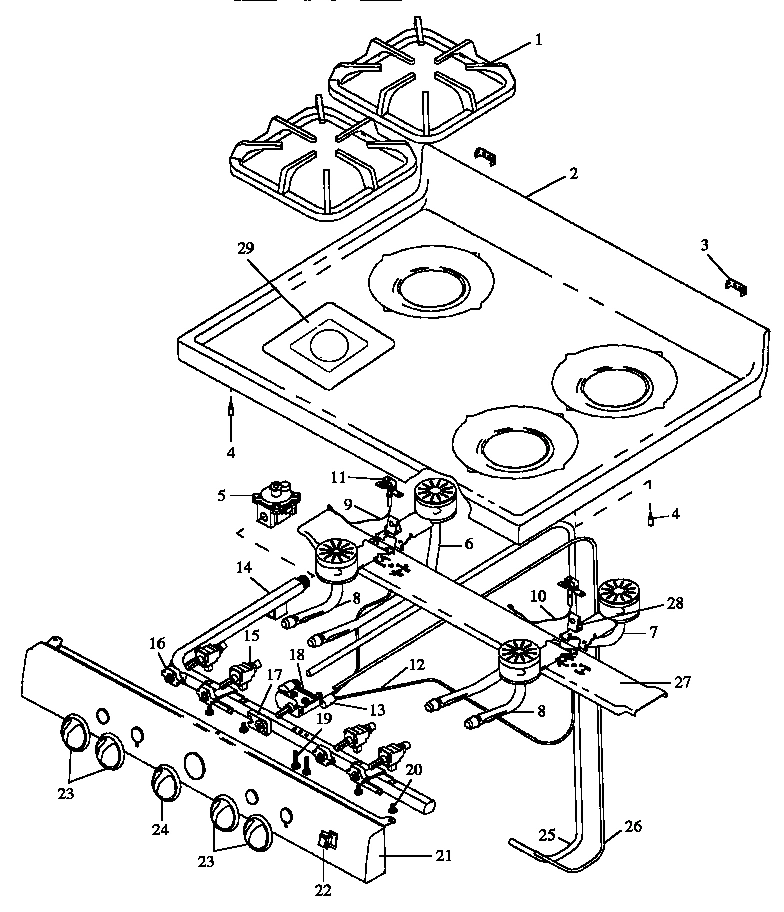

04 - OPEN TOP BURNER ASSY

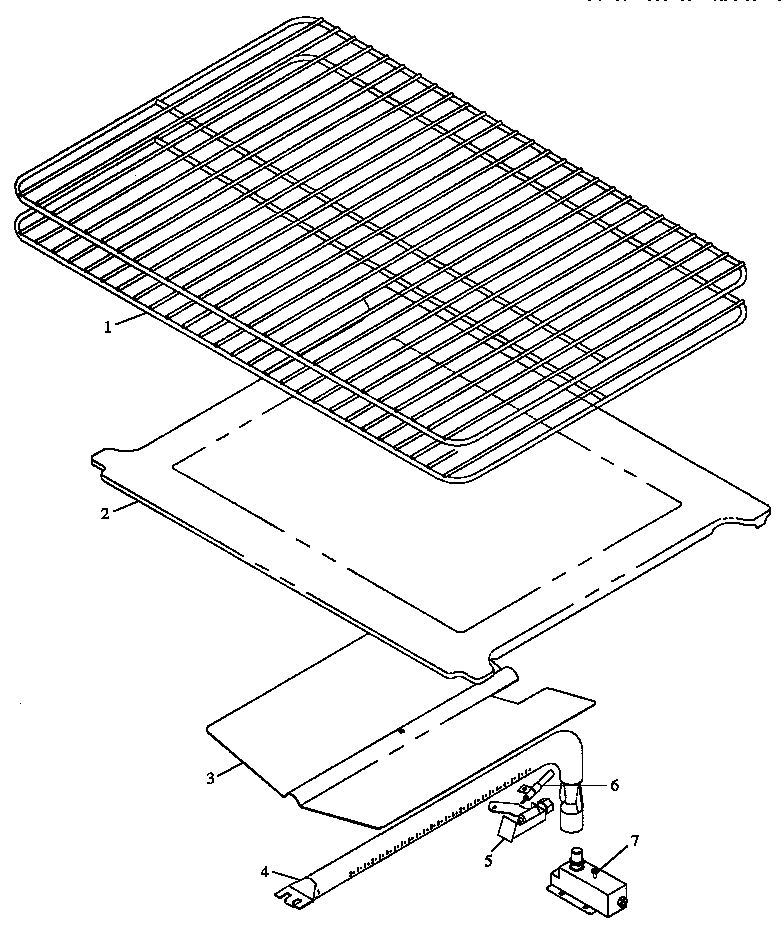

05 - OVEN COMPONENTS

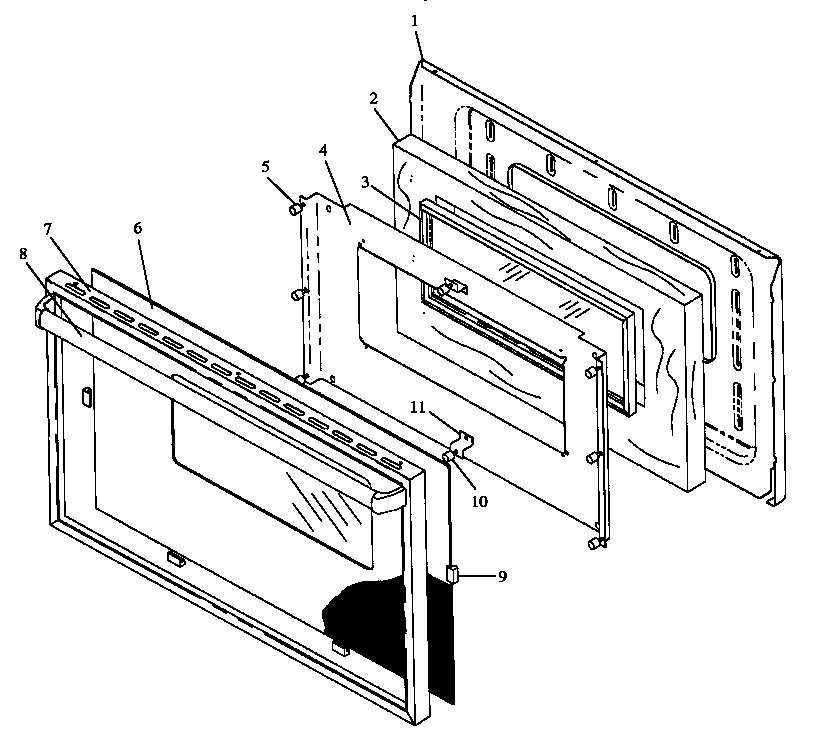

06 - OVEN DOOR ASSY
Common parts from model Maytag RLN362UW GAS RANGE
1
MAY 87723CG MAY 87723CG Contact Us For Availability
1
MAY 06559000L MAY 06559000L Contact Us For Availability
1
MAY 06559000W MAY 06559000W Contact Us For Availability
1
MAY Y07713600 MAY Y07713600 Contact Us For Availability
1
MAY Y0312237 MAY Y0312237 Contact Us For Availability
1
MAY Y06565000E MAY Y06565000E Contact Us For Availability
2
MAY 87722CG MAY 87722CG Contact Us For Availability
2
MAY Y01084002 MAY Y01084002 Contact Us For Availability
2
MAY 06558100W MAY 06558100W Contact Us For Availability
2
MAY Y06558100L MAY Y06558100L Contact Us For Availability
2
MAY 06554403E MAY 06554403E Contact Us For Availability
2
MAY Y0041966 MAY Y0041966 Contact Us For Availability
3
MAY 86908CG MAY 86908CG Contact Us For Availability
3
MAY Y0088571 MAY Y0088571 Contact Us For Availability
3
MAY Y0306150 MAY Y0306150 Contact Us For Availability
3
MAY 0311821 MAY 0311821 Contact Us For Availability
4
MAY Y06566900 MAY Y06566900 Contact Us For Availability
4
MAY Y0088664 MAY Y0088664 Contact Us For Availability
4
MAY 06554900 MAY 06554900 Contact Us For Availability
4
MAY Y0310036 MAY Y0310036 Contact Us For Availability
4
MAY 0311865 MAY 0311865 Contact Us For Availability
4
MAY 06511801 MAY 06511801 Contact Us For Availability
5
MAY Y06566901 MAY Y06566901 Contact Us For Availability
5
MAY Y07691101 MAY Y07691101 Contact Us For Availability
5
MAY 07687600 MAY 07687600 Contact Us For Availability
5
MAY Y0088783 MAY Y0088783 Contact Us For Availability
5
MAY Y07697200 MAY Y07697200 Contact Us For Availability
6
MAY Y0313770 MAY Y0313770 Contact Us For Availability
6
MAY 0310816 MAY 0310816 Contact Us For Availability
6
MAY Y07707100 MAY Y07707100 Contact Us For Availability
6
MAY Y07707500 MAY Y07707500 Contact Us For Availability
7
MAY Y06520700 MAY Y06520700 Contact Us For Availability
7
MAY Y0311852 MAY Y0311852 Contact Us For Availability
7
MAY Y07707000 MAY Y07707000 Contact Us For Availability
7
MAY Y0089062 MAY Y0089062 Contact Us For Availability
7
MAY Y07707800 MAY Y07707800 Contact Us For Availability
8
MAY 312246E MAY 312246E Contact Us For Availability
8
MAY 0310064 MAY 0310064 Contact Us For Availability
8
MAY Y07706900 MAY Y07706900 Contact Us For Availability
8
MAY Y07708100 MAY Y07708100 Contact Us For Availability
9
MAY 311882L MAY 311882L Contact Us For Availability
9
MAY 311882W MAY 311882W Contact Us For Availability
9
MAY Y0311770 MAY Y0311770 Contact Us For Availability
9
MAY Y0312836 MAY Y0312836 Contact Us For Availability
10
MAY Y0310818 MAY Y0310818 Contact Us For Availability
10
MAY Y0056091 MAY Y0056091 Contact Us For Availability
10
MAY Y0088788 MAY Y0088788 Contact Us For Availability
11
MAY Y07498611L MAY Y07498611L Contact Us For Availability
11
MAY Y07498611W MAY Y07498611W Contact Us For Availability
11
MAY 06567100E MAY 06567100E Contact Us For Availability
11
MAY Y0311752 MAY Y0311752 Contact Us For Availability
12
MAY Y0313773 MAY Y0313773 Contact Us For Availability
12
MAY Y06451600 MAY Y06451600 Contact Us For Availability
12
MAY Y0088793 MAY Y0088793 Contact Us For Availability
13
MAY Y0313760 MAY Y0313760 Contact Us For Availability
13
MAY Y0313761 MAY Y0313761 Contact Us For Availability
13
MAY Y06467101 MAY Y06467101 Contact Us For Availability
13
MAY 0311054 MAY 0311054 Contact Us For Availability
14
MAY 0311807 MAY 0311807 Contact Us For Availability
14
MAY 07706801 MAY 07706801 Contact Us For Availability
15
SEE NOTE PIN -- (INCLUDED WITH ITEM 13) MAY Y00000000 Contact Us For Availability
15
MAY 88885CG MAY 88885CG Contact Us For Availability
15
MAY Y0057338 MAY Y0057338 Contact Us For Availability
16
MAY 0310802 MAY 0310802 Contact Us For Availability
17
MAY 06522100 MAY 06522100 Contact Us For Availability
17
MAY 06559501 MAY 06559501 Contact Us For Availability
18
MAY Y03382001E MAY Y03382001E Contact Us For Availability
18
MAY Y0057346 MAY Y0057346 Contact Us For Availability
19
MAY 0088656 MAY 0088656 Contact Us For Availability
19
MAY Y0056114 MAY Y0056114 Contact Us For Availability
20
MAY Y0056115 MAY Y0056115 Contact Us For Availability
21
MAY Y07710200 MAY Y07710200 Contact Us For Availability
22
MAY Y06559901 MAY Y06559901 Contact Us For Availability
23
MAY Y07708202 MAY Y07708202 Contact Us For Availability
23
MAY 07712200 MAY 07712200 Contact Us For Availability
24
MAY Y07713700 MAY Y07713700 Contact Us For Availability
24
MAY Y07708200 MAY Y07708200 Contact Us For Availability
25
MAY 0088779 MAY 0088779 Contact Us For Availability
25
MAY Y0090761 MAY Y0090761 Contact Us For Availability
26
MAY Y06564900 MAY Y06564900 Contact Us For Availability
26
MAY Y03022901 MAY Y03022901 Contact Us For Availability
27
MAY 07712802 MAY 07712802 Contact Us For Availability
27
MAY 07712803 MAY 07712803 Contact Us For Availability
27
MAY 06561400 MAY 06561400 Contact Us For Availability
28
MAY 06565500 MAY 06565500 Contact Us For Availability
28
MAY 0057313 MAY 0057313 Contact Us For Availability
30
MAY Y06565600 MAY Y06565600 Contact Us For Availability
31
MAY 0056477 MAY 0056477 Contact Us For Availability
36
MAY Y0063661 MAY Y0063661 Contact Us For Availability
NI
MAY 07709700 MAY 07709700 Contact Us For Availability
NI
MAY Y0311946 MAY Y0311946 Contact Us For Availability
NI
MAY Y07712300 MAY Y07712300 Contact Us For Availability
NI
MAY Y07712301 MAY Y07712301 Contact Us For Availability
NI
MAY 0310239 MAY 0310239 Contact Us For Availability
NI
MAY 0310240 MAY 0310240 Contact Us For Availability
NI
MAY Y0310804 MAY Y0310804 Contact Us For Availability
NI
MAY Y0311884 MAY Y0311884 Contact Us For Availability
NI
MAY 0055047 MAY 0055047 Contact Us For Availability
NI
MAY 0310233 MAY 0310233 Contact Us For Availability
NI
MAY 07601000 MAY 07601000 Contact Us For Availability
NI
MAY Y0056088 MAY Y0056088 Contact Us For Availability
NI
MAY Y0310113 MAY Y0310113 Contact Us For Availability
NI
MAY Y0310611 MAY Y0310611 Contact Us For Availability
NI
MAY Y0310803 MAY Y0310803 Contact Us For Availability
NI
MAY 0310033 MAY 0310033 Contact Us For Availability
NI
MAY Y0310363 MAY Y0310363 Contact Us For Availability
NI
MAY Y07727400 MAY Y07727400 Contact Us For Availability
NI
MAY Y07727500 MAY Y07727500 Contact Us For Availability
NI
MAY Y0086775 MAY Y0086775 Contact Us For Availability
NI
MAY Y0310409 MAY Y0310409 Contact Us For Availability
NI
MAY Y0311900 MAY Y0311900 Contact Us For Availability
× ![]()
