Model GE RK960G*01 – Common Parts & Diagrams
DOOR LOWER OVEN
LOWER OVEN

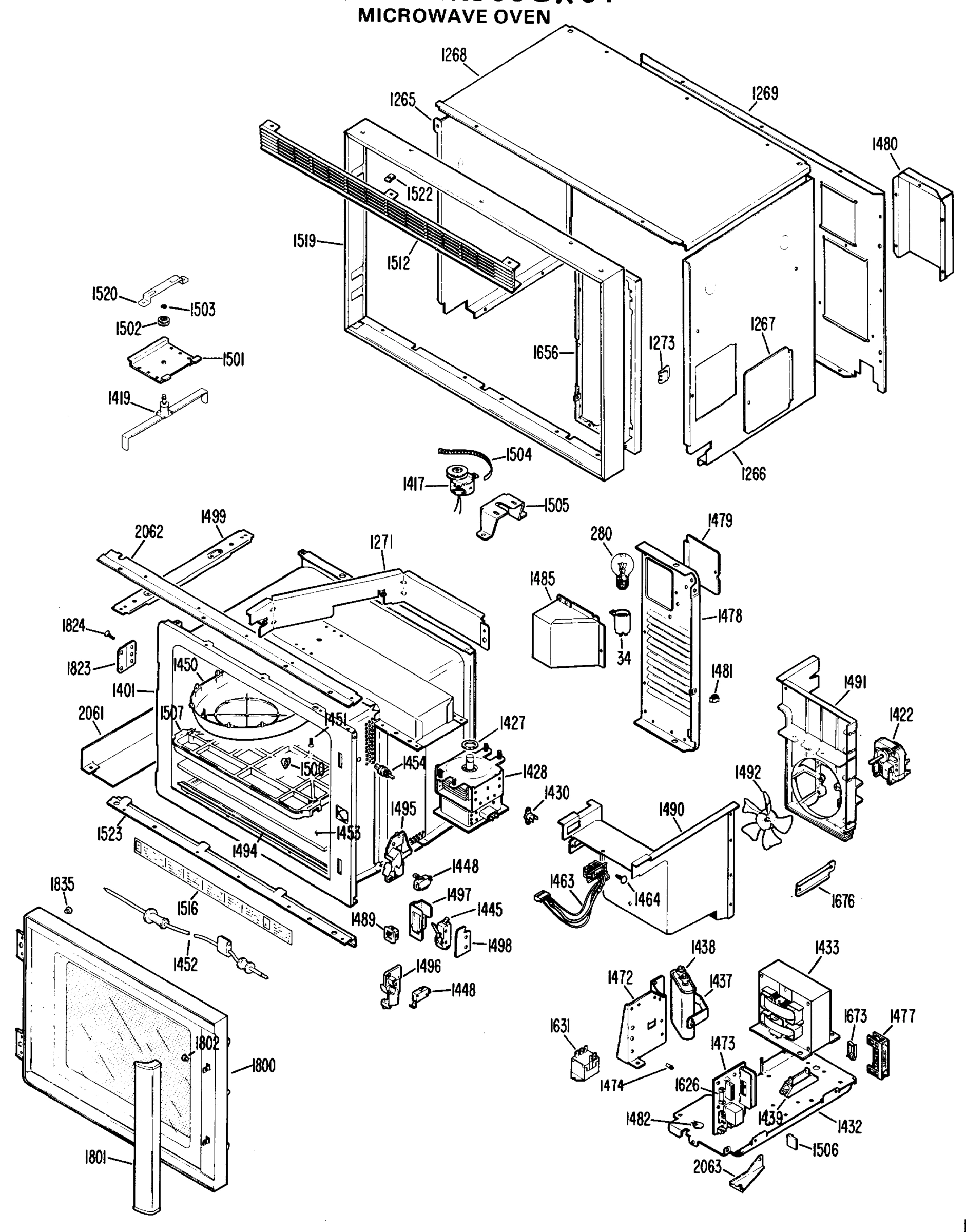

MICROWAVE OVEN
Common parts from model GE RK960G*01
5
GEN WB02X3468 GEN WB02X3468 Contact Us For Availability
8
SWITCH, LATCH RELEASE GEN WB24X0108 Contact Us For Availability
11
GEN WB22X5116 GEN WB22X5116 Contact Us For Availability
14
GEN WB24X0234 GEN WB24X0234 Contact Us For Availability
16
GEN WB19X5270 GEN WB19X5270 Contact Us For Availability
17
GEN WB03X5630 GEN WB03X5630 Contact Us For Availability
18
PAD GEN WB02X3232 Contact Us For Availability
18
GEN WB36X5516 GEN WB36X5516 Contact Us For Availability
34
GEN WB08X5086 GEN WB08X5086 Contact Us For Availability
39
GEN WB02X6624 GEN WB02X6624 Contact Us For Availability
51
GEN WB02X1409 GEN WB02X1409 Contact Us For Availability
51
GEN WB02X3061 GEN WB02X3061 Contact Us For Availability
103
SPEEDNUT GEN WB01X0528 Contact Us For Availability
141
GEN WB04X5110 GEN WB04X5110 Contact Us For Availability
142
GEN WB02X7267 GEN WB02X7267 Contact Us For Availability
143
GEN WB02X7268 GEN WB02X7268 Contact Us For Availability
148
GEN WZ04X0237 GEN WZ04X0237 Contact Us For Availability
260
HINGE LEVER RH & LH GEN WB10X0158 Contact Us For Availability
261
GEN WB10X0154 GEN WB10X0154 Contact Us For Availability
261
GEN WB10X0155 GEN WB10X0155 Contact Us For Availability
262
GEN WB02X3403 GEN WB02X3403 Contact Us For Availability
263
PIN HINGE GEN WB02X6195 Contact Us For Availability
264
PIN HINGE RETAINER GEN WB02X1082 Contact Us For Availability
265
GEN WB02X3303 GEN WB02X3303 Contact Us For Availability
267
GEN WB09X0156 GEN WB09X0156 Contact Us For Availability
268
GEN WB29X0053 GEN WB29X0053 Contact Us For Availability
269
GEN WB02X3388 GEN WB02X3388 Contact Us For Availability
269
GEN WB02X3421 GEN WB02X3421 Contact Us For Availability
271
COVER VENT GEN WB02X0818 Contact Us For Availability
273
TERMINAL BLOCK DIST. GEN WB17X0167 Contact Us For Availability
277
GEN WB24X0105 GEN WB24X0105 Contact Us For Availability
279
GEN WB08X0191 GEN WB08X0191 Contact Us For Availability
281
GEN WB02X3466 GEN WB02X3466 Contact Us For Availability
282
THERMAL SWITCH GEN WB24X5138 Contact Us For Availability
283
GEN WB02X3163 GEN WB02X3163 Contact Us For Availability
283
GEN WB02X3164 GEN WB02X3164 Contact Us For Availability
290
THERMAL FAN SWITCH GEN WB24X0199 Contact Us For Availability
305
GEN WB02X6653 GEN WB02X6653 Contact Us For Availability
313
GEN WB26X5052 GEN WB26X5052 Contact Us For Availability
314
BLADE FAN GEN WB02X2911 Contact Us For Availability
350
GEN WB02X3312 GEN WB02X3312 Contact Us For Availability
350
GEN WB02X3314 GEN WB02X3314 Contact Us For Availability
350
GEN WB55X5247 GEN WB55X5247 Contact Us For Availability
354
GEN WB09X0154 GEN WB09X0154 Contact Us For Availability
355
GEN WB02X2276 GEN WB02X2276 Contact Us For Availability
355
GEN WB02X3313 GEN WB02X3313 Contact Us For Availability
355
GEN WB55X5246 GEN WB55X5246 Contact Us For Availability
358
GEN WB36X0557 GEN WB36X0557 Contact Us For Availability
359
GEN WB07X1150 GEN WB07X1150 Contact Us For Availability
360
GEN WB49X0354 GEN WB49X0354 Contact Us For Availability
361
GEN WZ04X0425 GEN WZ04X0425 Contact Us For Availability
365
GEN WB15X5140 GEN WB15X5140 Contact Us For Availability
373
GEN WB36X5495 GEN WB36X5495 Contact Us For Availability
374
GASKET WINDOW GEN WB02X3048 Contact Us For Availability
393
GEN WB09X0153 GEN WB09X0153 Contact Us For Availability
398
SCR SHOULDER GEN WB01X0600 Contact Us For Availability
399
PAD GEN WB02X3285 Contact Us For Availability
404
GEN WB36X0540 GEN WB36X0540 Contact Us For Availability
408
GEN WB02X7208 GEN WB02X7208 Contact Us For Availability
408
GEN WB55X0419 GEN WB55X0419 Contact Us For Availability
410
GEN WB02X3310 GEN WB02X3310 Contact Us For Availability
411
GEN WB01X0439 GEN WB01X0439 Contact Us For Availability
416
GEN WB02X3334 GEN WB02X3334 Contact Us For Availability
416
GEN WB02X3335 GEN WB02X3335 Contact Us For Availability
417
GEN WB02X3332 GEN WB02X3332 Contact Us For Availability
418
GEN WB02X3333 GEN WB02X3333 Contact Us For Availability
419
GEN WB02X3336 GEN WB02X3336 Contact Us For Availability
420
GEN WB02X3337 GEN WB02X3337 Contact Us For Availability
421
GEN WB09X0157 GEN WB09X0157 Contact Us For Availability
422
GEN WB02X7209 GEN WB02X7209 Contact Us For Availability
424
GEN WB02X3331 GEN WB02X3331 Contact Us For Availability
425
GEN WB07X1151 GEN WB07X1151 Contact Us For Availability
520
PLUG BUTTON CAP TUBE GEN WB02X1125 Contact Us For Availability
520
GEN WB02X2116 GEN WB02X2116 Contact Us For Availability
520
GEN WB02X3471 GEN WB02X3471 Contact Us For Availability
520
GEN WB53X0252 GEN WB53X0252 Contact Us For Availability
521
HOOK PACKAGE GEN WB09X0088 Contact Us For Availability
522
GEN WB02X3393 GEN WB02X3393 Contact Us For Availability
524
GEN WB02X2659 GEN WB02X2659 Contact Us For Availability
526
GEN WB02X3165 GEN WB02X3165 Contact Us For Availability
527
GEN WB44X0207 GEN WB44X0207 Contact Us For Availability
528
GEN WB48X0082 GEN WB48X0082 Contact Us For Availability
538
GEN WB02X3452 GEN WB02X3452 Contact Us For Availability
652
SUPPORT BROIL GEN WB02X1452 Contact Us For Availability
700
BARRIR LATCH SW LOWER OV GEN WB02X6912 Contact Us For Availability
700
LATCH GEN WB14X5035 Contact Us For Availability
701
HANDLE LATCH GEN WB15X0151 Contact Us For Availability
702
GEN WB03X0434 GEN WB03X0434 Contact Us For Availability
703
RETAINER KNOB GEN WB02X2030 Contact Us For Availability
704
GEN WB02X3157 GEN WB02X3157 Contact Us For Availability
705
GEN WB02X3158 GEN WB02X3158 Contact Us For Availability
706
GEN WB02X3159 GEN WB02X3159 Contact Us For Availability
707
PLATE MOUNTING GEN WB02X3160 Contact Us For Availability
708
SWITCH LATCH GEN WB24X0183 Contact Us For Availability
709
GEN WB24X5097 GEN WB24X5097 Contact Us For Availability
710
GEN WB09X0148 GEN WB09X0148 Contact Us For Availability
711
GEN WB02X6212 GEN WB02X6212 Contact Us For Availability
712
RETAINER RING GEN WB02X1800 Contact Us For Availability
923
GEN WB07X6814 GEN WB07X6814 Contact Us For Availability
924
GEN WB02X6497 GEN WB02X6497 Contact Us For Availability
926
GEN WB02X7259 GEN WB02X7259 Contact Us For Availability
959
GEN WB02X7261 GEN WB02X7261 Contact Us For Availability
960
SUPPORT SIDE L H GEN WB02X7239 Contact Us For Availability
960
GEN WB02X7240 GEN WB02X7240 Contact Us For Availability
961
GEN WB01X5628 GEN WB01X5628 Contact Us For Availability
961
GEN WB02X7241 GEN WB02X7241 Contact Us For Availability
963
GEN WB02X7223 GEN WB02X7223 Contact Us For Availability
1265
GEN WB56X5931 GEN WB56X5931 Contact Us For Availability
1266
GEN WB56X5932 GEN WB56X5932 Contact Us For Availability
1267
GEN WB02X7255 GEN WB02X7255 Contact Us For Availability
1268
GEN WB56X5933 GEN WB56X5933 Contact Us For Availability
1269
GEN WB49X5301 GEN WB49X5301 Contact Us For Availability
1270
GEN WB02X7256 GEN WB02X7256 Contact Us For Availability
1271
GEN WB49X5303 GEN WB49X5303 Contact Us For Availability
1273
GEN WB02X7258 GEN WB02X7258 Contact Us For Availability
1401
GEN WB53X5085 GEN WB53X5085 Contact Us For Availability
1417
GEN WB26X5066 GEN WB26X5066 Contact Us For Availability
1419
GEN WB02X7214 GEN WB02X7214 Contact Us For Availability
1422
MOTOR GEN WB26X5063 Contact Us For Availability
1427
GEN WB02X6046 GEN WB02X6046 Contact Us For Availability
1428
HI VOLTAGE WIRE GEN WB18X5048 Contact Us For Availability
1430
THERMOSTAT FIXED TEMP GEN WB27X5219 Contact Us For Availability
1432
GEN WB02X7063 GEN WB02X7063 Contact Us For Availability
1433
GEN WB02X7202 GEN WB02X7202 Contact Us For Availability
1433
TRANSFORMER POWER GEN WB27X5215 Contact Us For Availability
1437
GEN WB02X7061 GEN WB02X7061 Contact Us For Availability
1438
GEN WB27X5212 GEN WB27X5212 Contact Us For Availability
1439
GEN WB27X5070 GEN WB27X5070 Contact Us For Availability
1445
SWITCH MONITOR GEN WB24X5157 Contact Us For Availability
1448
SWITCH GEN WB24X5168 Contact Us For Availability
1450
GEN WB56X5882 GEN WB56X5882 Contact Us For Availability
1451
FASTENER COVER GEN WB01X5453 Contact Us For Availability
1452
GEN WB20X5045 GEN WB20X5045 Contact Us For Availability
1453
GEN WB48X5062 GEN WB48X5062 Contact Us For Availability
1454
GEN WB20X5042 GEN WB20X5042 Contact Us For Availability
1458
GEN WB17X5062 GEN WB17X5062 Contact Us For Availability
1458
TERMINAL BLK ASM (4 PIN) GEN WB17X5065 Contact Us For Availability
1458
TERM BLK ASM-1 PIN(1458) GEN WB17X5073 Contact Us For Availability
1472
GEN WB02X7060 GEN WB02X7060 Contact Us For Availability
1473
POWER CONTROL MODULE GEN WB27X5246 Contact Us For Availability
1474
GEN WB02X7062 GEN WB02X7062 Contact Us For Availability
1477
GEN WB02X7065 GEN WB02X7065 Contact Us For Availability
1478
GEN WB49X5275 GEN WB49X5275 Contact Us For Availability
1479
GEN WB02X7068 GEN WB02X7068 Contact Us For Availability
1480
GEN WB49X5302 GEN WB49X5302 Contact Us For Availability
1481
GEN WB02X7069 GEN WB02X7069 Contact Us For Availability
1482
VARISTOR ASM GEN WB27X5230 Contact Us For Availability
1485
GEN WB02X7073 GEN WB02X7073 Contact Us For Availability
1489
GEN WB10X5138 GEN WB10X5138 Contact Us For Availability
1490
GEN WB49X5300 GEN WB49X5300 Contact Us For Availability
1491
GEN WB02X7254 GEN WB02X7254 Contact Us For Availability
1492
GEN WB02X7079 GEN WB02X7079 Contact Us For Availability
1494
GEN WB02X7080 GEN WB02X7080 Contact Us For Availability
1494
GEN WB02X7081 GEN WB02X7081 Contact Us For Availability
1494
GEN WB02X7082 GEN WB02X7082 Contact Us For Availability
1494
GEN WB02X7098 GEN WB02X7098 Contact Us For Availability
1495
GEN WB02X7083 GEN WB02X7083 Contact Us For Availability
1496
GEN WB02X7084 GEN WB02X7084 Contact Us For Availability
1497
GEN WB02X7085 GEN WB02X7085 Contact Us For Availability
1498
GEN WB02X7086 GEN WB02X7086 Contact Us For Availability
1499
GEN WB49X5274 GEN WB49X5274 Contact Us For Availability
1500
GEN WB02X7087 GEN WB02X7087 Contact Us For Availability
1501
GEN WB02X7089 GEN WB02X7089 Contact Us For Availability
1502
GEN WB02X7090 GEN WB02X7090 Contact Us For Availability
1503
GEN WB01X5586 GEN WB01X5586 Contact Us For Availability
1504
GEN WB02X7091 GEN WB02X7091 Contact Us For Availability
1505
GEN WB02X7092 GEN WB02X7092 Contact Us For Availability
1506
GEN WB17X5077 GEN WB17X5077 Contact Us For Availability
1506
GEN WB17X5078 GEN WB17X5078 Contact Us For Availability
1507
RACK GEN WB48X5063 Contact Us For Availability
1510
CONN BLOCK SMART BD PIN) GEN WB17X5076 Contact Us For Availability
1516
GEN WB07X6802 GEN WB07X6802 Contact Us For Availability
1519
GEN WB07X6805 GEN WB07X6805 Contact Us For Availability
1520
GEN WB02X7242 GEN WB02X7242 Contact Us For Availability
1521
GEN WB07X6813 GEN WB07X6813 Contact Us For Availability
1522
GEN WB02X5629 GEN WB02X5629 Contact Us For Availability
1523
RAIL SUPPORT FRONT GEN WB49X5185 Contact Us For Availability
1601
GEN WB07X6807 GEN WB07X6807 Contact Us For Availability
1626
GEN WB02X7224 GEN WB02X7224 Contact Us For Availability
1631
GEN WB27X5271 GEN WB27X5271 Contact Us For Availability
1643
GEN WB27X5236 GEN WB27X5236 Contact Us For Availability
1654
GEN WB27X5225 GEN WB27X5225 Contact Us For Availability
1655
GEN WB27X5240 GEN WB27X5240 Contact Us For Availability
1656
GEN WB02X7252 GEN WB02X7252 Contact Us For Availability
1657
GEN WB02X7229 GEN WB02X7229 Contact Us For Availability
1659
MTG TRIM SCREW GEN WB01X5578 Contact Us For Availability
1660
GEN WB02X7260 GEN WB02X7260 Contact Us For Availability
1673
GEN WB02X7066 GEN WB02X7066 Contact Us For Availability
1673
GEN WB02X7226 GEN WB02X7226 Contact Us For Availability
1676
GEN WB02X7253 GEN WB02X7253 Contact Us For Availability
1677
GEN WB02X7262 GEN WB02X7262 Contact Us For Availability
1678
GEN WB02X7263 GEN WB02X7263 Contact Us For Availability
1679
GEN WB02X7264 GEN WB02X7264 Contact Us For Availability
1800
GEN WB56X5930 GEN WB56X5930 Contact Us For Availability
1801
GEN WB15X5135 GEN WB15X5135 Contact Us For Availability
1802
GEN WB01X5580 GEN WB01X5580 Contact Us For Availability
1823
GEN WB10X5133 GEN WB10X5133 Contact Us For Availability
1824
GEN WB01X5581 GEN WB01X5581 Contact Us For Availability
1835
GEN WB01X5584 GEN WB01X5584 Contact Us For Availability
2002
GEN WB56X1327 GEN WB56X1327 Contact Us For Availability
2007
GEN WB07X0934 GEN WB07X0934 Contact Us For Availability
2008
COVER ROTO & MEAT METER GEN WB02X3230 Contact Us For Availability
2011
GEN WB02X3425 GEN WB02X3425 Contact Us For Availability
2012
GEN WB38X0075 GEN WB38X0075 Contact Us For Availability
2016
GEN WB02X3289 GEN WB02X3289 Contact Us For Availability
2017
GEN WB02X2861 GEN WB02X2861 Contact Us For Availability
2018
GEN WB02X2401 GEN WB02X2401 Contact Us For Availability
2019
GEN WB02X3292 GEN WB02X3292 Contact Us For Availability
2021
GEN WB59X0164 GEN WB59X0164 Contact Us For Availability
2022
GEN WB59X0163 GEN WB59X0163 Contact Us For Availability
2023
GEN WB55X0302 GEN WB55X0302 Contact Us For Availability
2024
GEN WB49X0327 GEN WB49X0327 Contact Us For Availability
2025
GEN WB02X2845 GEN WB02X2845 Contact Us For Availability
2026
GEN WB02X2842 GEN WB02X2842 Contact Us For Availability
2027
GEN WB02X3156 GEN WB02X3156 Contact Us For Availability
2028
GEN WB49X0268 GEN WB49X0268 Contact Us For Availability
2029
GEN WB49X0223 GEN WB49X0223 Contact Us For Availability
2032
GEN WB49X5299 GEN WB49X5299 Contact Us For Availability
2034
GEN WB49X0355 GEN WB49X0355 Contact Us For Availability
2035
CHANNEL AIR GEN WB49X0356 Contact Us For Availability
2036
GEN WB49X0357 GEN WB49X0357 Contact Us For Availability
2037
GEN WB07X6804 GEN WB07X6804 Contact Us For Availability
2038
SPEEDNUT GEN WB02X3298 Contact Us For Availability
2039
GEN WB02X7247 GEN WB02X7247 Contact Us For Availability
2039
POST REAR GEN WB02X7248 Contact Us For Availability
2040
GEN WB02X3305 GEN WB02X3305 Contact Us For Availability
2041
GEN WB02X3304 GEN WB02X3304 Contact Us For Availability
2043
GEN WB02X3423 GEN WB02X3423 Contact Us For Availability
2045
GEN WB02X3422 GEN WB02X3422 Contact Us For Availability
2047
GEN WB02X2846 GEN WB02X2846 Contact Us For Availability
2052
GEN WB49X0269 GEN WB49X0269 Contact Us For Availability
2057
GEN WB02X7244 GEN WB02X7244 Contact Us For Availability
2057
GEN WB02X7245 GEN WB02X7245 Contact Us For Availability
2058
GEN WB02X7257 GEN WB02X7257 Contact Us For Availability
2059
GEN WB49X5298 GEN WB49X5298 Contact Us For Availability
2060
GEN WB02X7246 GEN WB02X7246 Contact Us For Availability
2061
GEN WB02X7249 GEN WB02X7249 Contact Us For Availability
2062
GEN WB02X7250 GEN WB02X7250 Contact Us For Availability
2063
GEN WB02X7251 GEN WB02X7251 Contact Us For Availability
2064
SUPPORT REAR GEN WB63X5198 Contact Us For Availability
2065
GEN WB02X7265 GEN WB02X7265 Contact Us For Availability
2066
GEN WB02X7266 GEN WB02X7266 Contact Us For Availability
9999
GEN 39-4493 GEN 39-4493 Contact Us For Availability
9999
GEN 49-4548 GEN 49-4548 Contact Us For Availability
× ![]()
