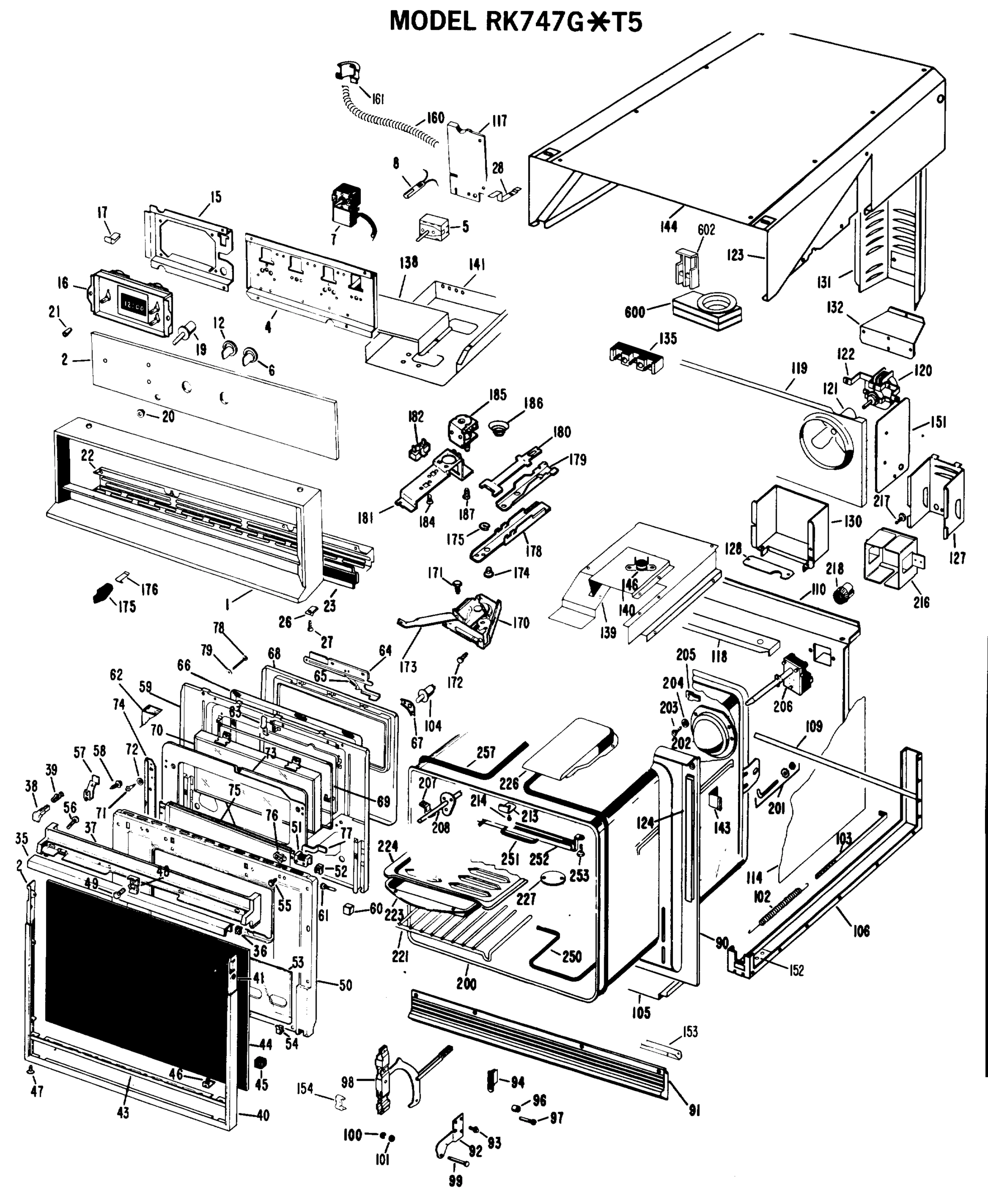

Model Hotpoint RK747G*T5 Electric Range – Common Parts & Diagrams
Common parts from model Hotpoint RK747G*T5 Electric Range
1
GEN WB02X3297 GEN WB02X3297 Contact Us For Availability
1
GEN WB07X1122 GEN WB07X1122 Contact Us For Availability
1
GEN WB07X1123 GEN WB07X1123 Contact Us For Availability
1
SCREW MT. NOSE GEN WZ05X0226 Contact Us For Availability
2
GEN WB36X0558 GEN WB36X0558 Contact Us For Availability
4
GEN WB02X3453 GEN WB02X3453 Contact Us For Availability
5
GEN WB22X5085 GEN WB22X5085 Contact Us For Availability
6
GEN WB03X0407 GEN WB03X0407 Contact Us For Availability
7
SCR 8-32 M PHR 3/16 S GEN WZ02X0528 Contact Us For Availability
7
GEN WB02X1949 GEN WB02X1949 Contact Us For Availability
7
GEN WB02X5545 GEN WB02X5545 Contact Us For Availability
7
GEN WB02X6937 GEN WB02X6937 Contact Us For Availability
7
GEN WB24X0176 GEN WB24X0176 Contact Us For Availability
8
NEON LAMP 118V GEN WB02X1608 Contact Us For Availability
8
GEN WB02X3468 GEN WB02X3468 Contact Us For Availability
12
GEN WB03X0405 GEN WB03X0405 Contact Us For Availability
15
GEN WB01X0538 GEN WB01X0538 Contact Us For Availability
15
GEN WB02X3405 GEN WB02X3405 Contact Us For Availability
16
NUT GEN WB01X0540 Contact Us For Availability
17
GEN WB02X2006 GEN WB02X2006 Contact Us For Availability
19
SWITCH, LATCH RELEASE GEN WB24X0205 Contact Us For Availability
20
TRIM - SWITCH GEN WB02X1838 Contact Us For Availability
21
KNOB, TIMER GEN WB03X0218 Contact Us For Availability
22
GEN WB02X1973 GEN WB02X1973 Contact Us For Availability
23
GEN WB07X0933 GEN WB07X0933 Contact Us For Availability
23
GEN WZ05X0132 GEN WZ05X0132 Contact Us For Availability
26
GEN WB01X0544 GEN WB01X0544 Contact Us For Availability
27
GEN WZ04X0218 GEN WZ04X0218 Contact Us For Availability
28
GEN WB02X3291 GEN WB02X3291 Contact Us For Availability
28
GEN WZ04X0369 GEN WZ04X0369 Contact Us For Availability
28
GEN WZ04X0372 GEN WZ04X0372 Contact Us For Availability
35
GEN WB15X0154 GEN WB15X0154 Contact Us For Availability
36
GEN WB01X0579 GEN WB01X0579 Contact Us For Availability
37
GEN WB07X1151 GEN WB07X1151 Contact Us For Availability
38
GEN WB02X3337 GEN WB02X3337 Contact Us For Availability
39
GEN WB09X0157 GEN WB09X0157 Contact Us For Availability
40
GEN WB07X1150 GEN WB07X1150 Contact Us For Availability
41
GEN WB02X3334 GEN WB02X3334 Contact Us For Availability
42
GEN WB02X3335 GEN WB02X3335 Contact Us For Availability
43
GEN WB02X3336 GEN WB02X3336 Contact Us For Availability
44
GEN WB36X0557 GEN WB36X0557 Contact Us For Availability
46
GEN WB02X3333 GEN WB02X3333 Contact Us For Availability
48
GEN WB02X3331 GEN WB02X3331 Contact Us For Availability
50
GEN WB55X0419 GEN WB55X0419 Contact Us For Availability
51
GEN WB02X3310 GEN WB02X3310 Contact Us For Availability
52
GEN WB01X0439 GEN WB01X0439 Contact Us For Availability
53
GEN WB36X0540 GEN WB36X0540 Contact Us For Availability
54
GEN WB02X3332 GEN WB02X3332 Contact Us For Availability
56
GEN WZ04X0410 GEN WZ04X0410 Contact Us For Availability
57
GEN WB09X0153 GEN WB09X0153 Contact Us For Availability
59
GEN WB55X0406 GEN WB55X0406 Contact Us For Availability
60
PAD GEN WB02X3285 Contact Us For Availability
62
GEN WB02X3312 GEN WB02X3312 Contact Us For Availability
62
GEN WB02X3314 GEN WB02X3314 Contact Us For Availability
63
GEN WB09X0154 GEN WB09X0154 Contact Us For Availability
64
GEN WB02X3315 GEN WB02X3315 Contact Us For Availability
65
GEN WB09X0128 GEN WB09X0128 Contact Us For Availability
67
GEN WB02X3316 GEN WB02X3316 Contact Us For Availability
68
GEN WB02X2276 GEN WB02X2276 Contact Us For Availability
68
GEN WB02X3313 GEN WB02X3313 Contact Us For Availability
68
GEN WB55X0407 GEN WB55X0407 Contact Us For Availability
69
GASKET WINDOW GEN WB02X3048 Contact Us For Availability
70
WINDOW GEN WB36X0448 Contact Us For Availability
71
GEN WB01X0547 GEN WB01X0547 Contact Us For Availability
72
GEN WB01X0548 GEN WB01X0548 Contact Us For Availability
73
GEN WB49X0354 GEN WB49X0354 Contact Us For Availability
74
GEN WB02X3317 GEN WB02X3317 Contact Us For Availability
74
GEN WB02X3318 GEN WB02X3318 Contact Us For Availability
75
GEN WB55X0408 GEN WB55X0408 Contact Us For Availability
76
GEN WZ04X0238 GEN WZ04X0238 Contact Us For Availability
76
GEN WB02X3040 GEN WB02X3040 Contact Us For Availability
77
GEN WB02X3319 GEN WB02X3319 Contact Us For Availability
77
GEN WB02X3320 GEN WB02X3320 Contact Us For Availability
78
GEN WZ04X0386 GEN WZ04X0386 Contact Us For Availability
90
GEN WB56X1327 GEN WB56X1327 Contact Us For Availability
91
GEN WB07X0934 GEN WB07X0934 Contact Us For Availability
91
GEN WZ04X0349 GEN WZ04X0349 Contact Us For Availability
92
GEN WB10X0154 GEN WB10X0154 Contact Us For Availability
92
GEN WE10X0155 GEN WE10X0155 Contact Us For Availability
93
GEN WZ06X0086 GEN WZ06X0086 Contact Us For Availability
94
GEN WB02X3303 GEN WB02X3303 Contact Us For Availability
96
GEN WB02X3304 GEN WB02X3304 Contact Us For Availability
96
GEN WB02X3305 GEN WB02X3305 Contact Us For Availability
97
GEN WB01X0524 GEN WB01X0524 Contact Us For Availability
98
GEN WB02X3166 GEN WB02X3166 Contact Us For Availability
98
GEN WB10 GEN WB10 Contact Us For Availability
× ![]()
