Model Whirlpool RJM76001 – Common Parts & Diagrams
02 - DOOR AND LATCH
04 - MAGNETRON AND AIRFLOW

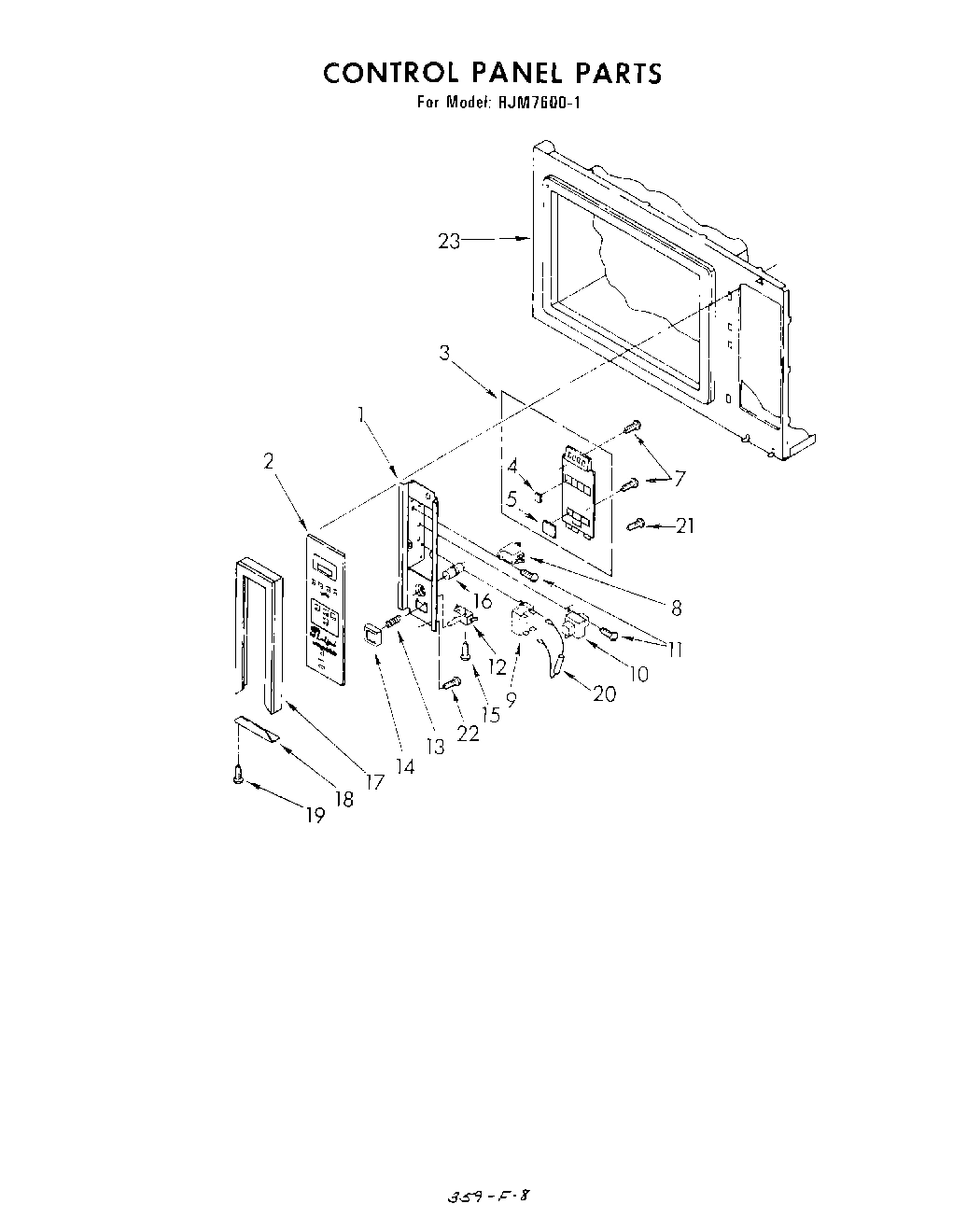

05 - CONTROL PANEL

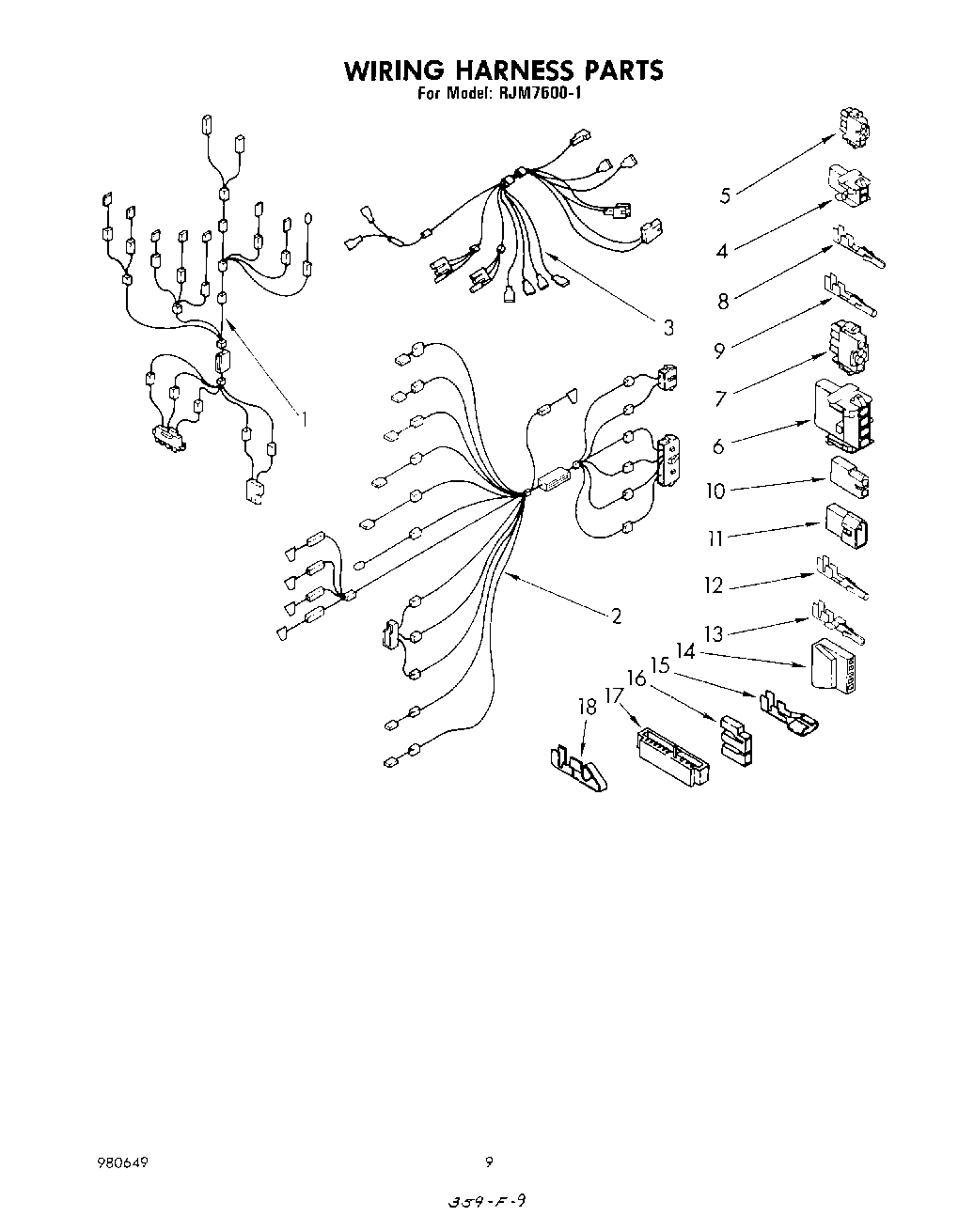

06 - WIRING HARNESS

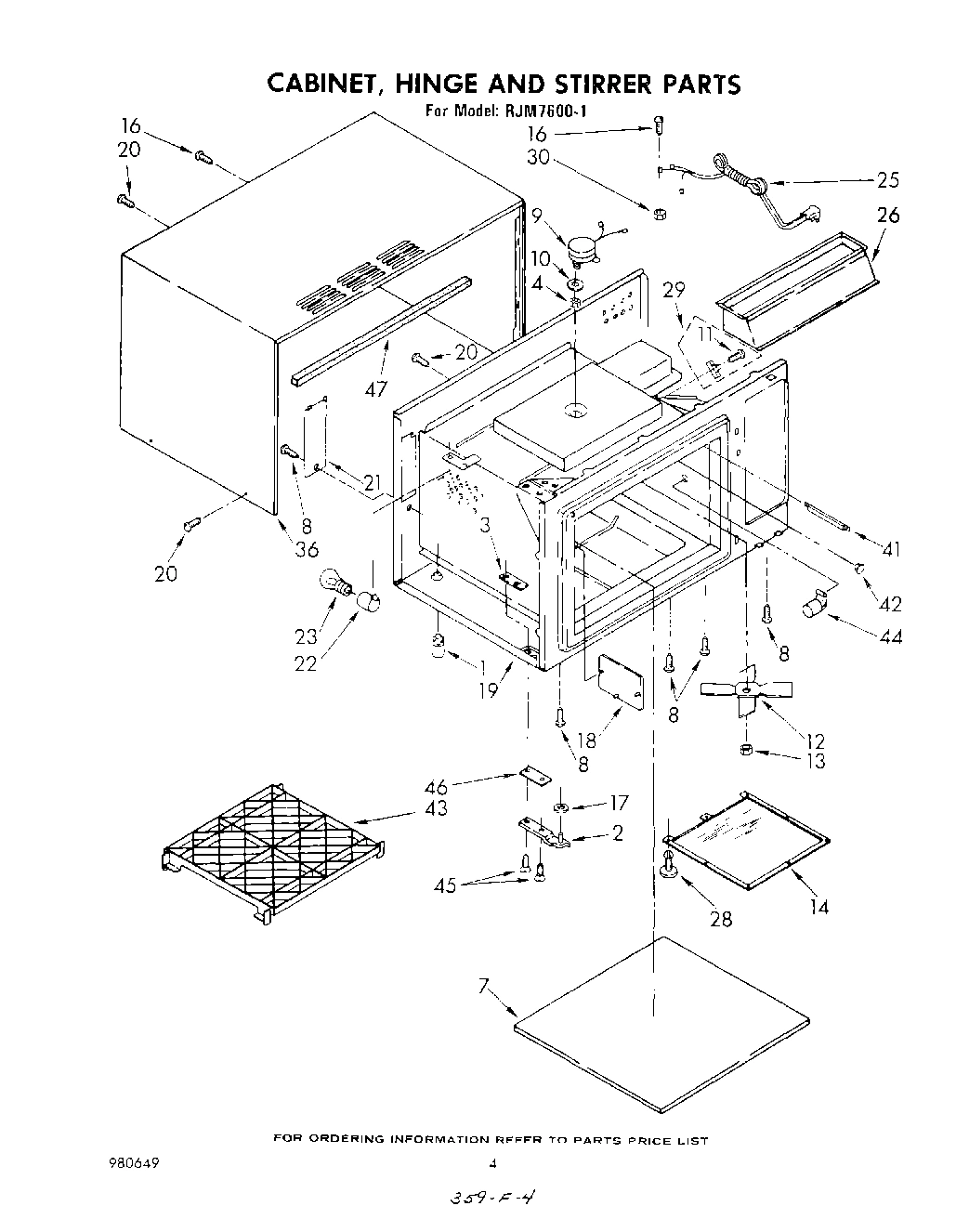

03 - CABINET, HINGE AND STIRRER , LITERATURE
Common parts from model Whirlpool RJM76001
1
Cabinet (Not A Serviceable Part) WPL ARI123460A Contact Us For Availability
1
Bracket, Control WPL 310310 Contact Us For Availability
1
harness, main WPL 310813 Contact Us For Availability
1
Foot, Mounting (4) WPL 307540 Contact Us For Availability
2
Panel, Control WPL 311778 Contact Us For Availability
2
Harness, Control WPL 311681 Contact Us For Availability
2
hinge door (top) WPL 329070 Contact Us For Availability
2
hinge door (bottom) WPL 329071 Contact Us For Availability
3
Deflector, Air WPL 307635 Contact Us For Availability
3
Microcomputer WPL 329407 Contact Us For Availability
3
harness, interlock WPL 310818 Contact Us For Availability
3
Plate, Hinge (2) (Top & Bottom) WPL 312092 Contact Us For Availability
4
screw, 10-32 x 1/2 (4) WPL 312185 Contact Us For Availability
4
Button, Small (4) WPL 309585 Contact Us For Availability
4
cap, terminal (uses 310222 or 310223 pin term WPL 310959 Contact Us For Availability
4
Nut WPL 309768 Contact Us For Availability
5
Button, Large (4) WPL 309584 Contact Us For Availability
5
plug, circuit (uses 310959 cap) (uses 310222 WPL 310957 Contact Us For Availability
6
Seal Sides (2) (Alternate) WPL 311343 Contact Us For Availability
6
Seal Sides (2) (Alternate) WPL 311635 Contact Us For Availability
6
Transformer WPL 307676 Contact Us For Availability
6
cap, terminal (uses 310222 or 310223 pin term WPL 310960 Contact Us For Availability
7
Retain, Side Seal (2) WPL 311341 Contact Us For Availability
7
resistor (2 watt 10m ohm) WPL 329163 Contact Us For Availability
7
Screw, 6-18 x 3/8 (6) WPL 310378 Contact Us For Availability
7
Plug, Circuit (Uses 310222 or 310223 Pin Term WPL 310958 Contact Us For Availability
7
Base, Ceramic (Alternate) WPL 309145 Contact Us For Availability
7
Base, Ceramic (Alternate (Install W/ Silastic WPL 311058 Contact Us For Availability
8
plunger, latch WPL 832797 Contact Us For Availability
8
Bracket, Capacitor WPL 308572 Contact Us For Availability
8
Relay, Power (Alternate) WPL 310370 Contact Us For Availability
8
Relay Power (Alternate) WPL 310372 Contact Us For Availability
8
terminal, pin (male) WPL 310222 Contact Us For Availability
8
screw, 10a x 3/8 WPL 254217 Contact Us For Availability
9
Cam, Latch WPL 310119 Contact Us For Availability
9
Block, Fuse WPL 309795 Contact Us For Availability
9
Relay, Latching WPL 311508 Contact Us For Availability
9
terminal, pin (female) WPL 310223 Contact Us For Availability
9
Motor, Stirrer (Alternate) WPL 310950 Contact Us For Availability
9
motor, stirrer (alternate) WPL 311515 Contact Us For Availability
10
Ring, ``E`` (2) WPL 310386 Contact Us For Availability
10
Rectifier, High Voltage WPL 832836 Contact Us For Availability
10
Transformer WPL 309622 Contact Us For Availability
10
receptacle, terminal (2-way) (uses 94614 term WPL 717252 Contact Us For Availability
10
Washer, Internal Lock WPL 311245 Contact Us For Availability
11
Lever, Latch Cam WPL 310120 Contact Us For Availability
11
Jumper, High Voltage (1) (Rectifier To Capaci WPL 311466 Contact Us For Availability
11
Screw, 6A x 3/8 WPL 246131 Contact Us For Availability
12
Switch, Push-To-Start WPL 309780 Contact Us For Availability
12
Stirrer 4-Blade WPL 309976 Contact Us For Availability
13
Screw, 8-32 x 9/32 WPL 310210 Contact Us For Availability
13
Spring, Push-To-Start Switch WPL 310200 Contact Us For Availability
13
Nut, Hex (1/4-20) WPL 307555 Contact Us For Availability
14
Button, Door Handle WPL 310112 Contact Us For Availability
14
Shield, Fuse WPL 310391 Contact Us For Availability
14
Button, Push To Start WPL 310141 Contact Us For Availability
14
housing, relay connector (uses 308569 termina WPL 60688 Contact Us For Availability
14
Cover, Stirrer WPL 309441 Contact Us For Availability
15
Spring, Door Handle WPL 310197 Contact Us For Availability
15
Screw, Switch Mounting (2) WPL 98106 Contact Us For Availability
15
terminal WPL 308569 Contact Us For Availability
16
Handle, Door WPL 310110 Contact Us For Availability
16
Screw, 10-32 x 1/2 WPL 258857 Contact Us For Availability
16
Guide, Wave (Riveted At Assembly, Not Service WPL ARI123461A Contact Us For Availability
16
Light, Indicator WPL 256936 Contact Us For Availability
16
insulator WPL 310241 Contact Us For Availability
17
Bracket, Door Handle WPL 310111 Contact Us For Availability
17
Capacitor (Alternate) WPL 311723 Contact Us For Availability
17
capacitor (alternate) WPL 311724 Contact Us For Availability
17
Frame, Control Panel WPL 311462 Contact Us For Availability
17
housing, edge connector (uses 60279 terminal) WPL 309606 Contact Us For Availability
17
washer, flat (2) WPL 312147 Contact Us For Availability
18
End Cap, Door WPL 310125 Contact Us For Availability
18
End Cap, Control Panel WPL 311463 Contact Us For Availability
18
Terminal WPL 60279 Contact Us For Availability
18
Cover, Light WPL 307516 Contact Us For Availability
19
Switch Kit, Door (Kit Contains Primary, Monit WPL 832811 Contact Us For Availability
19
Screw, 8-18BT x .88 (2) WPL 309170 Contact Us For Availability
19
Base & Cavity Assembly (Not Serviceable) WPL ARI123459A Contact Us For Availability
20
Damper, Spring WPL 310124 Contact Us For Availability
20
Duct, Cooling Air WPL 307529 Contact Us For Availability
20
resistor, power (3 ohm) WPL 329223 Contact Us For Availability
20
Screw, 10A x 1/2 WPL 307748 Contact Us For Availability
21
Spring, Interlock WPL 310199 Contact Us For Availability
21
Screw, Ground (8D x 5/16) WPL 246135 Contact Us For Availability
21
Cover, Lamp WPL 307512 Contact Us For Availability
22
Guide, Interlock (Not a Serviceable Part) WPL ARI123457A Contact Us For Availability
22
gasket, magnetron WPL 311718 Contact Us For Availability
22
Socket, Snap-In WPL 307519 Contact Us For Availability
23
Pin, Roller (3) WPL 307603 Contact Us For Availability
23
nut, 5 mm-0.8 flange (2) WPL 310300 Contact Us For Availability
24
Barrier, Visibility WPL 310330 Contact Us For Availability
24
Magnetron (Alternate) WPL 311461 Contact Us For Availability
24
magnetron (alternate) WPL 311505 Contact Us For Availability
25
Rivet, Accordian (5) WPL 310951 Contact Us For Availability
25
Cord, Power (Alternate) WPL 310900 Contact Us For Availability
25
cord, power (alternate) WPL 311543 Contact Us For Availability
26
screw, 4-40 x 1 (2) WPL 310211 Contact Us For Availability
26
Blade, Fan WPL 307535 Contact Us For Availability
26
Baffle, Air Exhaust WPL 309444 Contact Us For Availability
27
Switch, Light WPL 310149 Contact Us For Availability
27
mount, fan motor WPL 311905 Contact Us For Availability
28
Insulator, Light & Monitor Switch WPL 310154 Contact Us For Availability
28
nut, flange (2) WPL 311136 Contact Us For Availability
28
Fastener, Stirrer Cover (8) WPL 310423 Contact Us For Availability
29
Ring, Retaining (3) WPL 307605 Contact Us For Availability
29
Motor Fan (Alternate) WPL 310221 Contact Us For Availability
29
Motor, Fan (Alternate) WPL 310921 Contact Us For Availability
29
Fuse, Thermal WPL 309279 Contact Us For Availability
30
Slide, Interlock (Not a Serviceable Part) WPL ARI123458A Contact Us For Availability
30
clip, relay mounting (2) WPL 98084 Contact Us For Availability
30
Nut, Hex (10-32) WPL 309487 Contact Us For Availability
31
Insulator, Primary Switch WPL 307611 Contact Us For Availability
31
Wire, High Voltage (2) (Magnetron To Transfor WPL 309084 Contact Us For Availability
32
Bracket, Primary Switch WPL 310148 Contact Us For Availability
33
Deflector, Exhaust WPL 308219 Contact Us For Availability
34
Screw, 8-32 x 3/8 (2) (Ground Wire) WPL 309080 Contact Us For Availability
34
Clip WPL 338177 Contact Us For Availability
35
door, complete WPL 329430 Contact Us For Availability
35
relay, reed (alternate) WPL 309623 Contact Us For Availability
35
Reed Relay (Alternate) WPL 309941 Contact Us For Availability
36
Interlock Assembly WPL 328655 Contact Us For Availability
36
Wrapper, Cabinet WPL 307510 Contact Us For Availability
37
Latch, Door WPL 328740 Contact Us For Availability
37
Thermostat, Fixed WPL 307564 Contact Us For Availability
38
Fastener, Speed Nut (3) WPL 308845 Contact Us For Availability
40
Rivet (3) WPL 311928 Contact Us For Availability
41
Shield, Magnetron WPL 310419 Contact Us For Availability
41
Cover, Rivet WPL 309437 Contact Us For Availability
42
Plug, Button WPL 309960 Contact Us For Availability
43
Screw, 8-32 x 3/8 WPL 310629 Contact Us For Availability
43
rack, oven WPL 311318 Contact Us For Availability
44
Jumper, High Voltage (1) (Transformer To Capa WPL 311467 Contact Us For Availability
44
Support, Shelf (4) WPL 311286 Contact Us For Availability
45
Screw, 10 x 32 (4) (Oval Head) WPL 311912 Contact Us For Availability
46
Hinge Shim Locking WPL 311991 Contact Us For Availability
47
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
47
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
47
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
47
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
47
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
47
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
47
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
47
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
47
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
47
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
47
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
47
WPL 242832 WPL 242832 Contact Us For Availability
47
WPL 261940 WPL 261940 Contact Us For Availability
47
WPL 307843 WPL 307843 Contact Us For Availability
47
WPL 308292 WPL 308292 Contact Us For Availability
47
WPL 308294 WPL 308294 Contact Us For Availability
47
WPL 308295 WPL 308295 Contact Us For Availability
47
WPL 310847 WPL 310847 Contact Us For Availability
47
WPL 310929 WPL 310929 Contact Us For Availability
47
WPL 311488 WPL 311488 Contact Us For Availability
47
WPL 311596 WPL 311596 Contact Us For Availability
47
WPL 328022 WPL 328022 Contact Us For Availability
47
WPL 591014 WPL 591014 Contact Us For Availability
47
WPL 832763 WPL 832763 Contact Us For Availability
47
WPL 832765 WPL 832765 Contact Us For Availability
47
WPL 832769 WPL 832769 Contact Us For Availability
47
WPL 832790 WPL 832790 Contact Us For Availability
47
WPL 832810 WPL 832810 Contact Us For Availability
47
WPL 980649 WPL 980649 Contact Us For Availability
× ![]()
