Model Whirlpool RJM74001 – Common Parts & Diagrams
03 - CABINET, HINGE AND STIRRER , LITERATURE
05 - CONTROL PANEL

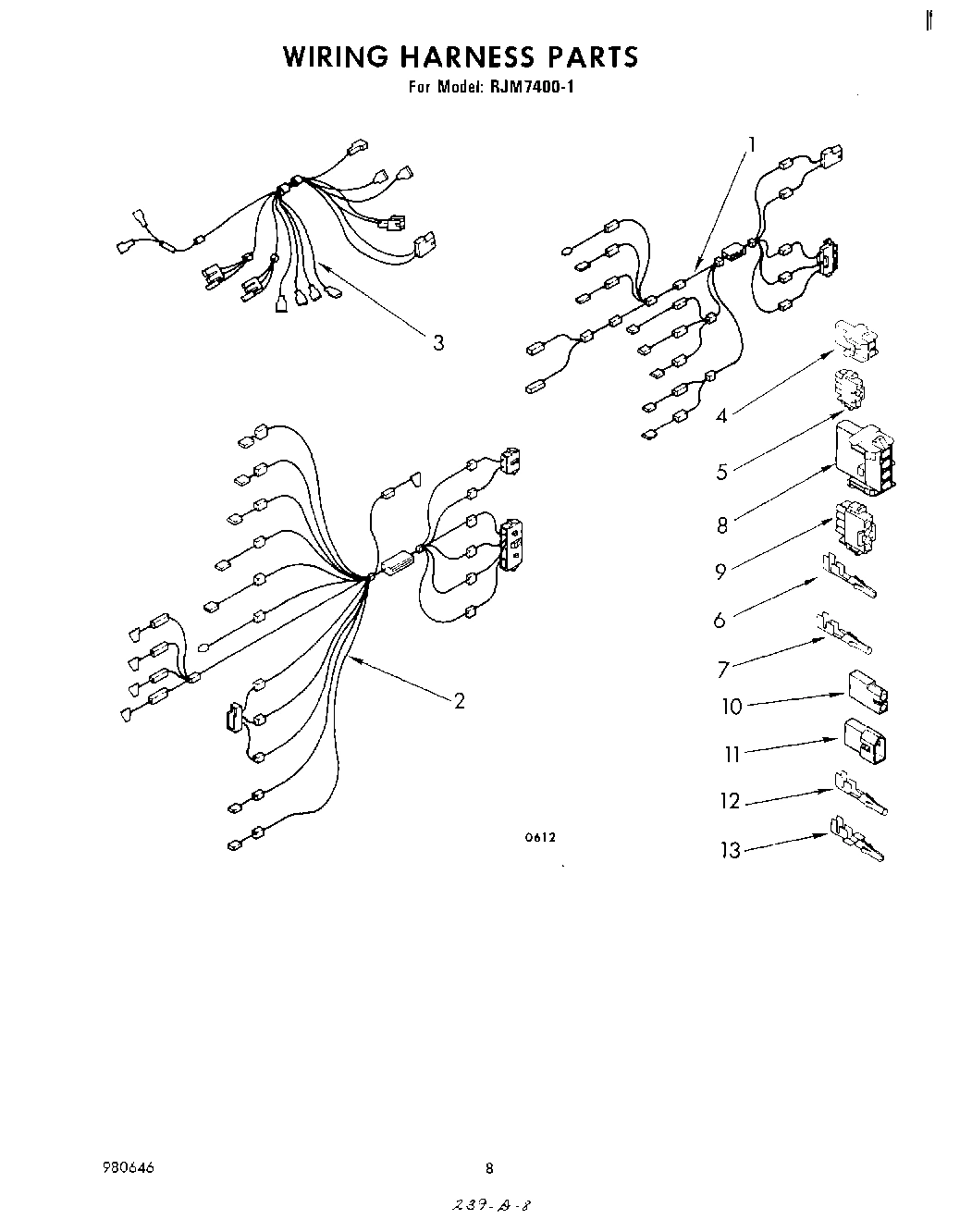

06 - WIRING HARNESS

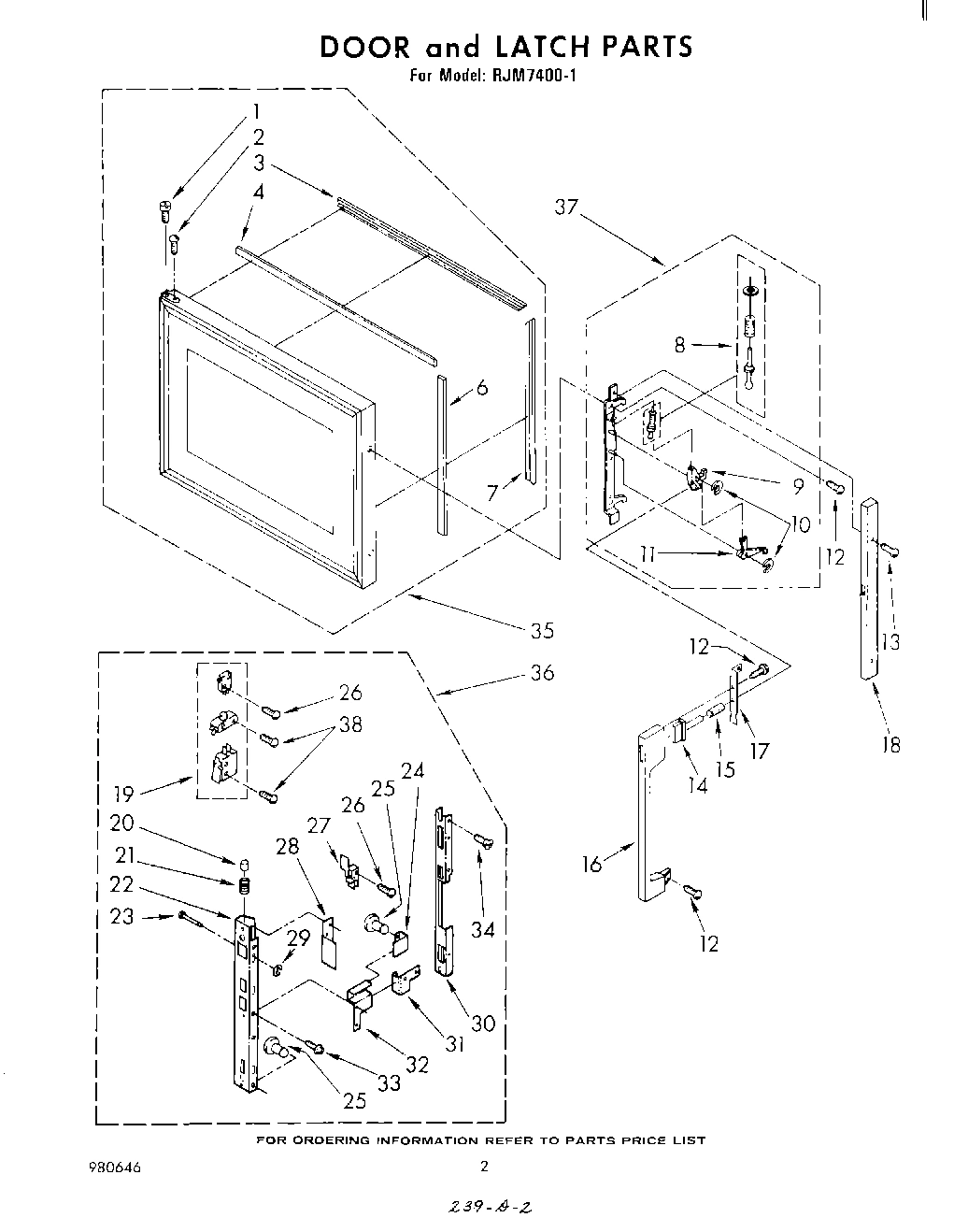

02 - DOOR AND LATCH
04 - MAGNETRON AND AIR FLOW
Common parts from model Whirlpool RJM74001
1
harness, main WPL 310813 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI123436A Contact Us For Availability
2
Frame, Control Panel WPL 311465 Contact Us For Availability
2
Harness, Control WPL 311653 Contact Us For Availability
3
Knob, Meal Timer WPL 308708 Contact Us For Availability
3
Harness, Interlock WPL 310893 Contact Us For Availability
3
Retainer, Top & Bottom Seals (2) WPL 311340 Contact Us For Availability
3
Deflector, Air WPL 307635 Contact Us For Availability
4
Nut WPL 309768 Contact Us For Availability
4
Knob, Cook Power Control WPL 307673 Contact Us For Availability
4
cap, terminal (uses 310222 or 310223 pin term WPL 310959 Contact Us For Availability
4
Seal, Top & Bottom (2) (Alternate) WPL 311342 Contact Us For Availability
4
Seal, Top & Bottom (2) (Alternate) WPL 311634 Contact Us For Availability
5
Screw, 10-32 x 1/2 WPL 258857 Contact Us For Availability
5
Screw, Timer Mounting (6-32 x 1/4) (2) WPL 487384 Contact Us For Availability
5
plug, circuit (uses 310959 cap) (uses 310222 WPL 310957 Contact Us For Availability
6
Screw, Ground WPL 342043 Contact Us For Availability
6
terminal, pin (male) WPL 310222 Contact Us For Availability
6
Seal Sides (2) (Alternate) WPL 311343 Contact Us For Availability
6
Seal Sides (2) (Alternate) WPL 311635 Contact Us For Availability
6
Transformer WPL 307676 Contact Us For Availability
7
Base, Ceramic (Alternate) WPL 309145 Contact Us For Availability
7
Base, Ceramic (Alternate (Install W/ Silastic WPL 311058 Contact Us For Availability
7
Dial & Ring, Meal Timer WPL 311794 Contact Us For Availability
7
terminal, pin (female) WPL 310223 Contact Us For Availability
7
Retain, Side Seal (2) WPL 311341 Contact Us For Availability
7
resistor (2 watt 10m ohm) WPL 329163 Contact Us For Availability
8
screw, 10a x 3/8 WPL 254217 Contact Us For Availability
8
Ring, Compression WPL 310641 Contact Us For Availability
8
cap, terminal (uses 310222 or 310223 pin term WPL 310960 Contact Us For Availability
8
plunger, latch WPL 832797 Contact Us For Availability
8
Bracket, Capacitor WPL 308572 Contact Us For Availability
9
Motor, Stirrer (Alternate) WPL 310950 Contact Us For Availability
9
motor, stirrer (alternate) WPL 311515 Contact Us For Availability
9
Bracket, Support WPL 310163 Contact Us For Availability
9
Plug, Circuit (Uses 310222 or 310223 Pin Term WPL 310958 Contact Us For Availability
9
Cam, Latch WPL 310119 Contact Us For Availability
9
Block, Fuse WPL 309795 Contact Us For Availability
10
Washer, Internal Lock WPL 311245 Contact Us For Availability
10
receptacle, terminal (2-way) (uses 94614 term WPL 717252 Contact Us For Availability
10
Ring, ``E`` (2) WPL 310386 Contact Us For Availability
11
Panel, Control WPL 310143 Contact Us For Availability
11
Lever, Latch Cam WPL 310120 Contact Us For Availability
12
Stirrer 4-Blade WPL 309976 Contact Us For Availability
12
Lockwasher WPL 138473 Contact Us For Availability
13
Nut, Hex (1/4-20) WPL 307555 Contact Us For Availability
13
Timer, Meal WPL 310185 Contact Us For Availability
13
Screw, 8-32 x 9/32 WPL 310210 Contact Us For Availability
14
Cover, Stirrer WPL 309441 Contact Us For Availability
14
Cabinet (Not A Serviceable Part) WPL ARI123438A Contact Us For Availability
14
Button, Door Handle WPL 310112 Contact Us For Availability
14
Shield, Fuse WPL 310391 Contact Us For Availability
15
Spring, Door Handle WPL 310197 Contact Us For Availability
15
Rectifier, High Voltage (Alternate) WPL 311248 Contact Us For Availability
15
Rectifier, High Voltage (Alternate) WPL 311249 Contact Us For Availability
16
Relay, Latching (Alternate) WPL 307634 Contact Us For Availability
16
Relay, Latching (Alternate) WPL 311508 Contact Us For Availability
16
Handle, Door WPL 310110 Contact Us For Availability
16
Guide, Wave (Riveted At Assembly, Not Service WPL ARI123437A Contact Us For Availability
17
Washer, Flat (2) WPL 307539 Contact Us For Availability
17
Timer, Cook Power Control WPL 310186 Contact Us For Availability
17
Bracket, Door Handle WPL 310111 Contact Us For Availability
17
Capacitor (Alternate) WPL 310625 Contact Us For Availability
17
Capacitor (Alternate) WPL 311593 Contact Us For Availability
18
Cover, Light WPL 307516 Contact Us For Availability
18
End Cap, Door WPL 310125 Contact Us For Availability
18
jumper, high voltage (rectifier to capacitor) WPL 311466 Contact Us For Availability
19
Base & Cavity Assembly (Not Serviceable) WPL ARI123435A Contact Us For Availability
19
Light, Indicator (On) WPL 256936 Contact Us For Availability
19
Switch Kit, Door (Kit Contains Primary, Monit WPL 832773 Contact Us For Availability
20
Screw, 10A x 1/2 WPL 307748 Contact Us For Availability
20
Resistor, 3-Ohm WPL 329223 Contact Us For Availability
20
Damper, Spring WPL 310124 Contact Us For Availability
20
Duct, Cooling Air WPL 307529 Contact Us For Availability
21
Cover, Lamp WPL 307512 Contact Us For Availability
21
Switch, Push-To-Start WPL 310162 Contact Us For Availability
21
Spring, Interlock WPL 310199 Contact Us For Availability
22
Socket, Snap-In WPL 307519 Contact Us For Availability
22
Guide, Interlock (Not a Serviceable Part) WPL ARI123433A Contact Us For Availability
22
gasket, magnetron WPL 311718 Contact Us For Availability
23
Spring, Pushbutton WPL 310200 Contact Us For Availability
23
Pin, Roller (3) WPL 307603 Contact Us For Availability
23
nut, 5 mm-0.8 flange (2) WPL 310300 Contact Us For Availability
24
Button, Push To Start WPL 310141 Contact Us For Availability
24
Barrier, Visibility WPL 310330 Contact Us For Availability
24
Magnetron WPL 311505 Contact Us For Availability
25
Cord, Power (Alternate) WPL 310900 Contact Us For Availability
25
cord, power (alternate) WPL 311543 Contact Us For Availability
25
Dial & Ring, Cook Power Control WPL 310812 Contact Us For Availability
25
Rivet, Accordian (5) WPL 310951 Contact Us For Availability
26
Baffle, Air Exhaust WPL 309444 Contact Us For Availability
26
Resistor (10 Ohm) WPL 311254 Contact Us For Availability
26
screw, 4-40 x 1 (2) WPL 310211 Contact Us For Availability
26
Blade, Fan WPL 307535 Contact Us For Availability
27
Switch, Light WPL 310149 Contact Us For Availability
27
mount, fan motor WPL 311905 Contact Us For Availability
28
Fastener, Stirrer Cover (8) WPL 310423 Contact Us For Availability
28
Insulator, Light & Monitor Switch WPL 310154 Contact Us For Availability
28
nut, flange (2) WPL 311136 Contact Us For Availability
29
Fuse, Thermal WPL 309279 Contact Us For Availability
29
Ring, Retaining (3) WPL 307605 Contact Us For Availability
29
Motor Fan (Alternate) WPL 310221 Contact Us For Availability
29
Motor, Fan (Alternate) WPL 310921 Contact Us For Availability
30
Slide, Interlock (Not a Serviceable Part) WPL ARI123434A Contact Us For Availability
30
clip, air duct (2) WPL 338177 Contact Us For Availability
31
Insulator, Primary Switch WPL 307611 Contact Us For Availability
31
Wire, High Voltage (2) (Magnetron To Capacito WPL 309084 Contact Us For Availability
32
Bracket, Primary Switch WPL 310148 Contact Us For Availability
33
Deflector, Exhaust WPL 308219 Contact Us For Availability
34
Screw, 8-32 x 3/8 (2) (Ground Wire) WPL 309080 Contact Us For Availability
34
Jumper, High Voltage (2) (Transformer To Capa WPL 311467 Contact Us For Availability
35
Screw, 8-32 x 3/8 WPL 310629 Contact Us For Availability
35
Door, Complete WPL 329061 Contact Us For Availability
36
Screw, 6A x 3/8 WPL 246131 Contact Us For Availability
36
Wrapper, Cabinet WPL 307510 Contact Us For Availability
36
Interlock Assembly WPL 328656 Contact Us For Availability
37
Latch, Door WPL 328740 Contact Us For Availability
37
Thermostat, Fixed WPL 307564 Contact Us For Availability
38
Screw, Switch Mounting (4) WPL 98106 Contact Us For Availability
38
Fastener, Speed Nut (3) WPL 308845 Contact Us For Availability
41
Cover, Rivet WPL 309437 Contact Us For Availability
41
Shield, Magnetron WPL 310419 Contact Us For Availability
42
Nut, Hex (10-32) WPL 309487 Contact Us For Availability
42
Plug, Button WPL 309960 Contact Us For Availability
43
Plug, Hole (4) WPL 311291 Contact Us For Availability
45
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
45
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
45
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
45
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
45
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
45
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
45
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
45
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
45
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
45
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
45
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
45
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
45
WPL 261940 WPL 261940 Contact Us For Availability
45
WPL 307843 WPL 307843 Contact Us For Availability
45
WPL 310777 WPL 310777 Contact Us For Availability
45
WPL 310847 WPL 310847 Contact Us For Availability
45
WPL 310878 WPL 310878 Contact Us For Availability
45
WPL 311594 WPL 311594 Contact Us For Availability
45
WPL 311912 WPL 311912 Contact Us For Availability
45
WPL 328022 WPL 328022 Contact Us For Availability
45
WPL 591014 WPL 591014 Contact Us For Availability
45
WPL 832763 WPL 832763 Contact Us For Availability
45
WPL 832765 WPL 832765 Contact Us For Availability
45
WPL 832769 WPL 832769 Contact Us For Availability
45
WPL 832790 WPL 832790 Contact Us For Availability
45
WPL 832810 WPL 832810 Contact Us For Availability
45
WPL 980646 WPL 980646 Contact Us For Availability
× ![]()
