Model Whirlpool RJM74000 – Common Parts & Diagrams
02 - DOOR AND LATCH
04 - MAGNETRON AND AIR FLOW

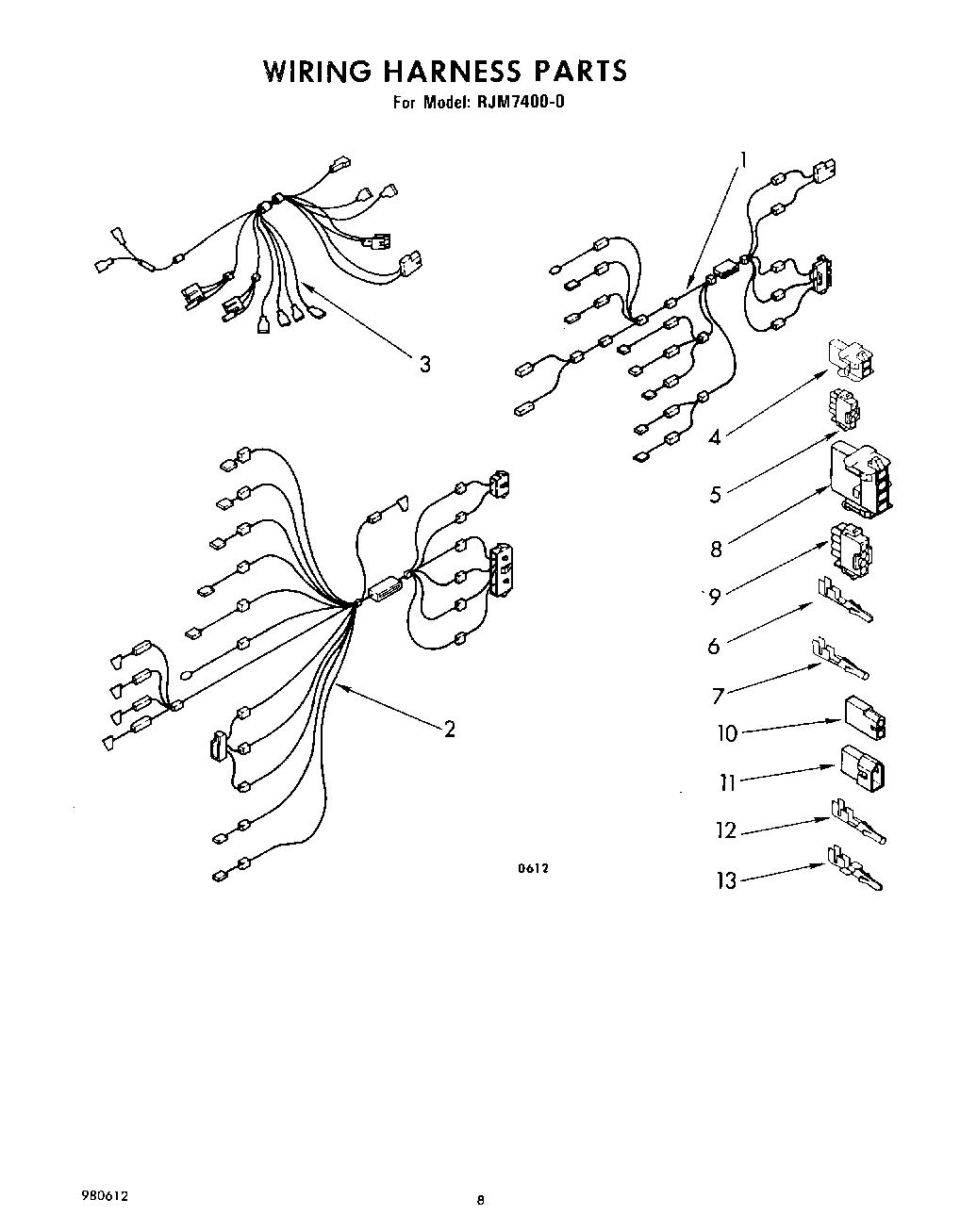

06 - WIRING HARNESS

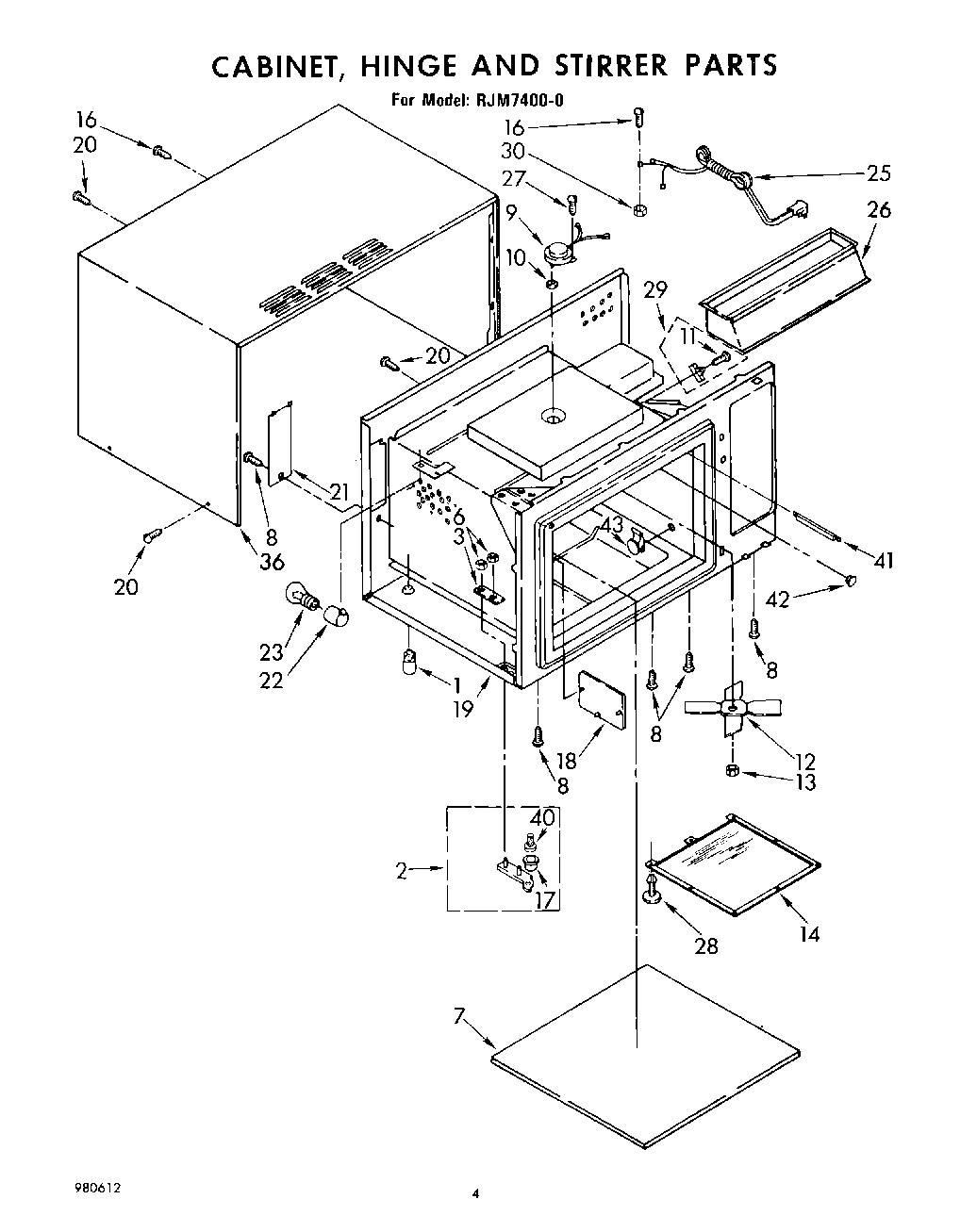

03 - CABINET, HINGE AND STIRRER, LIT/OPTIONAL

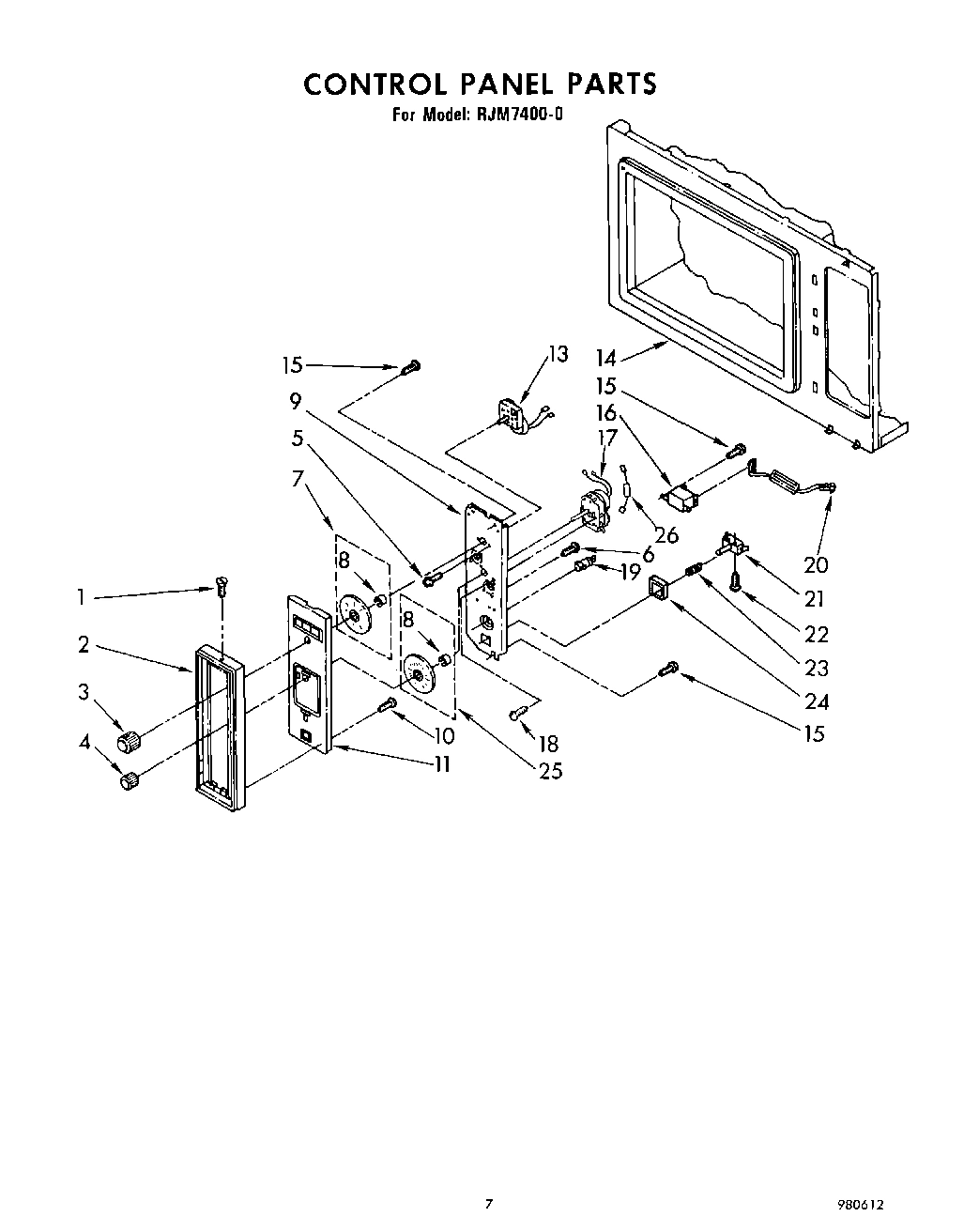

05 - CONTROL PANEL
Common parts from model Whirlpool RJM74000
1
Cabinet (Not A Serviceable Part) WPL ARI123430A Contact Us For Availability
1
harness, main WPL 310813 Contact Us For Availability
1
Foot, Mounting (4) WPL 307540 Contact Us For Availability
2
Harness, Control WPL 310856 Contact Us For Availability
2
Hinge, Door (Top) WPL 328126 Contact Us For Availability
2
Hinge, Door (Bottom) WPL 328127 Contact Us For Availability
2
Frame, Control Panel WPL 310161 Contact Us For Availability
3
Deflector, Air WPL 307635 Contact Us For Availability
3
Harness, Interlock WPL 310893 Contact Us For Availability
3
Plate, Hinge WPL 307527 Contact Us For Availability
3
Knob, Meal Timer WPL 308708 Contact Us For Availability
4
cap, terminal (uses 310222 or 310223 pin term WPL 310959 Contact Us For Availability
4
Knob, Cook Power Control WPL 307673 Contact Us For Availability
5
plug, circuit (uses 310959 cap) (uses 310222 WPL 310957 Contact Us For Availability
5
Screw, Timer Mounting (6-32 x 1/4) (2) WPL 487384 Contact Us For Availability
6
Seal, Side (2) WPL 307543 Contact Us For Availability
6
Transformer WPL 307676 Contact Us For Availability
6
terminal, pin (male) WPL 310222 Contact Us For Availability
6
Screw, Ground WPL 342043 Contact Us For Availability
7
Retainer, Side Seal (2) WPL 307546 Contact Us For Availability
7
Rectifier, High Voltage WPL 328057 Contact Us For Availability
7
terminal, pin (female) WPL 310223 Contact Us For Availability
7
Base, Ceramic (Install W/Silastic No. 482338) WPL 309145 Contact Us For Availability
7
Dial & Rind, Meal Timer WPL 310811 Contact Us For Availability
8
Plunger, Latch WPL 832771 Contact Us For Availability
8
Bracket, Capacitor WPL 308572 Contact Us For Availability
8
cap, terminal (uses 310222 or 310223 pin term WPL 310960 Contact Us For Availability
8
screw, 10a x 3/8 WPL 254217 Contact Us For Availability
8
Ring, Compression WPL 310641 Contact Us For Availability
9
Cam, Latch WPL 310119 Contact Us For Availability
9
Block, Fuse WPL 309795 Contact Us For Availability
9
Plug, Circuit (Uses 310222 or 310223 Pin Term WPL 310958 Contact Us For Availability
9
Motor, Stirrer WPL 309998 Contact Us For Availability
9
Bracket, Support WPL 310163 Contact Us For Availability
10
Ring, ``E`` (2) WPL 310386 Contact Us For Availability
10
receptacle, terminal (2-way) (uses 94614 term WPL 717252 Contact Us For Availability
10
Gasket, Stirrer Motor WPL 307651 Contact Us For Availability
10
Screw, 6-18 x 3/8 (2) WPL 310378 Contact Us For Availability
11
Lever, Latch Cam WPL 310120 Contact Us For Availability
11
Panel, Control WPL 310143 Contact Us For Availability
12
Stirrer 4-Blade WPL 309976 Contact Us For Availability
13
Screw, 8-32 x 9/32 WPL 310210 Contact Us For Availability
13
Bushing, Wire WPL 308410 Contact Us For Availability
13
Nut, Hex (1/4-20) WPL 307555 Contact Us For Availability
13
Timer, Meal Timer WPL 310185 Contact Us For Availability
14
Button, Door Handle WPL 310112 Contact Us For Availability
14
Shield, Fuse WPL 310391 Contact Us For Availability
14
Cover, Stirrer WPL 309441 Contact Us For Availability
14
Cabinet (Not A Serviceable Part) WPL ARI123432A Contact Us For Availability
15
Spring, Door Handle WPL 310197 Contact Us For Availability
15
Screw, 6A x 3/8 (7) WPL 246131 Contact Us For Availability
16
Handle, Door WPL 310110 Contact Us For Availability
16
Screw, 10-32 x 1/2 WPL 258857 Contact Us For Availability
16
Guide, Wave (Riveted At Assembly, Not Service WPL ARI123431A Contact Us For Availability
16
Relay, Latching WPL 307634 Contact Us For Availability
17
Bracket, Door Handle WPL 310111 Contact Us For Availability
17
Capacitor (Alternate) WPL 310418 Contact Us For Availability
17
Capacitor (Alternate) WPL 310625 Contact Us For Availability
17
Bushing WPL 309628 Contact Us For Availability
17
Timer, Cook Power Control WPL 310186 Contact Us For Availability
18
End Cap, Door WPL 310125 Contact Us For Availability
18
Cover, Light WPL 307516 Contact Us For Availability
19
Switch Kit, Door (Kit Contains Primary, Monit WPL 832773 Contact Us For Availability
19
Base & Cavity Assembly (Not Serviceable) WPL ARI123429A Contact Us For Availability
19
Light, Indicator (On) WPL 356936 Contact Us For Availability
20
Damper, Spring WPL 310124 Contact Us For Availability
20
Duct, Cooling Air WPL 307529 Contact Us For Availability
20
Screw, 10A x 1/2 WPL 307748 Contact Us For Availability
20
Resistor, 3 Ohm WPL 328023 Contact Us For Availability
21
Spring, Interlock WPL 310199 Contact Us For Availability
21
Cover, Lamp WPL 307512 Contact Us For Availability
21
Switch, Push-To-Start WPL 310162 Contact Us For Availability
22
Guide, Interlock (Not a Serviceable Part) WPL ARI123427A Contact Us For Availability
22
Screw, Switch Mounting (2) WPL 98106 Contact Us For Availability
22
Gasket, Magnetron WPL 310309 Contact Us For Availability
22
Socket, Snap-In WPL 307519 Contact Us For Availability
23
Pin, Roller (3) WPL 307603 Contact Us For Availability
23
nut, 5 mm-0.8 flange (2) WPL 310300 Contact Us For Availability
23
Spring, Pushbutton WPL 310200 Contact Us For Availability
24
Barrier, Visibility WPL 310330 Contact Us For Availability
24
Magnetron WPL 310235 Contact Us For Availability
24
Button, Push To Start WPL 310141 Contact Us For Availability
25
Rivet, Accordian (5) WPL 310951 Contact Us For Availability
25
Wire Kit, High Voltage (Magnetron) WPL 261945 Contact Us For Availability
25
Cord, Power WPL 310900 Contact Us For Availability
25
Dial & Ring, Cook Power Control WPL 310812 Contact Us For Availability
26
screw, 4-40 x 1 (2) WPL 310211 Contact Us For Availability
26
Blade, Fan WPL 307535 Contact Us For Availability
26
Baffle, Air Exhaust WPL 309444 Contact Us For Availability
26
Resistor (10 Ohm) WPL 311254 Contact Us For Availability
27
Switch, Light WPL 310149 Contact Us For Availability
27
Mount, Fan Motor WPL 310414 Contact Us For Availability
28
Insulator, Light & Monitor Switch WPL 310154 Contact Us For Availability
28
nut, flange (2) WPL 311136 Contact Us For Availability
28
Fastener, Stirrer Cover (8) WPL 310423 Contact Us For Availability
29
Ring, Retaining (3) WPL 307605 Contact Us For Availability
29
Motor Fan (Alternate) WPL 310221 Contact Us For Availability
29
Motor, Fan (Alternate) WPL 310921 Contact Us For Availability
29
Fuse, Thermal WPL 309279 Contact Us For Availability
30
Slide, Interlock (Not a Serviceable Part) WPL ARI123428A Contact Us For Availability
30
Nut, Hex (10-32) WPL 309487 Contact Us For Availability
31
Insulator, Primary Switch WPL 307611 Contact Us For Availability
31
Wire, High Voltage (4) WPL 309084 Contact Us For Availability
32
Bracket, Primary Switch WPL 310148 Contact Us For Availability
33
Screw, 6-32 x 3/8 (2) WPL 310629 Contact Us For Availability
33
Deflector, Exhaust WPL 308219 Contact Us For Availability
34
Screw, 8-32 x 3/8 (2) (Ground Wire) WPL 309080 Contact Us For Availability
35
Door, Complete WPL 328741 Contact Us For Availability
36
Interlock Assembly WPL 328656 Contact Us For Availability
36
Wrapper, Cabinet WPL 307510 Contact Us For Availability
37
Latch, Door WPL 328740 Contact Us For Availability
37
Thermostat, Fixed WPL 307564 Contact Us For Availability
38
Fastener, Speed WPL 308845 Contact Us For Availability
40
Pin, Hinge WPL 308785 Contact Us For Availability
40
Screw, 10A x 1/2 (3) WPL 246134 Contact Us For Availability
41
Shield, Magnetron WPL 310419 Contact Us For Availability
41
Cover, Rivet WPL 309437 Contact Us For Availability
42
Plug, Button WPL 309960 Contact Us For Availability
43
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
43
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
43
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
43
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
43
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
43
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
43
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
43
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
43
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
43
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
43
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
43
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
43
27`` Trim Kit WPL 261940 Contact Us For Availability
43
Browning Tray WPL 307677 Contact Us For Availability
43
Instructions, Install WPL 307843 Contact Us For Availability
43
WPL 310777 WPL 310777 Contact Us For Availability
43
WPL 310847 WPL 310847 Contact Us For Availability
43
WPL 310878 WPL 310878 Contact Us For Availability
43
WPL 310929 WPL 310929 Contact Us For Availability
43
WPL 310930 WPL 310930 Contact Us For Availability
43
WPL 311251 WPL 311251 Contact Us For Availability
43
WPL 311291 WPL 311291 Contact Us For Availability
43
WPL 311318 WPL 311318 Contact Us For Availability
43
WPL 591014 WPL 591014 Contact Us For Availability
43
WPL 832763 WPL 832763 Contact Us For Availability
43
WPL 832765 WPL 832765 Contact Us For Availability
43
WPL 832769 WPL 832769 Contact Us For Availability
43
WPL 832790 WPL 832790 Contact Us For Availability
43
WPL 832810 WPL 832810 Contact Us For Availability
43
WPL 980612 WPL 980612 Contact Us For Availability
× ![]()
