Model Whirlpool RJM1870P – Common Parts & Diagrams
02 - OVEN
09 - CONTROL

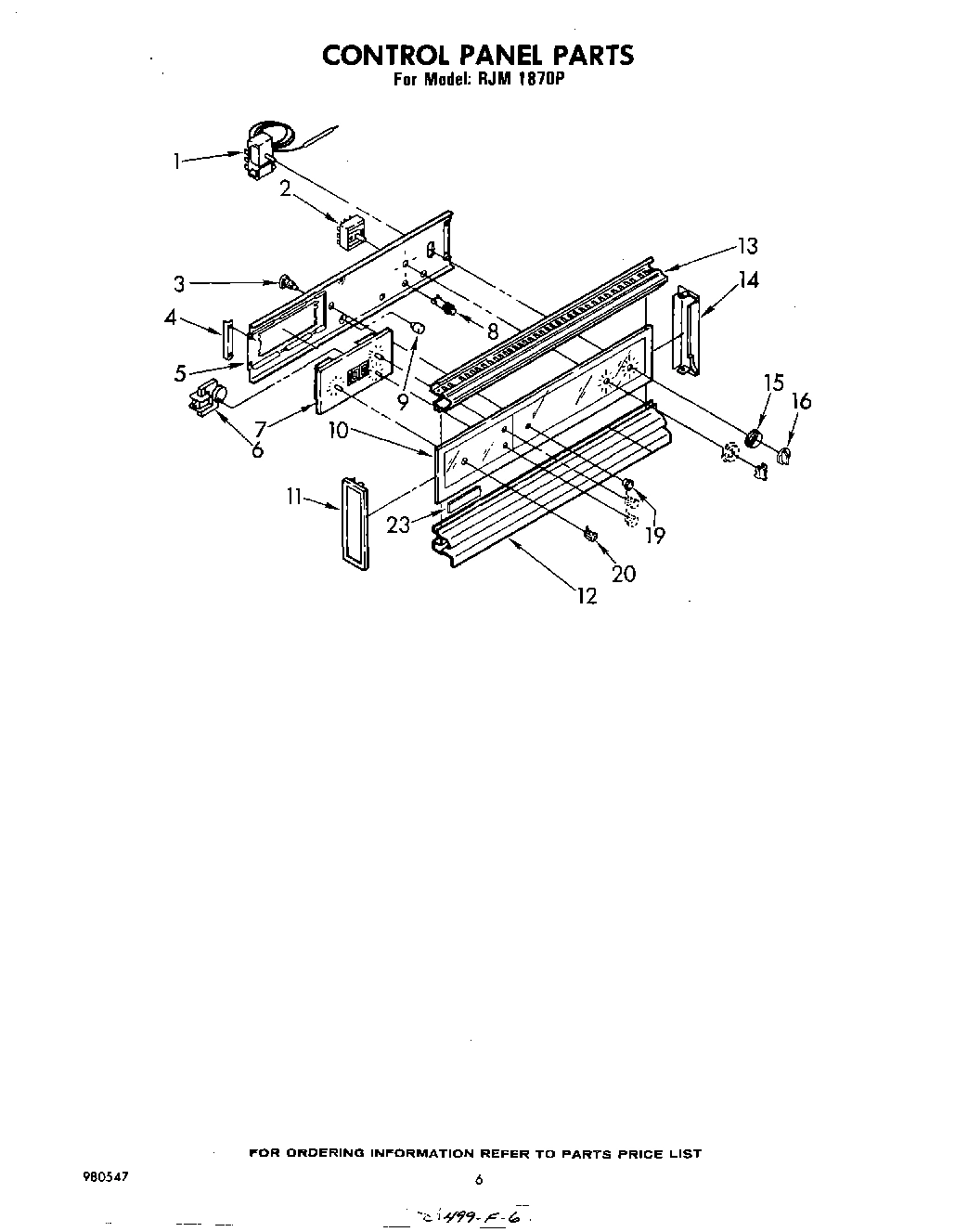

04 - CONTROL PANEL

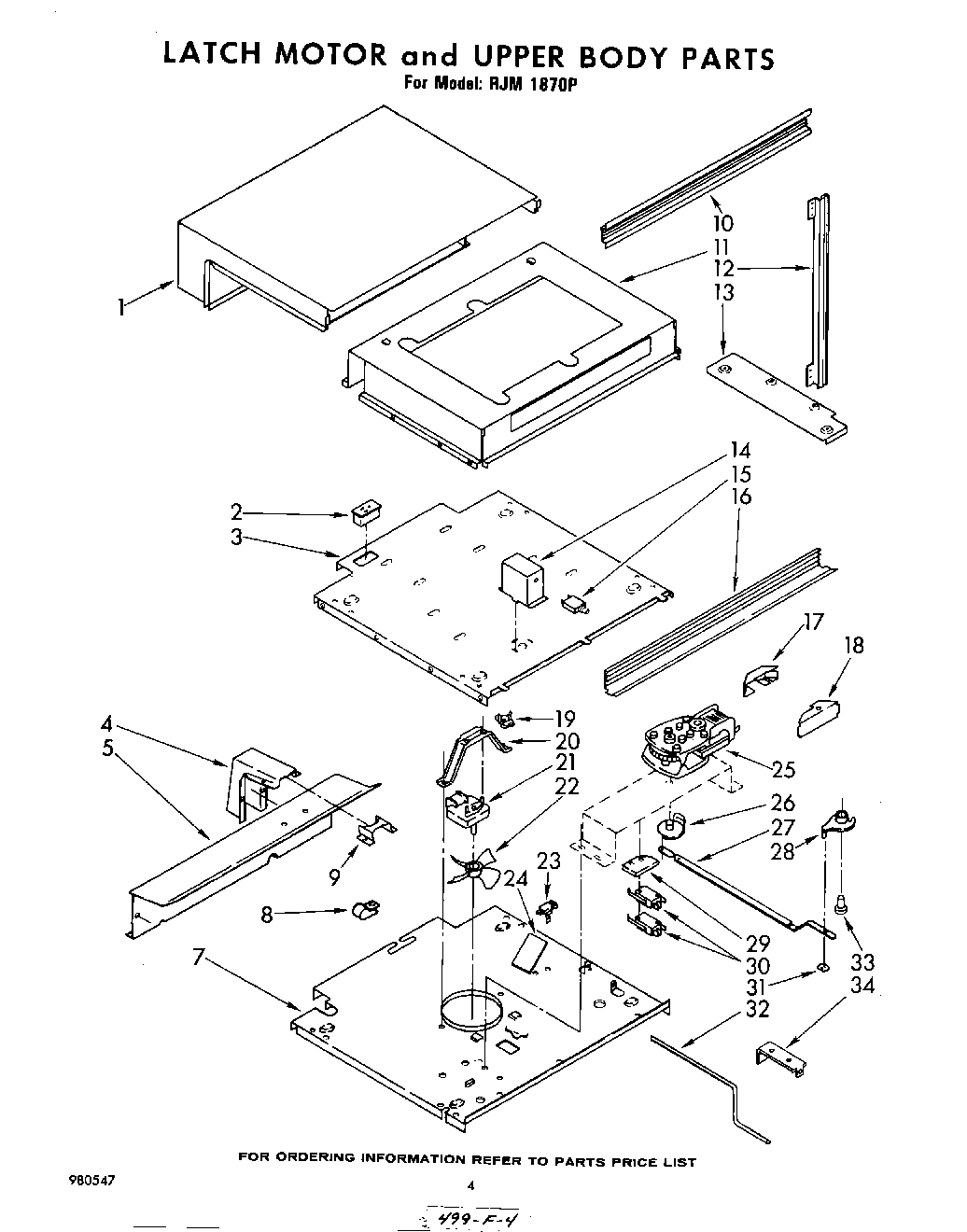

03 - LATCH AND UPPER BODY

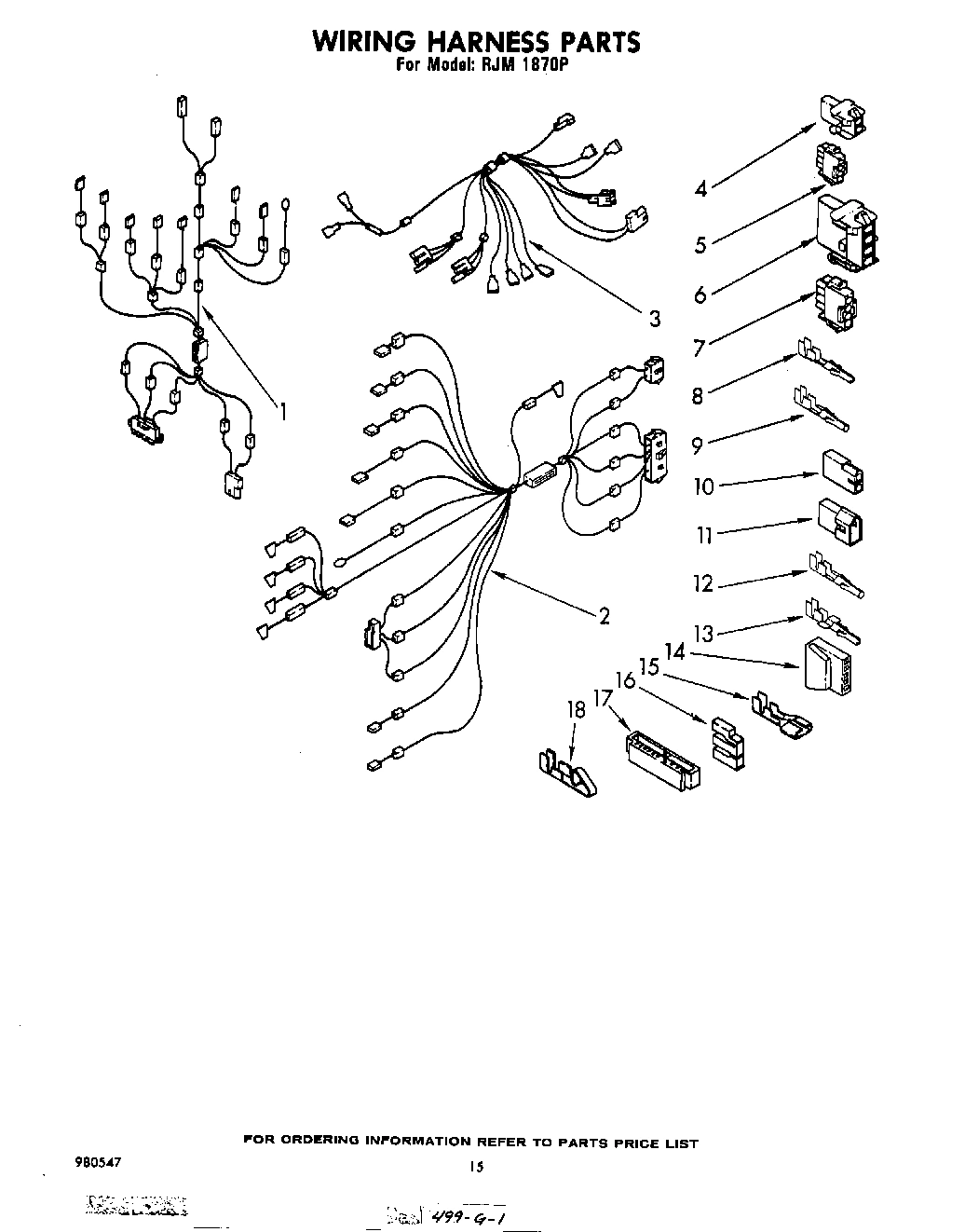

10 - WIRING HARNESS

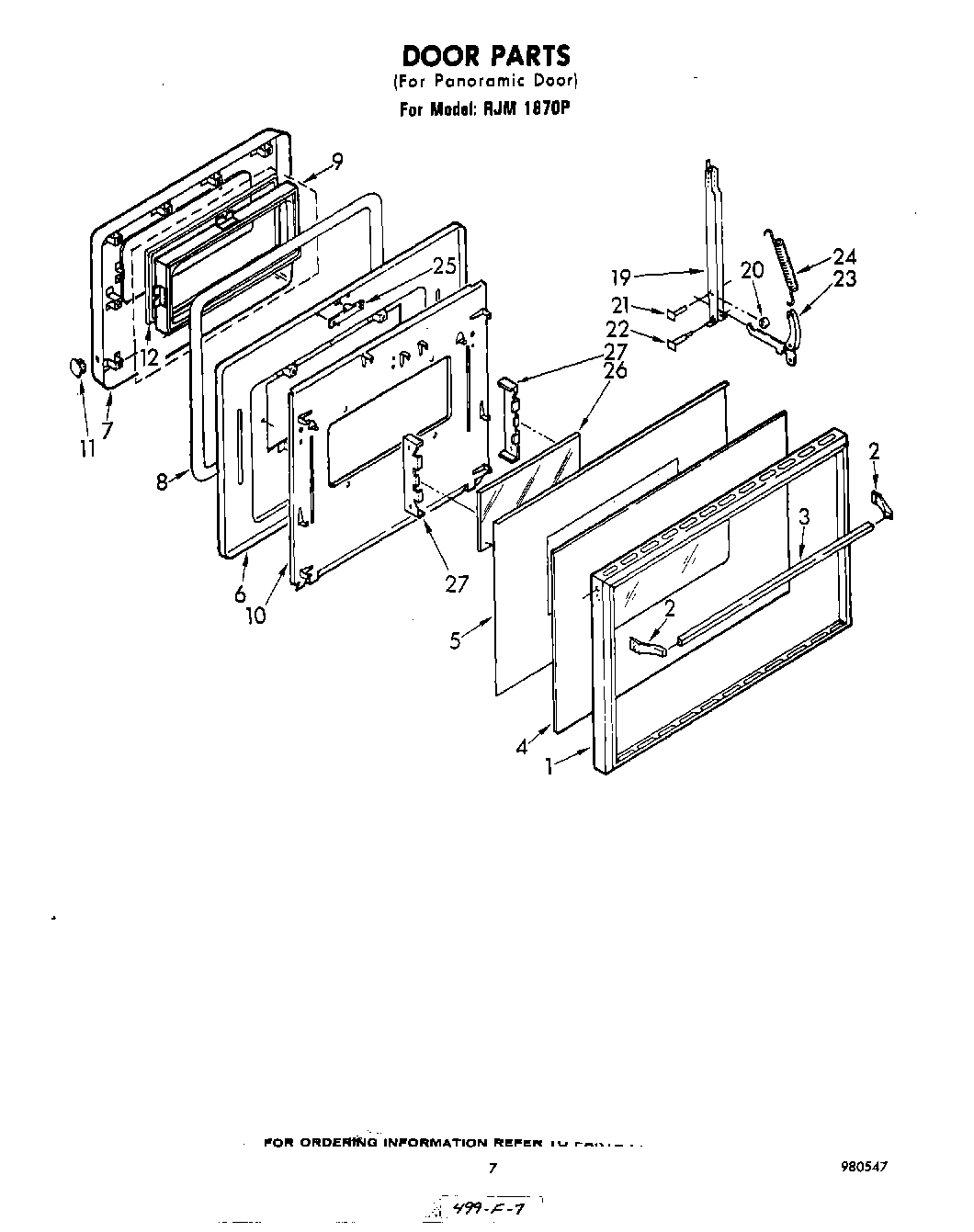

05 - DOOR

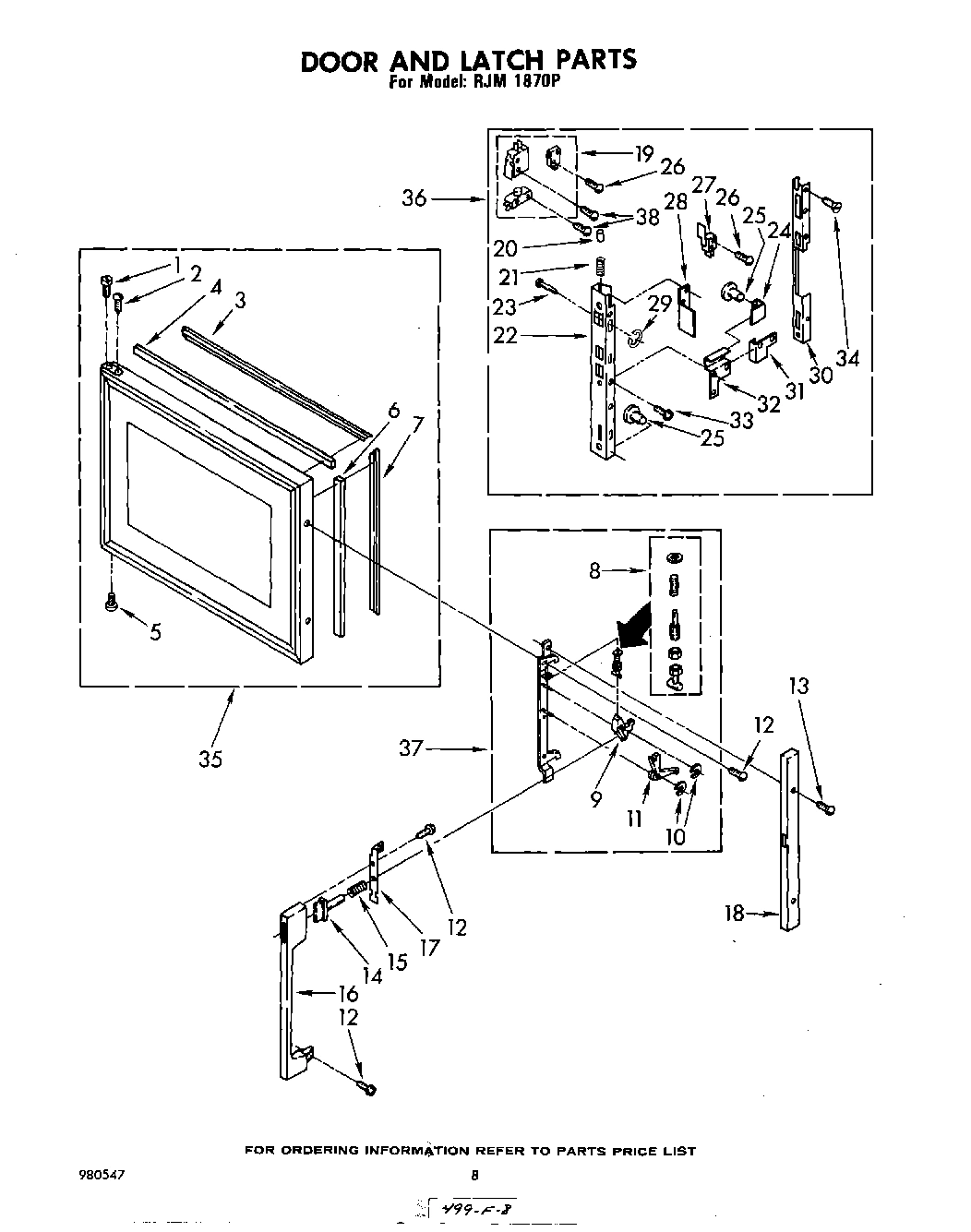

06 - DOOR AND LATCH

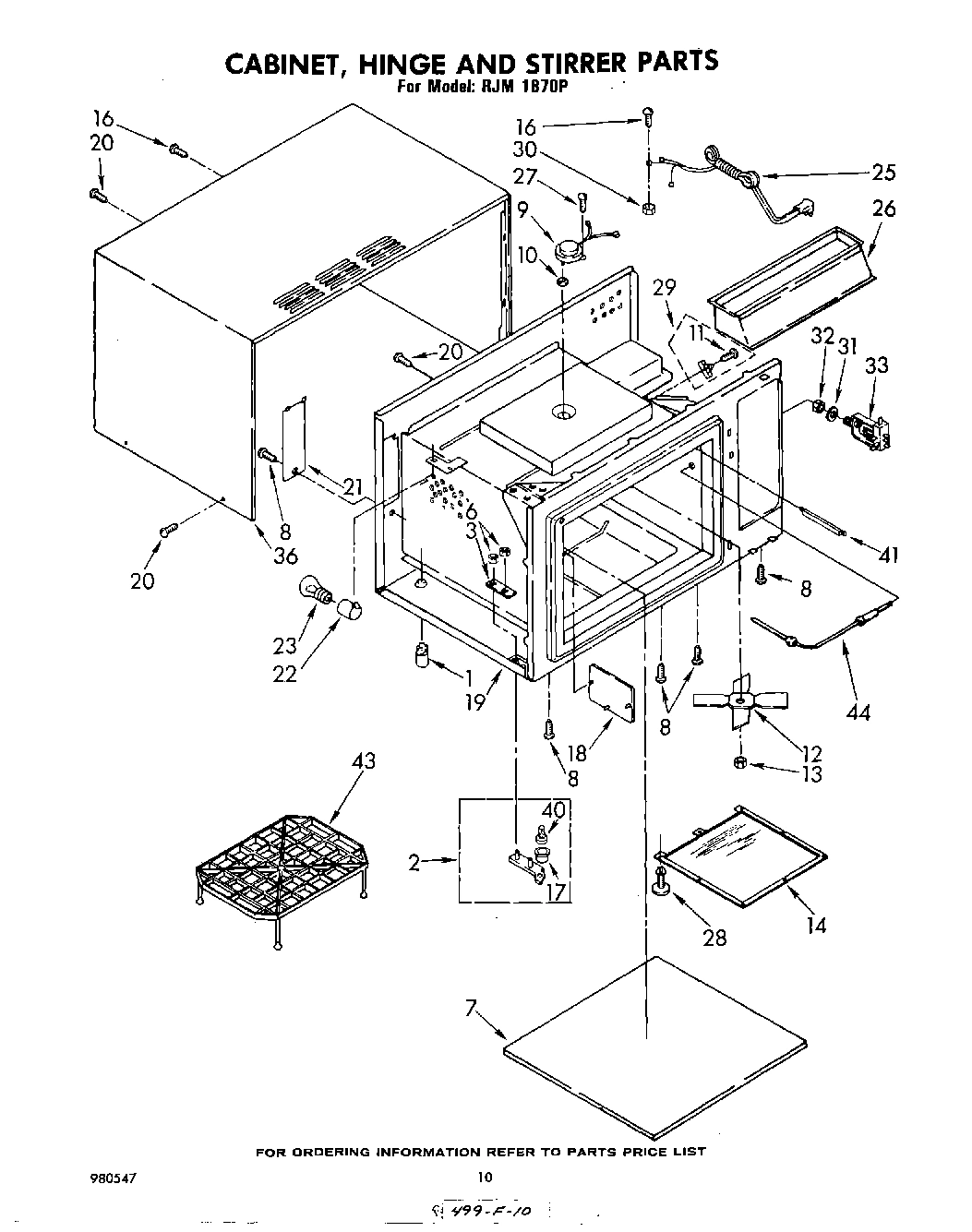

07 - CABINET, HINGE, AND STIRRER , LITERATURE

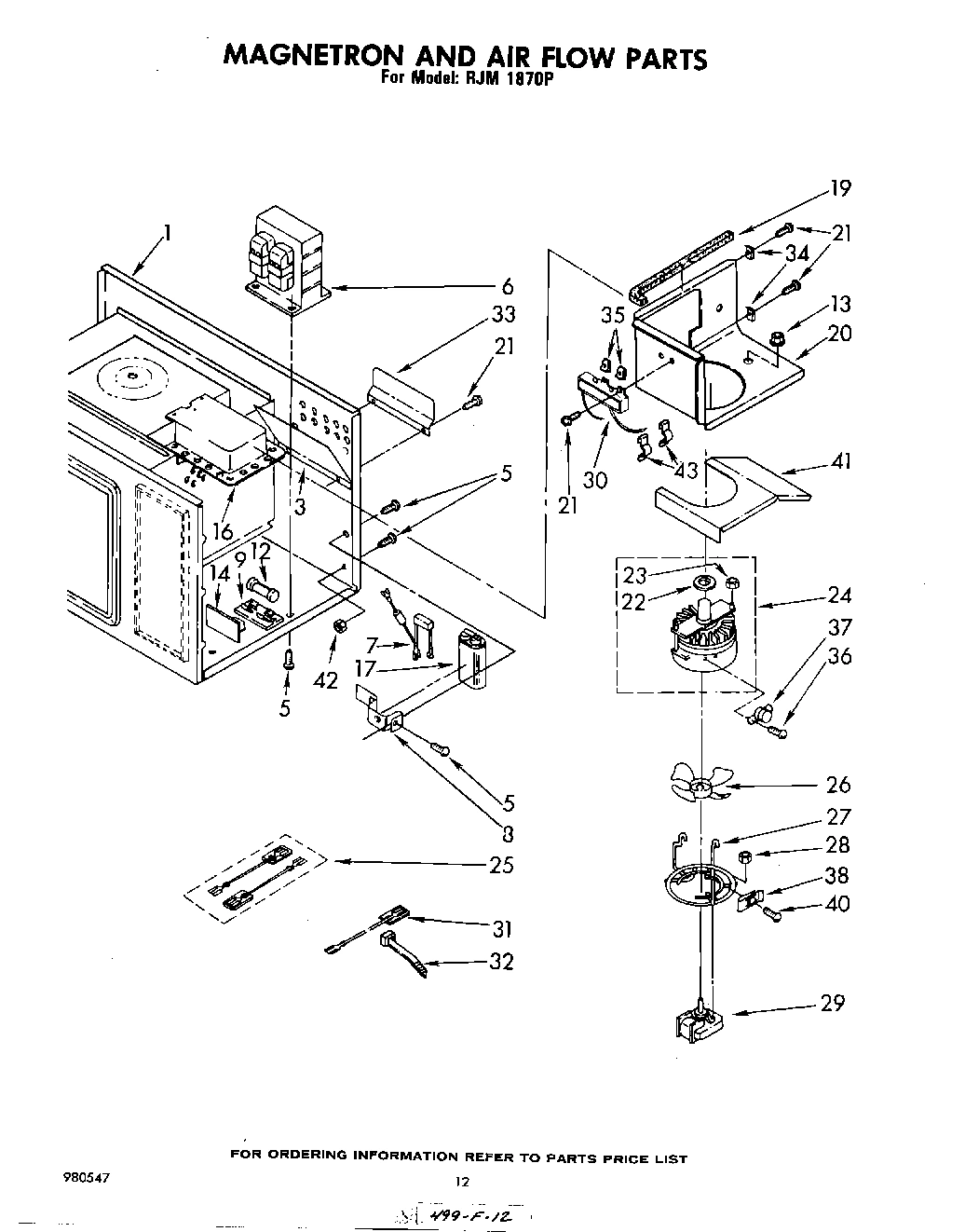

08 - MAGNETRON AND AIR FLOW
Common parts from model Whirlpool RJM1870P
1
Bracket, Control WPL 310310 Contact Us For Availability
1
Thermostat WPL 868954 Contact Us For Availability
1
Duct, Top WPL 868537 Contact Us For Availability
1
harness, main WPL 310813 Contact Us For Availability
1
Frame, Oven Door WPL 868542 Contact Us For Availability
1
Screw, 8D x 5/16 (2) WPL 307536 Contact Us For Availability
1
Foot, Mounting WPL 307540 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI123414A Contact Us For Availability
2
Panel, Control WPL 310139 Contact Us For Availability
2
Screw, 8-32 x 3/16 (2) WPL 486525 Contact Us For Availability
2
Switch, Selector (Bake/Clean) WPL 868048 Contact Us For Availability
2
Outlet, Grounded WPL 866344 Contact Us For Availability
2
Nut, 6-32 (4) WPL 271482 Contact Us For Availability
2
Harness, Control WPL 310894 Contact Us For Availability
2
Stanchion, Handle WPL 866047 Contact Us For Availability
2
Screw, 6-32 x 3/8 (4) WPL 866155 Contact Us For Availability
2
xScrew, 8-32 x .312 (6) WPL 307537 Contact Us For Availability
2
Hinge, Door (Top) WPL 328126 Contact Us For Availability
2
Hinge, Door (Bottom) WPL 328127 Contact Us For Availability
3
Microcomputer WPL 328457 Contact Us For Availability
3
Switch, Push (Oven Light) WPL 866138 Contact Us For Availability
3
Top Casing WPL 868532 Contact Us For Availability
3
harness, interlock WPL 310818 Contact Us For Availability
3
Grip, Handle WPL 866415 Contact Us For Availability
3
Retainer, Top & Bottom Seal (2) WPL 307545 Contact Us For Availability
3
Plate, Hinge WPL 307527 Contact Us For Availability
3
Deflector, Air WPL 307635 Contact Us For Availability
4
Button, Small (4) WPL 309585 Contact Us For Availability
4
Support, Control Bracket (2) WPL 866395 Contact Us For Availability
4
Duct, Oven Vent WPL 866412 Contact Us For Availability
4
cap, terminal (uses 310222 or 310223 pin term WPL 310959 Contact Us For Availability
4
Glass, Outer WPL 868223 Contact Us For Availability
4
Seal, Top & Bottom (2) WPL 307544 Contact Us For Availability
5
Button, Large (4) WPL 309584 Contact Us For Availability
5
Panel, Control WPL 868402 Contact Us For Availability
5
Housing, Control WPL 866411 Contact Us For Availability
5
plug, circuit (uses 310959 cap) (uses 310222 WPL 310957 Contact Us For Availability
5
Panel, Heat Reflector WPL 868224 Contact Us For Availability
5
Screw, 10-32 x 1/2 WPL 258857 Contact Us For Availability
6
Barrier WPL 310000 Contact Us For Availability
6
Motor, Timer WPL 866403 Contact Us For Availability
6
cap, terminal (uses 310222 or 310223 pin term WPL 310960 Contact Us For Availability
6
Liner, Oven Door WPL 868945 Contact Us For Availability
6
Seal, Side (2) WPL 307543 Contact Us For Availability
6
Transformer WPL 307676 Contact Us For Availability
7
Nut, 10-32 (2) WPL 487836 Contact Us For Availability
7
Screw, 6-18 x 3/8 (6) WPL 310378 Contact Us For Availability
7
Timer, Digital (Complete) (Includes Illus. 6 WPL 866402 Contact Us For Availability
7
Casing, Fan WPL 868944 Contact Us For Availability
7
Plug, Circuit (Uses 310222 or 310223 Pin Term WPL 310958 Contact Us For Availability
7
Baffle WPL 868946 Contact Us For Availability
7
Retainer, Side Seal (2) WPL 307546 Contact Us For Availability
7
Base, Ceramic (Install W/Silastic No. 482338) WPL 309145 Contact Us For Availability
7
Rectifier, High Voltage WPL 328057 Contact Us For Availability
8
Spacer WPL 868798 Contact Us For Availability
8
Relay, Power (Alternate) WPL 310370 Contact Us For Availability
8
Relay Power (Alternate) WPL 310372 Contact Us For Availability
8
Light, Pilot Oven WPL 866401 Contact Us For Availability
8
Light, Pilot (Clean/Lock) (2) WPL 866448 Contact Us For Availability
8
Clamp WPL 865797 Contact Us For Availability
8
terminal, pin (male) WPL 310222 Contact Us For Availability
8
Seal, Door WPL 868104 Contact Us For Availability
8
Plunger, Latch WPL 832771 Contact Us For Availability
8
screw, 10a x 3/8 WPL 254217 Contact Us For Availability
8
Bracket, Capacitor WPL 308572 Contact Us For Availability
9
Hanger, Broil Unit WPL 866429 Contact Us For Availability
9
Relay, Shunt WPL 307634 Contact Us For Availability
9
Bumper (2) WPL 834956 Contact Us For Availability
9
Extension, Vent WPL 868222 Contact Us For Availability
9
terminal, pin (female) WPL 310223 Contact Us For Availability
9
Window (Includes Item 12) WPL 868797 Contact Us For Availability
9
Cam, Latch WPL 310119 Contact Us For Availability
9
Motor, Stirrer WPL 309998 Contact Us For Availability
9
Block, Fuse WPL 309795 Contact Us For Availability
10
Screw, 10-32 x 1/2 (2) WPL 486146 Contact Us For Availability
10
Unit, Broil WPL 865638 Contact Us For Availability
10
Transformer WPL 309622 Contact Us For Availability
10
Glass, Control Panel WPL 868854 Contact Us For Availability
10
Trim, Top Vent WPL 868539 Contact Us For Availability
10
receptacle, terminal (2-way) (uses 94614 term WPL 717252 Contact Us For Availability
10
Panel, Air Wash WPL 868947 Contact Us For Availability
10
Ring, ``E`` (2) WPL 310386 Contact Us For Availability
10
Gasket, Stirrer Motor WPL 307651 Contact Us For Availability
11
End Cap (L.H.) WPL 866409 Contact Us For Availability
11
Base, Support WPL 868534 Contact Us For Availability
11
Plug Button WPL 142001 Contact Us For Availability
11
Lever, Latch Cam WPL 310120 Contact Us For Availability
12
Screw, 10-24 x 3/8 (2) WPL 241428 Contact Us For Availability
12
Tube, Oven Vent WPL 865939 Contact Us For Availability
12
Switch, Start WPL 328611 Contact Us For Availability
12
Base, Control Panel WPL 868531 Contact Us For Availability
12
Screw, 10-24 x 5/8 (4) WPL 595119 Contact Us For Availability
12
Trim, R.H. (Vertical) WPL 868540 Contact Us For Availability
12
Trim, L.H. (Vertical) WPL 868541 Contact Us For Availability
12
Screw, 6-32 x 5/16 (10) WPL 868549 Contact Us For Availability
12
J-Molding WPL 868796 Contact Us For Availability
12
Stirrer 4-Blade WPL 309976 Contact Us For Availability
13
Retainer, Insulation (2) WPL 866376 Contact Us For Availability
13
Spring, Push-To-Start Switch WPL 310200 Contact Us For Availability
13
Top, Control Panel WPL 868339 Contact Us For Availability
13
Rail, Mounting R.H. WPL 868535 Contact Us For Availability
13
Rail, Mounting L.H. WPL 868536 Contact Us For Availability
13
Screw, 5/16-18 x 1/2 WPL 868548 Contact Us For Availability
13
Screw, 8-32 x 9/32 WPL 310210 Contact Us For Availability
13
Nut, Hex (1/4-20) WPL 307555 Contact Us For Availability
13
Bushing, Wire WPL 308410 Contact Us For Availability
14
Button, Push To Start WPL 310141 Contact Us For Availability
14
End Cap (R.H.) WPL 866408 Contact Us For Availability
14
Box, Circuit Breaker WPL 868533 Contact Us For Availability
14
housing, relay connector (uses 308569 termina WPL 60688 Contact Us For Availability
14
Button, Door Handle WPL 310112 Contact Us For Availability
14
Cover, Stirrer WPL 309441 Contact Us For Availability
14
Shield, Fuse WPL 310391 Contact Us For Availability
15
Retainer, Insulation (Top) WPL 868511 Contact Us For Availability
15
Hex Nut, 3/18-27 WPL 98754 Contact Us For Availability
15
Bezel, Knob (2) WPL 866101 Contact Us For Availability
15
Plate, Reset WPL 241646 Contact Us For Availability
15
Circuit Breaker (20 Amp) WPL 866361 Contact Us For Availability
15
terminal WPL 308569 Contact Us For Availability
15
Spring, Door Handle WPL 310197 Contact Us For Availability
16
Retainer, Insulation Bottom WPL 866379 Contact Us For Availability
16
Light, Indicator WPL 256936 Contact Us For Availability
16
Knob, Control (2) WPL 866098 Contact Us For Availability
16
Trim, Bottom Vent WPL 868609 Contact Us For Availability
16
insulator WPL 310241 Contact Us For Availability
16
Handle, Door WPL 310110 Contact Us For Availability
16
Guide, Wave (Riveted At Assembly, Not Service WPL ARI123415A Contact Us For Availability
17
Casing, Back WPL 868869 Contact Us For Availability
17
Frame, Control Panel WPL 310166 Contact Us For Availability
17
Cover, Latch Housing WPL 868513 Contact Us For Availability
17
housing, edge connector (uses 60279 terminal) WPL 309606 Contact Us For Availability
17
Bracket, Door Handle WPL 310111 Contact Us For Availability
17
Bushing WPL 309628 Contact Us For Availability
17
Capacitor (Alternate) WPL 310418 Contact Us For Availability
17
Capacitor (Alternate) WPL 310625 Contact Us For Availability
18
Casing, Bottom WPL 868095 Contact Us For Availability
18
End Cap, Control Panel WPL 310167 Contact Us For Availability
18
Housing, Latch WPL 868281 Contact Us For Availability
18
Terminal WPL 60279 Contact Us For Availability
18
End Cap, Door WPL 310125 Contact Us For Availability
18
Cover, Light WPL 307516 Contact Us For Availability
19
Washer, Flat WPL 486608 Contact Us For Availability
19
Spacer, Trim WPL 866382 Contact Us For Availability
19
Screw, 8-18BT x .88 (2) WPL 309170 Contact Us For Availability
19
Screw, 10-24 x 1/2 (2) WPL 868430 Contact Us For Availability
19
Bezel, Light Switch WPL 866053 Contact Us For Availability
19
Washer (2) WPL 241422 Contact Us For Availability
19
Screw, 10-24 x 1/2 (4) WPL 247326 Contact Us For Availability
19
Channel Assembly (2) WPL 866426 Contact Us For Availability
19
Switch Kit, Door (Kit Contains Primary, Monit WPL 832811 Contact Us For Availability
19
Base & Cavity Assembly (Not Serviceable) WPL ARI123413A Contact Us For Availability
20
Trim, Oven (2) WPL 866383 Contact Us For Availability
20
Resistor, 3 Ohm WPL 328023 Contact Us For Availability
20
Knob, Timer (3) WPL 241383 Contact Us For Availability
20
Bracket, Fan Motor WPL 866393 Contact Us For Availability
20
Roller, Door Stop WPL 834471 Contact Us For Availability
20
Damper, Spring WPL 310124 Contact Us For Availability
20
Screw, 10A x 1/2 WPL 307748 Contact Us For Availability
20
Duct, Cooling Air WPL 307529 Contact Us For Availability
21
Casing, Side (2) WPL 868512 Contact Us For Availability
21
Screw, Ground (8D x 5/16) WPL 246135 Contact Us For Availability
21
Motor, Fan WPL 866390 Contact Us For Availability
21
Rivet, Square Head WPL 241423 Contact Us For Availability
21
Nut, Speed WPL 46363 Contact Us For Availability
21
Spring, Interlock WPL 310199 Contact Us For Availability
21
Cover, Lamp WPL 307512 Contact Us For Availability
22
Fan Blade WPL 866391 Contact Us For Availability
22
Clip, Retainer WPL 866392 Contact Us For Availability
22
Pin, Hinge WPL 241334 Contact Us For Availability
22
Guide, Interlock (Not a Serviceable Part) WPL ARI123411A Contact Us For Availability
22
Socket, Snap-In WPL 307519 Contact Us For Availability
22
Gasket, Magnetron WPL 310309 Contact Us For Availability
23
Reinforcement, Side Panel WPL 868872 Contact Us For Availability
23
Tape, Foam WPL 866454 Contact Us For Availability
23
Screw, 6-20 x 1-1/8 WPL 834852 Contact Us For Availability
23
Switch, Limit WPL 868527 Contact Us For Availability
23
Arm, Hinge (2) WPL 865639 Contact Us For Availability
23
Pin, Roller (3) WPL 307603 Contact Us For Availability
23
Nut, Magnetron WPL 310300 Contact Us For Availability
24
Screw, Grounding (10-24 x 1/2) WPL 680363 Contact Us For Availability
24
Insulator, Switch WPL 868528 Contact Us For Availability
24
Spring, Door WPL 241312 Contact Us For Availability
24
Barrier, Visibility WPL 310330 Contact Us For Availability
24
Magnetron WPL 310235 Contact Us For Availability
25
Screw, 8-32 x 5/16 (4) WPL 273225 Contact Us For Availability
25
Motor, Door Latch WPL 834849 Contact Us For Availability
25
Washer WPL 241421 Contact Us For Availability
25
Catch, Door WPL 834703 Contact Us For Availability
25
Screw, 10-24 x 1/2 WPL 866265 Contact Us For Availability
25
Rivet, Accordian (5) WPL 310951 Contact Us For Availability
25
Cord, Power WPL 310900 Contact Us For Availability
25
Wire Kit, High Voltage (Magnetron) WPL 261945 Contact Us For Availability
26
Pin, Spring WPL 455105 Contact Us For Availability
26
Cam, Door Latch WPL 834483 Contact Us For Availability
26
Glass, Inner WPL 868502 Contact Us For Availability
26
screw, 4-40 x 1 (2) WPL 310211 Contact Us For Availability
26
Baffle, Air Exhaust WPL 309444 Contact Us For Availability
26
Blade, Fan WPL 307535 Contact Us For Availability
27
Pan, Broiler WPL 868505 Contact Us For Availability
27
Screw, 10-24 x 1/2 WPL 681151 Contact Us For Availability
27
Tie Bar WPL 868523 Contact Us For Availability
27
Retainer, Glass WPL 868503 Contact Us For Availability
27
Switch, Light WPL 310149 Contact Us For Availability
27
Mount, Fan Motor WPL 310414 Contact Us For Availability
28
Rack, Oven WPL 834731 Contact Us For Availability
28
Latch, Oven Door WPL 834484 Contact Us For Availability
28
Insulator, Light & Monitor Switch WPL 310154 Contact Us For Availability
28
Fastener, Stirrer Cover (8) WPL 310423 Contact Us For Availability
28
Nut, Hex (6-32) (2) WPL 309486 Contact Us For Availability
29
Rack, Oven (Offset) WPL 834732 Contact Us For Availability
29
Insulator, Switch (2) WPL 834905 Contact Us For Availability
29
Ring, Retaining (3) WPL 307605 Contact Us For Availability
29
Fuse, Thermal WPL 309279 Contact Us For Availability
29
Motor Fan (Alternate) WPL 310221 Contact Us For Availability
29
Motor, Fan (Alternate) WPL 310921 Contact Us For Availability
30
Cover, Access WPL 868524 Contact Us For Availability
30
Screw, 4- WPL 834903 Contact Us For Availability
30
WPL 834906 WPL 834906 Contact Us For Availability
30
WPL 868280 WPL 868280 Contact Us For Availability
30
Slide, Interlock (Not a Serviceable Part) WPL ARI123412A Contact Us For Availability
30
relay, reed (alternate) WPL 309623 Contact Us For Availability
30
Reed Relay (Alternate) WPL 309941 Contact Us For Availability
31
screw, 10-24 x 7/8 WPL 834649 Contact Us For Availability
31
Plate, Conduit WPL 868868 Contact Us For Availability
31
WPL 241547 WPL 241547 Contact Us For Availability
31
Insulator, Primary Switch WPL 307611 Contact Us For Availability
31
Washer Probe WPL 309769 Contact Us For Availability
31
Wire, High Voltage (3) WPL 309084 Contact Us For Availability
32
WPL 868526 WPL 868526 Contact Us For Availability
32
Bracket, Primary Switch WPL 310148 Contact Us For Availability
32
Nut, Probe WPL 309768 Contact Us For Availability
33
WPL 256158 WPL 256158 Contact Us For Availability
33
WPL 241564 WPL 241564 Contact Us For Availability
33
Screw, 6-32 x 3/8 (2) WPL 310629 Contact Us For Availability
33
Jack, Probe WPL 309654 Contact Us For Availability
33
Deflector, Exhaust WPL 308219 Contact Us For Availability
34
Plug, Button (1) WPL 142017 Contact Us For Availability
34
WPL 868799 WPL 868799 Contact Us For Availability
34
Screw, 8-32 x 3/8 (2) (Ground Wire) WPL 309080 Contact Us For Availability
34
Clip, Air Duct WPL 338177 Contact Us For Availability
35
Bracket, Switch WPL 868605 Contact Us For Availability
35
Door, Complete WPL 328741 Contact Us For Availability
35
Clip, Relay Mounting WPL 98084 Contact Us For Availability
36
Switch, Thermal WPL 868606 Contact Us For Availability
36
Interlock Assembly WPL 328655 Contact Us For Availability
36
Screw, 6A x 3/8 WPL 246131 Contact Us For Availability
36
Wrapper, Cabinet WPL 307510 Contact Us For Availability
37
Latch, Door WPL 328740 Contact Us For Availability
37
Thermostat, Fixed WPL 307564 Contact Us For Availability
38
Screw, Switch Mounting (4) WPL 98106 Contact Us For Availability
38
Fastener, Speed Nut (3) WPL 308845 Contact Us For Availability
40
Pin, Hinge WPL 308785 Contact Us For Availability
40
Screw, 10A x 1/2 (3) WPL 246134 Contact Us For Availability
41
Cover, Rivet WPL 309437 Contact Us For Availability
41
Shield, Magnetron WPL 310419 Contact Us For Availability
42
Nut, Hex (10-32) WPL 309487 Contact Us For Availability
43
Rack, Oven WPL 310878 Contact Us For Availability
44
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
44
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
44
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
44
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
44
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
44
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
44
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
44
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
44
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
44
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
44
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
44
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
44
Wire (14 Ga. 200 c Yel WPL 242832 Contact Us For Availability
44
WPL 254323 WPL 254323 Contact Us For Availability
44
WPL 261819 WPL 261819 Contact Us For Availability
44
WPL 307843 WPL 307843 Contact Us For Availability
44
WPL 308500 WPL 308500 Contact Us For Availability
44
WPL 308512 WPL 308512 Contact Us For Availability
44
WPL 310039 WPL 310039 Contact Us For Availability
44
WPL 310619 WPL 310619 Contact Us For Availability
44
WPL 310848 WPL 310848 Contact Us For Availability
44
WPL 310929 WPL 310929 Contact Us For Availability
44
WPL 310930 WPL 310930 Contact Us For Availability
44
WPL 591014 WPL 591014 Contact Us For Availability
44
WPL 799351 WPL 799351 Contact Us For Availability
44
WPL 834469 WPL 834469 Contact Us For Availability
44
WPL 834470 WPL 834470 Contact Us For Availability
44
WPL 868547 WPL 868547 Contact Us For Availability
44
WPL 978883 WPL 978883 Contact Us For Availability
44
WPL 980547 WPL 980547 Contact Us For Availability
× ![]()
