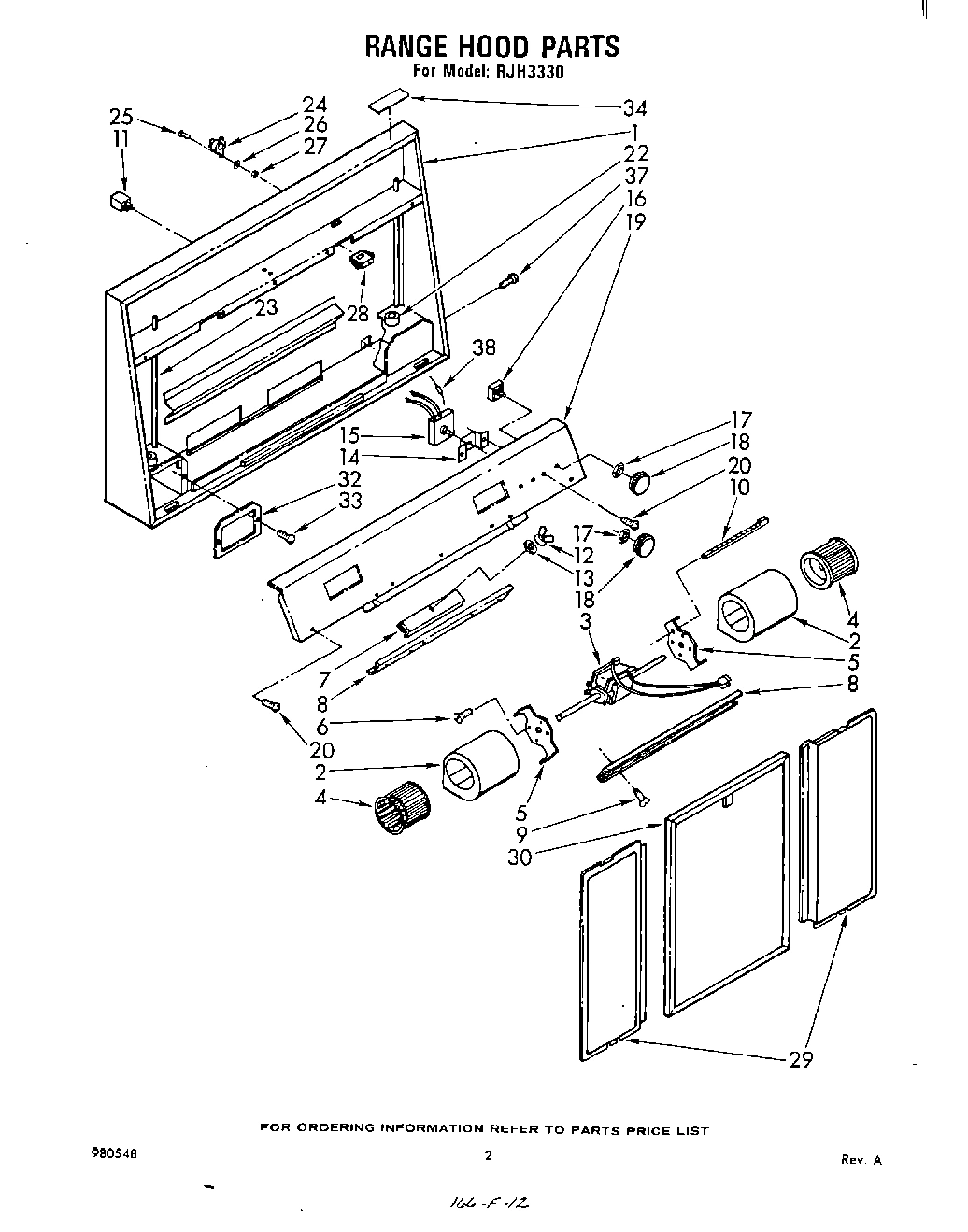

Model Whirlpool RJH3330 – Common Parts & Diagrams

LITERATURE PARTS
LITERATURE PARTS WPL ARI123410A Contact Us For Availability
View on Model
Instructions, Installation
Instructions, Installation WPL LIT830806 Contact Us For Availability
View on Model

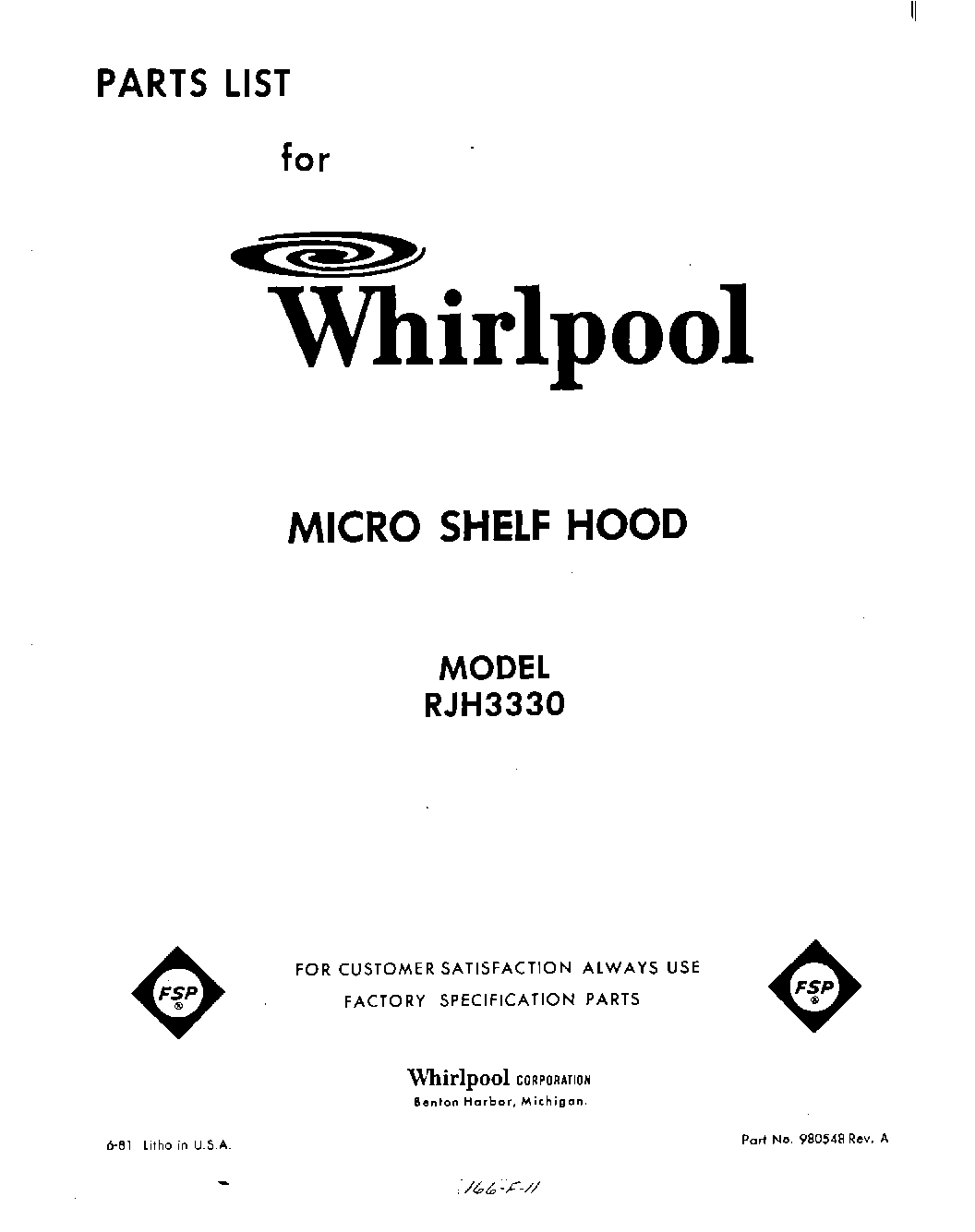

List, Repair Parts
List, Repair Parts WPL LIT980548 Contact Us For Availability
View on Model
1
Main Body (Not a Serviceable Part)
Main Body (Not a Serviceable Part) WPL ARI123409A Contact Us For Availability
View on Model
1
Safety Bracket Installation Kit
Safety Bracket Installation Kit WPL 830829 Contact Us For Availability
View on Model
2
Wrapper (2)
Wrapper (2) WPL 830823 Contact Us For Availability
View on Model
2
Hardware Mounting Kit
Hardware Mounting Kit WPL 830832 Contact Us For Availability
View on Model
3
Motor
Motor WPL 830817 Contact Us For Availability
View on Model
3
Duct, Air
Duct, Air WPL 830848 Contact Us For Availability
View on Model
4
Blower Wheel (2)
Blower Wheel (2) WPL 830824 Contact Us For Availability
View on Model
4
Transition
Transition WPL 830833 Contact Us For Availability
View on Model
5
Bracket, Motor (2)
Bracket, Motor (2) WPL 830825 Contact Us For Availability
View on Model
5
Bracket, Hanging
Bracket, Hanging WPL 830830 Contact Us For Availability
View on Model
7
Bracket, Blower Mounting
Bracket, Blower Mounting WPL 830826 Contact Us For Availability
View on Model
8
Channel, Blower (2)
Channel, Blower (2) WPL 830827 Contact Us For Availability
View on Model
11
Outlet, 120V
Outlet, 120V WPL 830849 Contact Us For Availability
View on Model
13
Washer
Washer WPL 830463 Contact Us For Availability
View on Model
14
Bracket, Switch
Bracket, Switch WPL 830799 Contact Us For Availability
View on Model
15
Motor, Rotary
Motor, Rotary WPL 830738 Contact Us For Availability
View on Model
16
Switch
Switch WPL 830816 Contact Us For Availability
View on Model
17
Nut, 15/32-32
Nut, 15/32-32 WPL 830836 Contact Us For Availability
View on Model
18
Knob (2)
Knob (2) WPL 830433 Contact Us For Availability
View on Model
19
Front Panel
Front Panel WPL 830819 Contact Us For Availability
View on Model
20
Screw, 8 x 1/4 (7)
Screw, 8 x 1/4 (7) WPL 830837 Contact Us For Availability
View on Model
22
Lampholder (2)
Lampholder (2) WPL 830755 Contact Us For Availability
View on Model
23
Tubing, Aluminum (2)
Tubing, Aluminum (2) WPL 830828 Contact Us For Availability
View on Model
24
Switch, Thermal
Switch, Thermal WPL 830814 Contact Us For Availability
View on Model
25
Screw, 6-32 x 1/4 (2)
Screw, 6-32 x 1/4 (2) WPL 830838 Contact Us For Availability
View on Model
26
Washer (2)
Washer (2) WPL 830839 Contact Us For Availability
View on Model
27
Nut, 6-32 (2)
Nut, 6-32 (2) WPL 830840 Contact Us For Availability
View on Model
28
Receptacle
Receptacle WPL 830173 Contact Us For Availability
View on Model
29
Light Lens (2)
Light Lens (2) WPL 830781 Contact Us For Availability
View on Model
30
Filter, Aluminum
Filter, Aluminum WPL 830818 Contact Us For Availability
View on Model
32
Cover, Wiring Box (2)
Cover, Wiring Box (2) WPL 830815 Contact Us For Availability
View on Model
33
Screw, 8 x 1/4 (4)
Screw, 8 x 1/4 (4) WPL 830740 Contact Us For Availability
View on Model
34
Nameplate
Nameplate WPL 830831 Contact Us For Availability
View on Model
37
Screw, 10-32 x 3/8 (Ground)
Screw, 10-32 x 3/8 (Ground) WPL 830841 Contact Us For Availability
View on Model
38
Ductless Kit Model RCH3630
Ductless Kit Model RCH3630 WPL 830850 Contact Us For Availability
View on Model
38
Diode, Wire
Diode, Wire WPL 830857 Contact Us For Availability
