Model Whirlpool RHM975PW2 – Common Parts & Diagrams

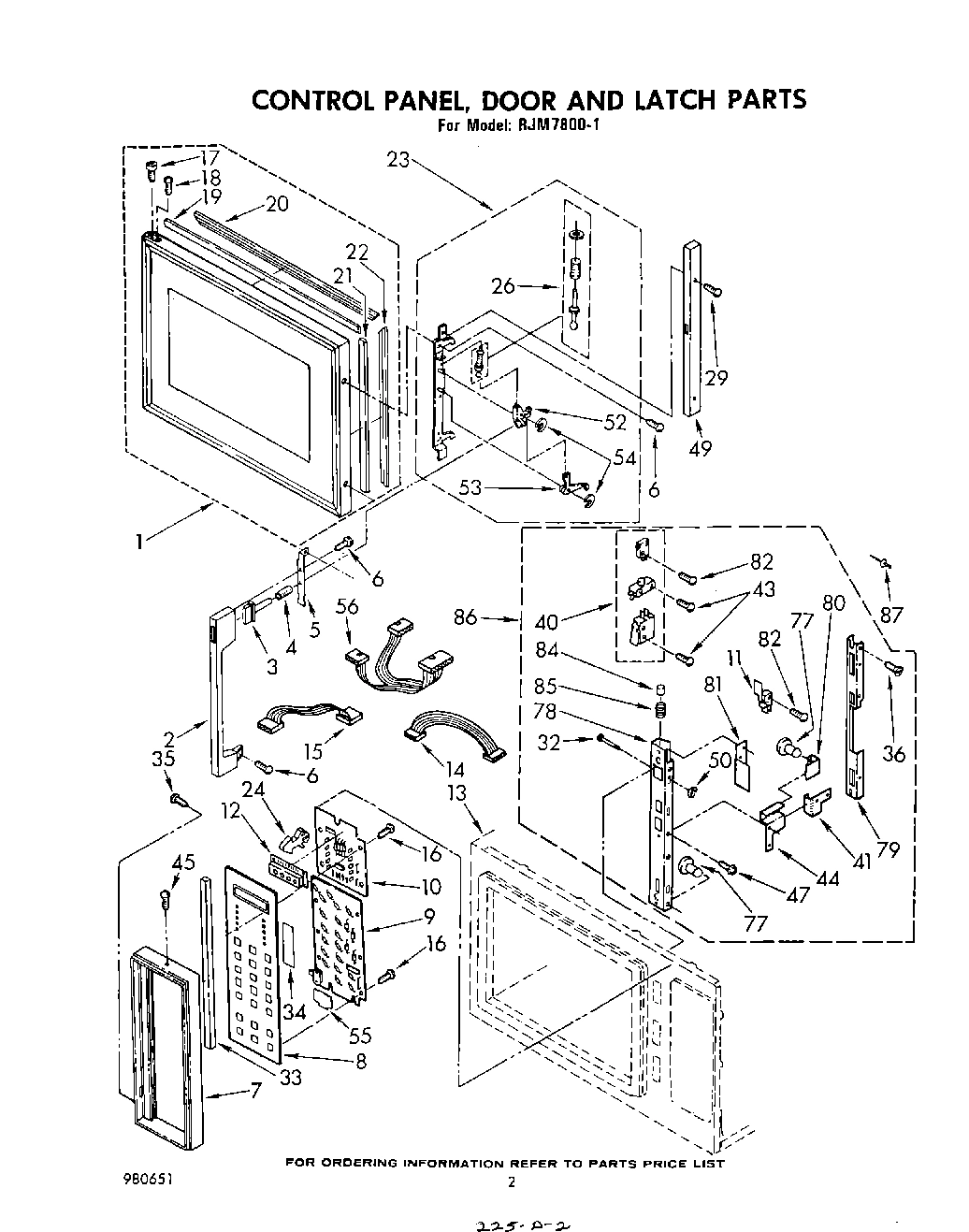

02 - CONTROL PANEL, DOOR AND LATCH

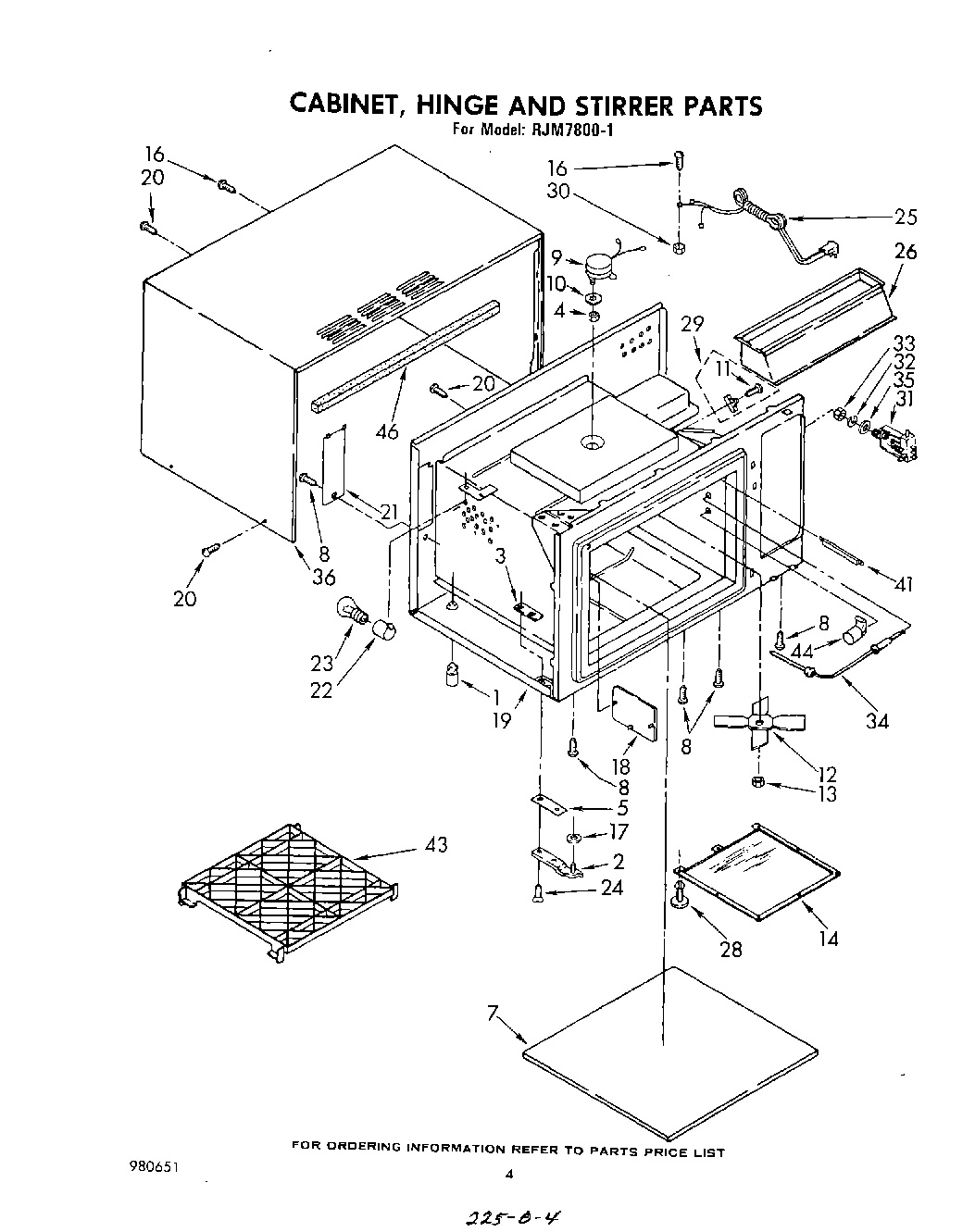

03 - CABINET, HINGE AND STIRRER , LITERATURE
04 - MAGNETRON AND AIRFLOW
05 - WIRING HARNESS
Common parts from model Whirlpool RHM975PW2
1
Foot, Mounting (4) WPL 307540 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI123396A Contact Us For Availability
1
harness, main WPL 310813 Contact Us For Availability
2
hinge door (top) WPL 329070 Contact Us For Availability
2
hinge door (bottom) WPL 329071 Contact Us For Availability
2
resistor, power (3 ohm) WPL 329223 Contact Us For Availability
2
harness, control WPL 310895 Contact Us For Availability
3
plate, hing (2) (top & bottom) WPL 312092 Contact Us For Availability
3
Deflector, Air WPL 307635 Contact Us For Availability
3
harness, interlock WPL 310818 Contact Us For Availability
4
nut, 5 mm-0.8 flange (2) WPL 310300 Contact Us For Availability
4
cap, terminal (uses 310222 or 310223 pin term WPL 310959 Contact Us For Availability
5
Bracket, Door Handle WPL 310111 Contact Us For Availability
5
Hinge, Shim Locking (2) WPL 311991 Contact Us For Availability
5
Screw, 10-32 x 1/2 WPL 258857 Contact Us For Availability
5
plug, circuit (uses 310959 cap) (uses 310222 WPL 310957 Contact Us For Availability
6
Transformer WPL 307676 Contact Us For Availability
6
cap, terminal (uses 310222 or 310223 pin term WPL 310960 Contact Us For Availability
7
frame, control panel WPL 311464 Contact Us For Availability
7
Shelf, Microwave (Alternate) WPL 309145 Contact Us For Availability
7
Shelf, Microwave (Alternate (Install W/Silast WPL 311058 Contact Us For Availability
7
resistor (2 watt 10m ohm) WPL 329163 Contact Us For Availability
7
plug, circuit (uses 310960 cap) (uses 310222 WPL 310958 Contact Us For Availability
8
panel, glass touch WPL 60763 Contact Us For Availability
8
screw, 10a x 3/8 WPL 254217 Contact Us For Availability
8
Bracket, Capacitor WPL 308572 Contact Us For Availability
8
terminal, pin (male) WPL 310222 Contact Us For Availability
9
p.c. board, touch panel WPL 60782 Contact Us For Availability
9
Motor, Stirrer (Alternate) WPL 310950 Contact Us For Availability
9
motor, stirrer (alternate) WPL 311515 Contact Us For Availability
9
Block, Fuse WPL 309795 Contact Us For Availability
9
terminal, pin (female) WPL 310223 Contact Us For Availability
10
display assembly, l.e.d. (includes illus. 12) WPL 60785 Contact Us For Availability
10
bracket, support WPL 309997 Contact Us For Availability
10
receptacle, terminal (2-way) (uses 94614 term WPL 717252 Contact Us For Availability
11
Switch, Light WPL 310149 Contact Us For Availability
11
block, terminal WPL 310967 Contact Us For Availability
12
clock, l.e.d. WPL 60776 Contact Us For Availability
12
Stirrer 4-Blade WPL 309976 Contact Us For Availability
13
Cabinet (Not A Serviceable Part) WPL ARI123392A Contact Us For Availability
13
Screw, 8-32 x 3/8 WPL 310629 Contact Us For Availability
13
Nut, Hex (1/4-20) WPL 307555 Contact Us For Availability
14
harness, power supply WPL 311734 Contact Us For Availability
14
Cover, Stirrer WPL 309441 Contact Us For Availability
14
relay, reed (alternate) WPL 309623 Contact Us For Availability
14
Reed Relay (Alternate) WPL 309941 Contact Us For Availability
14
housing, relay connector (uses 308569 termina WPL 60688 Contact Us For Availability
15
harness, touch panel WPL 310237 Contact Us For Availability
15
terminal WPL 308569 Contact Us For Availability
16
screw, 6 x 5/16 t/b (6) WPL 311773 Contact Us For Availability
16
Guide, Wave (Riveted At Assembly, Not Service WPL ARI123397A Contact Us For Availability
16
insulator WPL 310241 Contact Us For Availability
17
washer, flat (2) WPL 312147 Contact Us For Availability
17
Capacitor (Alternate) WPL 311723 Contact Us For Availability
17
capacitor (alternate) WPL 311724 Contact Us For Availability
17
housing, edge connector (uses 60279 terminal) WPL 309606 Contact Us For Availability
18
Cover, Light WPL 307516 Contact Us For Availability
18
Rectifier, High Voltage WPL 832836 Contact Us For Availability
18
Terminal WPL 60279 Contact Us For Availability
19
Seal, Top & Bottom (2) (Alternate) WPL 311342 Contact Us For Availability
19
Seal, Top & Bottom (2) (Alternate) WPL 311634 Contact Us For Availability
19
Base & Cavity Assembly (Not Serviceable) WPL ARI123395A Contact Us For Availability
19
housing, ten-circuit connector WPL 308566 Contact Us For Availability
20
Retainer, Top & Bottom Seals (2) WPL 311340 Contact Us For Availability
20
Screw, 10A x 1/2 WPL 307748 Contact Us For Availability
20
Duct, Cooling Air WPL 307529 Contact Us For Availability
21
Seal Sides (2) (Alternate) WPL 311343 Contact Us For Availability
21
Seal Sides (2) (Alternate) WPL 311635 Contact Us For Availability
21
Cover, Lamp WPL 307512 Contact Us For Availability
22
Retain, Side Seal (2) WPL 311341 Contact Us For Availability
22
Socket, Snap-In WPL 307519 Contact Us For Availability
22
gasket, magnetron WPL 311718 Contact Us For Availability
23
Latch, Door WPL 328740 Contact Us For Availability
24
clip, clock to socket (2) WPL 61053 Contact Us For Availability
24
screw, oval head (4) WPL 311912 Contact Us For Availability
24
Magnetron (Alternate) WPL 311461 Contact Us For Availability
24
magnetron (alternate) WPL 311505 Contact Us For Availability
25
Cord, Power (Alternate) WPL 310900 Contact Us For Availability
25
cord, power (alternate) WPL 311543 Contact Us For Availability
25
screw, terminal block to bracket WPL 309778 Contact Us For Availability
26
plunger, latch WPL 832797 Contact Us For Availability
26
Baffle, Air Exhaust WPL 309444 Contact Us For Availability
26
Blade, Fan WPL 307535 Contact Us For Availability
27
mount, fan motor WPL 311905 Contact Us For Availability
28
nut, flange (2) WPL 311136 Contact Us For Availability
29
screw, 8-10 x .281 WPL 310210 Contact Us For Availability
29
Fuse, Thermal WPL 309279 Contact Us For Availability
29
Motor Fan (Alternate) WPL 310221 Contact Us For Availability
29
Motor, Fan (Alternate) WPL 310921 Contact Us For Availability
30
Nut, Hex (10-32) WPL 309487 Contact Us For Availability
30
clip, relay mounting (2) WPL 98084 Contact Us For Availability
31
Jack, Probe WPL 309654 Contact Us For Availability
31
Wire, High Voltage (3) WPL 309084 Contact Us For Availability
32
Pin, Roller (3) WPL 307603 Contact Us For Availability
32
Washer, Internal Lock WPL 311245 Contact Us For Availability
33
gasket, control panel frame WPL 309602 Contact Us For Availability
33
Nut, Probe WPL 309768 Contact Us For Availability
33
Deflector, Exhaust WPL 308219 Contact Us For Availability
34
film, light diffusing (3) WPL 310224 Contact Us For Availability
34
temperature probe (alternate) WPL 311439 Contact Us For Availability
34
temperature probe (alternate) WPL 312174 Contact Us For Availability
34
clip, air duct (2) WPL 338177 Contact Us For Availability
35
screw, 8-18 bt x .88 WPL 309170 Contact Us For Availability
35
Washer Probe WPL 309769 Contact Us For Availability
35
fastener, speed nut WPL 308845 Contact Us For Availability
36
Screw, 8-32 x 3/8 (2) (Ground Wire) WPL 309080 Contact Us For Availability
36
Wrapper, Cabinet WPL 307510 Contact Us For Availability
37
Thermostat, Fixed WPL 307564 Contact Us For Availability
40
switch kit, door (kit contains primary, monit WPL 832811 Contact Us For Availability
40
Transformer & Harness Assembly WPL 60355 Contact Us For Availability
41
Insulator, Primary Switch WPL 307611 Contact Us For Availability
41
Cover, Rivet WPL 309437 Contact Us For Availability
41
relay power (12 v.d.c.) (alternate) WPL 310370 Contact Us For Availability
41
relay power (12 v.d.c.) (alternate) WPL 310372 Contact Us For Availability
42
relay power (120 vac) (alternate) WPL 310371 Contact Us For Availability
42
relay power (120 vac) (alternate) WPL 310373 Contact Us For Availability
43
screw, 6-32 x 7/8 (4) WPL 98106 Contact Us For Availability
43
rack, oven WPL 311318 Contact Us For Availability
43
Powe WPL 60792 Contact Us For Availability
44
Bracket, Primary Switch WPL 310148 Contact Us For Availability
44
Support, Shelf (4) WPL 311286 Contact Us For Availability
44
WPL 61096 WPL 61096 Contact Us For Availability
46
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
46
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
46
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
46
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
46
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
46
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
46
Wire (14 Ga. 1 WPL 242826 Contact Us For Availability
46
WPL 242827 WPL 242827 Contact Us For Availability
46
WPL 242828 WPL 242828 Contact Us For Availability
46
WPL 242829 WPL 242829 Contact Us For Availability
46
WPL 242830 WPL 242830 Contact Us For Availability
46
WPL 242832 WPL 242832 Contact Us For Availability
46
WPL 261940 WPL 261940 Contact Us For Availability
46
WPL 307843 WPL 307843 Contact Us For Availability
46
WPL 308292 WPL 308292 Contact Us For Availability
46
WPL 308294 WPL 308294 Contact Us For Availability
46
WPL 310848 WPL 310848 Contact Us For Availability
46
WPL 310929 WPL 310929 Contact Us For Availability
46
WPL 311308 WPL 311308 Contact Us For Availability
46
WPL 311490 WPL 311490 Contact Us For Availability
46
WPL 328022 WPL 328022 Contact Us For Availability
46
WPL 398295 WPL 398295 Contact Us For Availability
46
WPL 590014 WPL 590014 Contact Us For Availability
46
WPL 832763 WPL 832763 Contact Us For Availability
46
WPL 832765 WPL 832765 Contact Us For Availability
46
WPL 832769 WPL 832769 Contact Us For Availability
46
WPL 832790 WPL 832790 Contact Us For Availability
46
WPL 832810 WPL 832810 Contact Us For Availability
46
WPL 980651 WPL 980651 Contact Us For Availability
47
WPL 310956 WPL 310956 Contact Us For Availability
48
WPL 310391 WPL 310391 Contact Us For Availability
49
End Cap, Door WPL 310125 Contact Us For Availability
49
WPL 310419 WPL 310419 Contact Us For Availability
50
Ring, Retaining (3) WPL 307605 Contact Us For Availability
50
WPL 246131 WPL 246131 Contact Us For Availability
51
WPL 138473 WPL 138473 Contact Us For Availability
52
Cam WPL 310119 Contact Us For Availability
52
WPL 310432 WPL 310432 Contact Us For Availability
53
WPL 310120 WPL 310120 Contact Us For Availability
53
WPL 310423 WPL 310423 Contact Us For Availability
54
WPL 310386 WPL 310386 Contact Us For Availability
54
WPL 311466 WPL 311466 Contact Us For Availability
55
WPL 310343 WPL 310343 Contact Us For Availability
55
WPL 311467 WPL 311467 Contact Us For Availability
56
WPL 311733 WPL 311733 Contact Us For Availability
56
WPL 312185 WPL 312185 Contact Us For Availability
77
WPL 310951 WPL 310951 Contact Us For Availability
78
WPL ARI123393A WPL ARI123393A Contact Us For Availability
79
WPL ARI123394A WPL ARI123394A Contact Us For Availability
80
WPL 310330 WPL 310330 Contact Us For Availability
81
WPL 310154 WPL 310154 Contact Us For Availability
82
WPL 310211 WPL 310211 Contact Us For Availability
84
WPL 310124 WPL 310124 Contact Us For Availability
85
WPL 310199 WPL 310199 Contact Us For Availability
86
WPL 328655 WPL 328655 Contact Us For Availability
87
WPL 311928 WPL 311928 Contact Us For Availability
× ![]()
