Model LG RH90V9PV2W.APTEEUS – Common Parts & Diagrams
CONTROL PANEL & PLATE ASSEMBLY
CABINET COVER & DOOR ASSEMBLY

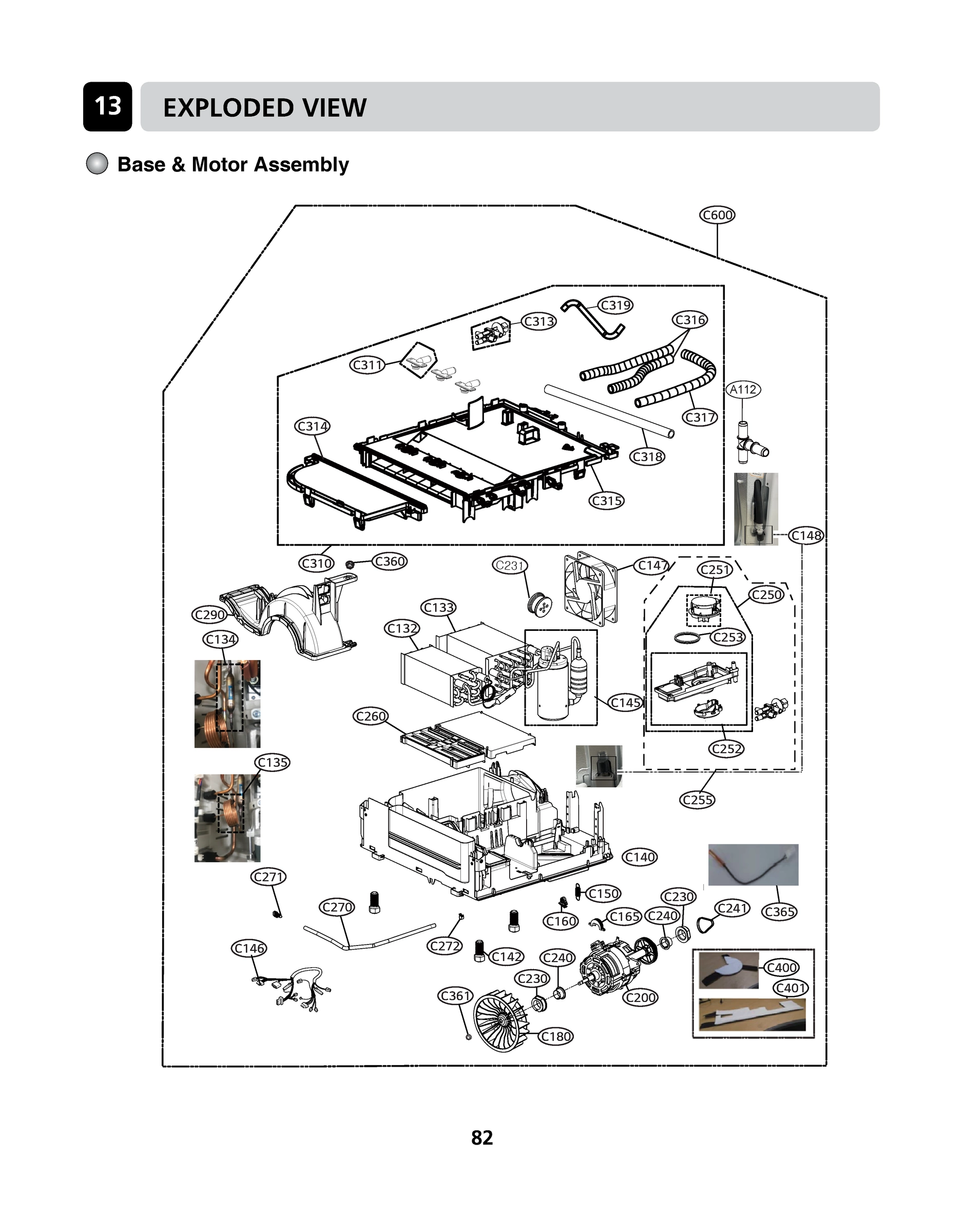

BASE & MOTOR ASSEMBLY

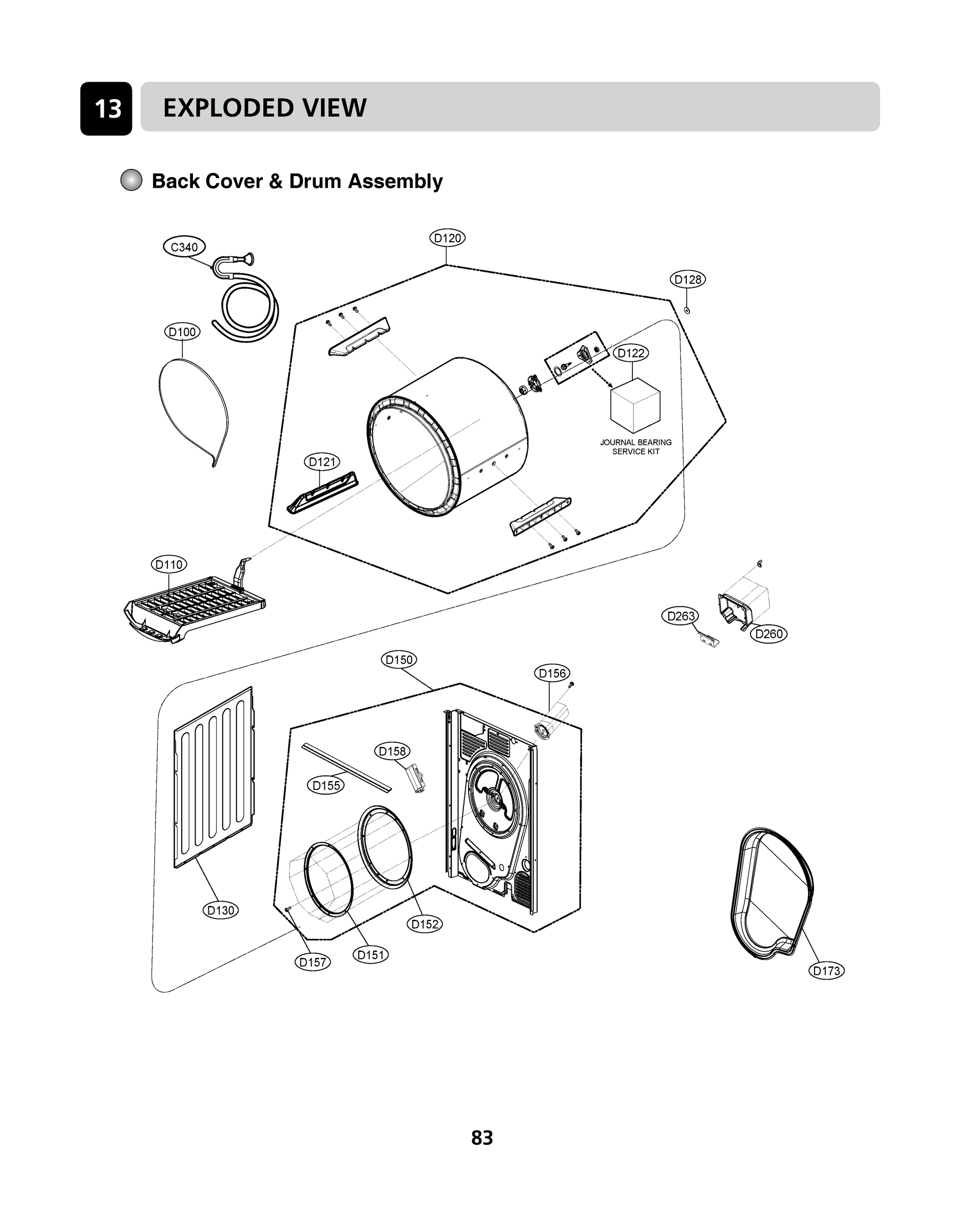

BACK COVER & DRUM ASSEMBLY
Common parts from model LG RH90V9PV2W.APTEEUS
A112
Connector,Hose LGE MCD64907901 Contact Us For Availability
A113
Hose,Pump LGE MEJ54140801 Contact Us For Availability
A200
Frame,Top LGE 3210EL1003D Contact Us For Availability
B100
Door Assembly LGE ADC76086409 Contact Us For Availability
B103
Locker,Hook LGE 4026EL3007C Contact Us For Availability
B106
Gasket LGE MDS48436401 Contact Us For Availability
B107
Hinge LGE MEF64202001 Contact Us For Availability
B108
Bush LGE 4830ER4002A Contact Us For Availability
B109
Holder LGE MEG65500201 Contact Us For Availability
B114
Bracket,Hinge LGE 4810EL3006A Contact Us For Availability
B120
Cover Assembly,Front LGE ACQ90043019 Contact Us For Availability
B122
Cover,Front LGE MCK48435501 Contact Us For Availability
B123
Filter Assembly,Lint LGE ADQ74514606 Contact Us For Availability
B125
Cover,Tub LGE MCK70027201 Contact Us For Availability
B126
Filter Assembly,Lint LGE ADQ74514708 Contact Us For Availability
B126
Filter Assembly,Lint LGE ADQ74514711 Contact Us For Availability
B127
Roller,Parts Assembly,SVC LGE AGM75510754 Contact Us For Availability
B128
Damper LGE MCQ68667101 Contact Us For Availability
B139
Harness,Single LGE EAD61857107 Contact Us For Availability
B140
Cover,Cabinet LGE MCK70027414 Contact Us For Availability
B145
Screw,Customized LGE 4000FD4191F Contact Us For Availability
B146
Gasket LGE MDS62150605 Contact Us For Availability
B150
Locker Assembly LGE AFK73489601 Contact Us For Availability
B161
Cover,Safety LGE MCK70028601 Contact Us For Availability
B162
Cover,Guide LGE MCK69950801 Contact Us For Availability
B164
Screw,Tapping LGE 1TCL0403132 Contact Us For Availability
B166
Drier LGE 5850ED3001F Contact Us For Availability
B180
Switch Assembly,LID LGE 6601EA2001B Contact Us For Availability
B180
Switch Assembly,LID LGE 6601EA2001N Contact Us For Availability
B200
Lamp,LED LGE EAQ61322101 Contact Us For Availability
B211
Nut,Common LGE 4020FA3041B Contact Us For Availability
B214
Screw,Customized LGE 4000FD4191A Contact Us For Availability
B216
Sensor,Parts Assembly,SVC LGE 383EEL9001M Contact Us For Availability
B220
Cover,Safety LGE MCK70027301 Contact Us For Availability
B230
Bracket,Base LGE MAZ66086101 Contact Us For Availability
B240
Bracket LGE MAZ66167701 Contact Us For Availability
C132
Condenser Assembly LGE ACG73105635 Contact Us For Availability
C133
Evaporator Assembly LGE ADL73101029 Contact Us For Availability
C134
Deodorizer LGE MCS62081801 Contact Us For Availability
C135
Pipe Assembly LGE AGR73594823 Contact Us For Availability
C140
Base,Cabinet LGE MAM62125406 Contact Us For Availability
C142
Leg Assembly LGE 4779EA3001B Contact Us For Availability
C145
Compressor Set,China LGE TBZ38094601 Contact Us For Availability
C146
Harness,Single LGE EAD61857210 Contact Us For Availability
C147
Motor Assembly,DC,Cooling LGE EAU61663201 Contact Us For Availability
C148
Packing LGE 3920ER3002A Contact Us For Availability
C150
Spring,Coil LGE 4970EL3003E Contact Us For Availability
C160
Holder LGE 4930EL3015A Contact Us For Availability
C165
Supporter,Motor LGE MJH48344101 Contact Us For Availability
C180
Impeller,Blower LGE MER61881601 Contact Us For Availability
C200
Motor Assembly,DC,Drum LGE EAU62423301 Contact Us For Availability
C230
Damper LGE 4850EL3002A Contact Us For Availability
C231
Damper LGE MCQ70766701 Contact Us For Availability
C240
Slider LGE 4276EL3002A Contact Us For Availability
C255
Water Kit,Parts Assembly,SVC LGE AGM30063303 Contact Us For Availability
C260
Cover,Water Inlet LGE MCK65208604 Contact Us For Availability
C270
Hose,Pump LGE 5214EL3001T Contact Us For Availability
C271
Cap,Drain Hose LGE 5006ER3009C Contact Us For Availability
C272
Clamp LGE 4861FR3068R Contact Us For Availability
C290
Cover,Blower LGE MCK65208204 Contact Us For Availability
C310
Cover Assembly,Base LGE ACQ85641508 Contact Us For Availability
C311
Nozzle,Upper LGE MFV61964704 Contact Us For Availability
C313
Valve Assembly,Convert LGE AJU75838701 Contact Us For Availability
C314
Cover,Base LGE MCK65208403 Contact Us For Availability
C315
Cover,Base LGE MCK66868708 Contact Us For Availability
C316
Hose,Pump LGE 5214EL3001J Contact Us For Availability
C317
Hose,Pump LGE 5214EL3001H Contact Us For Availability
C318
Hose,Pump LGE MEJ62366401 Contact Us For Availability
C319
Hose,Pump LGE MEJ62366502 Contact Us For Availability
C340
Accessory Assembly LGE AAA76553249 Contact Us For Availability
C360
Nut,Common LGE 1NZZEL4002A Contact Us For Availability
C361
Nut,Common LGE 1NZZEL4002B Contact Us For Availability
C365
Thermistor Assembly LGE EBG60806203 Contact Us For Availability
C400
Damper LGE MCQ68986103 Contact Us For Availability
C401
Damper LGE MCQ68986104 Contact Us For Availability
C600
Base Assembly,Cabinet LGE AAN73349757 Contact Us For Availability
D120
Tub Assembly,Drum LGE 3045EL1003B Contact Us For Availability
D122
Shaft Assy,Parts Assembly,SVC LGE 383EEL3003E Contact Us For Availability
D128
Washer,Common LGE 1WZZEL3001A Contact Us For Availability
D130
Cabinet LGE 3090EL1001T Contact Us For Availability
D150
Cover Assembly,Rear LGE ACQ55947128 Contact Us For Availability
D151
Holder LGE 4930EL1002A Contact Us For Availability
D151
Holder LGE 4930EL1002C Contact Us For Availability
D152
Packing Assembly LGE 3921EL1001A Contact Us For Availability
D155
Cover,Safety LGE MCK61945702 Contact Us For Availability
D156
Supporter,Holder LGE 4980EL4001A Contact Us For Availability
D157
Screw,Customized LGE 1SZZEL3002A Contact Us For Availability
D158
Filter Assembly LGE EAM62492324 Contact Us For Availability
D173
Duct Assembly LGE ADJ67809106 Contact Us For Availability
D260
Cover Assembly,Safety LGE ACQ73502701 Contact Us For Availability
D263
Holder LGE 4930EL3026A Contact Us For Availability
× ![]()
