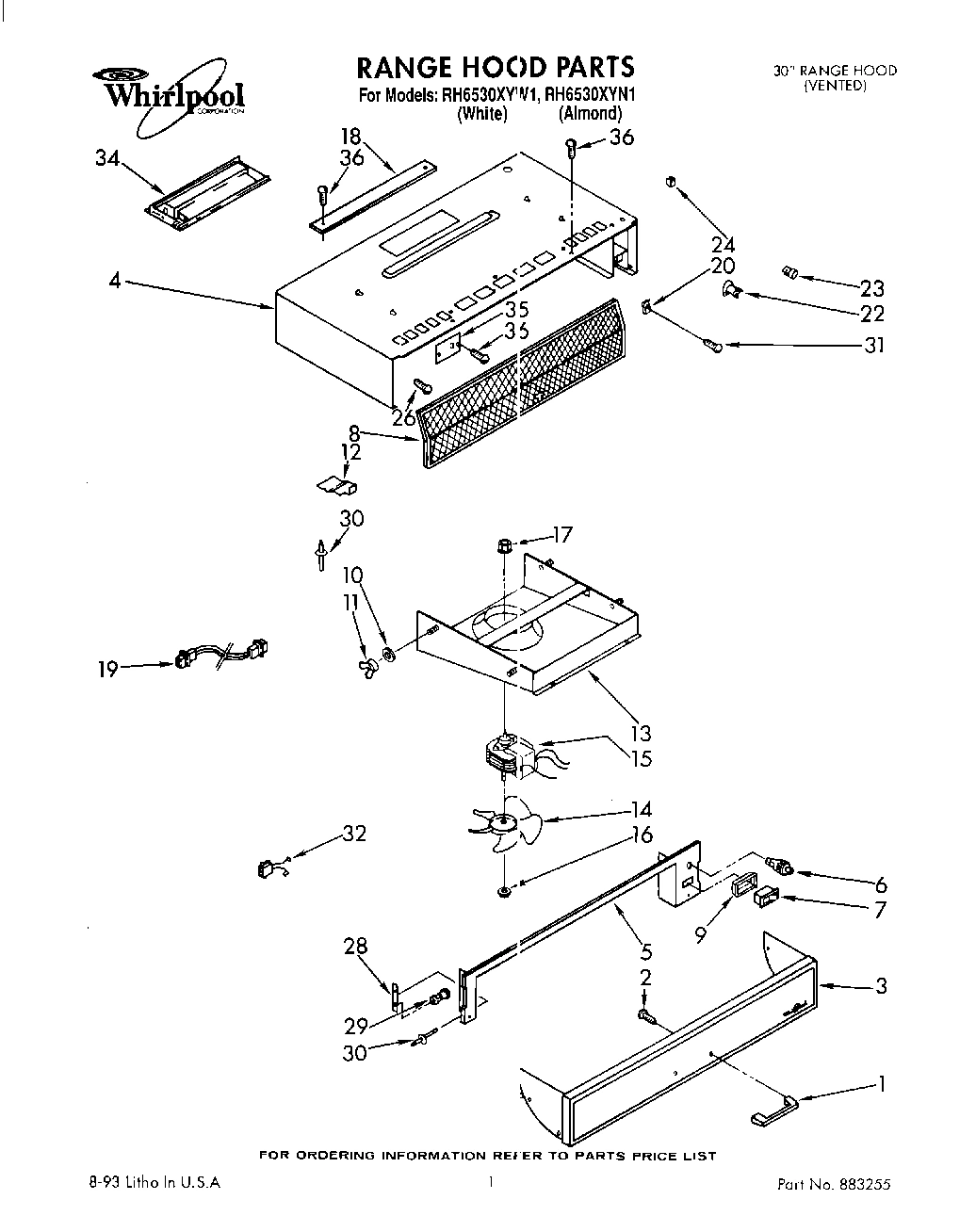

Model Whirlpool RH6530XYW1 – Common Parts & Diagrams

Instructions, Installation & Operating
Instructions, Installation & Operating WPL LIT883199 Contact Us For Availability
View on Model
Wiring Diagram
Wiring Diagram WPL LIT883210 Contact Us For Availability
View on Model
1
Handle (Includes Illus. 2)
Handle (Includes Illus. 2) WPL 883061 Contact Us For Availability
View on Model
2
Screw, No. 8 x 1/2 (2)
Screw, No. 8 x 1/2 (2) WPL 883257 Contact Us For Availability
View on Model
3
Panel, Face (Includes Illus. 1)
Panel, Face (Includes Illus. 1) WPL 883208 Contact Us For Availability
View on Model
4
Top Assembly (Not Serviceable)
Top Assembly (Not Serviceable) WPL ARI123355A Contact Us For Availability
View on Model
5
Front Assembly (White)
Front Assembly (White) WPL 883109 Contact Us For Availability
View on Model
5
Front Assembly (Almond (Includes Illus. 28, 2
Front Assembly (Almond (Includes Illus. 28, 2 WPL 883260 Contact Us For Availability
View on Model
6
Switch, Pushbutton
Switch, Pushbutton WPL 830269 Contact Us For Availability
View on Model
8
Filter
Filter WPL 883071 Contact Us For Availability
View on Model
9
Adapter, Switch
Adapter, Switch WPL 883201 Contact Us For Availability
View on Model
10
Washer, No. 10 (4)
Washer, No. 10 (4) WPL 830463 Contact Us For Availability
View on Model
12
Bracket, Front Support
Bracket, Front Support WPL 883207 Contact Us For Availability
View on Model
13
Fan Box Assembly (White)
Fan Box Assembly (White) WPL 883074 Contact Us For Availability
View on Model
13
Fan Box Assembly (Almond)
Fan Box Assembly (Almond) WPL 883258 Contact Us For Availability
View on Model
14
Blade, Fan
Blade, Fan WPL 830428 Contact Us For Availability
View on Model
15
Motor, 2-Speed
Motor, 2-Speed WPL 883254 Contact Us For Availability
View on Model
16
Nut, Push
Nut, Push WPL 883075 Contact Us For Availability
View on Model
18
Vent Cover, Ductless
Vent Cover, Ductless WPL 830476 Contact Us For Availability
View on Model
19
Dual Plug Assembly
Dual Plug Assembly WPL 883256 Contact Us For Availability
View on Model
20
Nut, Spring (10-24)
Nut, Spring (10-24) WPL 830454 Contact Us For Availability
View on Model
22
Switch, Thermal
Switch, Thermal WPL 830814 Contact Us For Availability
View on Model
23
Strain Relief (2)
Strain Relief (2) WPL 883024 Contact Us For Availability
View on Model
24
Clip-U (3)
Clip-U (3) WPL 830711 Contact Us For Availability
View on Model
26
Screw, Ground 10-32 x 3/8
Screw, Ground 10-32 x 3/8 WPL 883077 Contact Us For Availability
View on Model
28
Spring
Spring WPL 830468 Contact Us For Availability
View on Model
29
Rivet, Nylon
Rivet, Nylon WPL 830469 Contact Us For Availability
View on Model
30
Rivet, Pop (14)
Rivet, Pop (14) WPL 830470 Contact Us For Availability
View on Model
31
Screw, 6-32 x 1/4 (2)
Screw, 6-32 x 1/4 (2) WPL 830867 Contact Us For Availability
View on Model
32
Receptacle Assembly
Receptacle Assembly WPL 883259 Contact Us For Availability
View on Model
34
Damper Assembly
Damper Assembly WPL 830368 Contact Us For Availability
View on Model
34
Bracket, Mounting (Microwave)
Bracket, Mounting (Microwave) WPL 830474 Contact Us For Availability
View on Model
34
Screw, No.8x1/4 (2)
Screw, No.8x1/4 (2) WPL 830740 Contact Us For Availability
View on Model
34
Nut, Crimp
Nut, Crimp WPL 883025 Contact Us For Availability
View on Model
34
Clip, `T` (4)
Clip, `T` (4) WPL 883082 Contact Us For Availability
View on Model
