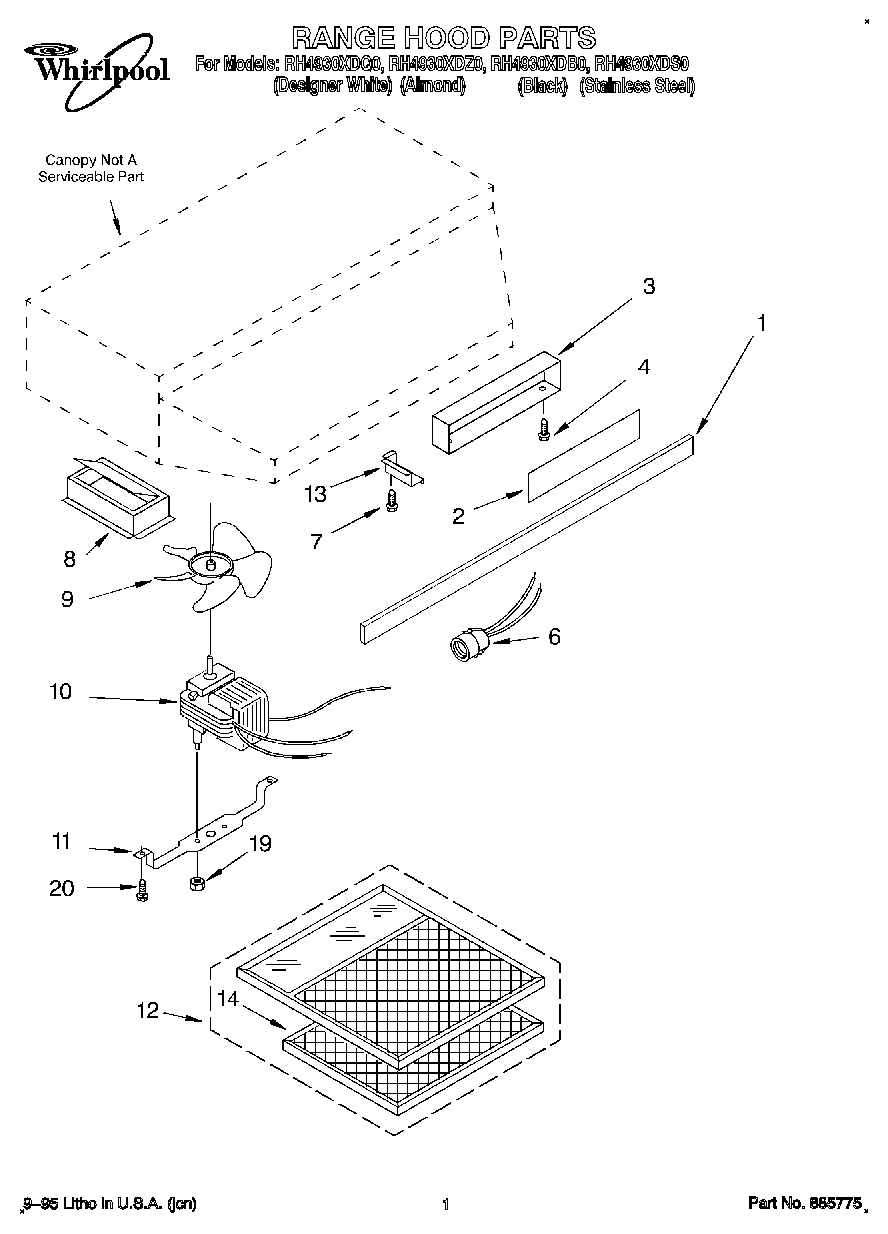

Model Whirlpool RH4930XDB0 – Common Parts & Diagrams

1
Switch Membrane (White Model)
Switch Membrane (White Model) WPL 883326 Contact Us For Availability
View on Model
1
Switch Membrane (Almond Model)
Switch Membrane (Almond Model) WPL 883327 Contact Us For Availability
View on Model
1
Switch Membrane (Black Model)
Switch Membrane (Black Model) WPL 883328 Contact Us For Availability
View on Model
1
Switch Membrane (Stainless Model)
Switch Membrane (Stainless Model) WPL 883329 Contact Us For Availability
View on Model
2
Microcomputer
Microcomputer WPL 883020 Contact Us For Availability
View on Model
3
Cover, Microcomputer (White)
Cover, Microcomputer (White) WPL 883127 Contact Us For Availability
View on Model
5
Receptacle, Motor Wire
Receptacle, Motor Wire WPL 830173 Contact Us For Availability
View on Model
6
Receptacle, Light
Receptacle, Light WPL 883124 Contact Us For Availability
View on Model
8
Damper Assembly
Damper Assembly WPL 830368 Contact Us For Availability
View on Model
9
Blade, Fan
Blade, Fan WPL 830428 Contact Us For Availability
View on Model
10
Motor, 2-Speed
Motor, 2-Speed WPL 883129 Contact Us For Availability
View on Model
11
Bracket, Motor
Bracket, Motor WPL 883126 Contact Us For Availability
View on Model
13
Cover, wiring (White)
Cover, wiring (White) WPL 883095 Contact Us For Availability
View on Model
14
Pad, Charcoal (3) (Replacement)
Pad, Charcoal (3) (Replacement) WPL 883151 Contact Us For Availability
View on Model
20
Screw, 8 x 10 (4)
Screw, 8 x 10 (4) WPL 830740 Contact Us For Availability
View on Model
