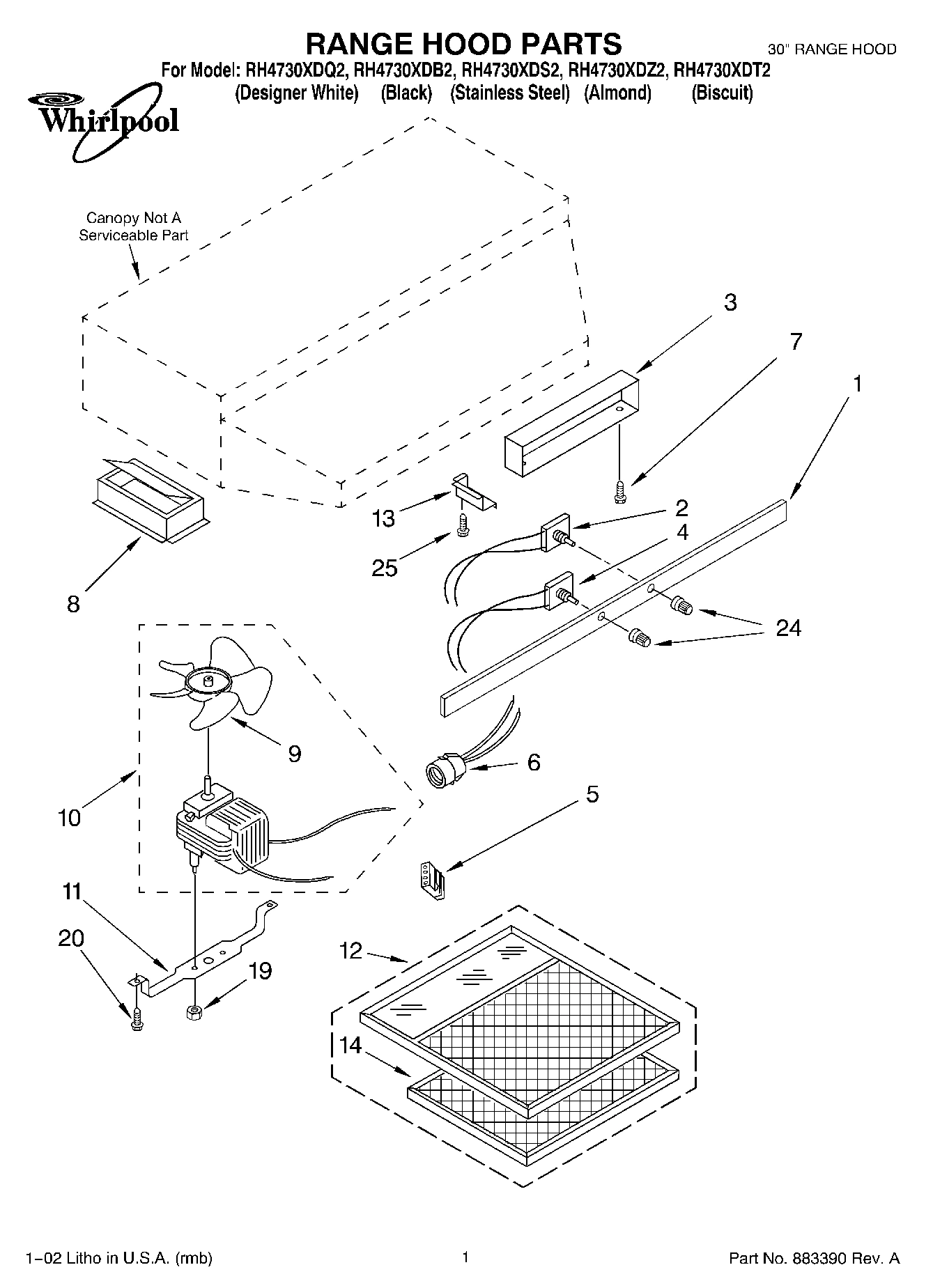

Model Whirlpool RH4730XDB2 RANGE HOOD – Common Parts & Diagrams

1
Name Plate (Biscuit)
Name Plate (Biscuit) WPL 8189518 Contact Us For Availability
View on Model
1
Name Plate (White)
Name Plate (White) WPL 883310 Contact Us For Availability
View on Model
1
Name Plate (Almond)
Name Plate (Almond) WPL 883311 Contact Us For Availability
View on Model
1
Name Plate (Black)
Name Plate (Black) WPL 883312 Contact Us For Availability
View on Model
1
Name Plate (Stainless Steel)
Name Plate (Stainless Steel) WPL 883313 Contact Us For Availability
View on Model
2
Switch, Rotary (Light)
Switch, Rotary (Light) WPL 883339 Contact Us For Availability
View on Model
3
Cover, Switch (Biscuit)
Cover, Switch (Biscuit) WPL 8189520 Contact Us For Availability
View on Model
3
Cover, Switch (White)
Cover, Switch (White) WPL 883127 Contact Us For Availability
View on Model
3
Cover, Switch (Stainless Steel)
Cover, Switch (Stainless Steel) WPL 883132 Contact Us For Availability
View on Model
3
Cover, Switch (Almond)
Cover, Switch (Almond) WPL 883133 Contact Us For Availability
View on Model
3
Cover, Switch (Black)
Cover, Switch (Black) WPL 883170 Contact Us For Availability
View on Model
4
Switch, Rotary (Fan)
Switch, Rotary (Fan) WPL 883340 Contact Us For Availability
View on Model
5
Receptacle, Motor Wire
Receptacle, Motor Wire WPL 830173 Contact Us For Availability
View on Model
6
Receptacle, Light
Receptacle, Light WPL 883124 Contact Us For Availability
View on Model
8
Damper Assembly
Damper Assembly WPL 830368 Contact Us For Availability
View on Model
9
Blade, Fan
Blade, Fan WPL 883382 Contact Us For Availability
View on Model
10
Motor/Blade Assy
Motor/Blade Assy WPL 883379 Contact Us For Availability
View on Model
11
Bracket, Motor
Bracket, Motor WPL 883397 Contact Us For Availability
View on Model
13
Box, Wiring (White)
Box, Wiring (White) WPL 883095 Contact Us For Availability
View on Model
13
Box, Wiring (Almond/Biscuit)
Box, Wiring (Almond/Biscuit) WPL 883096 Contact Us For Availability
View on Model
13
Box, Wiring (Stainless Steel)
Box, Wiring (Stainless Steel) WPL 883123 Contact Us For Availability
View on Model
13
Box, Wiring (Black)
Box, Wiring (Black) WPL 883169 Contact Us For Availability
View on Model
14
Pad, Charcoal (Replacement, Package Of 3)
Pad, Charcoal (Replacement, Package Of 3) WPL 883151 Contact Us For Availability
View on Model
24
Knob, Control (2) (Biscuit)
Knob, Control (2) (Biscuit) WPL 8189517 Contact Us For Availability
View on Model
24
Knob, Control (2) (Stainless Steel)
Knob, Control (2) (Stainless Steel) WPL 883265 Contact Us For Availability
View on Model
24
Knob, Control (2) (Black)
Knob, Control (2) (Black) WPL 883266 Contact Us For Availability
View on Model
24
Knob, Control (2) (Almond)
Knob, Control (2) (Almond) WPL 883267 Contact Us For Availability
View on Model
24
Knob, Control (2) (White)
Knob, Control (2) (White) WPL 883292 Contact Us For Availability
View on Model
