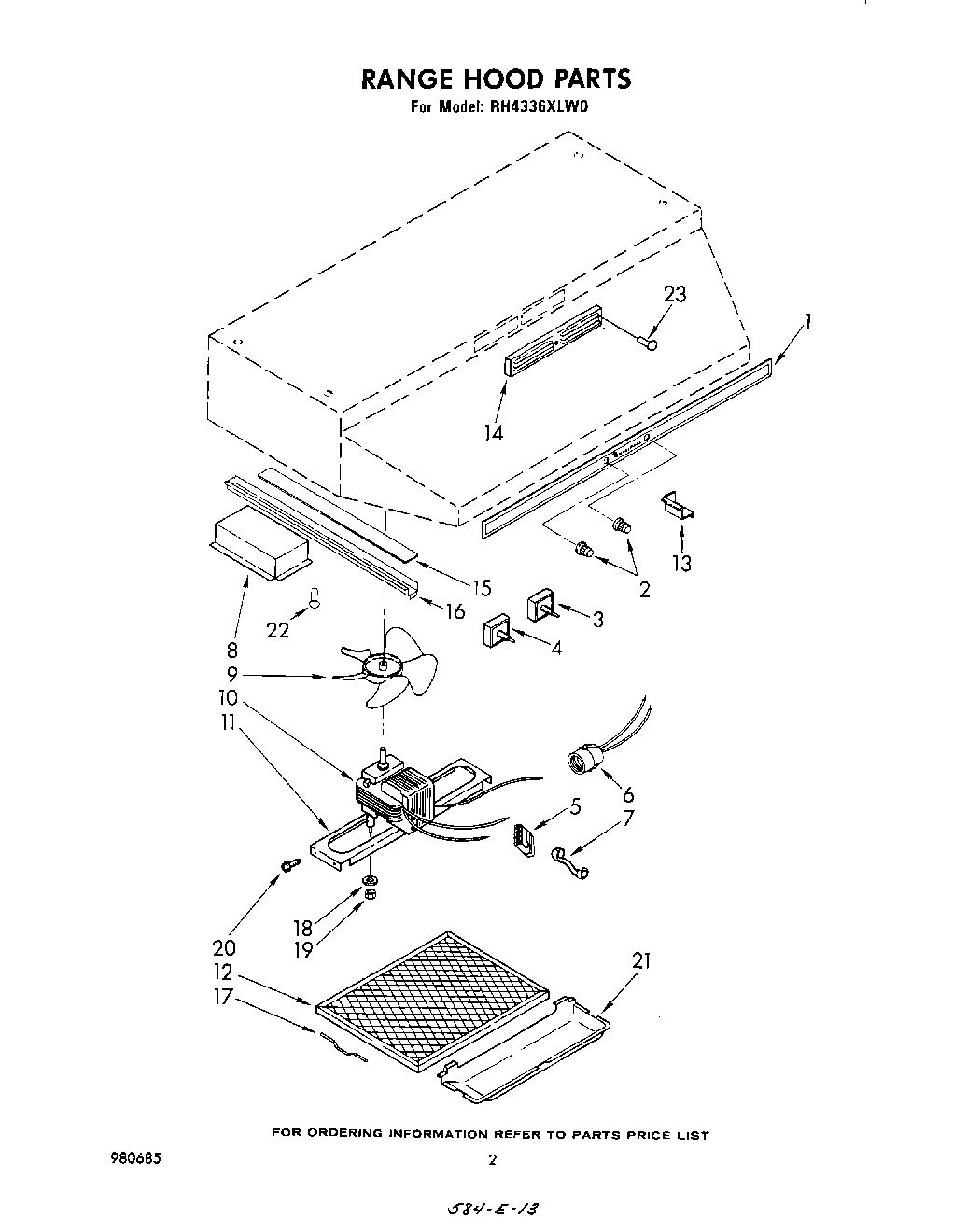

Model Whirlpool RH4336XLW0 – Common Parts & Diagrams

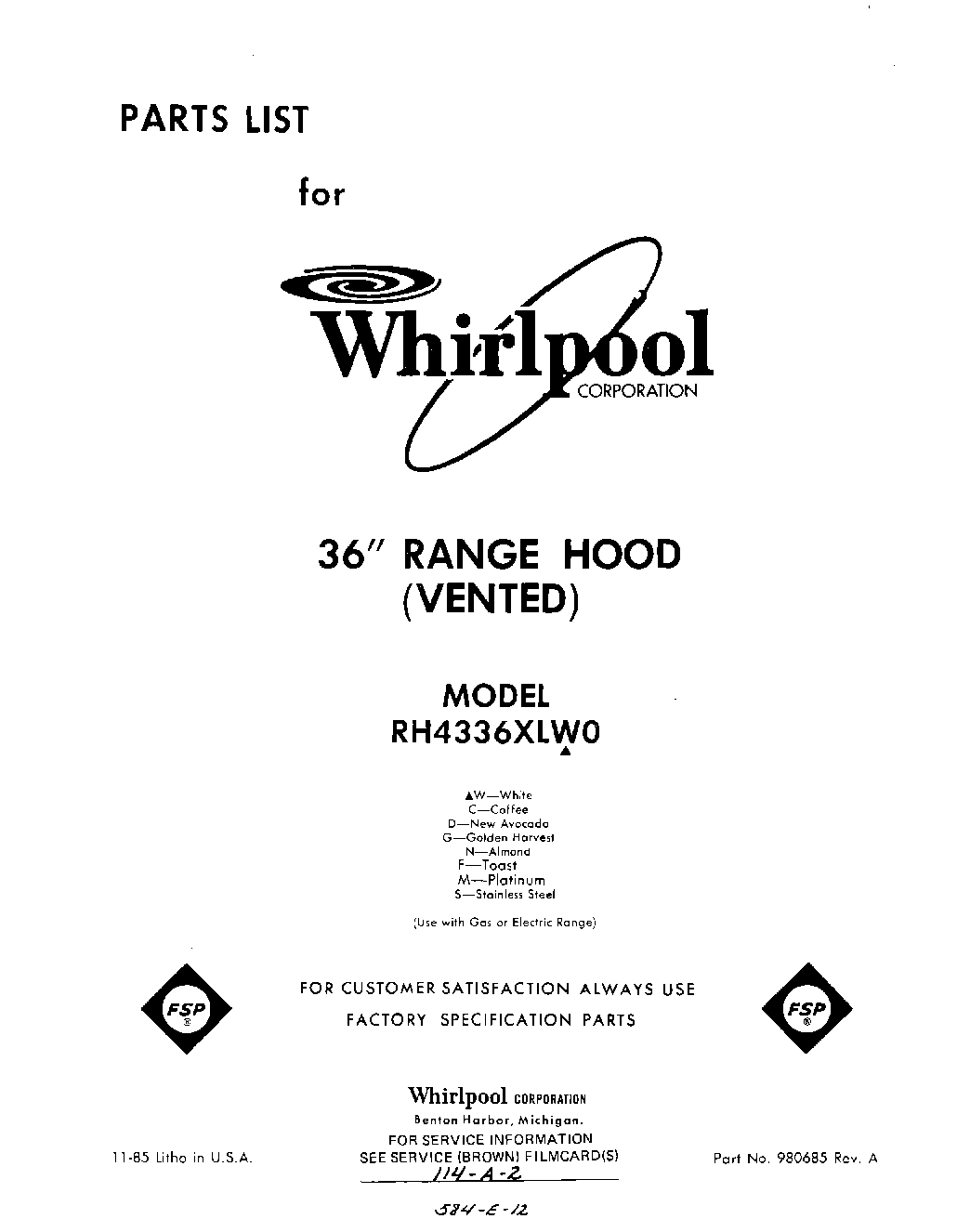

Repair Parts List
Repair Parts List WPL LIT980685 Contact Us For Availability
View on Model
1
Nameplate
Nameplate WPL 830897 Contact Us For Availability
View on Model
2
Knob (2)
Knob (2) WPL 830432 Contact Us For Availability
View on Model
3
Switch, Rotary (3 - Speed Fan)
Switch, Rotary (3 - Speed Fan) WPL 830777 Contact Us For Availability
View on Model
4
Switch, Rotary (Light)
Switch, Rotary (Light) WPL 830736 Contact Us For Availability
View on Model
5
Receptacle, Motor Wire
Receptacle, Motor Wire WPL 830173 Contact Us For Availability
View on Model
6
Receptacle, Light
Receptacle, Light WPL 830755 Contact Us For Availability
View on Model
7
Bushing, Strain Relief
Bushing, Strain Relief WPL 830327 Contact Us For Availability
View on Model
8
Damper Assembly
Damper Assembly WPL 830368 Contact Us For Availability
View on Model
9
Blade, Fan
Blade, Fan WPL 830428 Contact Us For Availability
View on Model
10
Motor, 2-Speed
Motor, 2-Speed WPL 830426 Contact Us For Availability
View on Model
11
Bracket, Motor
Bracket, Motor WPL 830441 Contact Us For Availability
View on Model
12
Filter, Aluminum
Filter, Aluminum WPL 830732 Contact Us For Availability
View on Model
13
Box, Wiring (White)
Box, Wiring (White) WPL 830690 Contact Us For Availability
View on Model
13
Box, Wiring (Coffee)
Box, Wiring (Coffee) WPL 830691 Contact Us For Availability
View on Model
13
Box, Wiring (New Avocado)
Box, Wiring (New Avocado) WPL 830692 Contact Us For Availability
View on Model
13
Box, Wiring (Golden Harvest)
Box, Wiring (Golden Harvest) WPL 830693 Contact Us For Availability
View on Model
13
Box, Wiring (Almond)
Box, Wiring (Almond) WPL 830694 Contact Us For Availability
View on Model
13
Box, Wiring (Stainless Steel)
Box, Wiring (Stainless Steel) WPL 830780 Contact Us For Availability
View on Model
13
Box, Wiring (Toast)
Box, Wiring (Toast) WPL 883039 Contact Us For Availability
View on Model
13
Box, Wiring (Platinum)
Box, Wiring (Platinum) WPL 883040 Contact Us For Availability
View on Model
14
Vent, Louvered (White)
Vent, Louvered (White) WPL 830771 Contact Us For Availability
View on Model
14
Vent, Louvered (Almond)
Vent, Louvered (Almond) WPL 830772 Contact Us For Availability
View on Model
14
Vent, Louvered (Coffee)
Vent, Louvered (Coffee) WPL 830773 Contact Us For Availability
View on Model
14
Vent, Louvered (New Avocado)
Vent, Louvered (New Avocado) WPL 830774 Contact Us For Availability
View on Model
14
Vent, Louvered (Golden Harvest)
Vent, Louvered (Golden Harvest) WPL 830775 Contact Us For Availability
View on Model
14
Vent, Louvered (Stainless Steel)
Vent, Louvered (Stainless Steel) WPL 830783 Contact Us For Availability
View on Model
14
Vent, Louvered (Toast)
Vent, Louvered (Toast) WPL 883041 Contact Us For Availability
View on Model
14
Vent, Louvered (Platinum)
Vent, Louvered (Platinum) WPL 883042 Contact Us For Availability
View on Model
15
Plate, Cover
Plate, Cover WPL 830778 Contact Us For Availability
View on Model
16
Channel, Wire
Channel, Wire WPL 830779 Contact Us For Availability
View on Model
17
Spring, Filter
Spring, Filter WPL 830489 Contact Us For Availability
View on Model
18
Washer, No. 8 (2)
Washer, No. 8 (2) WPL 830462 Contact Us For Availability
View on Model
20
Screw, 8 x 1/2 (4)
Screw, 8 x 1/2 (4) WPL 830740 Contact Us For Availability
View on Model
21
Lens, Light
Lens, Light WPL 830781 Contact Us For Availability
View on Model
22
Rivet, Pop (8)
Rivet, Pop (8) WPL 830470 Contact Us For Availability
View on Model
23
Rivet, Black (2)
Rivet, Black (2) WPL 830807 Contact Us For Availability
View on Model
23
Duct Kit (Model RCH4660)
Duct Kit (Model RCH4660) WPL 830852 Contact Us For Availability
View on Model
