  • Whirlpool RH3730XLQ0

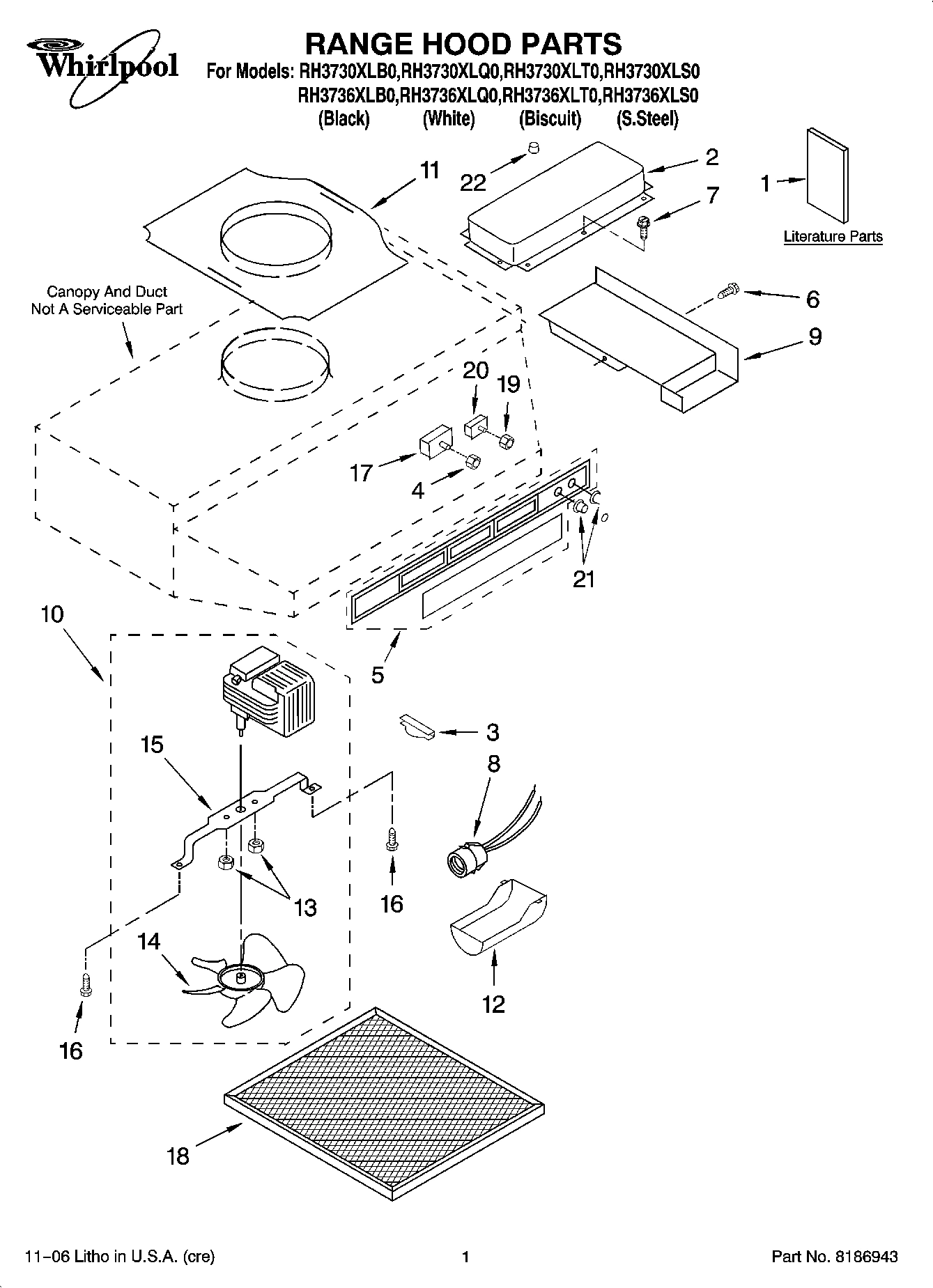

Model Whirlpool RH3730XLQ0 – Common Parts & Diagrams

6
Screw 8-18 x 3/8
Screw 8-18 x 3/8 WPL 8186928 Contact Us For Availability
View on Model
8
Receptacle, Light Bulb not incl-75W
Receptacle, Light Bulb not incl-75W WPL 8190871 Contact Us For Availability
View on Model
9
Cover, Wiring
Cover, Wiring WPL 8190870 Contact Us For Availability
View on Model
10
Motor/Fan Assembly
Motor/Fan Assembly WPL 8190875 Contact Us For Availability
View on Model
11
Plate, Duct
Plate, Duct WPL 8189869 Contact Us For Availability
View on Model
13
Nut, 6-32 (2)
Nut, 6-32 (2) WPL 8190874 Contact Us For Availability
View on Model
14
Blade, Fan
Blade, Fan WPL 8190873 Contact Us For Availability
View on Model
15
Bracket, Motor
Bracket, Motor WPL 8186934 Contact Us For Availability
View on Model
16
Screw/Nut (2 ea) (10-16x1/2 10-16)
Screw/Nut (2 ea) (10-16x1/2 10-16) WPL 8190872 Contact Us For Availability
View on Model
17
Switch, Fan
Switch, Fan WPL 8186950 Contact Us For Availability
View on Model
18
FILTER
FILTER WPL 8190876 Contact Us For Availability
View on Model
19
Nut 15/32-32
Nut 15/32-32 WPL 8186952 Contact Us For Availability
View on Model
20
Switch, Light
Switch, Light WPL 8190881 Contact Us For Availability
View on Model
21
Knob (2) (Black)
Knob (2) (Black) WPL 8190792 Contact Us For Availability
View on Model
21
Knob (2) (White)
Knob (2) (White) WPL 8190793 Contact Us For Availability
View on Model
21
Knob (2) (Biscuit)
Knob (2) (Biscuit) WPL 8190794 Contact Us For Availability
View on Model
22
Screw, Ground
Screw, Ground WPL 8186944 Contact Us For Availability
View on Model
22
Harness, Wire (Incl 8, 17 & 20)
Harness, Wire (Incl 8, 17 & 20) WPL 8186951 Contact Us For Availability
View on Model
22
Bumper, Damper
Bumper, Damper WPL 8190884 Contact Us For Availability
View on Model
22
Diode Assembly
Diode Assembly WPL 8190885 Contact Us For Availability
View on Model
22
Following Parts Not Illustrated
Following Parts Not Illustrated WPL ARI123335A Contact Us For Availability
