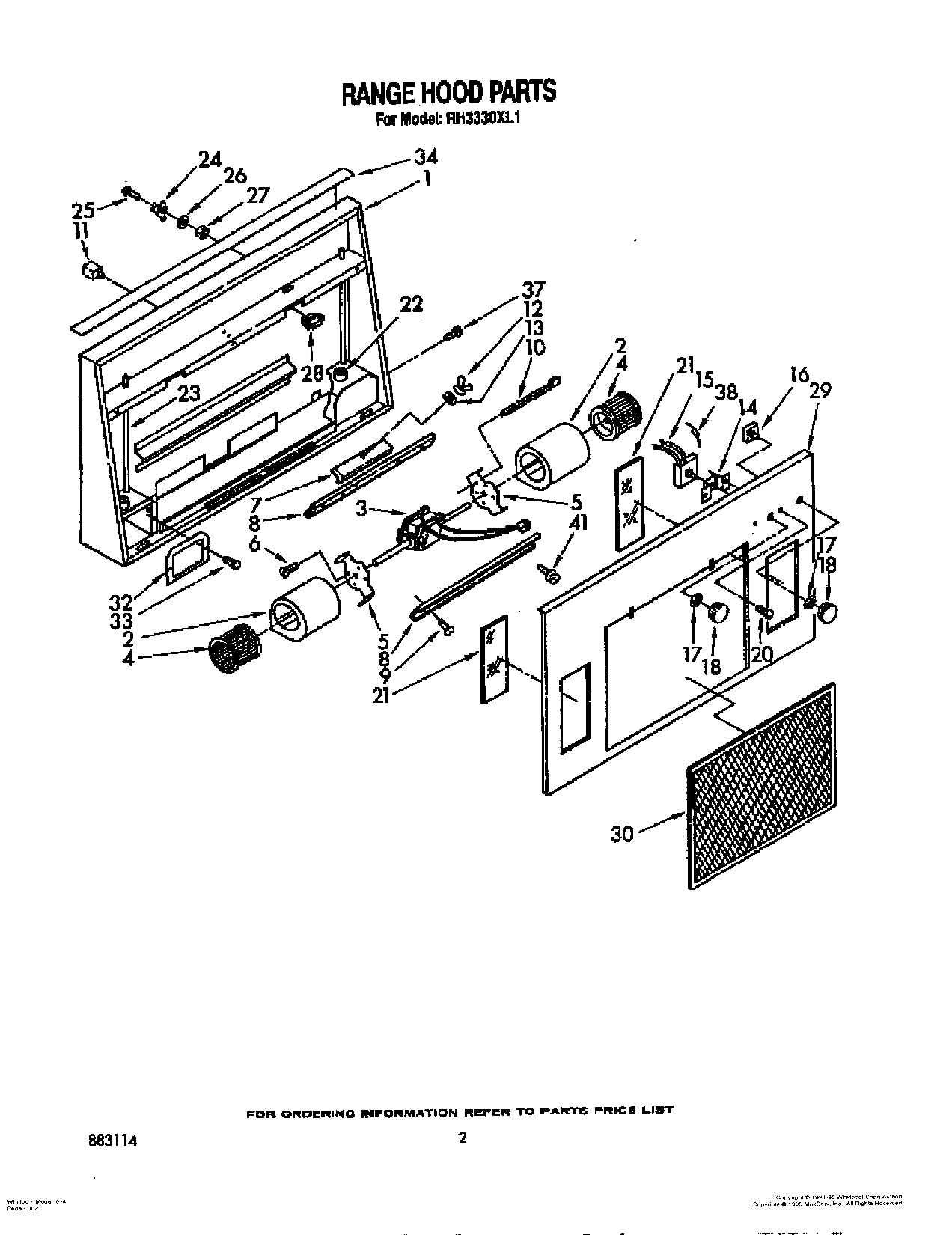

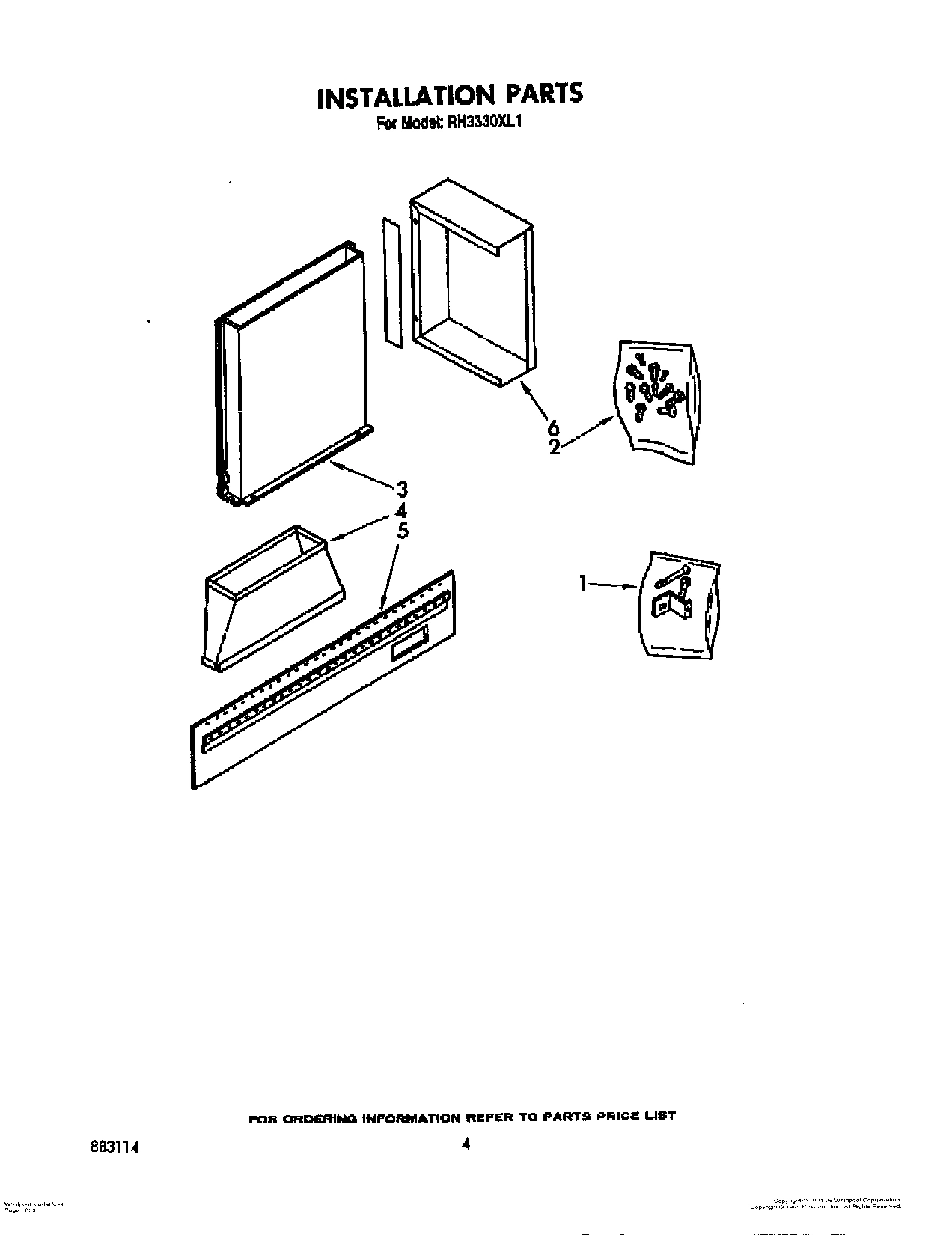

Model Whirlpool RH3330XL1 – Common Parts & Diagrams

Instructions, Installation
Instructions, Installation WPL LIT830879 Contact Us For Availability
View on Model
List, Repair Parts
List, Repair Parts WPL LIT883114 Contact Us For Availability
View on Model
1
Main Body (Not a Serviceable Part)
Main Body (Not a Serviceable Part) WPL ARI123332A Contact Us For Availability
View on Model
1
Safety Bracket Installation Kit
Safety Bracket Installation Kit WPL 830829 Contact Us For Availability
View on Model
2
Wrapper (2)
Wrapper (2) WPL 830823 Contact Us For Availability
View on Model
2
Hardware Mounting Kit
Hardware Mounting Kit WPL 830862 Contact Us For Availability
View on Model
3
Motor
Motor WPL 830817 Contact Us For Availability
View on Model
3
Duct, Air
Duct, Air WPL 830882 Contact Us For Availability
View on Model
4
Blower Wheel (2)
Blower Wheel (2) WPL 830824 Contact Us For Availability
View on Model
4
Transition
Transition WPL 830833 Contact Us For Availability
View on Model
5
Bracket, Motor (2)
Bracket, Motor (2) WPL 830825 Contact Us For Availability
View on Model
5
Bracket, Hanging
Bracket, Hanging WPL 830830 Contact Us For Availability
View on Model
6
Filler, Side
Filler, Side WPL 883012 Contact Us For Availability
View on Model
7
Bracket, Blower Mounting
Bracket, Blower Mounting WPL 830826 Contact Us For Availability
View on Model
8
Channel, Blower (2)
Channel, Blower (2) WPL 830827 Contact Us For Availability
View on Model
11
Outlet, 120V
Outlet, 120V WPL 830849 Contact Us For Availability
View on Model
13
Washer
Washer WPL 830463 Contact Us For Availability
View on Model
14
Bracket, Switch
Bracket, Switch WPL 830799 Contact Us For Availability
View on Model
15
Switch, Fan Motor
Switch, Fan Motor WPL 830738 Contact Us For Availability
View on Model
16
Switch, Light
Switch, Light WPL 830777 Contact Us For Availability
View on Model
17
Nut, 15/32-32
Nut, 15/32-32 WPL 830836 Contact Us For Availability
View on Model
18
Knob (2)
Knob (2) WPL 830433 Contact Us For Availability
View on Model
20
Screw, 8 x 1/4 (7)
Screw, 8 x 1/4 (7) WPL 830837 Contact Us For Availability
View on Model
21
Cover, Light
Cover, Light WPL 883049 Contact Us For Availability
View on Model
22
Lampholder (2)
Lampholder (2) WPL 830755 Contact Us For Availability
View on Model
23
Tubing, Aluminum (2)
Tubing, Aluminum (2) WPL 830828 Contact Us For Availability
View on Model
24
Switch, Thermal
Switch, Thermal WPL 830814 Contact Us For Availability
View on Model
25
Screw, 6-32 x 1/4 (2)
Screw, 6-32 x 1/4 (2) WPL 830838 Contact Us For Availability
View on Model
26
Washer (2)
Washer (2) WPL 830839 Contact Us For Availability
View on Model
27
Nut, 6-32 (2)
Nut, 6-32 (2) WPL 830840 Contact Us For Availability
View on Model
28
Receptacle
Receptacle WPL 830173 Contact Us For Availability
View on Model
29
Panel, Front
Panel, Front WPL 883115 Contact Us For Availability
View on Model
30
Filter, Aluminum
Filter, Aluminum WPL 830818 Contact Us For Availability
View on Model
32
Cover, Wiring Box (2)
Cover, Wiring Box (2) WPL 830815 Contact Us For Availability
View on Model
33
Screw, 8 x 1/4 (4)
Screw, 8 x 1/4 (4) WPL 830740 Contact Us For Availability
View on Model
34
Nameplate
Nameplate WPL 830883 Contact Us For Availability
View on Model
37
Screw, 10-32 x 3/8 (Ground)
Screw, 10-32 x 3/8 (Ground) WPL 830841 Contact Us For Availability
View on Model
38
Diode, Wire
Diode, Wire WPL 830857 Contact Us For Availability
View on Model
41
Order Blank, Filter
Order Blank, Filter WPL 830735 Contact Us For Availability
View on Model
41
Screw, Thumb 6-32 (2)
Screw, Thumb 6-32 (2) WPL 830867 Contact Us For Availability
View on Model
41
Paint, Cord Brown Spray (13 Oz.)
Paint, Cord Brown Spray (13 Oz.) WPL 830881 Contact Us For Availability
View on Model
41
Ductless Kit Model RCH3660
Ductless Kit Model RCH3660 WPL 830884 Contact Us For Availability
View on Model
