Model Whirlpool RH2624XDQ0 – Common Parts & Diagrams

Common parts from model Whirlpool RH2624XDQ0

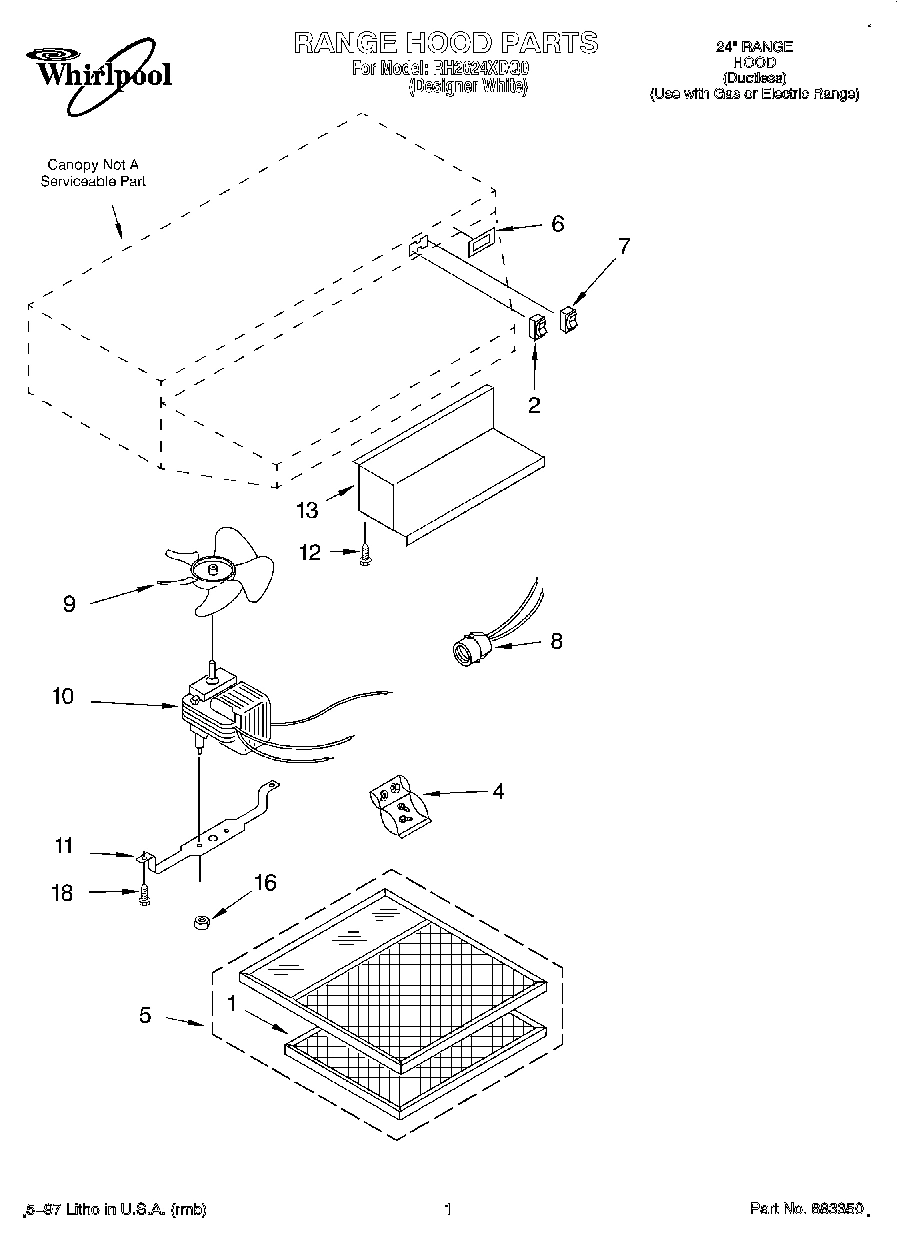

01 - SECTION

Print

• This Diagram
• All Diagrams

Wiring Diagram WPL LIT883184 Contact Us For Availability

View on Model

Installation & Operating Instructions WPL LIT883345 Contact Us For Availability

View on Model

1

Pad, Charcoal (Replacement, Package Of 3) WPL 883151 Contact Us For Availability

View on Model

2

Switch, Light WPL 883261 Contact Us For Availability

View on Model

4

Installation, Hardware WPL 883185 Contact Us For Availability

View on Model

5

WP8190232 Whirlpool Range Hood Light Lens and In Stock WPL WP8190232 View Details $71.37

View on Model

6

Nameplate (White Model) WPL 883307 Contact Us For Availability

View on Model

6

Nameplate (Almond Model) WPL 883308 Contact Us For Availability

View on Model

6

Nameplate (Stainless Model) WPL 883309 Contact Us For Availability

View on Model

7

W10673703 Whirlpool Rocker Switch Backorder WPL W10673703 View Details $50.76

View on Model

8

Light Socket WPL 883094 Contact Us For Availability

View on Model

9

Blade, Fan WPL 830766 Contact Us For Availability

View on Model

10

Motor, 2-Speed WPL 883355 Contact Us For Availability

View on Model

11

Bracket, Motor WPL 883126 Contact Us For Availability

View on Model

12

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 View Details $2.51

View on Model

13

Cover, wiring WPL 883095 Contact Us For Availability

View on Model

16

Nut, 6-32 (2) WPL 883353 Contact Us For Availability

View on Model

18

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 View Details $3.09

View on Model

19

Damper Assembly WPL 830368 Contact Us For Availability

View on Model

×
