Model Whirlpool RH2336XJQ1 RANGE HOOD – Common Parts & Diagrams

Common parts from model Whirlpool RH2336XJQ1 RANGE HOOD

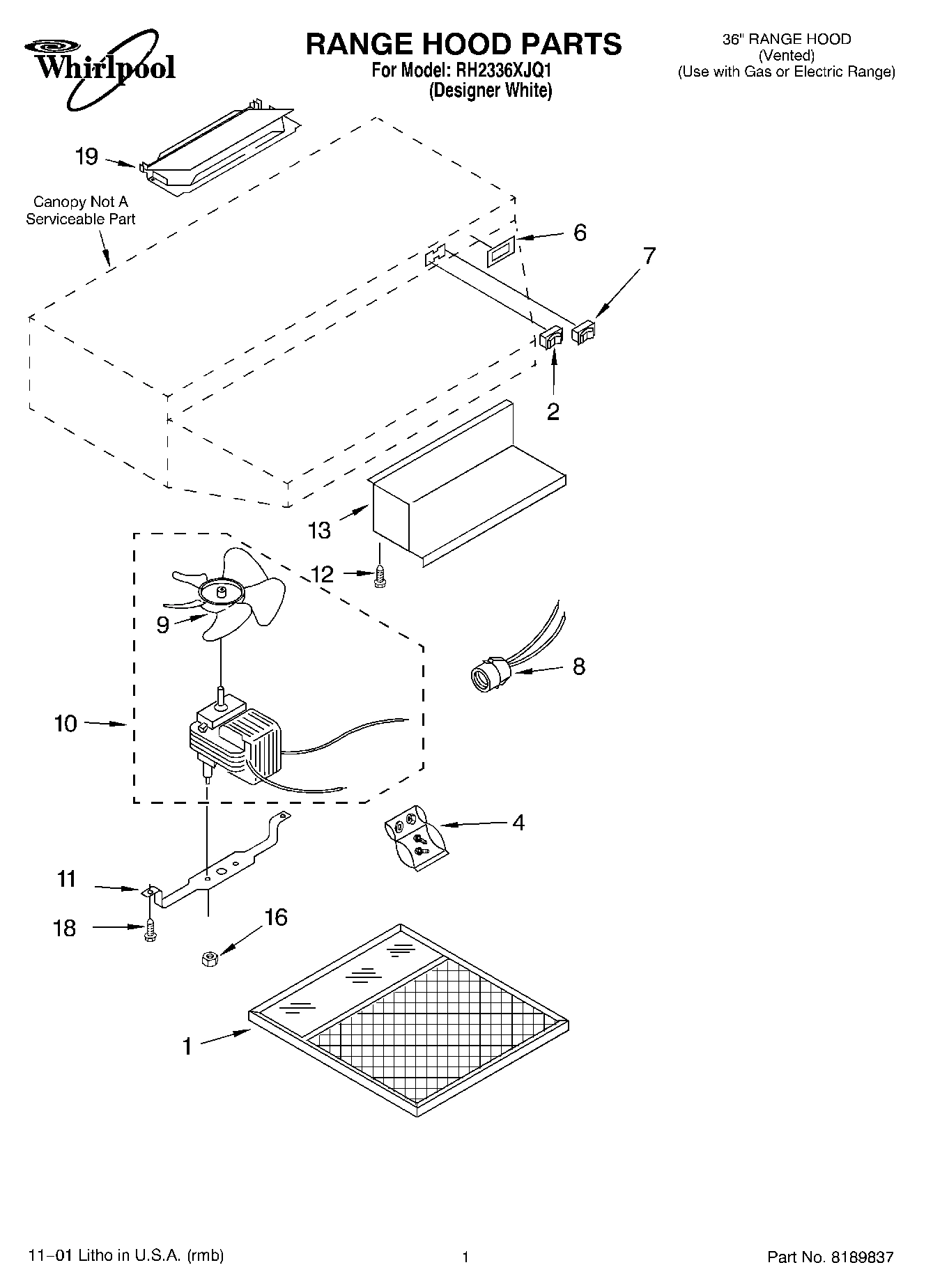

01 - SECTION

Print

• This Diagram
• All Diagrams

Wiring Diagram WPL LIT883184 Contact Us For Availability

View on Model

1

WP8190232 Whirlpool Range Hood Light Lens and In Stock WPL WP8190232 View Details $71.37

View on Model

2

Switch, Light WPL 8189843 Contact Us For Availability

View on Model

4

Installation, Hardware WPL 883191 Contact Us For Availability

View on Model

6

Name Plate WPL 8189511 Contact Us For Availability

View on Model

7

Switch, Fan WPL 8189847 Contact Us For Availability

View on Model

8

Light Socket WPL 883094 Contact Us For Availability

View on Model

9

Blade, Fan WPL 883382 Contact Us For Availability

View on Model

10

Motor/Fan Assembly WPL 883378 Contact Us For Availability

View on Model

11

Bracket, Motor WPL 883397 Contact Us For Availability

View on Model

12

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 View Details $2.51

View on Model

13

Cover, wiring WPL 883095 Contact Us For Availability

View on Model

16

Nut, 6-32 WPL 883353 Contact Us For Availability

View on Model

18

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 View Details $3.09

View on Model

19

Damper 8-32 x 1/4 (2) WPL 830753 Contact Us For Availability

View on Model

×
