Model Whirlpool RH203A – Common Parts & Diagrams
04 - CABINET
05 - OPTIONAL

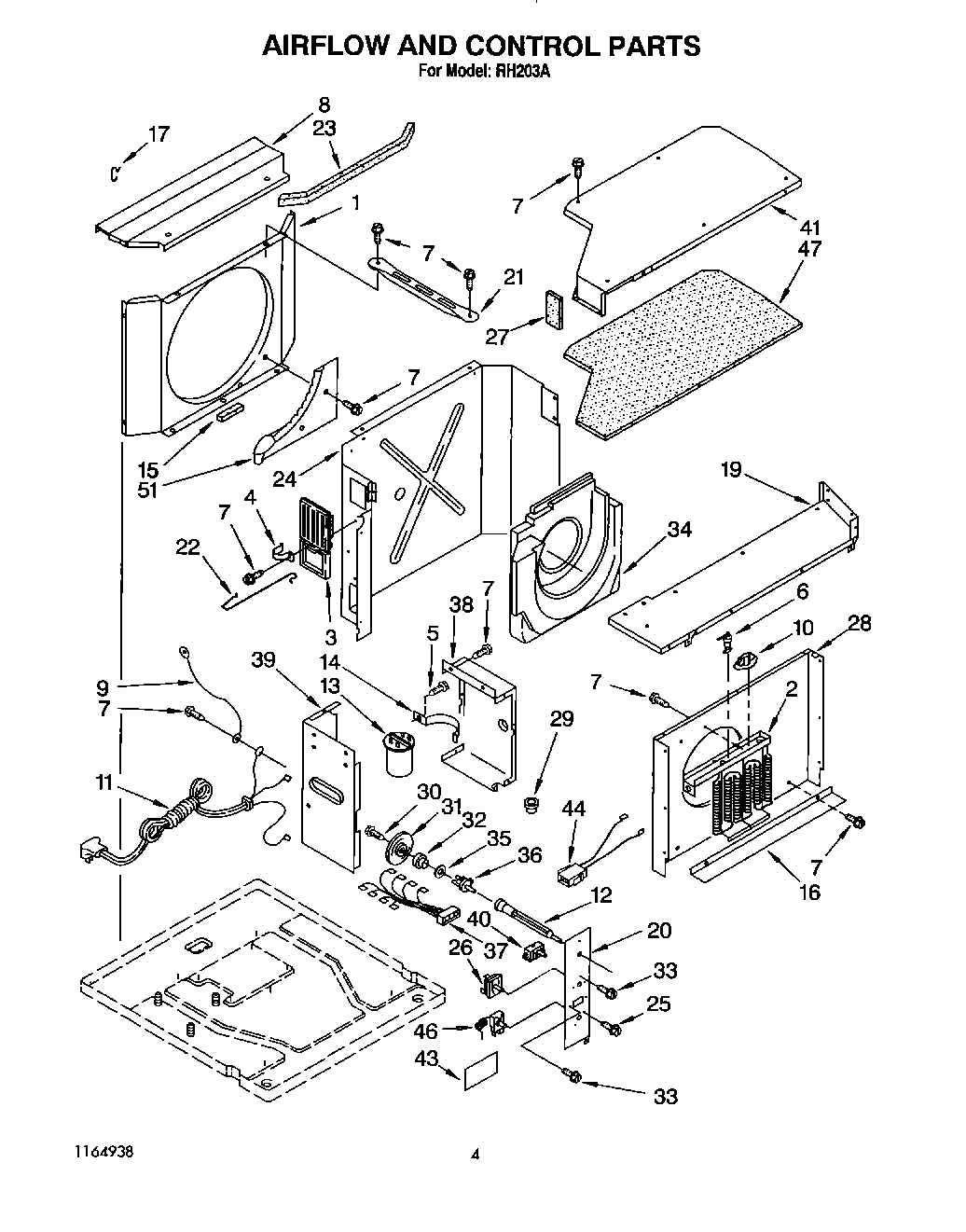

03 - AIRFLOW AND CONTROL

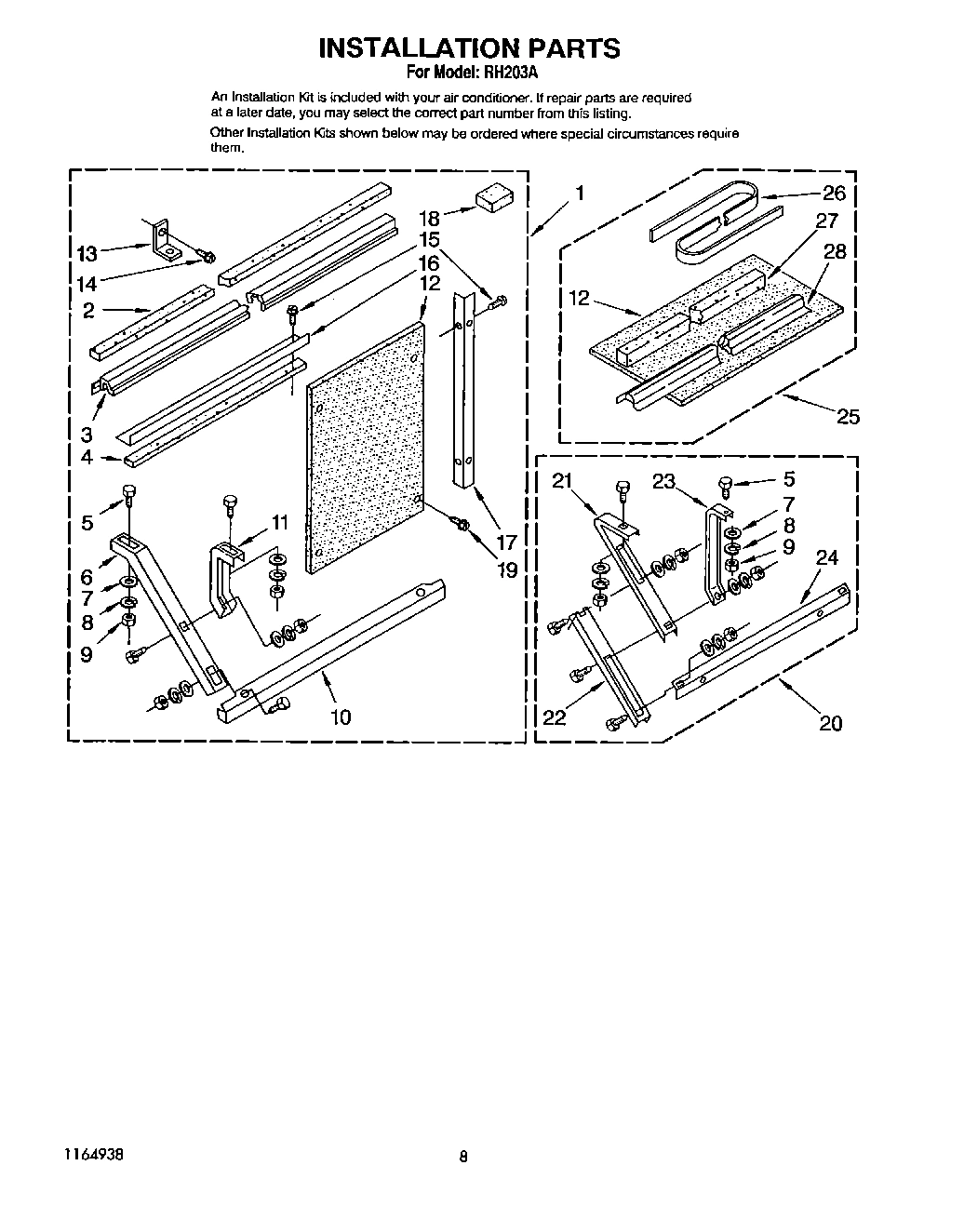

06 - INSTALLATION

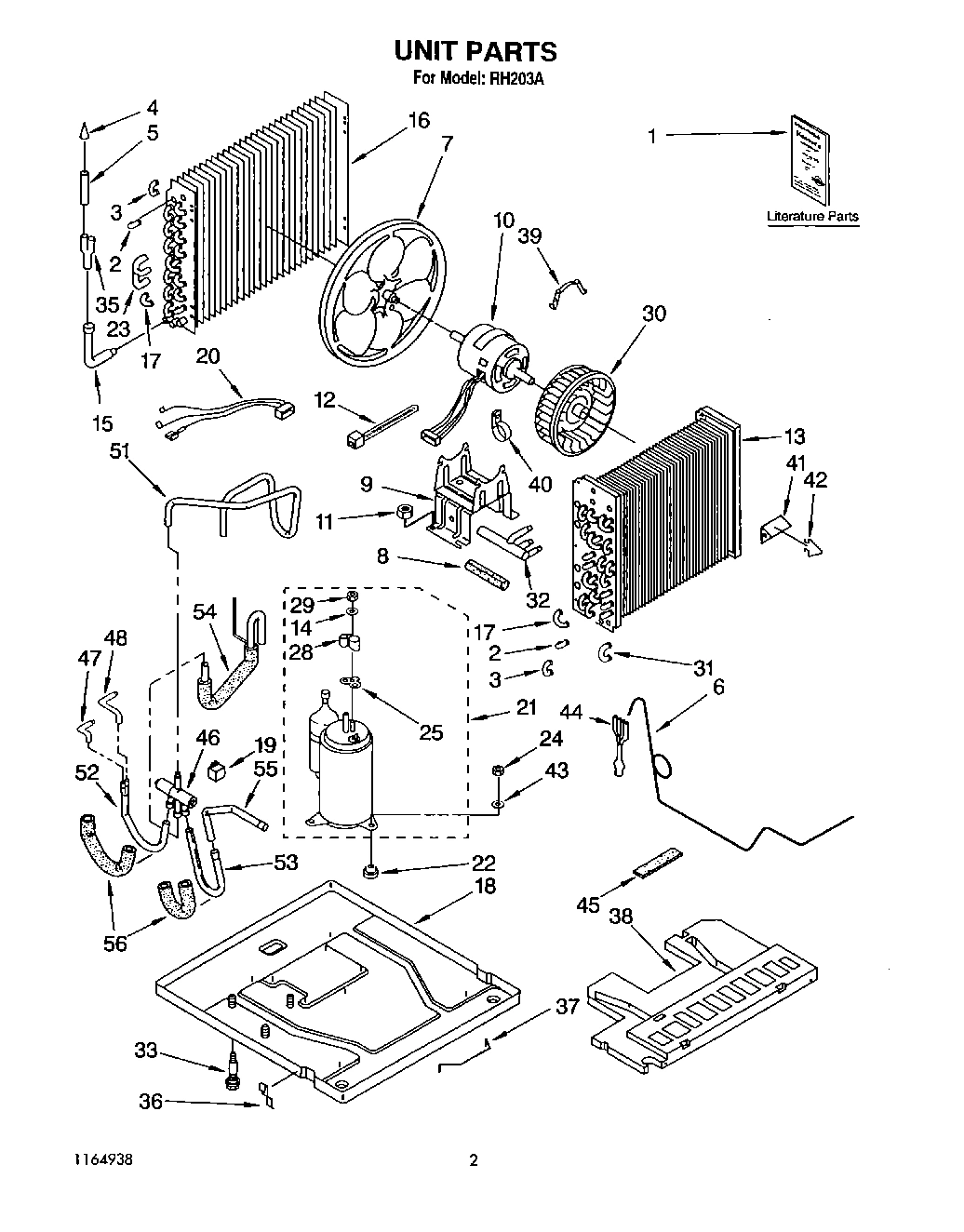

02 - UNIT, LITERATURE
Common parts from model Whirlpool RH203A
Instructions, Installation (Outside Support K WPL LIT485707 Contact Us For Availability
Instructions, Installation (Standard and Wide WPL LIT998618 Contact Us For Availability
1
Epoxy, Tube (Aluminum Repair) WPL 799833 Contact Us For Availability
1
Shroud, Condenser WPL 1157403 Contact Us For Availability
1
Kit, Standard Installation WPL 1163842 Contact Us For Availability
1
List, Repair Parts WPL LIT1164938 Contact Us For Availability
1
Owners Manual WPL LIT1164939 Contact Us For Availability
1
Tech Sheet WPL LIT1165599 Contact Us For Availability
1
Wiring Diagram WPL LIT1165609 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Heating, Element WPL 1160715 Contact Us For Availability
2
Seal WPL 469877 Contact Us For Availability
2
Bend, Return Condenser (17) Evaporator (13) WPL 708532 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Door, Air WPL 1160652 Contact Us For Availability
3
Gasket, Sash WPL 644288 Contact Us For Availability
3
Bend, Return Condenser (6) Evaporator (8) WPL 708531 Contact Us For Availability
4
Oil, Turbine 1 Fl. Oz. WPL 10943 Contact Us For Availability
4
Spring, Door WPL 1160653 Contact Us For Availability
4
Strip, Seal WPL 855265 Contact Us For Availability
4
Strainer, Tube WPL 49599 Contact Us For Availability
5
Oil, Turbine 8 Fl. Oz. WPL 99243 Contact Us For Availability
5
Bolt, 1/4 x 3/4 (6) WPL 488750 Contact Us For Availability
5
Tube, Outlet (Includes Illus. 4) WPL 1163768 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Valve, Access (1/2`` Tube O.D.) WPL 978028 Contact Us For Availability
6
Fuse, Link WPL 1160510 Contact Us For Availability
6
Support, Cabinet (2) WPL 649945 Contact Us For Availability
6
Tube, Restrictor (4) WPL 1161269 Contact Us For Availability
7
Seal, Ring (Access Valve) (20 - Pack) WPL 978865 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 1161359 Contact Us For Availability
8
Lockwasher (6) WPL 486009 Contact Us For Availability
8
Wire (16 Ga. 80 c Blue) WPL 10875 Contact Us For Availability
8
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
8
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
8
Wire, 25`` Roll (White 14 GA.) WPL 242826 Contact Us For Availability
8
Wire, 25` Roll (Red 12 Ga.) WPL 299885 Contact Us For Availability
8
Wire, 25`` Roll (Black 12 GA.) WPL 47261 Contact Us For Availability
8
Wire, 25`` Roll (White 12 GA.) WPL 47263 Contact Us For Availability
8
Top, Condenser WPL 1157407 Contact Us For Availability
8
Seal, Suction Tube WPL 1160870 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Wire, Ground WPL 856094 Contact Us For Availability
9
Nut, Hex (6) WPL 486035 Contact Us For Availability
9
Bracket, Fan Motor WPL 1160672 Contact Us For Availability
10
Limit Switch WPL 1160509 Contact Us For Availability
10
Bracket, Support WPL 649947 Contact Us For Availability
10
Motor, Fan WPL 1164681 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
11
Cable, Appliance WPL 1161279 Contact Us For Availability
11
Support, Retainer (2) WPL 649946 Contact Us For Availability
12
Control, Shaft WPL 1161504 Contact Us For Availability
12
Board, Filler WPL 644303 Contact Us For Availability
13
Capacitor WPL 1161218 Contact Us For Availability
13
Bracket WPL 644228 Contact Us For Availability
13
Evaporator WPL 1161297 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Screw, 10 x 3/4 WPL 487371 Contact Us For Availability
14
Gasket, Nut WPL 950037 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Seal, Condenstate Cup WPL 1163332 Contact Us For Availability
15
Tube, Connecting WPL 1158703 Contact Us For Availability
16
Sheild, Heat WPL 1160716 Contact Us For Availability
16
Angle, Top WPL 644271 Contact Us For Availability
16
Condenser WPL 1161519 Contact Us For Availability
17
Clip, Shroud (2) WPL 1164511 Contact Us For Availability
17
Angle (2) WPL 644272 Contact Us For Availability
17
Bend, Return Condenser (1) Evaporator (6) WPL 1156329 Contact Us For Availability
18
Spacer, Block (4) WPL 995274 Contact Us For Availability
18
Base WPL 1161523 Contact Us For Availability
19
Top, Evaporator Shroud WPL 1160709 Contact Us For Availability
19
Coil, Solenoid WPL 1159489 Contact Us For Availability
20
Panel, Control WPL 1165610 Contact Us For Availability
20
Kit, Outside Support WPL 485679 Contact Us For Availability
20
Harness, Wiring WPL 1164497 Contact Us For Availability
21
Support, Unit (2) WPL 1160708 Contact Us For Availability
21
Support, Cabinet (2) WPL 644283 Contact Us For Availability
21
Compressor WPL 1161296 Contact Us For Availability
22
Horzontal Louver W/ Handle (2) WPL 1164163 Contact Us For Availability
22
Wire, Control Exhaust WPL 1161333 Contact Us For Availability
22
Extension, Support (2) WPL 644284 Contact Us For Availability
23
Front, Complete WPL 1165009 Contact Us For Availability
23
Seal, Shroud WPL 1158732 Contact Us For Availability
23
Retainer, Cabinet (2) WPL 644285 Contact Us For Availability
23
Return Bend 3-Way WPL 1158685 Contact Us For Availability
24
Louver, Horizontal W/Handles (3) WPL 1164165 Contact Us For Availability
24
Dividing Wall WPL 1161706 Contact Us For Availability
24
Bracket, Support WPL 644281 Contact Us For Availability
24
Locknut (3) WPL 858121 Contact Us For Availability
25
Louver, Horizontal (15) WPL 1164166 Contact Us For Availability
25
Screw, 8 x 3/8 WPL 488624 Contact Us For Availability
25
Kit, Wide Window WPL 485856 Contact Us For Availability
26
Insulation, Cabinet WPL 1162101 Contact Us For Availability
26
Switch Rotary WPL 1157749 Contact Us For Availability
26
Strip, Seal WPL 856979 Contact Us For Availability
27
Insulation, Cabinet WPL 1162102 Contact Us For Availability
27
Seal, Anti-Rub WPL 1162616 Contact Us For Availability
27
Seal, Meeting Rail WPL 470800 Contact Us For Availability
28
Louver, Actuator WPL 1162078 Contact Us For Availability
28
Shroud Assembly, Evaporator WPL 1161705 Contact Us For Availability
28
Gasket, Sash (54``) WPL 485457 Contact Us For Availability
29
Filter WPL 1164162 Contact Us For Availability
29
Cup, Condensate Drain WPL 997285 Contact Us For Availability
30
Screw, 7-18 x 5/8 WPL 489092 Contact Us For Availability
30
Wheel, Blower (Evaporator) WPL 1161358 Contact Us For Availability
31
Cam, Exhaust WPL 647882 Contact Us For Availability
31
Return Bend (10) WPL 1158692 Contact Us For Availability
32
Spring, Detent WPL 641484 Contact Us For Availability
32
Bushing, Shaft WPL 647879 Contact Us For Availability
32
Manifold, Suction WPL 1158681 Contact Us For Availability
33
Wire, Ground WPL 857022 Contact Us For Availability
33
Screw, 6-32 x .175 (2) WPL 488734 Contact Us For Availability
33
Bolt, Compressor WPL 1158668 Contact Us For Availability
34
Housing, Air WPL 1160657 Contact Us For Availability
35
Washer WPL 1161313 Contact Us For Availability
35
Tube, Flow Divider WPL 947364 Contact Us For Availability
36
Plate, Escutcheon WPL 1164934 Contact Us For Availability
36
Shaft, Control Exhaust WPL 854369 Contact Us For Availability
36
Clamp (2) WPL 471088 Contact Us For Availability
37
Spacer, Escuthchon WPL 470036 Contact Us For Availability
37
Harness, Wiring - Control Box WPL 1161051 Contact Us For Availability
37
Handle, Base WPL 647971 Contact Us For Availability
38
Knobs, (3) WPL 1158639 Contact Us For Availability
38
Control Box (R.S.) WPL 1161714 Contact Us For Availability
38
Pan, Drain WPL 1160656 Contact Us For Availability
39
Control Box (L.S.) WPL 1161713 Contact Us For Availability
40
Control, Temp. WPL 1159905 Contact Us For Availability
40
Clamp, Wiring WPL 947072 Contact Us For Availability
41
Cover, Top WPL 1160710 Contact Us For Availability
41
Anticipator WPL 484238 Contact Us For Availability
42
Clip, Anticipator WPL 642080 Contact Us For Availability
43
Spacer WPL 1159175 Contact Us For Availability
44
Harness, Heater WPL 1162061 Contact Us For Availability
44
Distributor- 4 Circuit WPL 1163785 Contact Us For Availability
45
Insul. Restrictor Tube WPL 1163759 Contact Us For Availability
46
Control, Temperature WPL 1155801 Contact Us For Availability
46
Valve, Reversing WPL 1162398 Contact Us For Availability
47
Insulation, Top Cover WPL 1163758 Contact Us For Availability
47
Tube, Feeder WPL 1160357 Contact Us For Availability
48
Tube, Feeder WPL 1160358 Contact Us For Availability
51
Cup, Condensate WPL 1160684 Contact Us For Availability
51
Tube Valve/Disc. WPL 1164499 Contact Us For Availability
52
Tube-Valve/Cond WPL 1162089 Contact Us For Availability
53
Tube-Valve/Evap. WPL 1162955 Contact Us For Availability
54
Tube-Valve/Accum WPL 1163907 Contact Us For Availability
55
Tube, Connect WPL 1161271 Contact Us For Availability
56
Seal, Tubing (2) WPL 1161416 Contact Us For Availability
× ![]()
