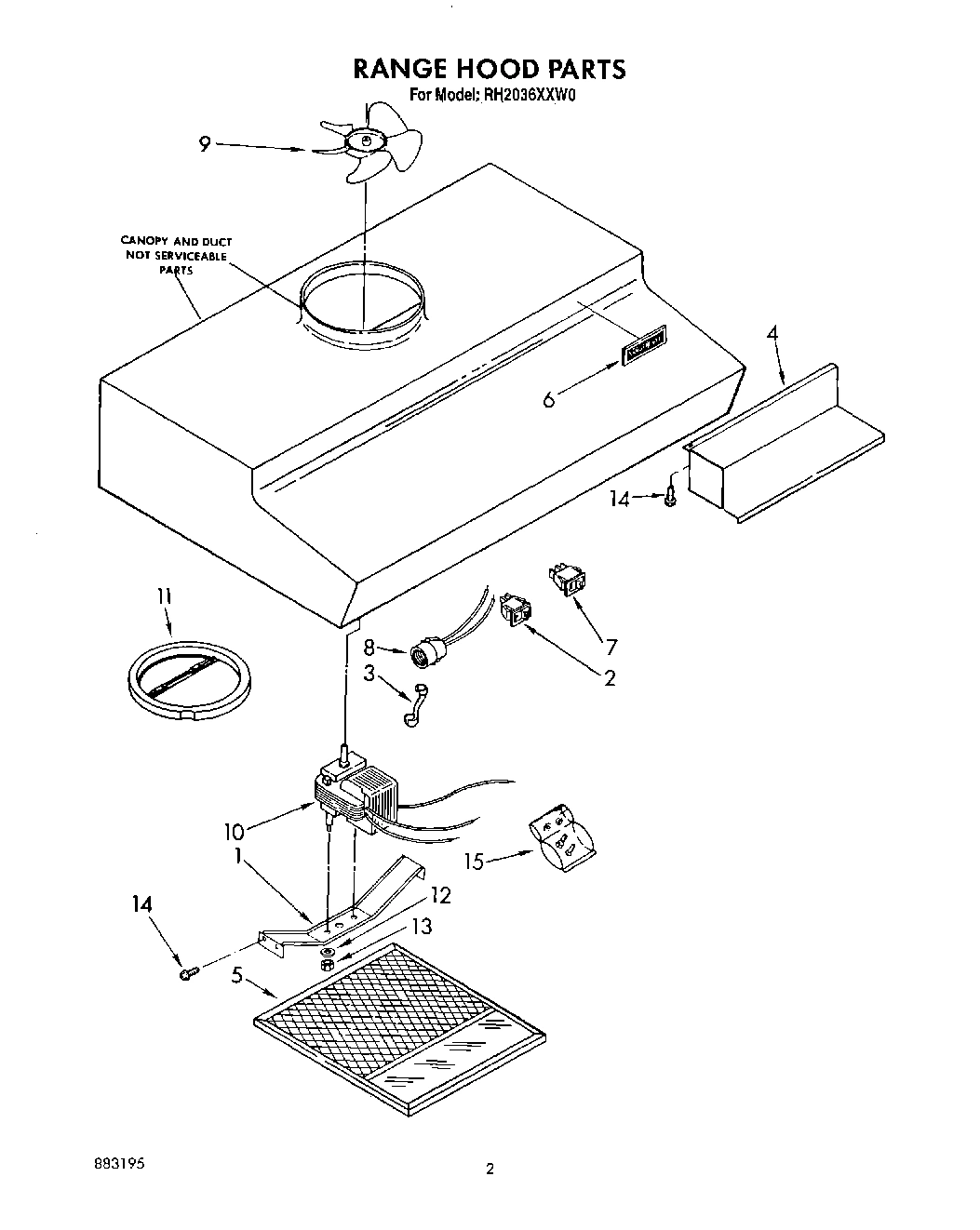

Model Whirlpool RH2036XXB0 – Common Parts & Diagrams

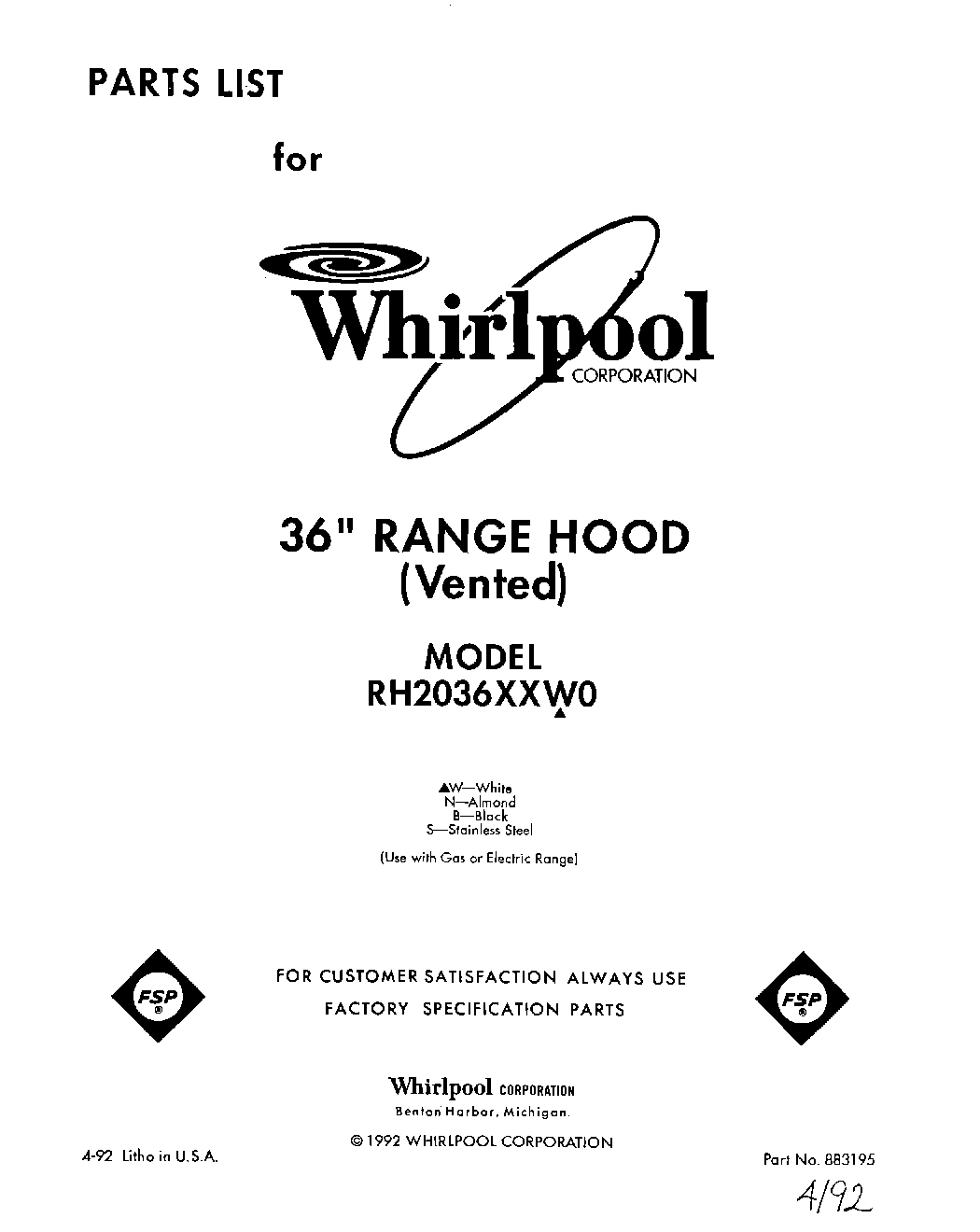

List, Repair Parts
List, Repair Parts WPL LIT883195 Contact Us For Availability
View on Model
Instructions, Installation & Operating
Instructions, Installation & Operating WPL LIT883196 Contact Us For Availability
View on Model
1
Bracket, Motor
Bracket, Motor WPL 830756 Contact Us For Availability
View on Model
2
Switch, Light (White Model)
Switch, Light (White Model) WPL 883183 Contact Us For Availability
View on Model
3
Bushing, Strain Relief
Bushing, Strain Relief WPL 830327 Contact Us For Availability
View on Model
4
Cover, wiring (White)
Cover, wiring (White) WPL 883095 Contact Us For Availability
View on Model
4
Cover, Wiring (Almond)
Cover, Wiring (Almond) WPL 883096 Contact Us For Availability
View on Model
4
Cover, Wiring (Stainless Steel)
Cover, Wiring (Stainless Steel) WPL 883123 Contact Us For Availability
View on Model
6
Nameplate (White)
Nameplate (White) WPL 883186 Contact Us For Availability
View on Model
6
Nameplate (Black)
Nameplate (Black) WPL 883188 Contact Us For Availability
View on Model
7
Switch, Fan (Black)
Switch, Fan (Black) WPL 830769 Contact Us For Availability
View on Model
8
Receptacle, Light
Receptacle, Light WPL 883094 Contact Us For Availability
View on Model
9
Blade, Fan
Blade, Fan WPL 830428 Contact Us For Availability
View on Model
10
Motor, 2-Speed
Motor, 2-Speed WPL 830757 Contact Us For Availability
View on Model
11
Damper Assembly
Damper Assembly WPL 883026 Contact Us For Availability
View on Model
12
Washer, No. 8 (2)
Washer, No. 8 (2) WPL 830462 Contact Us For Availability
View on Model
15
Installation, Hardware
Installation, Hardware WPL 883185 Contact Us For Availability
View on Model
