Model Whirlpool RH2036XLW1 – Common Parts & Diagrams

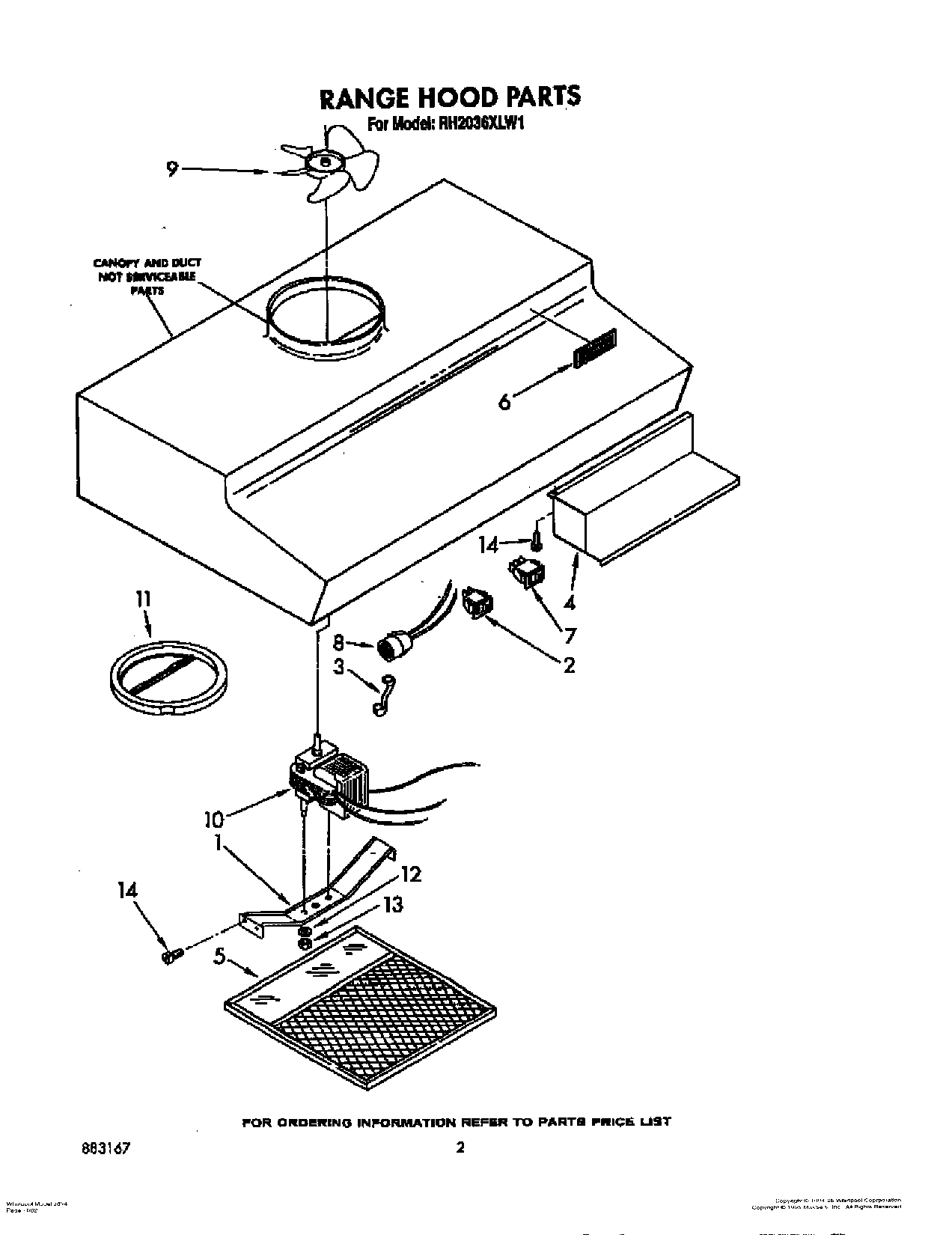

02 - SECTION
Common parts from model Whirlpool RH2036XLW1
Instructions, Installation & Operating WPL LIT883104 Contact Us For Availability
List, Repair Parts WPL LIT883167 Contact Us For Availability
1
Bracket, Motor WPL 830756 Contact Us For Availability
3
Bushing, Strain Relief WPL 830327 Contact Us For Availability
4
Cover, wiring (White) WPL 883095 Contact Us For Availability
4
Cover, Wiring (Almond) WPL 883096 Contact Us For Availability
4
Cover, Wiring (Stainless Steel) WPL 883123 Contact Us For Availability
5
Filter, With Lens WPL WP8190232 No Longer Available
6
Nameplate WPL 830886 Contact Us For Availability
7
Switch, Fan WPL 830769 Contact Us For Availability
8
Receptacle, Light WPL 883094 Contact Us For Availability
9
Blade, Fan WPL 830428 Contact Us For Availability
10
Motor, 2-Speed WPL 830757 Contact Us For Availability
11
Damper Assembly WPL 883026 Contact Us For Availability
12
Washer, No. 8 (2) WPL 830462 Contact Us For Availability
× ![]()
