Model Whirlpool RH2030XJB0 30`` RANGE HOOD – Common Parts & Diagrams

Common parts from model Whirlpool RH2030XJB0 30`` RANGE HOOD

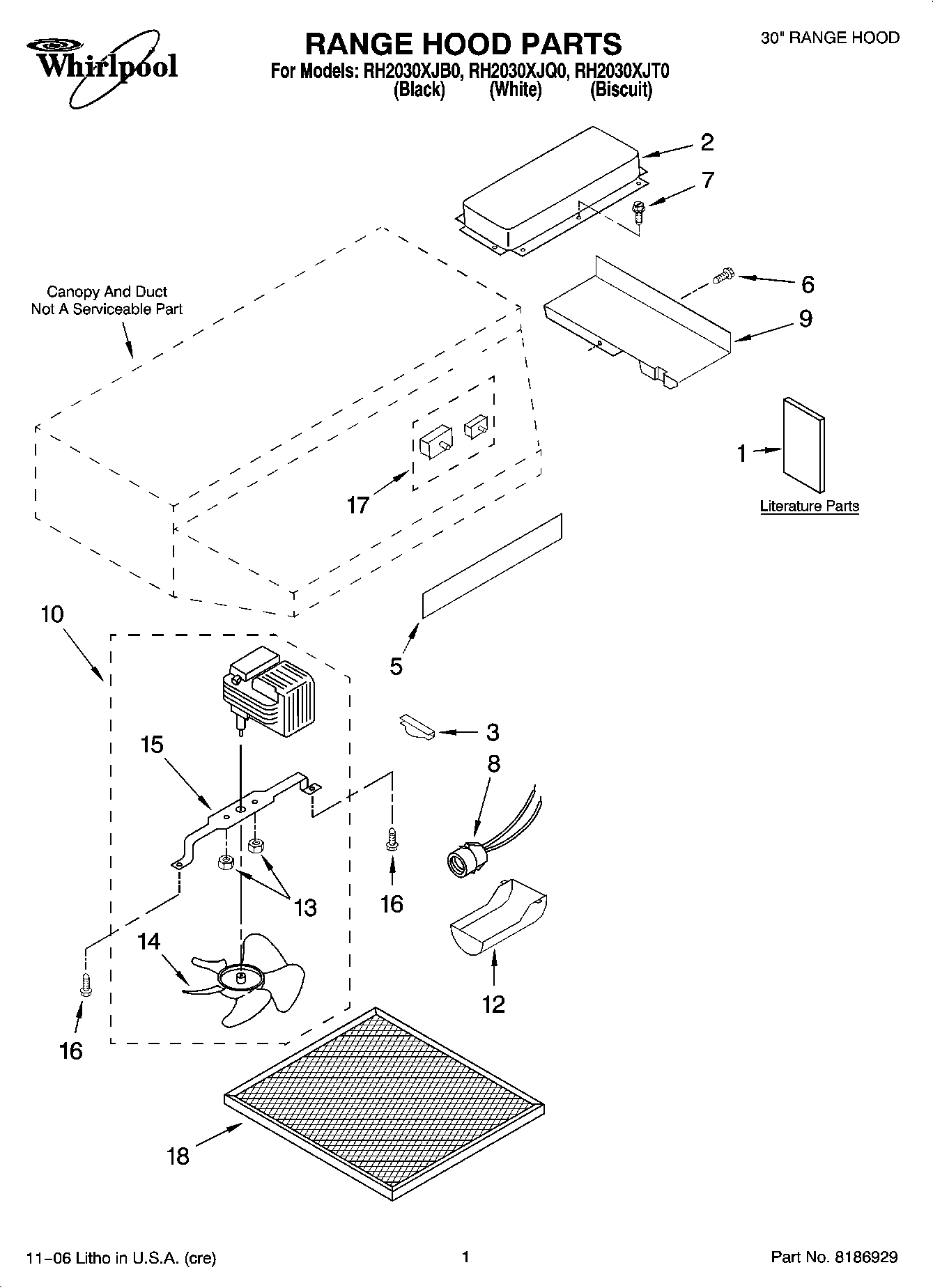

01 - RANGE HOOD PARTS

Print

• This Diagram
• All Diagrams

5

Nameplate (White) WPL 8186938 Contact Us For Availability

View on Model

5

Nameplate (Biscuit) WPL 8186939 Contact Us For Availability

View on Model

6

Screw WPL 8186928 Contact Us For Availability

View on Model

7

Screw WPL 8186944 Contact Us For Availability

View on Model

8

Receptacle, Light Bulb not incl-75W WPL 8190871 Contact Us For Availability

View on Model

9

Cover, Wiring WPL 8186927 Contact Us For Availability

View on Model

10

Motor/Fan Assembly WPL 8186932 Contact Us For Availability

View on Model

12

WP8186930 Whirlpool Light Lens Assembly Backorder WPL WP8186930 View Details $15.85

View on Model

13

NUT WPL 8190874 Contact Us For Availability

View on Model

14

Blade, Fan WPL 8190873 Contact Us For Availability

View on Model

15

Bracket, Motor WPL 8186934 Contact Us For Availability

View on Model

16

Screw WPL 8190872 Contact Us For Availability

View on Model

17

W10673703 Whirlpool Rocker Switch Backorder WPL W10673703 View Details $48.35

View on Model

17

WP8186941 Whirlpool Rotary Switch Backorder WPL WP8186941 View Details $46.92

View on Model

17

Switch Assy. (Includes Fan and Light Switches WPL 8186942 Contact Us For Availability

View on Model

18

4378581 Whirlpool Microwave Vent Hood Charcoa Backorder WPL 4378581 View Details $29.96

View on Model

×
