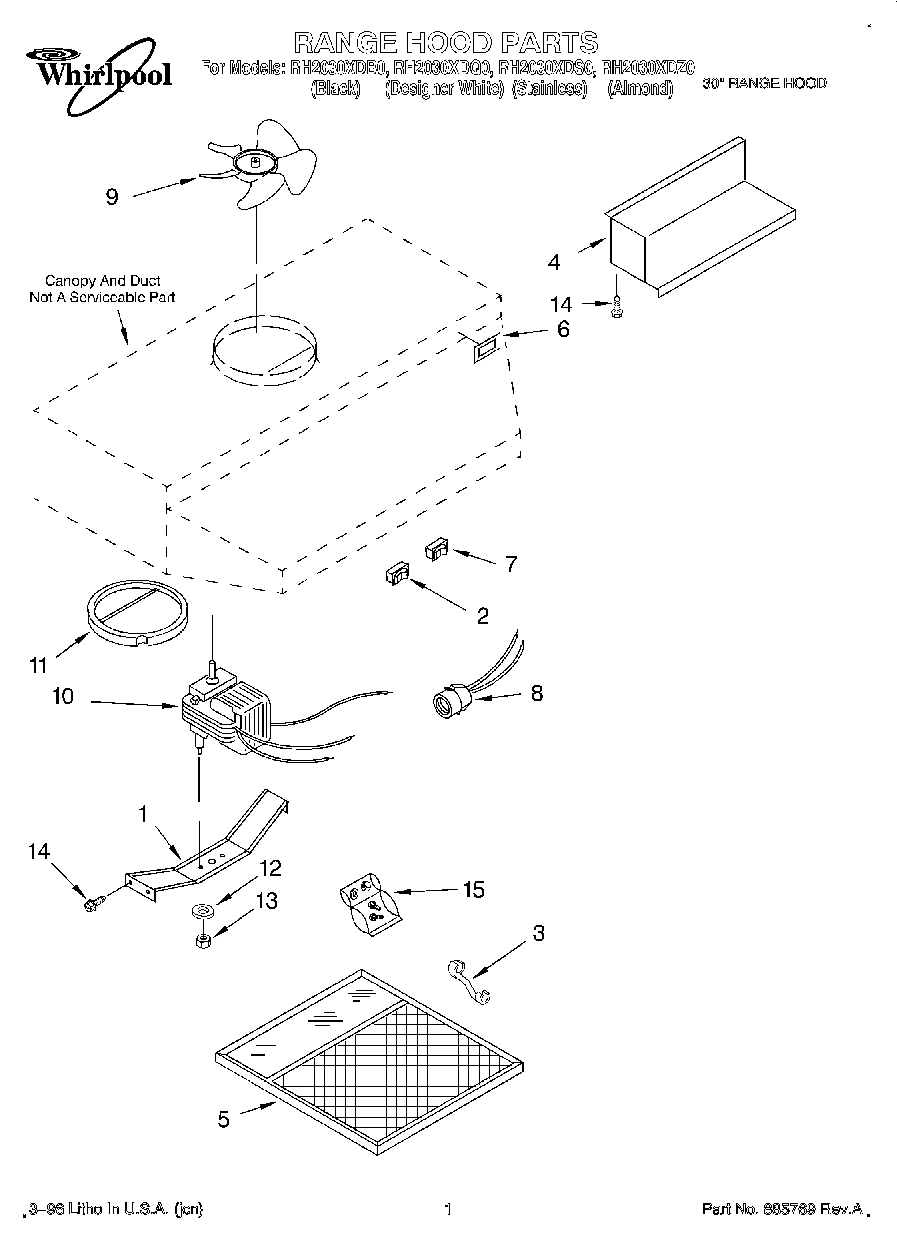

Model Whirlpool RH2030XDZ0 – Common Parts & Diagrams
01 - SECTION
Common parts from model Whirlpool RH2030XDZ0
Wiring Diagram WPL LIT883184 Contact Us For Availability
Instructions, Installation & Operating WPL LIT883303 Contact Us For Availability
1
Bracket, Motor WPL 883126 Contact Us For Availability
2
Switch, Light (White) WPL 883205 Contact Us For Availability
2
Switch, Light (Almond Model) WPL 883335 Contact Us For Availability
3
Bushing WPL 830327 Contact Us For Availability
4
Cover, wiring (White) WPL 883095 Contact Us For Availability
4
Cover, Wiring (Almond) WPL 883096 Contact Us For Availability
4
Cover, Wiring (Stainless Steel) WPL 883123 Contact Us For Availability
6
Nameplate (White) WPL 883307 Contact Us For Availability
6
Nameplate (Almond Model) WPL 883308 Contact Us For Availability
6
Nameplate (Stainless Model) WPL 883309 Contact Us For Availability
6
Nameplate (Black Model) WPL 883337 Contact Us For Availability
7
Switch, Fan (Black Model) WPL 883202 Contact Us For Availability
7
Switch, Fan (Almond Model) WPL 883334 Contact Us For Availability
8
Receptacle, Light WPL 883094 Contact Us For Availability
9
Blade, Fan WPL 830428 Contact Us For Availability
10
Motor, 2-Speed WPL 883213 Contact Us For Availability
11
Damper Assembly WPL 883026 Contact Us For Availability
15
Installation, Hardware WPL 883185 Contact Us For Availability
× ![]()
