  • Whirlpool RH1599REW00

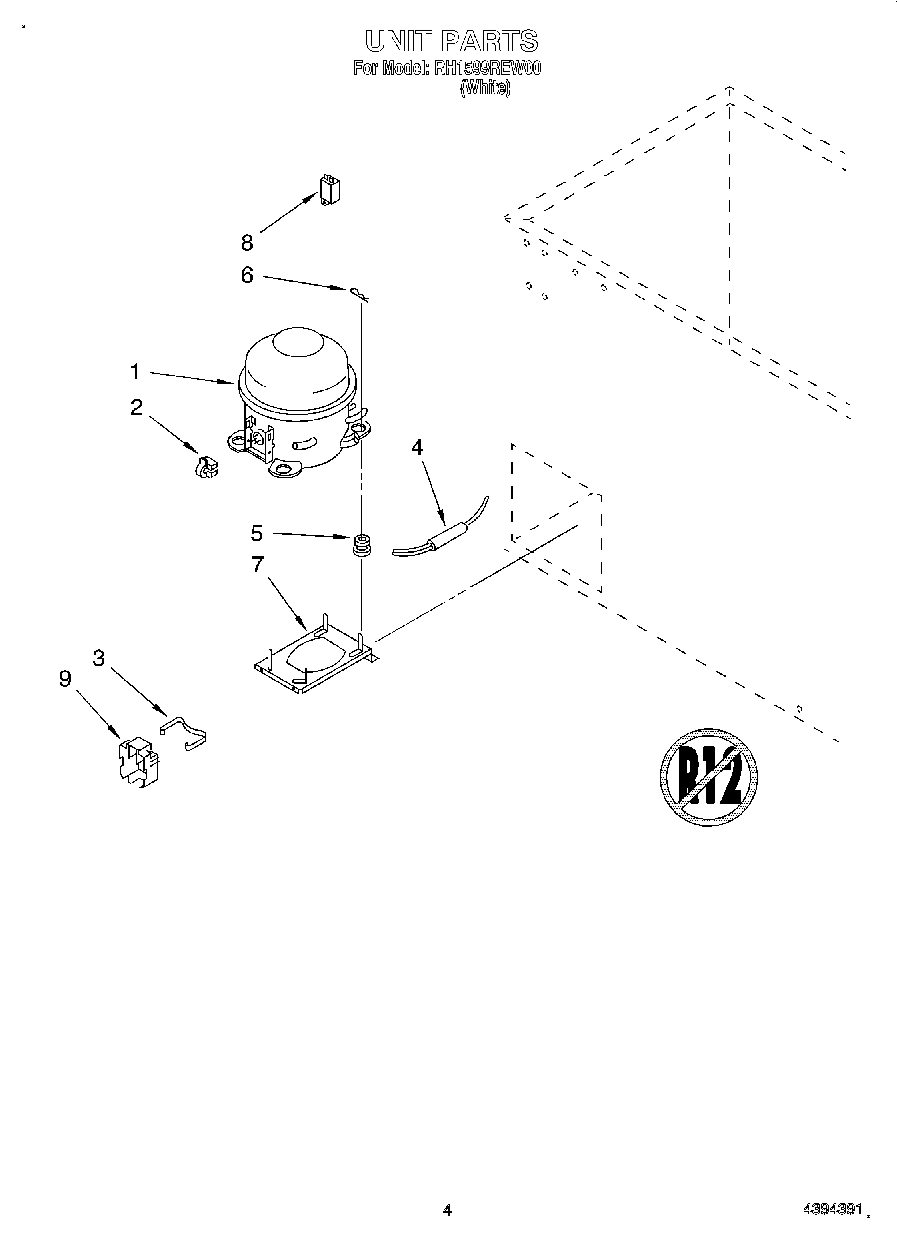

Model Whirlpool RH1599REW00 – Common Parts & Diagrams

Use & Care Guide
Use & Care Guide WPL LIT2165306 Contact Us For Availability
View on Model
Energy Label
Energy Label WPL LIT4356616 Contact Us For Availability
View on Model
1
Cabinet (Not A Serviceable Part)
Cabinet (Not A Serviceable Part) WPL ARI162206A Contact Us For Availability
View on Model
1
Compressor (Includes Items 2, 3, 4, 5, 6 & 9)
Compressor (Includes Items 2, 3, 4, 5, 6 & 9) WPL 4356595 Contact Us For Availability
View on Model
2
Relay
Relay WPL 4356415 Contact Us For Availability
View on Model
3
Clip, Cover
Clip, Cover WPL 4356406 Contact Us For Availability
View on Model
5
Handle
Handle WPL 4356483 Contact Us For Availability
View on Model
5
Wire Basket
Wire Basket WPL 4356322 Contact Us For Availability
View on Model
5
Compressor, Mounting Grommet
Compressor, Mounting Grommet WPL 4356335 Contact Us For Availability
View on Model
6
Thermostat
Thermostat WPL 4356323 Contact Us For Availability
View on Model
6
Compressor, Hitch Pin
Compressor, Hitch Pin WPL 4356336 Contact Us For Availability
View on Model
7
Knob, Thermostat
Knob, Thermostat WPL 4356585 Contact Us For Availability
View on Model
7
Base, Compressor
Base, Compressor WPL 4356590 Contact Us For Availability
View on Model
8
Interior, Door Panel
Interior, Door Panel WPL 4356487 Contact Us For Availability
View on Model
9
Lamp Socket
Lamp Socket WPL 4356309 Contact Us For Availability
View on Model
9
Wiring, Harness External
Wiring, Harness External WPL 4356612 Contact Us For Availability
View on Model
9
Cover
Cover WPL 4356587 Contact Us For Availability
View on Model
11
Drain Cap
Drain Cap WPL 4356455 Contact Us For Availability
View on Model
12
Heat Shield
Heat Shield WPL 4356312 Contact Us For Availability
View on Model
12
Drain Plug
Drain Plug WPL 4356505 Contact Us For Availability
View on Model
13
Gasket
Gasket WPL 4356488 Contact Us For Availability
View on Model
13
Insert, Control
Insert, Control WPL 4356584 Contact Us For Availability
View on Model
14
Access Panel
Access Panel WPL 4356622 Contact Us For Availability
View on Model
14
Gasket, Clip
Gasket, Clip WPL 4356317 Contact Us For Availability
View on Model
15
Nameplate
Nameplate WPL 4356372 Contact Us For Availability
View on Model
16
Wire Harness
Wire Harness WPL 4356611 Contact Us For Availability
View on Model
18
Clip, Spring
Clip, Spring WPL 4356493 Contact Us For Availability
View on Model
20
Divider (Optional)
Divider (Optional) WPL 4356477 Contact Us For Availability
View on Model
22
Clip
Clip WPL 4356403 Contact Us For Availability
View on Model
22
Clip, Gasket (Kit Of 60)
Clip, Gasket (Kit Of 60) WPL 4356489 Contact Us For Availability
View on Model
