Model Hotpoint RGJ515GEL4 Gas Range Or Dual Fuel – Common Parts & Diagrams
Common parts from model Hotpoint RGJ515GEL4 Gas Range Or Dual Fuel
1
GEN WB36M0014 GEN WB36M0014 Contact Us For Availability
8
GEN WB02M0024 GEN WB02M0024 Contact Us For Availability

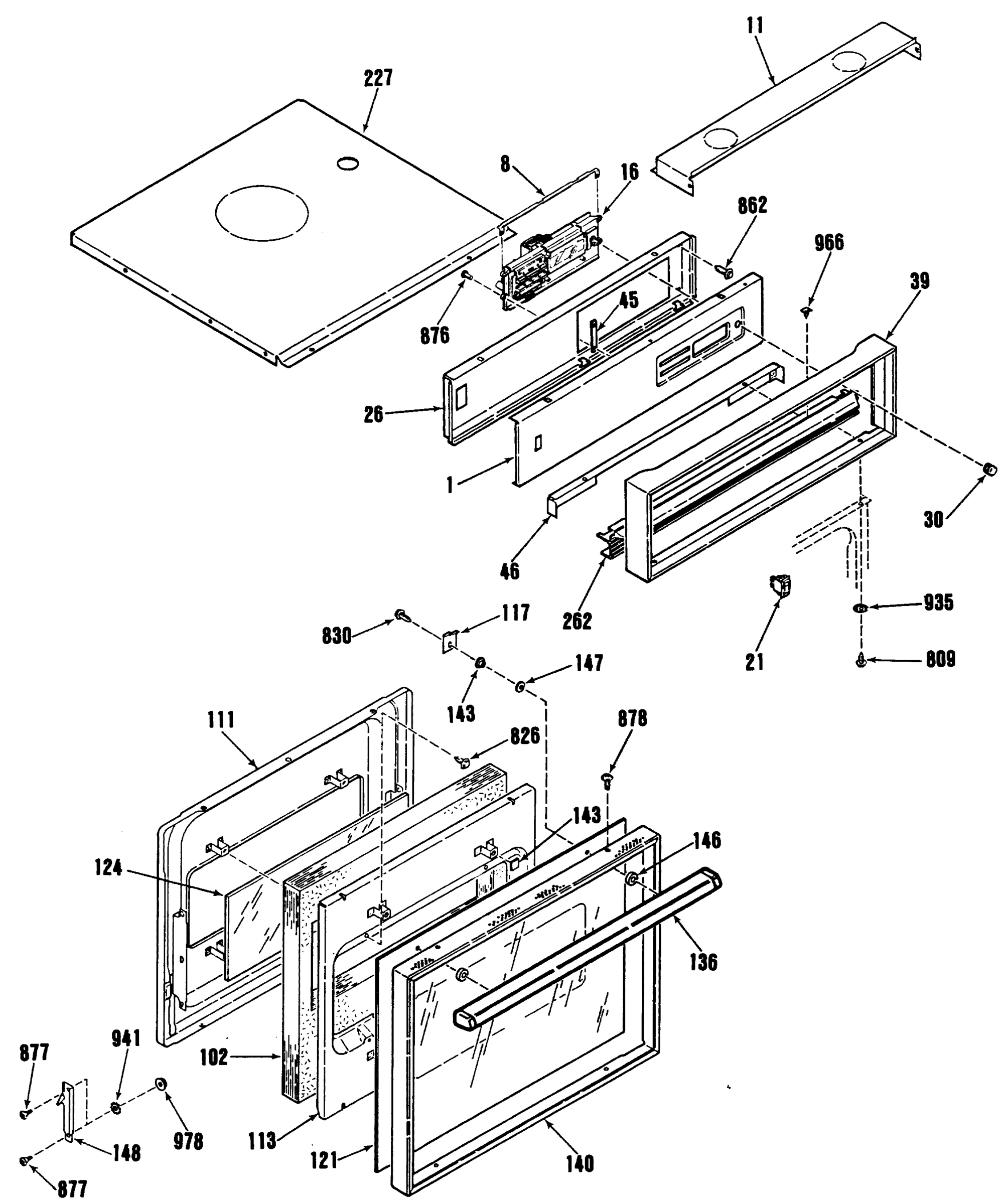

11
TOP FRONT COVER GEN WB06X0110 Contact Us For Availability
12
UNKNOWN GEN WB63X0406 Contact Us For Availability
16
CLOCK/OVEN CONTROL W/LEN GEN WB19X0266 Contact Us For Availability
21
GEN WB24X0479 GEN WB24X0479 Contact Us For Availability
26
GEN WB36M0009 GEN WB36M0009 Contact Us For Availability
30
GEN WB03X0770 GEN WB03X0770 Contact Us For Availability
39
BACKGUARD FRAME GEN WB07X1824 Contact Us For Availability
45
TIMER SPACER GEN WB06X0107 Contact Us For Availability
46
INSULATION SHIELD ASM GEN WB06X0109 Contact Us For Availability
56
DR HINGE STOP-LT GEN WB02X9712 Contact Us For Availability
56
DR HINGE STOP-RT GEN WB02X9713 Contact Us For Availability
102
GEN WB02X0714 GEN WB02X0714 Contact Us For Availability
111
GEN WB55M0003 GEN WB55M0003 Contact Us For Availability
111
DOOR LINNING-UPPER GEN WB55X0711 Contact Us For Availability
113
RETAINER-UPPER GEN WB56X1994 Contact Us For Availability
113
RETAINER-LOWER GEN WB56X2012 Contact Us For Availability
117
GLASS RETAINER GEN WB02X9384 Contact Us For Availability
121
OV DR OUTER GLASS-UPPER GEN WB36X0771 Contact Us For Availability
121
GEN WB57M0014 GEN WB57M0014 Contact Us For Availability
124
OV DR INNER GLASS GEN WB36X0772 Contact Us For Availability
131
UNKNOWN GEN WB02X9595 Contact Us For Availability
131
UNKNOWN GEN WB02X9596 Contact Us For Availability
136
OV DR HANDLE GEN WB15X0286 Contact Us For Availability
140
OV DR FRAME GEN WB07X1767 Contact Us For Availability
140
BROILER DR FRAME GEN WB07X1809 Contact Us For Availability
143
MAIN TOP PAD GEN WB02X9624 Contact Us For Availability
146
DR HANDLE SPACER GEN WB02X9037 Contact Us For Availability
147
WASHER GEN WB01X1138 Contact Us For Availability
148
ARM HINGE GUIDE-LT GEN WB10X0261 Contact Us For Availability
148
ARM HINGE GUIDE-RT GEN WB10X0262 Contact Us For Availability
202
UNKNOWN GEN WB63X0407 Contact Us For Availability
203
UNKNOWN GEN WB63X0432 Contact Us For Availability
207
UNKNOWN GEN WB63X0401 Contact Us For Availability
208
UNKNOWN GEN WB63X0400 Contact Us For Availability
210
UNKNOWN GEN WB53X0293 Contact Us For Availability
211
UNKNOWN GEN WB63X0402 Contact Us For Availability
211
UNKNOWN GEN WB63X0403 Contact Us For Availability
219
UNKNOWN GEN WB02X9702 Contact Us For Availability
221
UNKNOWN GEN WB63X0399 Contact Us For Availability
221
UNKNOWN GEN WB63X0410 Contact Us For Availability
227
INSULATION RETAINER TOP GEN WB02X9579 Contact Us For Availability
231
GEN WB02X9717 GEN WB02X9717 Contact Us For Availability
232
UNKNOWN GEN WB02X9701 Contact Us For Availability
236
UNKNOWN GEN WB09X0262 Contact Us For Availability
236
UNKNOWN GEN WB09X0263 Contact Us For Availability
238
UNKNOWN GEN WB17X0207 Contact Us For Availability
241
UNKNOWN GEN WB48X0217 Contact Us For Availability
242
UNKNOWN GEN WB02X9707 Contact Us For Availability
242
UNKNOWN GEN WB02X9708 Contact Us For Availability
242
UNKNOWN GEN WB02X9709 Contact Us For Availability
246
UNKNOWN GEN WB49X0657 Contact Us For Availability
247
UNKNOWN GEN WB49X0650 Contact Us For Availability
248
UNKNOWN GEN WB02X9710 Contact Us For Availability
248
UNKNOWN GEN WB02X9711 Contact Us For Availability
249
UNKNOWN GEN WB02X9601 Contact Us For Availability
249
UNKNOWN GEN WB02X9705 Contact Us For Availability
249
UNKNOWN GEN WB02X9706 Contact Us For Availability
250
UNKNOWN GEN WB02X9583 Contact Us For Availability
251
UNKNOWN GEN WB02X9600 Contact Us For Availability
252
UNKNOWN GEN WB02X9548 Contact Us For Availability
257
UNKNOWN GEN BUY LOCAL Contact Us For Availability
262
UNKNOWN GEN WB07X1823 Contact Us For Availability
262
UNKNOWN GEN WB07X1825 Contact Us For Availability
262
UNKNOWN GEN WB07X1826 Contact Us For Availability
262
UNKNOWN GEN WB07X1827 Contact Us For Availability
262
UNKNOWN GEN WB07X1828 Contact Us For Availability
262
UNKNOWN GEN WB07X1829 Contact Us For Availability
263
UNKNOWN GEN WB02X9634 Contact Us For Availability
267
UNKNOWN GEN WB06X0111 Contact Us For Availability
270
UNKNOWN GEN WB02X9704 Contact Us For Availability
271
COVER PLATE-LT GEN WB02X9716 Contact Us For Availability
274
GEN WB10M0004 GEN WB10M0004 Contact Us For Availability
274
GEN WB10M0005 GEN WB10M0005 Contact Us For Availability
274
UNKNOWN GEN WB10X0265 Contact Us For Availability
274
UNKNOWN GEN WB10X0266 Contact Us For Availability
277
UNKNOWN GEN WB10X0263 Contact Us For Availability
277
UNKNOWN GEN WB10X0264 Contact Us For Availability
279
UNKNOWN GEN WB38X0120 Contact Us For Availability
281
UNKNOWN GEN WB14X0138 Contact Us For Availability
281
UNKNOWN GEN WB14X0139 Contact Us For Availability
281
UNKNOWN GEN WB14X0145 Contact Us For Availability
281
UNKNOWN GEN WB14X0146 Contact Us For Availability
288
GEN WB01X0267 GEN WB01X0267 Contact Us For Availability
297
UNKNOWN GEN WB02X9703 Contact Us For Availability
298
UNKNOWN GEN WB63X0405 Contact Us For Availability
303
UNKNOWN GEN WB02X9715 Contact Us For Availability
304
UNKNOWN GEN WB02X9157 Contact Us For Availability

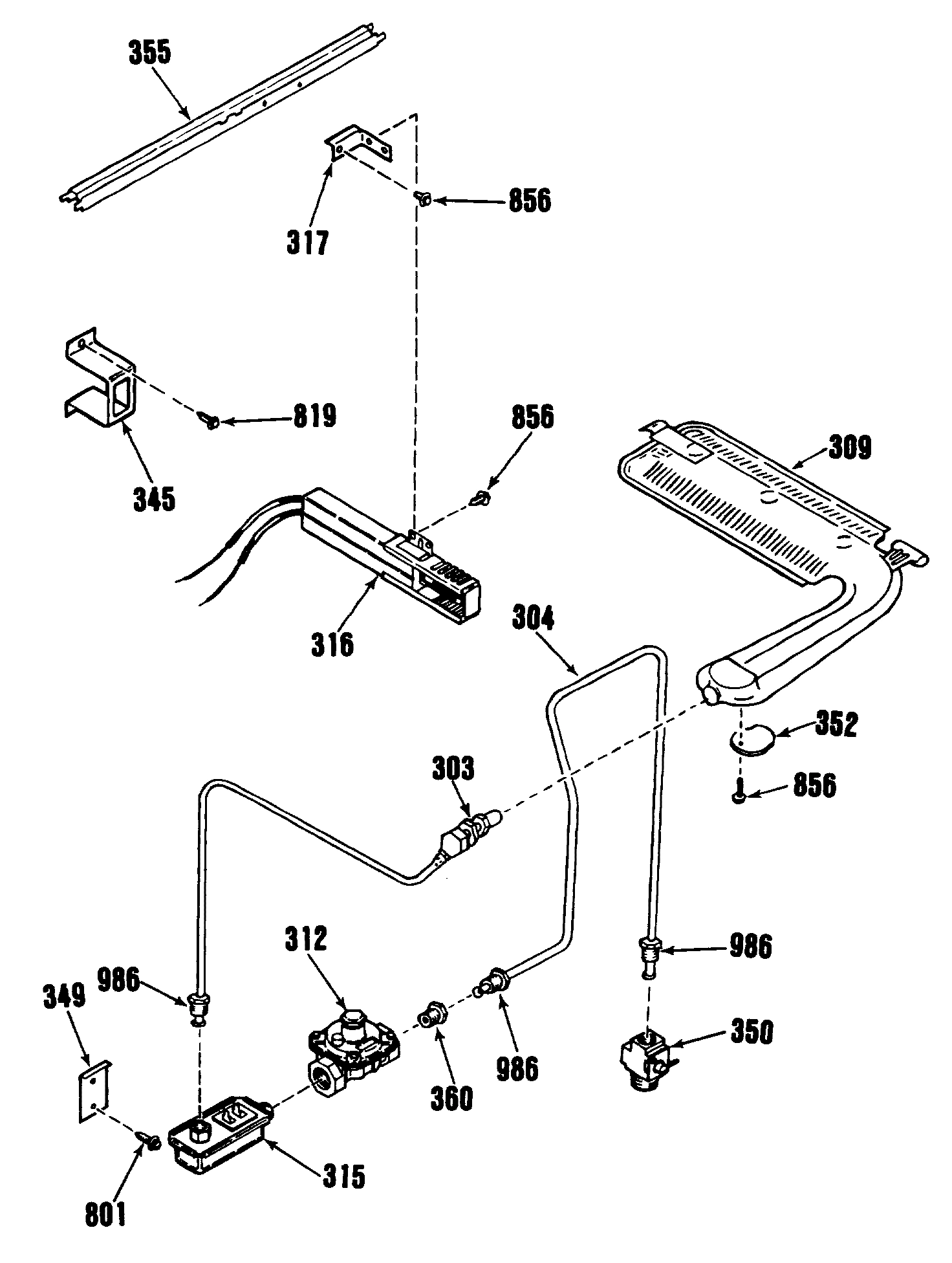

309
UNKNOWN GEN WB28X0110 Contact Us For Availability
312
UNKNOWN GEN WB20X0123 Contact Us For Availability
315
UNKNOWN GEN WB20X0129 Contact Us For Availability
316
UNKNOWN GEN WB02X9697 Contact Us For Availability
317
UNKNOWN GEN WB02X9696 Contact Us For Availability
345
UNKNOWN GEN WB02X9700 Contact Us For Availability
349
GEN WB02M0025 GEN WB02M0025 Contact Us For Availability
350
UNKNOWN GEN WB21X0520 Contact Us For Availability
352
UNKNOWN GEN WB02X9622 Contact Us For Availability
355
UNKNOWN GEN WB02X9695 Contact Us For Availability
360
UNKNOWN GEN WB02X9698 Contact Us For Availability
554
UNKNOWN GEN WB18X0370 Contact Us For Availability
826
GEN WB01X1167 GEN WB01X1167 Contact Us For Availability
862
GEN WB01X1178 GEN WB01X1178 Contact Us For Availability
876
GEN WB01M0017 GEN WB01M0017 Contact Us For Availability
877
GEN WB01X1316 GEN WB01X1316 Contact Us For Availability
878
SCREW GEN WB01X1317 Contact Us For Availability
911
UNKNOWN GEN WB01X1318 Contact Us For Availability
912
UNKNOWN GEN WB02X9626 Contact Us For Availability
913
UNKNOWN GEN WB01X1343 Contact Us For Availability
914
UNKNOWN GEN WB01X1326 Contact Us For Availability
935
GEN WB01X1201 GEN WB01X1201 Contact Us For Availability
937
UNKNOWN GEN WB01X1323 Contact Us For Availability
941
GEN WB01M0016 GEN WB01M0016 Contact Us For Availability
945
UNKNOWN GEN WB01X1319 Contact Us For Availability
946
UNKNOWN GEN WB01X1303 Contact Us For Availability
948
UNKNOWN GEN WB02X9020 Contact Us For Availability
986
UNKNOWN GEN WB01X1117 Contact Us For Availability
987
UNKNOWN GEN WB01X1311 Contact Us For Availability
992
UNKNOWN GEN WB01X1320 Contact Us For Availability
999
GEN 31-0850 GEN 31-0850 Contact Us For Availability
999
GEN 31-13038 GEN 31-13038 Contact Us For Availability
999
USE & CARE MANUAL GEN 39-4630 Contact Us For Availability
999
GEN WB18M0026 GEN WB18M0026 Contact Us For Availability
999
WIRE HARNESS SENSOR GEN WB18X0352 Contact Us For Availability
× ![]()
