Model Hotpoint RGH946GEJ4 Gas Range Or Dual Fuel – Common Parts & Diagrams

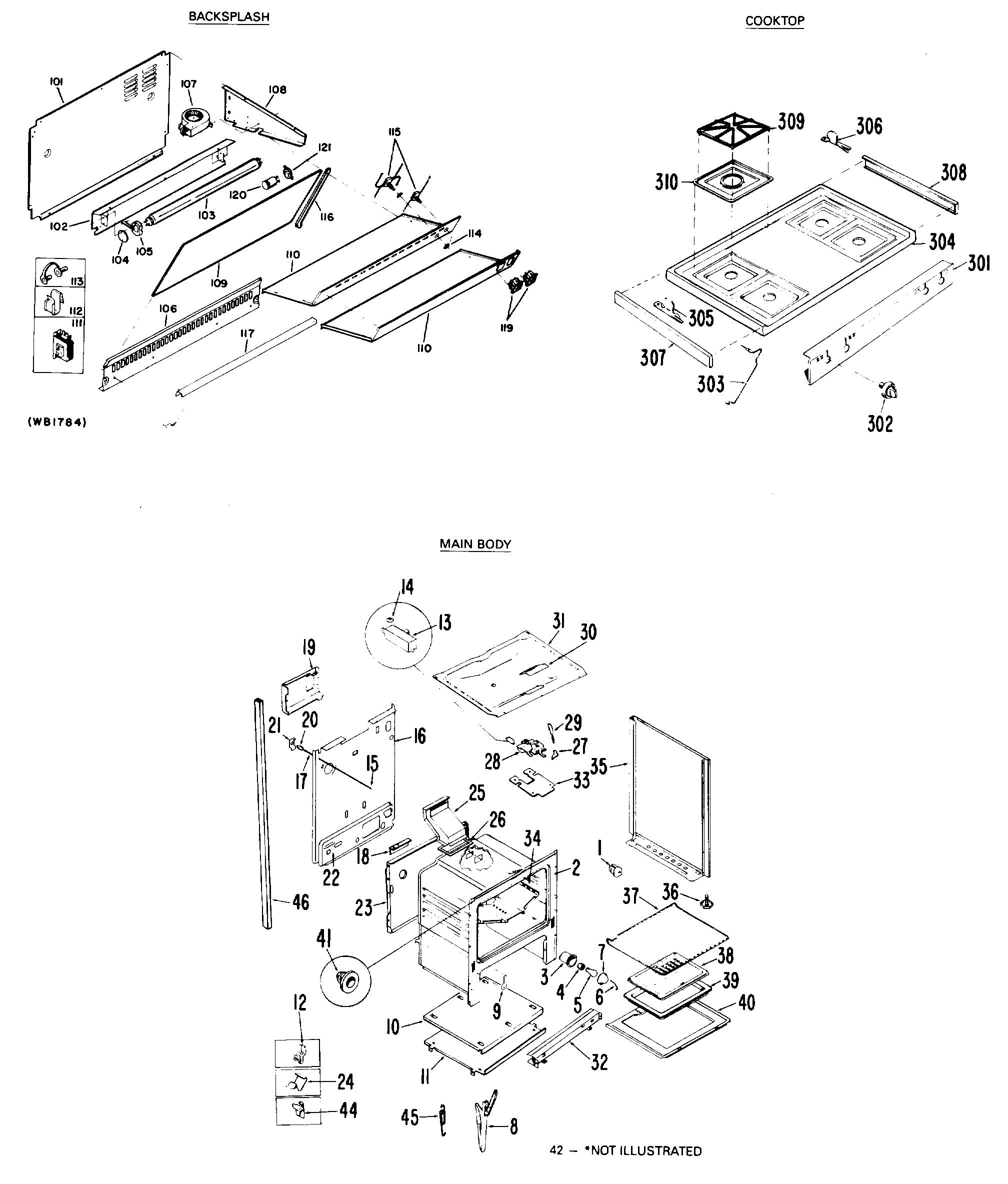

BACKSPLASH

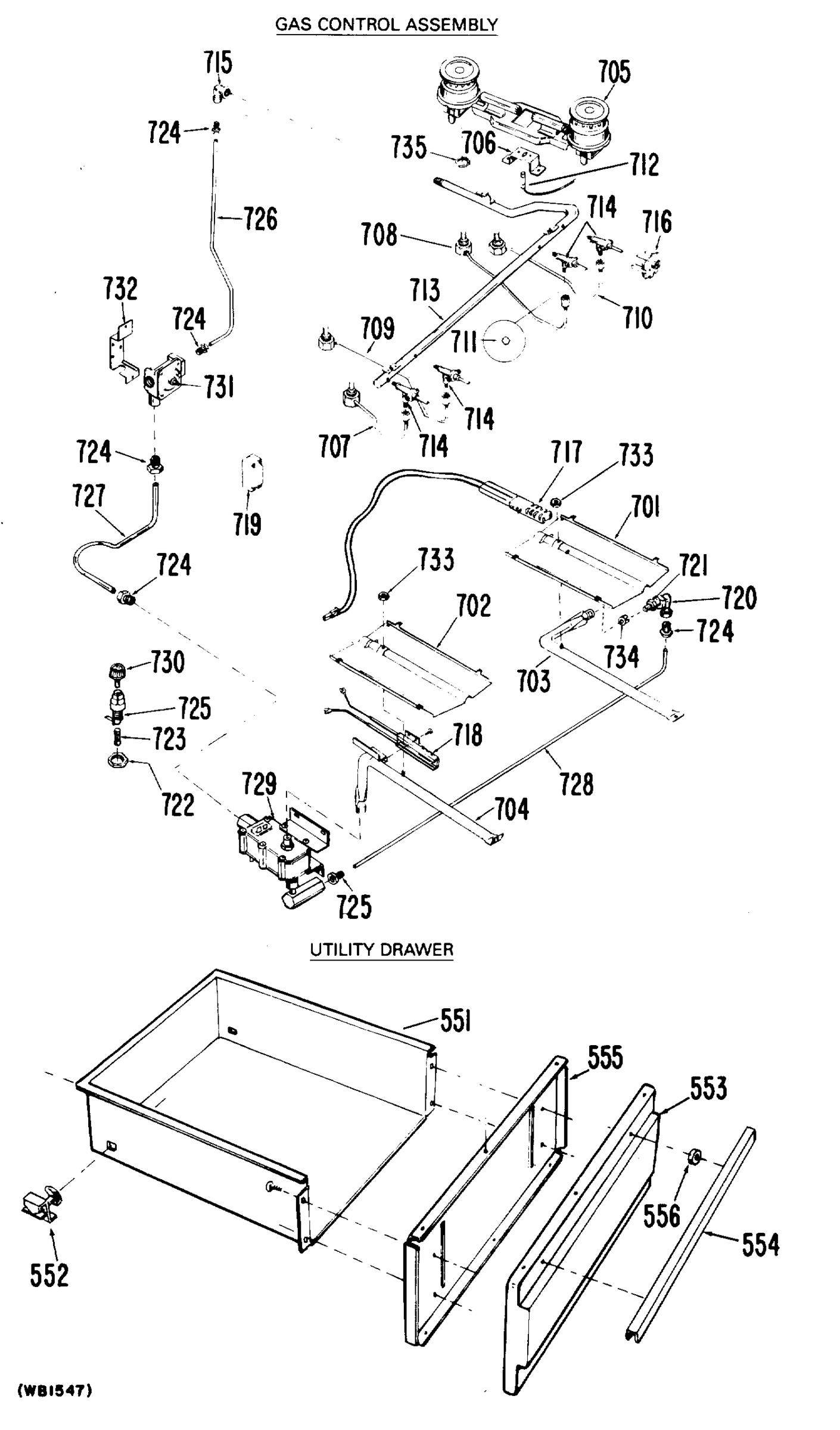

GAS CONROL ASSEMBLY

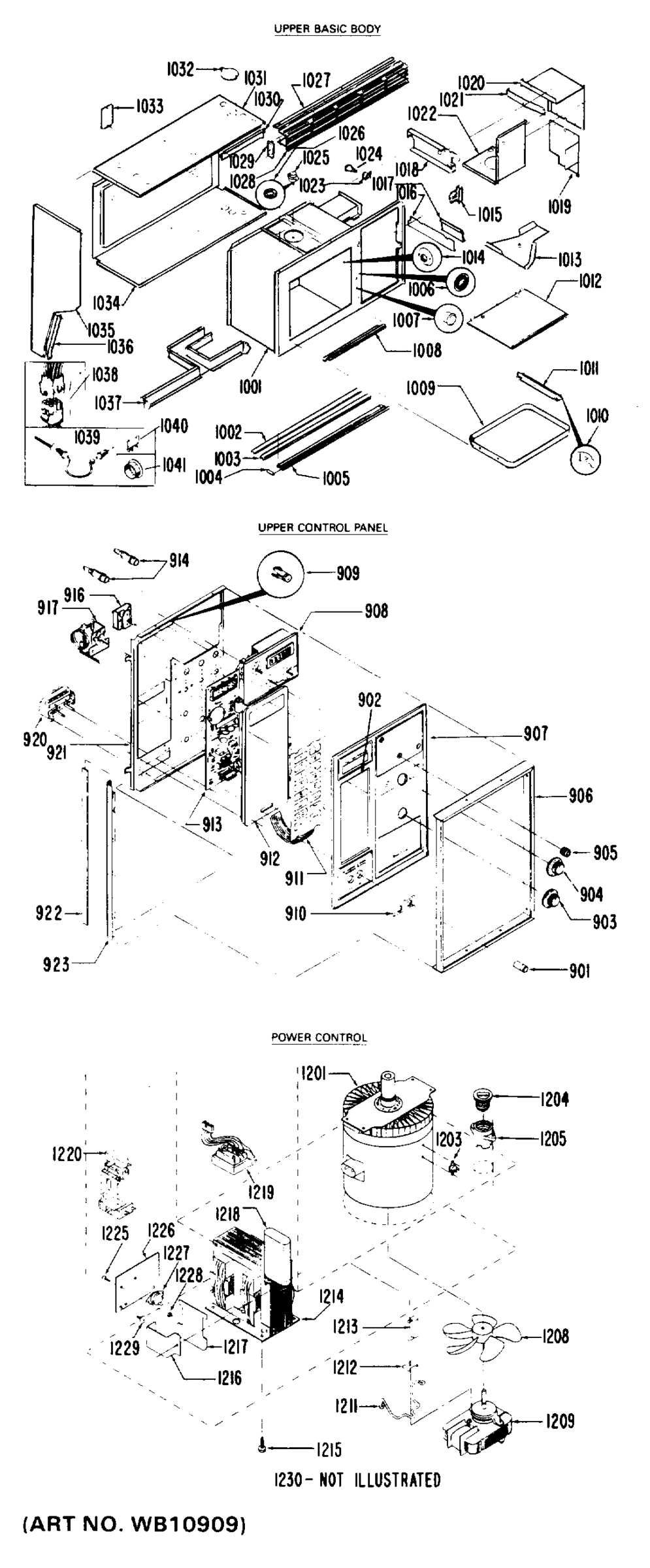

UPPER BASIC BODY

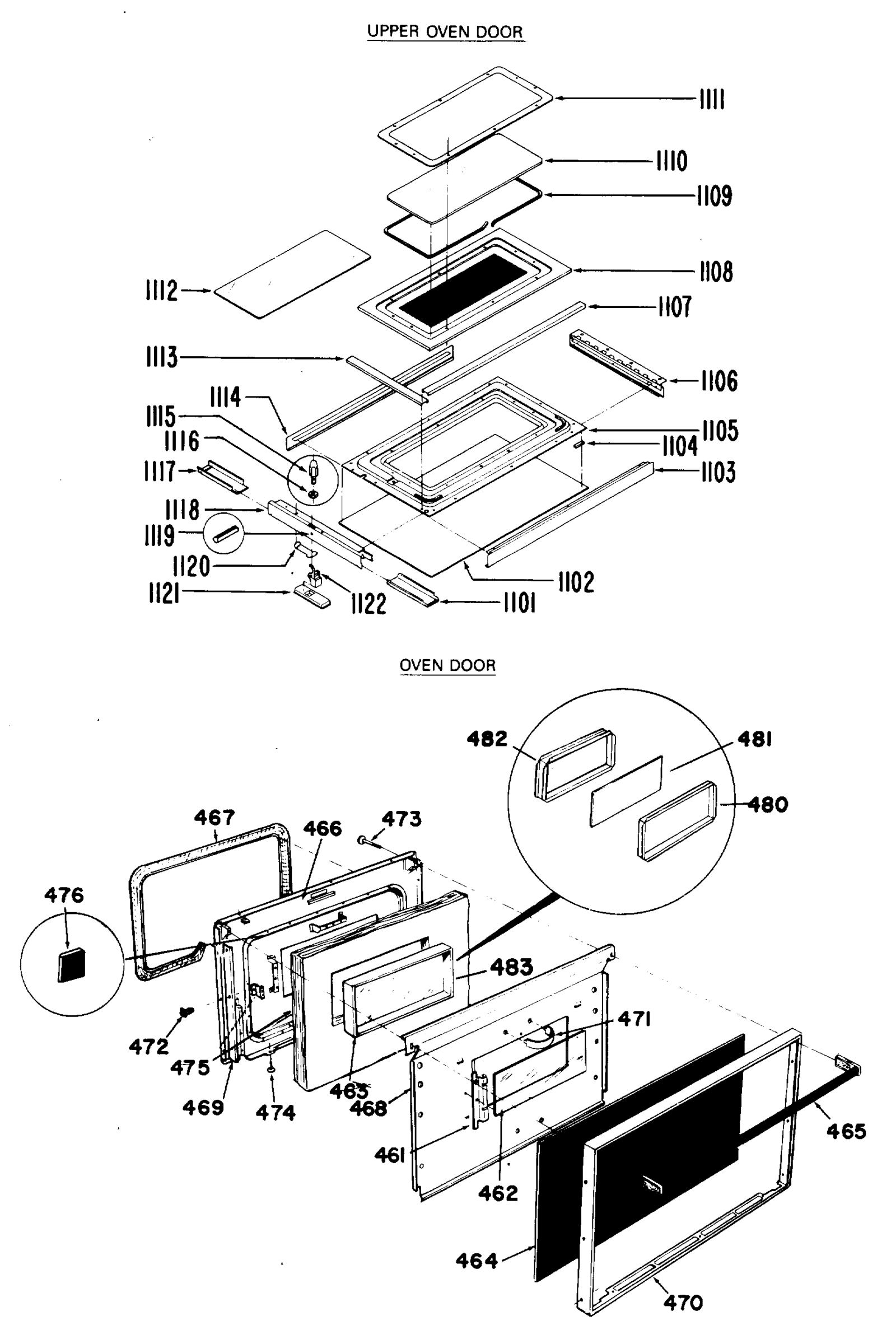

UPPER OVEN DOOR
Common parts from model Hotpoint RGH946GEJ4 Gas Range Or Dual Fuel
4
SOCKET-OVEN LIGHT GEN WB08X0262 Contact Us For Availability
5
BULB-OVEN LIGHT-40WATT GEN BUY LOCAL Contact Us For Availability
6
WIRE-GLASS RETAINER GEN WB02X4762 Contact Us For Availability
7
GLASS-OVEN LIGHT LENS GEN WB36X0730 Contact Us For Availability
8
HINGE GEN WB10X0236 Contact Us For Availability
8
GEN WB1X1013 GEN WB1X1013 Contact Us For Availability
9
COVER-HINGE CUT OUT GEN WB02X4763 Contact Us For Availability
10
GEN WB63X0273 GEN WB63X0273 Contact Us For Availability
11
GEN WB02X4766 GEN WB02X4766 Contact Us For Availability
11
GEN WB63X0274 GEN WB63X0274 Contact Us For Availability
12
GEN WB01X0941 GEN WB01X0941 Contact Us For Availability
13
GEN WB24X0380 GEN WB24X0380 Contact Us For Availability
14
GEN WB02X10085 GEN WB02X10085 Contact Us For Availability
14
GEN WB1X942 GEN WB1X942 Contact Us For Availability
15
*FASTENER-POWER CORD . GEN WB01X0925 Contact Us For Availability
15
COVER-LIGHT ROD GEN WB02X4767 Contact Us For Availability
15
GEN WB18X0271 GEN WB18X0271 Contact Us For Availability
15
GEN WB2X10268 GEN WB2X10268 Contact Us For Availability
15
GEN WB2X10269 GEN WB2X10269 Contact Us For Availability
16
GEN WB63X276 GEN WB63X276 Contact Us For Availability
17
ROD-LIGHT GEN WB02X4768 Contact Us For Availability
18
BRACKET-LIGHT SHIELD GEN WB02X4692 Contact Us For Availability
19
GEN WB2X4597 GEN WB2X4597 Contact Us For Availability
20
SWITCH-OVEN LIGHT-DOOR GEN WB24X0381 Contact Us For Availability
21
GEN WB02X4958 GEN WB02X4958 Contact Us For Availability
22
GEN WB63X303 GEN WB63X303 Contact Us For Availability
23
SHIELD-HEAT- REAR WALL GEN WB63X0275 Contact Us For Availability
24
GEN WB01X0923 GEN WB01X0923 Contact Us For Availability
25
GEN WB38X0092 GEN WB38X0092 Contact Us For Availability
26
*SHIELD-LATCH GEN WB2X4774 Contact Us For Availability
26
GEN WB38X0093 GEN WB38X0093 Contact Us For Availability
27
*SET SCREW-KNOB-LATCH GEN WB01X0734 Contact Us For Availability
27
GEN WB03X0733 GEN WB03X0733 Contact Us For Availability
28
GEN WB01X0924 GEN WB01X0924 Contact Us For Availability
28
GEN WB14X0067 GEN WB14X0067 Contact Us For Availability
29
GEN WB03X0734 GEN WB03X0734 Contact Us For Availability
30
COVER-PLATE GEN WB02X10084 Contact Us For Availability
31
*SCREW-BURNER BOX ASSM. GEN WB01X0802 Contact Us For Availability
31
*SCREW-BURNER BOX ASSM. GEN WB01X0918 Contact Us For Availability
31
GEN WB56X1780 GEN WB56X1780 Contact Us For Availability
32
GEN WB63X0345 GEN WB63X0345 Contact Us For Availability
33
GEN WB63X0279 GEN WB63X0279 Contact Us For Availability
34
GEN WB63X0346 GEN WB63X0346 Contact Us For Availability
35
PANEL-SIDE-RH-WHITE GEN WB63X0340 Contact Us For Availability
35
PANEL-SIDE-RH-ALMOND GEN WB63X0341 Contact Us For Availability
35
PANEL-SIDE-LH-WHITE GEN WB63X0342 Contact Us For Availability
35
PANEL-SIDE-LH-ALMOND GEN WB63X0343 Contact Us For Availability
35
SHIELD-HEAT-BODY-SIDE GEN WB63X0344 Contact Us For Availability
36
LEVELING LEG GEN WB01X0711 Contact Us For Availability
37
GEN WB48X0190 GEN WB48X0190 Contact Us For Availability
40
GEN WB02X4776 GEN WB02X4776 Contact Us For Availability
40
*BUMPER-FRONT MAIN BODY GEN WB02X4777 Contact Us For Availability
40
GEN WB53X0266 GEN WB53X0266 Contact Us For Availability
41
GEN WB3X688 GEN WB3X688 Contact Us For Availability
42
*WIRE SHIELD GEN WB02X4791 Contact Us For Availability
42
*INSULATION-OVEN BACK GEN WB02X4959 Contact Us For Availability
42
*INSULATION-OVEN BACK GEN WB02X4960 Contact Us For Availability
42
*INSULATION-OVEN TOP GEN WB02X4961 Contact Us For Availability
44
GLIDE-UTILITY DRAWER GEN WB39X0064 Contact Us For Availability
45
GEN WB02X0229 GEN WB02X0229 Contact Us For Availability
46
GEN WB02X10086 GEN WB02X10086 Contact Us For Availability
46
GEN WB02X10087 GEN WB02X10087 Contact Us For Availability
101
GEN WB61X0336 GEN WB61X0336 Contact Us For Availability
102
GEN WB61X0337 GEN WB61X0337 Contact Us For Availability
103
BULB-FLUORESCENT LIGHT GEN WB02X4666 Contact Us For Availability
104
INSULATOR-LIGHT RECEPT. GEN WB02X10079 Contact Us For Availability
105
RECEPTACLE-FLUOR. LIGHT GEN WB08X0242 Contact Us For Availability
106
GEN WB07X1482 GEN WB07X1482 Contact Us For Availability
107
BLOWER MOTOR ASSEMBLY GEN WB26X0075 Contact Us For Availability
108
GEN WB61X0338 GEN WB61X0338 Contact Us For Availability
108
GEN WB61X0339 GEN WB61X0339 Contact Us For Availability
109
GEN WB36X0687 GEN WB36X0687 Contact Us For Availability
110
GEN WB61X0340 GEN WB61X0340 Contact Us For Availability
111
BALLAST-FLUOR. LIGHT GEN WB20X0087 Contact Us For Availability
112
FASTENER-CABLE CLAMP GEN WB02X10053 Contact Us For Availability
113
GEN WB02X10080 GEN WB02X10080 Contact Us For Availability
114
BEZEL-LIGHT SWITCH GEN WB07X1479 Contact Us For Availability
115
GEN WB24X0398 GEN WB24X0398 Contact Us For Availability
116
TRIM-BACKSPLASH-SIDE-LH GEN WB07X1385 Contact Us For Availability
116
TRIM-BACKSPLASH-SIDE-RH GEN WB07X1386 Contact Us For Availability
117
GEN WB07X1552 GEN WB07X1552 Contact Us For Availability
118
WASHER-SPRING-SWITCH GEN WB01X0808 Contact Us For Availability
301
CONTROL PANEL (MANIFOLD) GEN WB7X1554 Contact Us For Availability
302
KNOB-TOP BURNER VALVE GEN WB3X713 Contact Us For Availability
303
GEN WB2X4736 GEN WB2X4736 Contact Us For Availability
304
GEN WB62X1641 GEN WB62X1641 Contact Us For Availability
304
GEN WB62X1642 GEN WB62X1642 Contact Us For Availability
305
GEN WB10X0239 GEN WB10X0239 Contact Us For Availability
306
GEN WB10X0240 GEN WB10X0240 Contact Us For Availability
307
GEN WB07X1526 GEN WB07X1526 Contact Us For Availability
308
GEN WB07X1527 GEN WB07X1527 Contact Us For Availability
309
GRATE-TOP BURNER GEN WB32X0089 Contact Us For Availability
310
PAN-TOP BURNER GEN WB32X0090 Contact Us For Availability
461
UNKNOWN GEN WB02X4994 Contact Us For Availability
462
UNKNOWN GEN WB55X0598 Contact Us For Availability
463
UNKNOWN GEN WB55X0599 Contact Us For Availability
464
UNKNOWN GEN WB55X0600 Contact Us For Availability
465
GEN WB15X250 GEN WB15X250 Contact Us For Availability
466
UNKNOWN GEN WB55X0601 Contact Us For Availability
467
UNKNOWN GEN WB55X0602 Contact Us For Availability
468
UNKNOWN GEN WB55X0603 Contact Us For Availability
469
UNKNOWN GEN WB02X10081 Contact Us For Availability
470
UNKNOWN GEN WB07X1483 Contact Us For Availability
471
UNKNOWN GEN WB02X10082 Contact Us For Availability
472
UNKNOWN GEN WB01X0705 Contact Us For Availability
473
UNKNOWN GEN WB01X1016 Contact Us For Availability
474
UNKNOWN GEN WB01X787 Contact Us For Availability
475
UNKNOWN GEN WB01X0786 Contact Us For Availability
475
UNKNOWN GEN WB01X0919 Contact Us For Availability
475
UNKNOWN GEN WB02X4983 Contact Us For Availability
475
UNKNOWN GEN WB02X4993 Contact Us For Availability
475
UNKNOWN GEN WB1X732 Contact Us For Availability
551
UNKNOWN GEN WB58X0056 Contact Us For Availability
552
UNKNOWN GEN WB39X0060 Contact Us For Availability
552
UNKNOWN GEN WB56X1777 Contact Us For Availability
552
UNKNOWN GEN WB56X1778 Contact Us For Availability
554
GEN WB15X293 GEN WB15X293 Contact Us For Availability
555
UNKNOWN GEN WB56X1856 Contact Us For Availability
556
UNKNOWN GEN WB01X1025 Contact Us For Availability
556
UNKNOWN GEN WB1X1024 Contact Us For Availability
556
UNKNOWN GEN WB1X786 Contact Us For Availability
701
UNKNOWN GEN WB49X0591 Contact Us For Availability
702
UNKNOWN GEN WB49X0592 Contact Us For Availability
703
UNKNOWN GEN WB28X0065 Contact Us For Availability
704
UNKNOWN GEN WB28X066 Contact Us For Availability
705
UNKNOWN GEN WB28X067 Contact Us For Availability
706
UNKNOWN GEN WB02X9364 Contact Us For Availability
706
UNKNOWN GEN WB02X9365 Contact Us For Availability
707
UNKNOWN GEN WB02X4742 Contact Us For Availability
708
UNKNOWN GEN WB02X4743 Contact Us For Availability
709
UNKNOWN GEN WB02X4744 Contact Us For Availability
710
UNKNOWN GEN WB02X4745 Contact Us For Availability
711
UNKNOWN GEN WB02X4746 Contact Us For Availability
712
UNKNOWN GEN WB02X9366 Contact Us For Availability
713
UNKNOWN GEN WB2X4749 Contact Us For Availability
714
UNKNOWN GEN WB21X0422 Contact Us For Availability
715
UNKNOWN GEN WB01X1027 Contact Us For Availability
715
UNKNOWN GEN WB02X4750 Contact Us For Availability
716
UNKNOWN GEN WB24X379 Contact Us For Availability
719
UNKNOWN GEN WB02X4753 Contact Us For Availability
720
UNKNOWN GEN WB02X4755 Contact Us For Availability
721
UNKNOWN GEN WB1X1048 Contact Us For Availability
724
UNKNOWN GEN WB02X4756 Contact Us For Availability
726
UNKNOWN GEN WB02X4758 Contact Us For Availability
727
UNKNOWN GEN WB2X4760 Contact Us For Availability
728
UNKNOWN GEN WB2X4759 Contact Us For Availability
729
UNKNOWN GEN WB21X0423 Contact Us For Availability
731
UNKNOWN GEN WB21X0424 Contact Us For Availability
732
UNKNOWN GEN WB2X4722 Contact Us For Availability
733
UNKNOWN GEN WB01X694 Contact Us For Availability
734
UNKNOWN GEN WB02X4801 Contact Us For Availability
735
UNKNOWN GEN WB01X0928 Contact Us For Availability
901
UNKNOWN GEN WB03X0640 Contact Us For Availability
902
UNKNOWN GEN WB07X1549 Contact Us For Availability
903
GEN WB3X735 GEN WB3X735 Contact Us For Availability
904
GEN WB3X736 GEN WB3X736 Contact Us For Availability
905
UNKNOWN GEN WB03X0628 Contact Us For Availability
906
UNKNOWN GEN WB07X1394 Contact Us For Availability
907
UNKNOWN GEN WB2X4391 Contact Us For Availability
907
UNKNOWN GEN WB36X0737 Contact Us For Availability
908
UNKNOWN GEN WB19X0240 Contact Us For Availability
909
UNKNOWN GEN WB1X782 Contact Us For Availability
910
UNKNOWN GEN WB04X0102 Contact Us For Availability
911
UNKNOWN GEN WB27X0300 Contact Us For Availability
912
UNKNOWN GEN WB1X781 Contact Us For Availability
912
UNKNOWN GEN WB02X4423 Contact Us For Availability
913
UNKNOWN GEN WB01X0815 Contact Us For Availability
913
UNKNOWN GEN WB27X0320 Contact Us For Availability
914
UNKNOWN GEN WB02X10069 Contact Us For Availability
916
GEN WB01X0801 GEN WB01X0801 Contact Us For Availability
916
UNKNOWN GEN WB24X0396 Contact Us For Availability
917
UNKNOWN GEN WB21X0449 Contact Us For Availability
920
UNKNOWN GEN WB1X801 Contact Us For Availability
920
UNKNOWN GEN WB24X0343 Contact Us For Availability
920
UNKNOWN GEN WB2X4422 Contact Us For Availability
921
UNKNOWN GEN WB2X10070 Contact Us For Availability
921
GEN WB7X1555 GEN WB7X1555 Contact Us For Availability
922
UNKNOWN GEN WB02X4425 Contact Us For Availability
923
UNKNOWN GEN WB02X4426 Contact Us For Availability
1001
UNKNOWN GEN NOT AVAIL Contact Us For Availability
1001
UNKNOWN GEN WB02X4435 Contact Us For Availability
1002
UNKNOWN GEN WB02X4394 Contact Us For Availability
1003
UNKNOWN GEN WB02X4395 Contact Us For Availability
1004
UNKNOWN GEN WB07X1388 Contact Us For Availability
1005
UNKNOWN GEN WB07X1389 Contact Us For Availability
1006
UNKNOWN GEN WB14X0054 Contact Us For Availability
1007
UNKNOWN GEN WB02X4396 Contact Us For Availability
1008
UNKNOWN GEN WB07X1390 Contact Us For Availability
1009
UNKNOWN GEN WB48X0174 Contact Us For Availability
1010
UNKNOWN GEN WB01X0775 Contact Us For Availability
1011
UNKNOWN GEN WB02X4397 Contact Us For Availability
1012
UNKNOWN GEN WB02X4398 Contact Us For Availability
1013
UNKNOWN GEN WB02X4399 Contact Us For Availability
1014
UNKNOWN GEN WB01X0776 Contact Us For Availability
1015
UNKNOWN GEN WB8X80 Contact Us For Availability
1016
UNKNOWN GEN WB02X4400 Contact Us For Availability
1017
UNKNOWN GEN WB02X4401 Contact Us For Availability
1018
UNKNOWN GEN WB02X4402 Contact Us For Availability
1019
UNKNOWN GEN WB02X4403 Contact Us For Availability
1020
UNKNOWN GEN WB02X4404 Contact Us For Availability
1021
UNKNOWN GEN WB2X4405 Contact Us For Availability
1022
UNKNOWN GEN WB2X4406 Contact Us For Availability
1023
UNKNOWN GEN WB08X0245 Contact Us For Availability
1025
UNKNOWN GEN WB02X10076 Contact Us For Availability
1026
UNKNOWN GEN WB01X0777 Contact Us For Availability
1026
UNKNOWN GEN WB26X0076 Contact Us For Availability
1027
UNKNOWN GEN WB02X4407 Contact Us For Availability
1028
UNKNOWN GEN WB07X1391 Contact Us For Availability
1029
UNKNOWN GEN WB07X1392 Contact Us For Availability
1029
UNKNOWN GEN WB07X1393 Contact Us For Availability
1030
UNKNOWN GEN WB2X4408 Contact Us For Availability
1030
UNKNOWN GEN WB2X4409 Contact Us For Availability
1031
UNKNOWN GEN WB63X0297 Contact Us For Availability
1032
UNKNOWN GEN WB02X4380 Contact Us For Availability
1033
UNKNOWN GEN WB02X10075 Contact Us For Availability
1034
UNKNOWN GEN WB63X298 Contact Us For Availability
1035
UNKNOWN GEN WB63X0299 Contact Us For Availability
1035
UNKNOWN GEN WB63X0300 Contact Us For Availability
1035
UNKNOWN GEN WB63X0301 Contact Us For Availability
1035
UNKNOWN GEN WB63X0302 Contact Us For Availability
1037
UNKNOWN GEN WB02X10077 Contact Us For Availability
1038
UNKNOWN GEN WB08X0270 Contact Us For Availability
1039
UNKNOWN GEN WB20X0081 Contact Us For Availability
1040
UNKNOWN GEN WB01X1047 Contact Us For Availability
1041
UNKNOWN GEN WB02X10078 Contact Us For Availability
1101
UNKNOWN GEN WB02X4538 Contact Us For Availability
1101
GEN WB36X740 GEN WB36X740 Contact Us For Availability
1103
UNKNOWN GEN WB2X4415 Contact Us For Availability
1104
UNKNOWN GEN WB02X4416 Contact Us For Availability
1105
UNKNOWN GEN WB01X0781 Contact Us For Availability
1105
UNKNOWN GEN WB55X0538 Contact Us For Availability
1106
UNKNOWN GEN WB14X0055 Contact Us For Availability
1107
UNKNOWN GEN WB02X4417 Contact Us For Availability
1108
UNKNOWN GEN WB55X0539 Contact Us For Availability
1109
UNKNOWN GEN WB2X10088 Contact Us For Availability
1110
UNKNOWN GEN WB56X1860 Contact Us For Availability
1111
UNKNOWN GEN WB2X10084 Contact Us For Availability
1112
UNKNOWN GEN WB36X0692 Contact Us For Availability
1113
UNKNOWN GEN WB02X4418 Contact Us For Availability
1114
UNKNOWN GEN WB02X4419 Contact Us For Availability
1115
UNKNOWN GEN WB01X0788 Contact Us For Availability
1116
UNKNOWN GEN WB01X0779 Contact Us For Availability
1117
UNKNOWN GEN WB02X4420 Contact Us For Availability
1118
UNKNOWN GEN WB02X4421 Contact Us For Availability
1119
UNKNOWN GEN WB01X0780 Contact Us For Availability
1120
UNKNOWN GEN WB09X0202 Contact Us For Availability
1121
UNKNOWN GEN WB02X10068 Contact Us For Availability
1121
GEN WB15X259 GEN WB15X259 Contact Us For Availability
1122
UNKNOWN GEN WB10X0227 Contact Us For Availability
1201
UNKNOWN GEN WB1X1041 Contact Us For Availability
1201
UNKNOWN GEN WB27X0302 Contact Us For Availability
1203
UNKNOWN GEN WB01X1042 Contact Us For Availability
1203
UNKNOWN GEN WB21X0404 Contact Us For Availability
1204
UNKNOWN GEN WB27X0303 Contact Us For Availability
1205
UNKNOWN GEN WB08X0246 Contact Us For Availability
1205
UNKNOWN GEN WB1X1042 Contact Us For Availability
1208
UNKNOWN GEN WB02X10071 Contact Us For Availability
1209
UNKNOWN GEN WB26X0077 Contact Us For Availability
1211
UNKNOWN GEN WB02X4428 Contact Us For Availability
1212
UNKNOWN GEN WB02X4429 Contact Us For Availability
1213
UNKNOWN GEN WB27X0304 Contact Us For Availability
1213
UNKNOWN GEN WB27X305 Contact Us For Availability
1214
UNKNOWN GEN WB27X0305 Contact Us For Availability
1215
UNKNOWN GEN WB01X1043 Contact Us For Availability
1216
UNKNOWN GEN WB02X4430 Contact Us For Availability
1217
UNKNOWN GEN WB02X4431 Contact Us For Availability
1218
UNKNOWN GEN WB27X0321 Contact Us For Availability
1219
UNKNOWN GEN WB27X0307 Contact Us For Availability
1219
UNKNOWN GEN WB2X10072 Contact Us For Availability
1220
UNKNOWN GEN WB24X0397 Contact Us For Availability
1225
UNKNOWN GEN WB01X1044 Contact Us For Availability
1226
UNKNOWN GEN WB02X10046 Contact Us For Availability
1227
UNKNOWN GEN WB27X0375 Contact Us For Availability
1228
UNKNOWN GEN WB01X1045 Contact Us For Availability
1229
UNKNOWN GEN WB01X819 Contact Us For Availability
1230
UNKNOWN GEN WB18X0221 Contact Us For Availability
1230
UNKNOWN GEN WB18X0270 Contact Us For Availability
1230
UNKNOWN GEN WB18X278 Contact Us For Availability
1230
GEN WB27X0393 GEN WB27X0393 Contact Us For Availability
1230
UNKNOWN GEN WB27X Contact Us For Availability
32767
GEN 31-0643 GEN 31-0643 Contact Us For Availability
32767
GEN 39-4589 GEN 39-4589 Contact Us For Availability
32767
GEN 49-4664 GEN 49-4664 Contact Us For Availability
× ![]()
