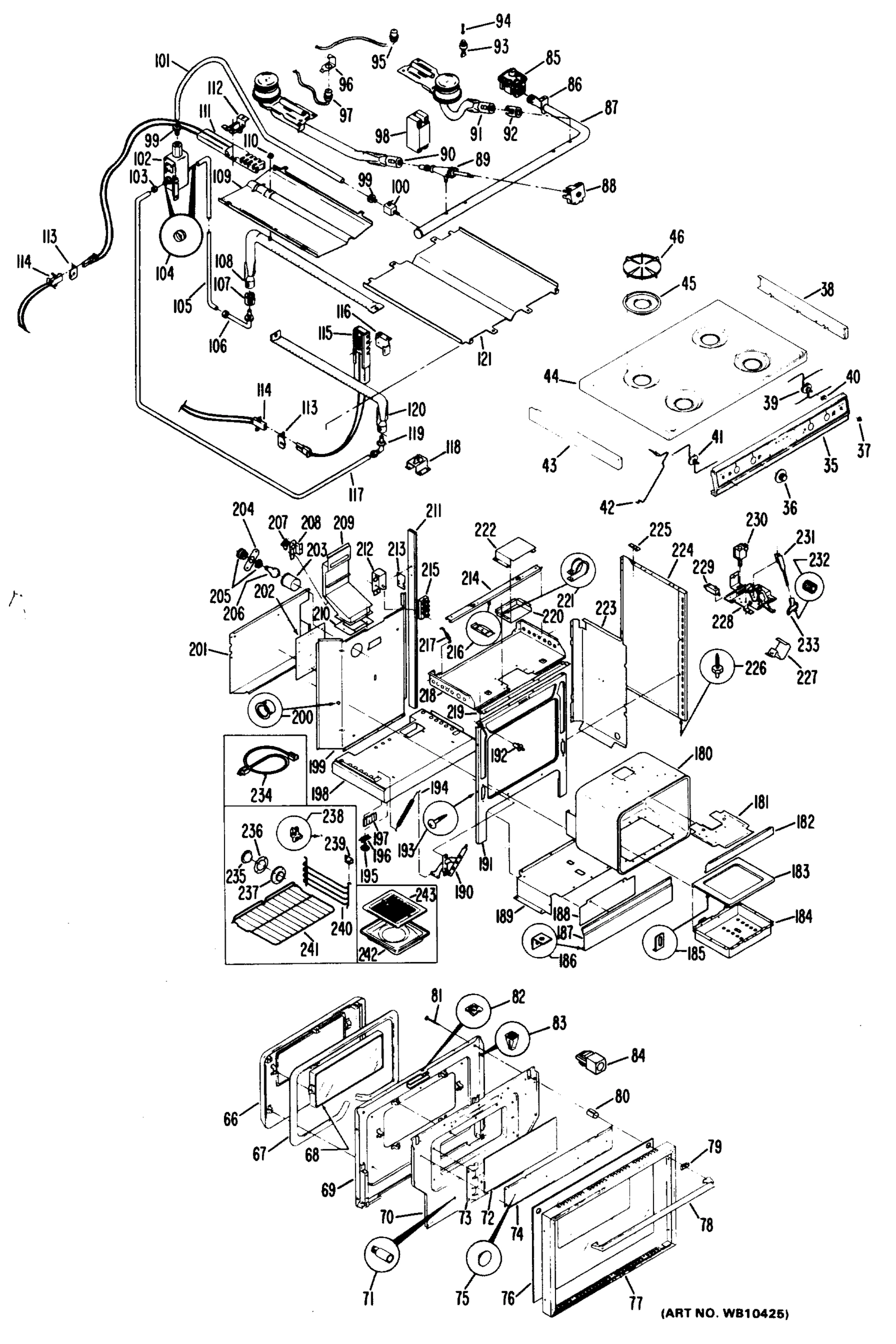

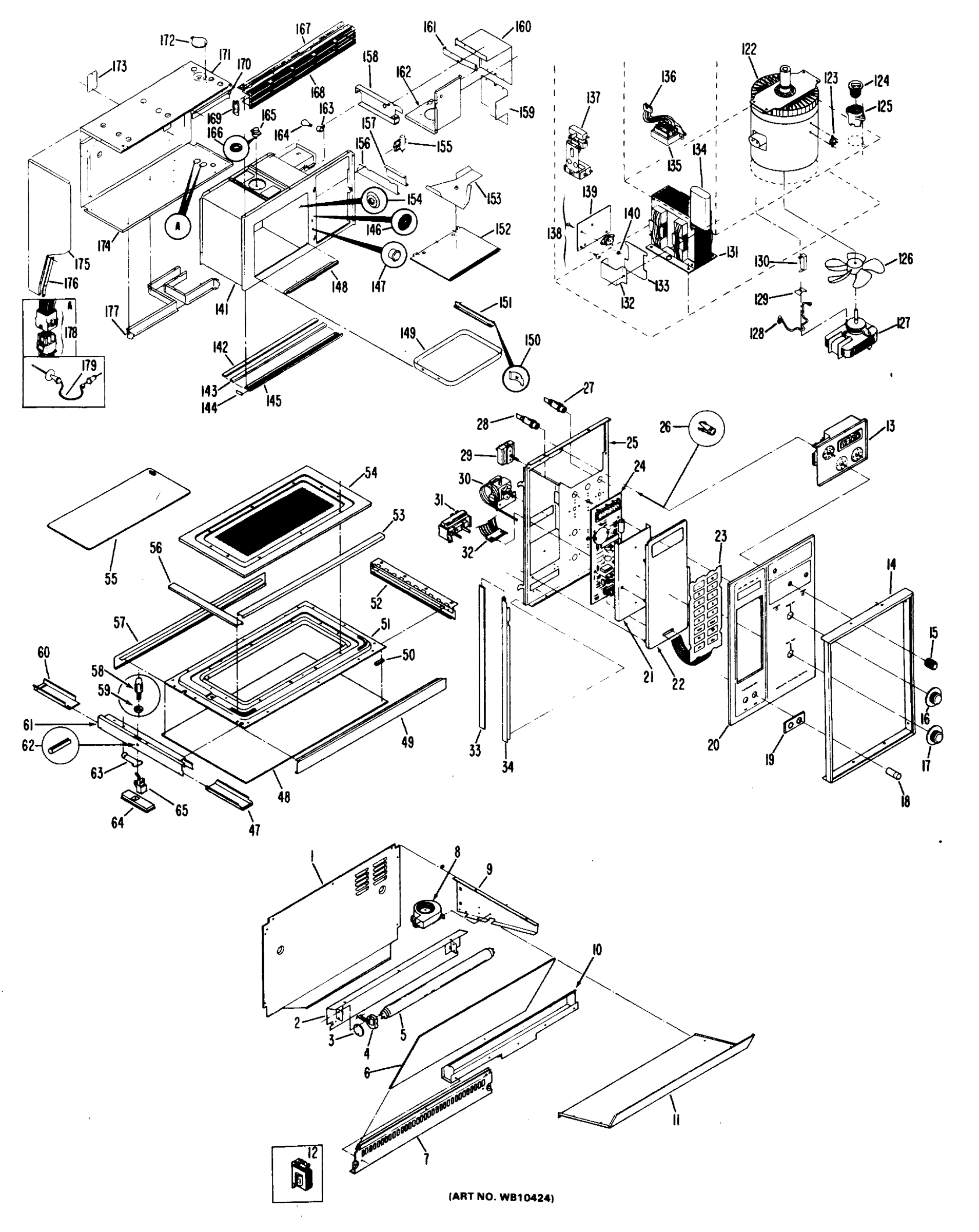

Model GE RGH946GEH3 – Common Parts & Diagrams
Common parts from model GE RGH946GEH3
1
SHIELD REAR WALL GEN WB55X0537 Contact Us For Availability
2
GEN WB02X4363 GEN WB02X4363 Contact Us For Availability
3
INSULATOR-FLUOR. LT. REC GEN WB02X4294 Contact Us For Availability
4
RECEPTACLE-FLUOR LIGHT GEN WB08X0242 Contact Us For Availability
5
FLUORESCENT LIGHT BULB GEN WB02X4666 Contact Us For Availability
6
GEN WB36X0687 GEN WB36X0687 Contact Us For Availability
7
GEN WB07X1382 GEN WB07X1382 Contact Us For Availability
8
BLOWER MOTOR ASSEMBLY GEN WB26X0075 Contact Us For Availability
9
GUSSET MICRO-SUPPORT L/H GEN WB02X4392 Contact Us For Availability
9
GUSSET-MICROSUPPORT R/H GEN WB02X4393 Contact Us For Availability
10
GEN WB02X4537 GEN WB02X4537 Contact Us For Availability
11
PANEL-SPLASHER (UPPER) GEN WB56X1716 Contact Us For Availability
12
GEN WB27X0299 GEN WB27X0299 Contact Us For Availability
13
GEN WB19X0211 GEN WB19X0211 Contact Us For Availability
14
TRIM GEN WB07X1394 Contact Us For Availability
15
GEN WB03X0656 GEN WB03X0656 Contact Us For Availability
16
GEN WB03X0663 GEN WB03X0663 Contact Us For Availability
17
GEN WB03X0664 GEN WB03X0664 Contact Us For Availability
18
BUTTON GEN WB03X0640 Contact Us For Availability
19
BEZEL GEN WB04X0102 Contact Us For Availability
20
GEN WB36X0707 GEN WB36X0707 Contact Us For Availability
21
GEN WB02X4422 GEN WB02X4422 Contact Us For Availability
22
PANEL-SWITCH MOUNTING GEN WB02X4423 Contact Us For Availability
23
KEYPANEL GEN WB27X0300 Contact Us For Availability
24
GEN WB27X0320 GEN WB27X0320 Contact Us For Availability
25
GEN WB02X4424 GEN WB02X4424 Contact Us For Availability
26
FASTENER GEN WB01X0782 Contact Us For Availability
27
GEN WB02X4433 GEN WB02X4433 Contact Us For Availability
28
GEN WB02X4434 GEN WB02X4434 Contact Us For Availability
29
SWITCH-SELECTOR GEN WB24X0331 Contact Us For Availability
30
GEN WB21X0405 GEN WB21X0405 Contact Us For Availability
31
SWITCH-ON/OFF GEN WB24X0343 Contact Us For Availability
32
PLUG-9 PIN GEN WB17X0192 Contact Us For Availability
33
GEN WB02X4425 GEN WB02X4425 Contact Us For Availability
34
COVE-SEAL GEN WB02X4426 Contact Us For Availability
35
GEN WB07X1431 GEN WB07X1431 Contact Us For Availability
36
GEN WB04X0658 GEN WB04X0658 Contact Us For Availability
37
GEN WB01X0726 GEN WB01X0726 Contact Us For Availability
38
TRIM-MAIN TOP R.H. GEN WB07X1363 Contact Us For Availability
39
SWITCH-FLUOR.LIGHT GEN WB24X0333 Contact Us For Availability
40
GEN WB01X0808 GEN WB01X0808 Contact Us For Availability
41
SWITCH-OVEN LIGHT GEN WB24X0332 Contact Us For Availability
42
ROD-MAIN TOP SUPPORT GEN WB02X4280 Contact Us For Availability
43
TRIM-MAIN TOP L.H. GEN WB07X1362 Contact Us For Availability
44
PANEL-MAIN TOP (WHITE) GEN WB62X1621 Contact Us For Availability
44
PANEL-MAIN TOP (ALMOND) GEN WB62X1622 Contact Us For Availability
45
PAN BURNERS GEN WB32X0084 Contact Us For Availability
46
GRATE-TOP BURNERS GEN WB32X0083 Contact Us For Availability
47
GEN WB02X4538 GEN WB02X4538 Contact Us For Availability
48
GEN WB36X0708 GEN WB36X0708 Contact Us For Availability
49
CHANNEL GEN WB02X4415 Contact Us For Availability
50
GEN WB02X4416 GEN WB02X4416 Contact Us For Availability
51
FRAME-DOOR GEN WB55X0538 Contact Us For Availability
52
HINGE-DOOR GEN WB14X0055 Contact Us For Availability
53
GASKET-DOOR GEN WB02X4417 Contact Us For Availability
54
PANEL-DOOR GEN WB55X0539 Contact Us For Availability
55
LINER-DOOR GEN WB36X0692 Contact Us For Availability
56
SEAL GEN WB02X4418 Contact Us For Availability
57
CHANNEL GEN WB02X4419 Contact Us For Availability
58
SCREW DOOR STRIKE GEN WB01X0778 Contact Us For Availability
60
GEN WB02X4539 GEN WB02X4539 Contact Us For Availability
61
EXTRUSION GEN WB02X4421 Contact Us For Availability
62
GEN WB01X0780 GEN WB01X0780 Contact Us For Availability
63
SPRING GEN WB09X0202 Contact Us For Availability
64
GEN WB15X0211 GEN WB15X0211 Contact Us For Availability
65
HOOK-HANDLE GEN WB10X0227 Contact Us For Availability
66
GEN WB55X0583 GEN WB55X0583 Contact Us For Availability
67
GEN WB02X4296 GEN WB02X4296 Contact Us For Availability
68
GLASS GEN WB36X0683 Contact Us For Availability
69
GEN WB55X0582 GEN WB55X0582 Contact Us For Availability
70
SHIELD GEN WB55X0521 Contact Us For Availability
71
FASTENER-NYLON SPACER(BLACK) GEN WB01X0730 Contact Us For Availability
71
FASTENER-NYLON SPACER (RED) GEN WB01X0731 Contact Us For Availability
72
GLASS-DOOR (MIDDLE) GEN WB36X0679 Contact Us For Availability
73
BRACKET-GLASS GEN WB02X4297 Contact Us For Availability
74
SHIELD-HEAT GEN WB55X0522 Contact Us For Availability
75
GEN WB02X4299 GEN WB02X4299 Contact Us For Availability
76
GEN WB36X0709 GEN WB36X0709 Contact Us For Availability
77
TRIM-OVEN DOOR FRAME GEN WB07X1396 Contact Us For Availability
78
GEN WB15X0207 GEN WB15X0207 Contact Us For Availability
79
SPACER-HANDLE W/POST GEN WB01X0690 Contact Us For Availability
80
SPACER-HANDLE MTG (TUBULAR) GEN WB02X4283 Contact Us For Availability
81
SCREW-HANDLE MTG GEN WB01X0687 Contact Us For Availability
82
FASTENER-CLIP GEN WB01X0732 Contact Us For Availability
83
FASTENER-NYLON SPACER GEN WB01X0705 Contact Us For Availability
84
GEN WB02X4540 GEN WB02X4540 Contact Us For Availability
85
CONTROL-PRESSURE REGULATOR GEN WB21X0395 Contact Us For Availability
86
ANGLE-MANIFOLD PIPE SUPPORT GEN WB02X4188 Contact Us For Availability
87
MANIFOLD PIPE GEN WB02X4298 Contact Us For Availability
88
GEN WB24X0334 GEN WB24X0334 Contact Us For Availability
89
VALVE-TOP BURNERS (3 POS.) GEN WB21X0397 Contact Us For Availability
90
BURNER-TOP (REAR) GEN WB28X0062 Contact Us For Availability
91
BURNER-TOP (FRONT) GEN WB28X0061 Contact Us For Availability
92
MIXER-AIR (TOP BURNERS) GEN WB02X4191 Contact Us For Availability
93
RECEPTACLE FUSE HOLDER GEN WB02X4213 Contact Us For Availability
94
FUSE (5A 250V) GEN WB27X0277 Contact Us For Availability
95
BASE-IGNITER R.H. GEN WB02X4215 Contact Us For Availability
96
RETAINER-TOP IGN. HARNESS ASSY GEN WB02X4214 Contact Us For Availability
97
BASE-IGNITER L.H. GEN WB02X4216 Contact Us For Availability
99
LOXIT-NUT SHUT OFF & VALVE GEN WB01X0713 Contact Us For Availability
100
VALVE-SHUTOFF (MANUAL) GEN WB21X0390 Contact Us For Availability
101
TUBE-VALVE SUPPLY GEN WB02X4300 Contact Us For Availability
102
VALVE-OVEN SAFETY (DUAL) GEN WB21X0398 Contact Us For Availability
103
GEN WB01X0693 GEN WB01X0693 Contact Us For Availability
104
GEN WB01X0692 GEN WB01X0692 Contact Us For Availability
105
TUBE-BROILER SUPPLY GEN WB02X4303 Contact Us For Availability
106
MIXER-ELBOW (BROILER) GEN WB02X4304 Contact Us For Availability
107
MIXER-AIR(OVEN-BROILER BURNER) GEN WB02X4305 Contact Us For Availability
108
GEN WB28X0046 GEN WB28X0046 Contact Us For Availability
110
NUT-BAFFLE MOUNTING GEN WB01X0694 Contact Us For Availability
112
BRACKET-BROILER IGNITER GEN WB02X4307 Contact Us For Availability
114
GEN WB18X0227 GEN WB18X0227 Contact Us For Availability
115
GEN WB02X4309 GEN WB02X4309 Contact Us For Availability
116
BRACKET-OVEN IGNITER GEN WB02X4310 Contact Us For Availability
117
TUBE OVEN SUPPLY 3/8 X 5 GEN WB02X4485 Contact Us For Availability
118
GEN WB02X4311 GEN WB02X4311 Contact Us For Availability
119
MIXER-ELBOW (OVEN) GEN WB02X4312 Contact Us For Availability
120
GEN WB28X0047 GEN WB28X0047 Contact Us For Availability
121
BAFFLE-OVEN BURNER GEN WB49X0527 Contact Us For Availability
122
GEN WB27X0302 GEN WB27X0302 Contact Us For Availability
123
GEN WB21X0402 GEN WB21X0402 Contact Us For Availability
124
FUSE GEN WB27X0303 Contact Us For Availability
125
SOCKET-FUSE GEN WB08X0246 Contact Us For Availability
126
FAN BLADE-MAGNETRON GEN WB02X4427 Contact Us For Availability
127
FAN MOTOR GEN WB26X0077 Contact Us For Availability
128
ROD-FAN SUPPORT GEN WB02X4428 Contact Us For Availability
129
BRACKET GEN WB02X4429 Contact Us For Availability
130
DIODE-HV GEN WB27X0304 Contact Us For Availability
131
TRANSFORMER-HV GEN WB27X0305 Contact Us For Availability
132
RETAINER GEN WB02X4430 Contact Us For Availability
133
SHIELD GEN WB02X4431 Contact Us For Availability
134
GEN WB27X0231 GEN WB27X0231 Contact Us For Availability
135
TRANSFORMER-LV GEN WB27X0307 Contact Us For Availability
136
GEN WB02X4517 GEN WB02X4517 Contact Us For Availability
137
GEN WB24X0344 GEN WB24X0344 Contact Us For Availability
138
TRIAC HEAT SINK ASM GEN WB27X0308 Contact Us For Availability
139
GEN WB02X4432 GEN WB02X4432 Contact Us For Availability
140
NUT-HEX GEN WB01X0779 Contact Us For Availability
142
GEN WB02X4394 GEN WB02X4394 Contact Us For Availability
143
COVER GEN WB02X4395 Contact Us For Availability
144
END CAP GEN WB07X1388 Contact Us For Availability
145
TRIM-BOTTOM GEN WB07X1389 Contact Us For Availability
146
STRIKE-DOOR GEN WB14X0054 Contact Us For Availability
147
GROMMET-DOOR GEN WB02X4396 Contact Us For Availability
148
TRIM-FRONT GEN WB07X1390 Contact Us For Availability
149
TRAY-GLASS GEN WB48X0174 Contact Us For Availability
150
CLIP-TRAY GEN WB01X0775 Contact Us For Availability
151
GLIDE-TRAY GEN WB02X4397 Contact Us For Availability
152
COVER-STIRRER GEN WB02X4398 Contact Us For Availability
153
FAN-STIRRER GEN WB02X4399 Contact Us For Availability
154
NUT GEN WB01X0776 Contact Us For Availability
155
GEN WB20X0080 GEN WB20X0080 Contact Us For Availability
156
ANGLE-AIR BAFFLE GEN WB02X4400 Contact Us For Availability
157
ANGLE-AIR BAFFLE GEN WB02X4401 Contact Us For Availability
158
CHANNEL GEN WB02X4402 Contact Us For Availability
159
COVER GEN WB02X4403 Contact Us For Availability
160
COVER-DUCT GEN WB02X4404 Contact Us For Availability
161
BRACKET MAG. SUPT. GEN WB02X4405 Contact Us For Availability
162
GEN WB02X4406 GEN WB02X4406 Contact Us For Availability
163
SOCKRT-LIGHT GEN WB08X0245 Contact Us For Availability
165
MOTOR-STIRRER GEN WB26X0076 Contact Us For Availability
166
WASHER GEN WB01X0777 Contact Us For Availability
168
TRIM GEN WB07 Contact Us For Availability
181
GEN WB55X0525 GEN WB55X0525 Contact Us For Availability
182
SHIELD-BROILER BURNER GEN WB55X0527 Contact Us For Availability
183
BOTTOM-OVEN GEN WB55X0577 Contact Us For Availability
184
PAN- GEN WB49X0528 Contact Us For Availability
186
GEN WB02X4314 GEN WB02X4314 Contact Us For Availability
187
GEN WB56X1692 GEN WB56X1692 Contact Us For Availability
188
GEN WB55X0528 GEN WB55X0528 Contact Us For Availability
189
GEN WB55X0529 GEN WB55X0529 Contact Us For Availability
190
GEN WB14X0044 GEN WB14X0044 Contact Us For Availability
190
GEN WB14X0045 GEN WB14X0045 Contact Us For Availability
193
GEN WB01X0704 GEN WB01X0704 Contact Us For Availability
194
GEN WB09X0201 GEN WB09X0201 Contact Us For Availability
195
GEN WB01X0711 GEN WB01X0711 Contact Us For Availability
196
GEN WB01X0710 GEN WB01X0710 Contact Us For Availability
197
GEN WB02X4315 GEN WB02X4315 Contact Us For Availability
198
GEN WB49X0556 GEN WB49X0556 Contact Us For Availability
199
GEN WB49X0530 GEN WB49X0530 Contact Us For Availability
200
GEN WB02X4316 GEN WB02X4316 Contact Us For Availability
201
GEN WB55X0530 GEN WB55X0530 Contact Us For Availability
202
GEN WB55X0531 GEN WB55X0531 Contact Us For Availability
203
GEN WB02X4317 GEN WB02X4317 Contact Us For Availability
204
GEN WB02X4318 GEN WB02X4318 Contact Us For Availability
205
GEN WB08X0243 GEN WB08X0243 Contact Us For Availability
207
GEN WB24X0336 GEN WB24X0336 Contact Us For Availability
207
GEN WB24X0337 GEN WB24X0337 Contact Us For Availability
208
GEN WB02X4319 GEN WB02X4319 Contact Us For Availability
209
GEN WB49X0545 GEN WB49X0545 Contact Us For Availability
211
GEN WB02X4367 GEN WB02X4367 Contact Us For Availability
212
GEN WB02X4211 GEN WB02X4211 Contact Us For Availability
213
GEN WB02X4368 GEN WB02X4368 Contact Us For Availability
214
GEN WB02X4275 GEN WB02X4275 Contact Us For Availability
215
GEN WB17X0189 GEN WB17X0189 Contact Us For Availability
216
GEN WB01X0729 GEN WB01X0729 Contact Us For Availability
217
GEN WB14X0047 GEN WB14X0047 Contact Us For Availability
218
GEN WB49X0572 GEN WB49X0572 Contact Us For Availability
219
GEN WB02 GEN WB02 Contact Us For Availability
× ![]()
