Model Hotpoint RGH946GEH2 Gas Range Or Dual Fuel – Common Parts & Diagrams

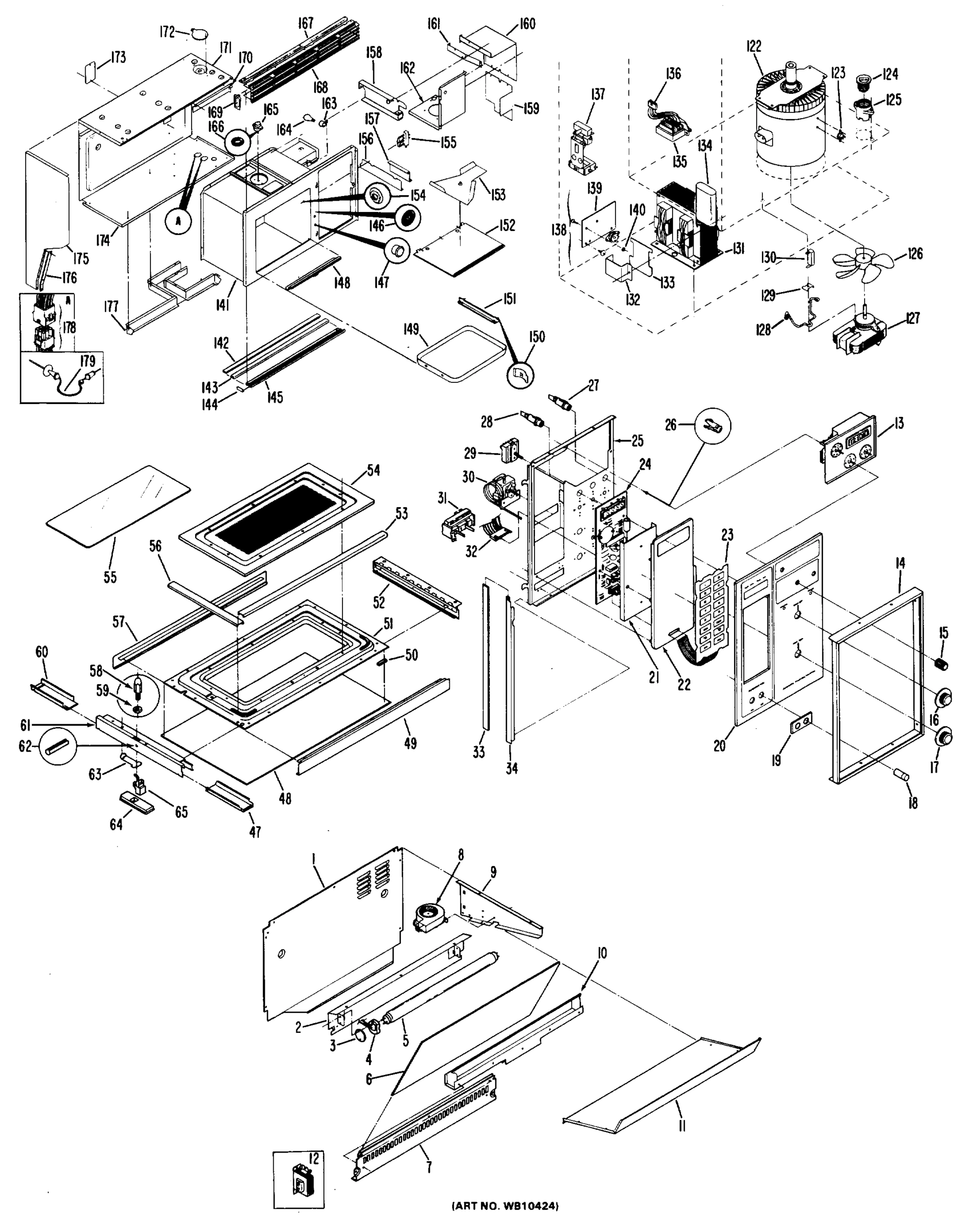

Common parts from model Hotpoint RGH946GEH2 Gas Range Or Dual Fuel
1
SHIELD-WALL REAR GEN WB55X0537 Contact Us For Availability
2
GEN WB02X4363 GEN WB02X4363 Contact Us For Availability
3
INSULATOR-FLUOR. LT. RECEPT. GEN WB02X4294 Contact Us For Availability
4
RECEPTACLE-FLUOR. LT. GEN WB08X0242 Contact Us For Availability
6
GLASS-SPLASHER GEN WB36X0687 Contact Us For Availability
7
GEN WB07X1382 GEN WB07X1382 Contact Us For Availability
8
BLOWER-MOTOR ASSY. GEN WB26X0075 Contact Us For Availability
9
GUSSET-MICRO SUPPORT L.H. GEN WB02X4392 Contact Us For Availability
9
GUSSET-MICRO SUPPORT R.H. GEN WB02X4393 Contact Us For Availability
10
GEN WB02X4537 GEN WB02X4537 Contact Us For Availability
11
PANEL-SPLASHER (UPPER) GEN WB56X1716 Contact Us For Availability
12
BALLAST-FLUOR. LT. GEN WB27X0299 Contact Us For Availability
13
GEN WB19X0211 GEN WB19X0211 Contact Us For Availability
14
TRIM-CONTROL PANEL GEN WB07X1394 Contact Us For Availability
15
GEN WB03X0656 GEN WB03X0656 Contact Us For Availability
16
GEN WB03X0663 GEN WB03X0663 Contact Us For Availability
17
GEN WB03X0664 GEN WB03X0664 Contact Us For Availability
18
BUTTON-PUSH (ON-OFF) GEN WB03X0640 Contact Us For Availability
19
BEZEL-SELECTOR SWITCH GEN WB04X0102 Contact Us For Availability
20
GEN WB36X0707 GEN WB36X0707 Contact Us For Availability
21
SHIELD-FLAMMABILITY GEN WB02X4422 Contact Us For Availability
22
PANEL-SWITCH MTG GEN WB02X4423 Contact Us For Availability
23
SWITCH-MEMBRANE TOUCH GEN WB27X0300 Contact Us For Availability
24
CIRCUIT BOARD (PRINTED) GEN WB27X0320 Contact Us For Availability
25
PANEL-CONTROL GEN WB02X4424 Contact Us For Availability
26
FASTENER TWIST NUT GEN WB01X0782 Contact Us For Availability
27
INDICATOR LT. "LOCK" (RED 125V) GEN WB02X4433 Contact Us For Availability
28
INDICATOR LT. "CLEAN" (AM. 125V) GEN WB02X4434 Contact Us For Availability
29
SWITCH-SELECTOR (L. POS.) GEN WB24X0331 Contact Us For Availability
30
THERMOSTAT-LOWER OVEN GEN WB21X0405 Contact Us For Availability
31
SWITCH-SELECTOR (ON-OFF) GEN WB24X0343 Contact Us For Availability
32
PLUG-9 PIN GEN WB17X0192 Contact Us For Availability
33
SEAL MICROWAVE GEN WB02X4425 Contact Us For Availability
34
GEN WB02X4426 GEN WB02X4426 Contact Us For Availability
35
GEN WB07X1431 GEN WB07X1431 Contact Us For Availability
36
GEN WB04X0658 GEN WB04X0658 Contact Us For Availability
37
GEN WB01X0726 GEN WB01X0726 Contact Us For Availability
38
GEN WB07X1363 GEN WB07X1363 Contact Us For Availability
39
SWITCH-FLUORESCENT LIGHT GEN WB24X0333 Contact Us For Availability
40
GEN WB01X0808 GEN WB01X0808 Contact Us For Availability
41
SWITCH-OVEN LIGHT GEN WB24X0332 Contact Us For Availability
42
GEN WB02X4280 GEN WB02X4280 Contact Us For Availability
43
GEN WB07X1362 GEN WB07X1362 Contact Us For Availability
44
GEN WB62X1607 GEN WB62X1607 Contact Us For Availability
44
GEN WB62X1608 GEN WB62X1608 Contact Us For Availability
45
GEN WB32X0084 GEN WB32X0084 Contact Us For Availability
46
GEN WB32X0083 GEN WB32X0083 Contact Us For Availability
47
GEN WB02X4538 GEN WB02X4538 Contact Us For Availability
48
GLASS-DOOR OUTER GEN WB36X0708 Contact Us For Availability
49
EXTRUSION-BOTTOM GEN WB02X4415 Contact Us For Availability
50
GEN WB02X4416 GEN WB02X4416 Contact Us For Availability
51
FRAME GEN WB55X0538 Contact Us For Availability
52
EXTRUSION-HINGE MTG ASSY GEN WB14X0055 Contact Us For Availability
53
SEAL-DOOR TOP & BOTTOM GEN WB02X4417 Contact Us For Availability
54
PANEL-DOOR SEAL (ALMOND) GEN WB55X0539 Contact Us For Availability
55
LINER-DOOR SEAL GEN WB36X0692 Contact Us For Availability
56
SEAL-DOOR SIDE GEN WB02X4418 Contact Us For Availability
57
EXTRUSION-TOP GEN WB02X4419 Contact Us For Availability
58
SCREW-DOOR STRIKE (HEX) GEN WB01X0778 Contact Us For Availability
60
GEN WB02X4539 GEN WB02X4539 Contact Us For Availability
61
GEN WB02X4421 GEN WB02X4421 Contact Us For Availability
62
PIN-ROLL GEN WB01X0780 Contact Us For Availability
63
SPRING-DOOR HANDLE GEN WB09X0202 Contact Us For Availability
64
KIT-HANDLE GEN WB15X0211 Contact Us For Availability
65
HOOK-HANDLE GEN WB10X0227 Contact Us For Availability
66
GEN WB55X0556 GEN WB55X0556 Contact Us For Availability
67
SEAL-DOOR GEN WB02X4296 Contact Us For Availability
68
GLASS PACKAGE (VIS. S/C) GEN WB36X0683 Contact Us For Availability
69
GEN WB55X0520 GEN WB55X0520 Contact Us For Availability
70
SHIELD-WOOL (VIS.) GEN WB55X0521 Contact Us For Availability
71
FASTENER-NYLON SPACER (1 GEN WB01X0730 Contact Us For Availability
71
FASTENER SPACER RED GEN WB01X0731 Contact Us For Availability
72
GEN WB36X0679 GEN WB36X0679 Contact Us For Availability
73
BRACKET-GLASS GEN WB02X4297 Contact Us For Availability
74
SHIELD-HEAT GEN WB55X0522 Contact Us For Availability
75
PLUG BUTTON-FRONT FRAME GEN WB02X4299 Contact Us For Availability
76
GEN WB36X0709 GEN WB36X0709 Contact Us For Availability
77
TRIM-OVEN DOOR FRAME GEN WB07X1396 Contact Us For Availability
78
GEN WB15X0207 GEN WB15X0207 Contact Us For Availability
79
GEN WB01X0690 GEN WB01X0690 Contact Us For Availability
80
GEN WB02X4283 GEN WB02X4283 Contact Us For Availability
81
GEN WB01X0687 GEN WB01X0687 Contact Us For Availability
82
*FASTENER-8AU TYPE GEN WB01X0732 Contact Us For Availability
83
GEN WB01X0705 GEN WB01X0705 Contact Us For Availability
84
GEN WB02X4540 GEN WB02X4540 Contact Us For Availability
85
GEN WB21X0395 GEN WB21X0395 Contact Us For Availability
86
BRACKET GEN WB02X4188 Contact Us For Availability
87
GEN WB02X4298 GEN WB02X4298 Contact Us For Availability
88
GEN WB24X0334 GEN WB24X0334 Contact Us For Availability
89
GEN WB21X0397 GEN WB21X0397 Contact Us For Availability
90
BURNER-TOP-REAR GEN WB28X0062 Contact Us For Availability
91
BURNER-TOP FRONT GEN WB28X0061 Contact Us For Availability
92
MIXER-AIR GEN WB02X4191 Contact Us For Availability
93
RECEPTACLE-FUSE GEN WB02X4213 Contact Us For Availability
94
FUSE-5A-250V GEN WB27X0277 Contact Us For Availability
95
IGNITER-RIGHT GEN WB02X4215 Contact Us For Availability
96
RETAINER-IGNITER GEN WB02X4214 Contact Us For Availability
97
BASE-IGNITER-LH GEN WB02X4216 Contact Us For Availability
98
IGNITER MODULE BOARD GEN WB21X0389 Contact Us For Availability
99
LOXIT NUT-SHUT OFF VALVE GEN WB01X0713 Contact Us For Availability
100
VALVE SHUT-OFF MANUAL GEN WB21X0390 Contact Us For Availability
101
GEN WB02X4300 GEN WB02X4300 Contact Us For Availability
102
GEN WB21X0398 GEN WB21X0398 Contact Us For Availability
103
NUT-COMPRESSION GEN WB01X0693 Contact Us For Availability
104
FERRULE GEN WB01X0692 Contact Us For Availability
105
GEN WB02X4303 GEN WB02X4303 Contact Us For Availability
106
GEN WB02X4304 GEN WB02X4304 Contact Us For Availability
107
GEN WB02X4305 GEN WB02X4305 Contact Us For Availability
108
GEN WB28X0046 GEN WB28X0046 Contact Us For Availability
109
BAFFLE BROILER BURNER GEN WB49X0526 Contact Us For Availability
110
NUT-BAFFLE MOUNTING GEN WB01X0694 Contact Us For Availability
112
GEN WB02X4307 GEN WB02X4307 Contact Us For Availability
114
GEN WB18X0227 GEN WB18X0227 Contact Us For Availability
115
GEN WB02X4309 GEN WB02X4309 Contact Us For Availability
116
GEN WB02X4310 GEN WB02X4310 Contact Us For Availability
117
TUBE OVEN SUPPLY 3/8 X 5 GEN WB02X4485 Contact Us For Availability
118
GEN WB02X4311 GEN WB02X4311 Contact Us For Availability
119
GEN WB02X4312 GEN WB02X4312 Contact Us For Availability
120
GEN WB28X0047 GEN WB28X0047 Contact Us For Availability
121
GEN WB49X0527 GEN WB49X0527 Contact Us For Availability
122
GEN WB27X0302 GEN WB27X0302 Contact Us For Availability
123
SWITCH-THERMO CUTOUT (MAG.) GEN WB21X0402 Contact Us For Availability
124
FUSE 20 AMP. GEN WB27X0303 Contact Us For Availability
125
SOCKET-FUSE GEN WB08X0246 Contact Us For Availability
126
FAN BLADE (MAG.) GEN WB02X4427 Contact Us For Availability
127
MOTOR FAN (MAG.) GEN WB26X0077 Contact Us For Availability
128
ROD-FAN MOTOR SUPPORT GEN WB02X4428 Contact Us For Availability
129
CHANNEL-MT. GUIDE GEN WB02X4429 Contact Us For Availability
130
DIODE-HIGH VOLTAGE GEN WB27X0304 Contact Us For Availability
131
TRANSFORMER GEN WB27X0305 Contact Us For Availability
132
GEN WB02X4430 GEN WB02X4430 Contact Us For Availability
133
SHIELD-CAPACITOR TERMINAL GEN WB02X4431 Contact Us For Availability
134
CAPACITOR-HIGH VOLTAGE GEN WB27X0231 Contact Us For Availability
135
TRANSFORMER LOW VOLTAGE GEN WB27X0307 Contact Us For Availability
136
GEN WB02X4517 GEN WB02X4517 Contact Us For Availability
137
GEN WB24X0344 GEN WB24X0344 Contact Us For Availability
138
GEN WB27X0308 GEN WB27X0308 Contact Us For Availability
139
GEN WB02X4432 GEN WB02X4432 Contact Us For Availability
140
GEN WB01X0779 GEN WB01X0779 Contact Us For Availability
142
GEN WB02X4394 GEN WB02X4394 Contact Us For Availability
143
GEN WB02X4395 GEN WB02X4395 Contact Us For Availability
144
GEN WB07X1388 GEN WB07X1388 Contact Us For Availability
145
GEN WB07X1389 GEN WB07X1389 Contact Us For Availability
146
GEN WB14X0054 GEN WB14X0054 Contact Us For Availability
147
GEN WB02X4396 GEN WB02X4396 Contact Us For Availability
148
GEN WB07X1390 GEN WB07X1390 Contact Us For Availability
149
GEN WB48X0174 GEN WB48X0174 Contact Us For Availability
150
GEN WB01X0775 GEN WB01X0775 Contact Us For Availability
151
GEN WB02X4397 GEN WB02X4397 Contact Us For Availability
152
GEN WB02X4398 GEN WB02X4398 Contact Us For Availability
153
GEN WB02X4399 GEN WB02X4399 Contact Us For Availability
154
GEN WB01X0776 GEN WB01X0776 Contact Us For Availability
155
GEN WB20X0080 GEN WB20X0080 Contact Us For Availability
156
GEN WB02X4400 GEN WB02X4400 Contact Us For Availability
157
GEN WB02X4401 GEN WB02X4401 Contact Us For Availability
158
GEN WB02X4402 GEN WB02X4402 Contact Us For Availability
159
GEN WB02X4403 GEN WB02X4403 Contact Us For Availability
160
GEN WB02X4404 GEN WB02X4404 Contact Us For Availability
161
GEN WB02X4405 GEN WB02X4405 Contact Us For Availability
162
GEN WB02X4406 GEN WB02X4406 Contact Us For Availability
163
GEN WB08X0245 GEN WB08X0245 Contact Us For Availability
165
GEN WB26X0076 GEN WB26X0076 Contact Us For Availability
166
GEN WB01X0777 GEN WB01X0777 Contact Us For Availability
168
GEN WB07X1391 GEN WB07X1391 Contact Us For Availability
169
GEN WB07X1392 GEN WB07X1392 Contact Us For Availability
169
GEN WB07X1393 GEN WB07X1393 Contact Us For Availability
170
GEN WB02X4408 GEN WB02X4408 Contact Us For Availability
170
GEN WB02X4409 GEN WB02X4409 Contact Us For Availability
171
GEN WB56 GEN WB56 Contact Us For Availability
181
GEN WB55X0525 GEN WB55X0525 Contact Us For Availability
182
GEN WB55X0527 GEN WB55X0527 Contact Us For Availability
183
GEN WB55X0526 GEN WB55X0526 Contact Us For Availability
184
GEN WB49X0528 GEN WB49X0528 Contact Us For Availability
185
GEN WB02X4313 GEN WB02X4313 Contact Us For Availability
186
GEN WB02X4314 GEN WB02X4314 Contact Us For Availability
187
GEN WB56X1692 GEN WB56X1692 Contact Us For Availability
188
GEN WB55X0528 GEN WB55X0528 Contact Us For Availability
189
GEN WB55X0529 GEN WB55X0529 Contact Us For Availability
190
CAM-OVEN DOOR-LF GEN WB14X0044 Contact Us For Availability
190
HINGE-OVEN DOOR-RIGHT GEN WB14X0045 Contact Us For Availability
192
GEN WB24X0335 GEN WB24X0335 Contact Us For Availability
193
SCREW-SHOULDER GEN WB01X0704 Contact Us For Availability
194
GEN WB09X0201 GEN WB09X0201 Contact Us For Availability
195
LEG-LEVELING GEN WB01X0711 Contact Us For Availability
196
FASTENER-LEVELING LEG GEN WB01X0710 Contact Us For Availability
197
GEN WB02X4315 GEN WB02X4315 Contact Us For Availability
198
GEN WB49X0556 GEN WB49X0556 Contact Us For Availability
199
GEN WB49X0530 GEN WB49X0530 Contact Us For Availability
200
GEN WB02X4316 GEN WB02X4316 Contact Us For Availability
201
GEN WB55X0530 GEN WB55X0530 Contact Us For Availability
202
GEN WB55X0531 GEN WB55X0531 Contact Us For Availability
203
GEN WB02X4317 GEN WB02X4317 Contact Us For Availability
204
BRACKET OVEN LIGHT SOCKE GEN WB02X4318 Contact Us For Availability
205
GEN WB08X0243 GEN WB08X0243 Contact Us For Availability
207
GEN WB24X0336 GEN WB24X0336 Contact Us For Availability
207
GEN WB24X0337 GEN WB24X0337 Contact Us For Availability
208
GEN WB02X4319 GEN WB02X4319 Contact Us For Availability
209
GEN WB49X0545 GEN WB49X0545 Contact Us For Availability
210
GEN WB02X4320 GEN WB02X4320 Contact Us For Availability
211
GEN WB02X4367 GEN WB02X4367 Contact Us For Availability
212
BRACKET-DISCONNECT GEN WB02 Contact Us For Availability
× ![]()
