Model Whirlpool RGE1700P2 – Common Parts & Diagrams
04 - UPPER OVEN AND LATCH
06 - BOTTOM OVEN DOOR

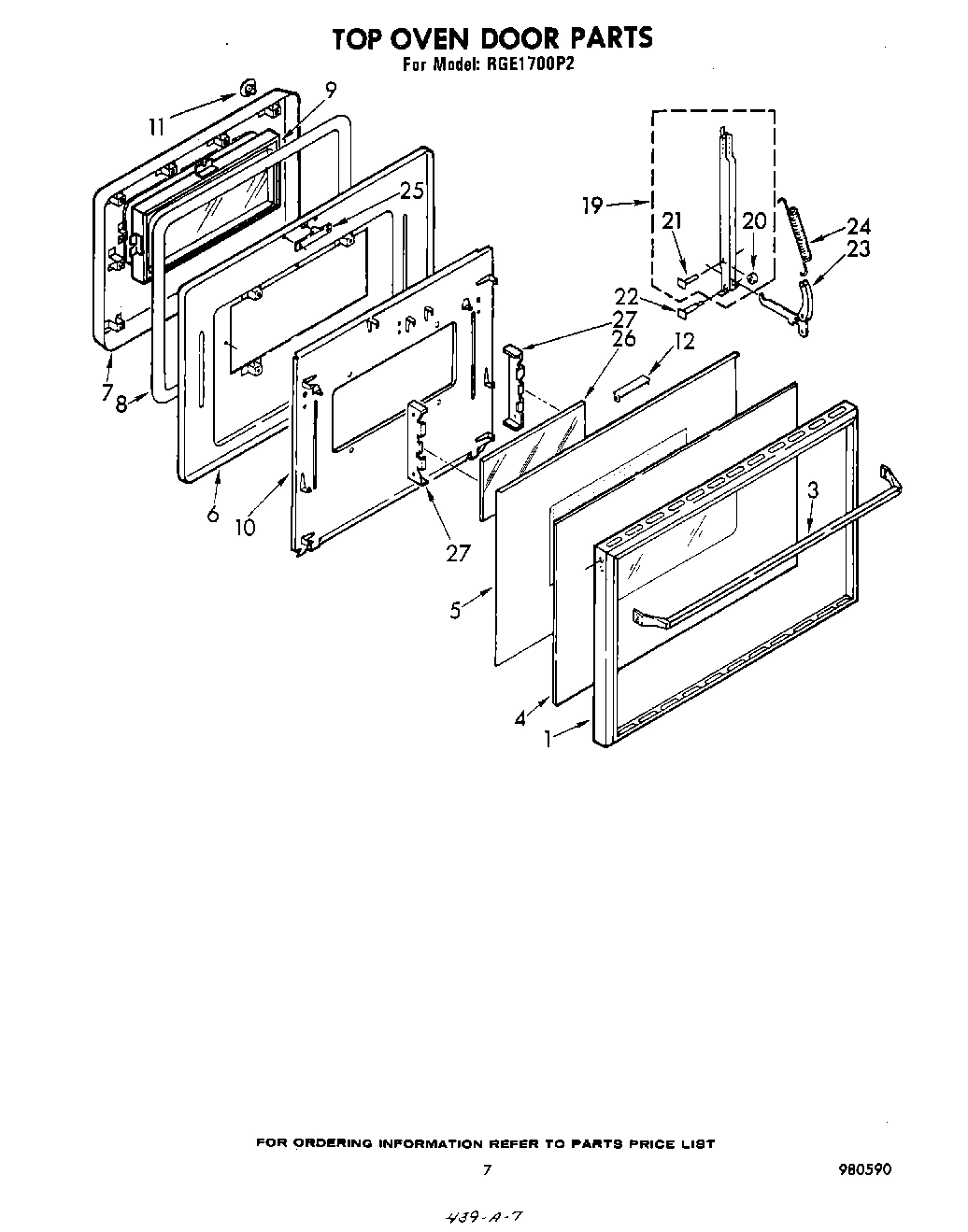

05 - TOP OVEN DOOR

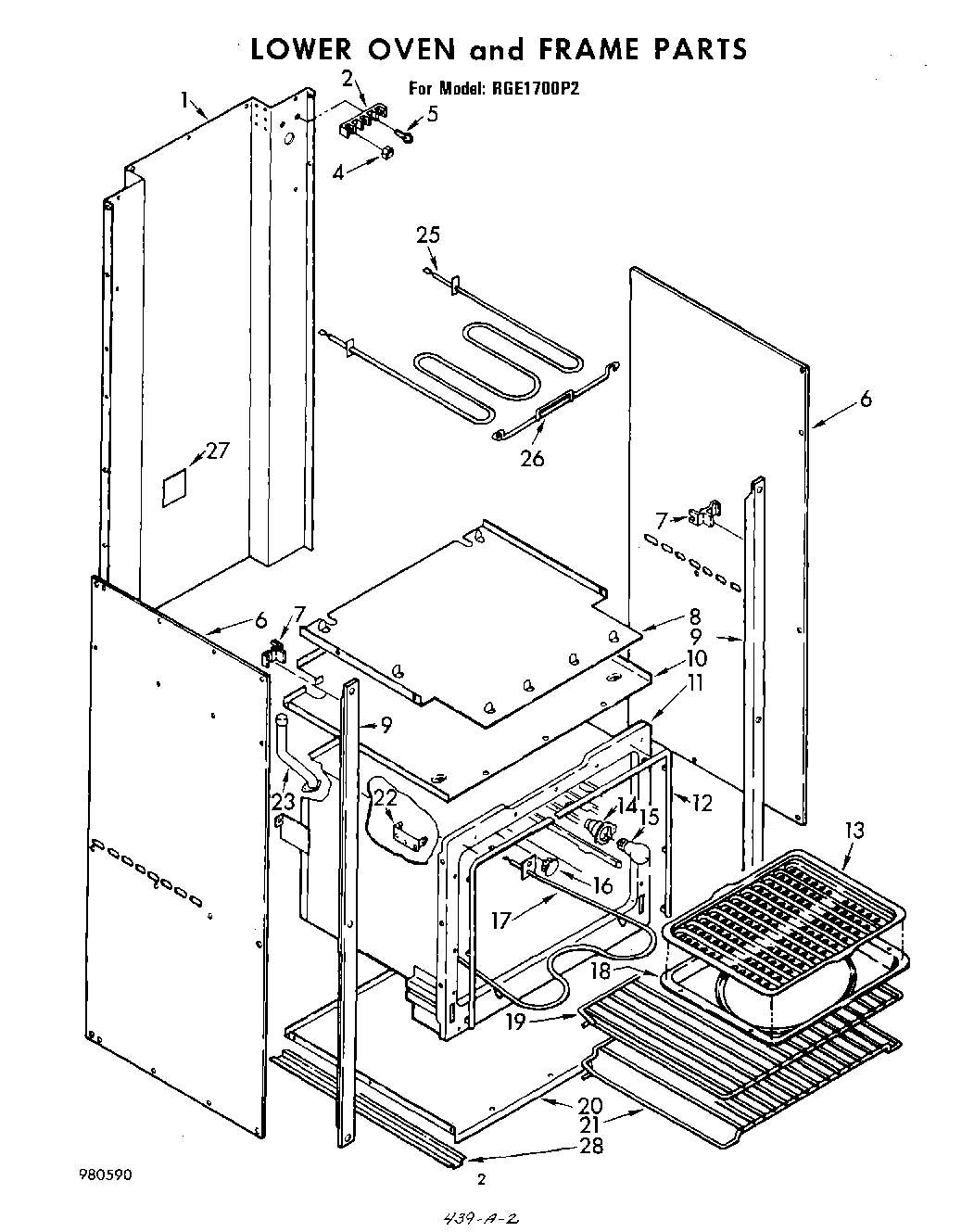

02 - LOWER OVEN AND FRAME , LITERATURE A

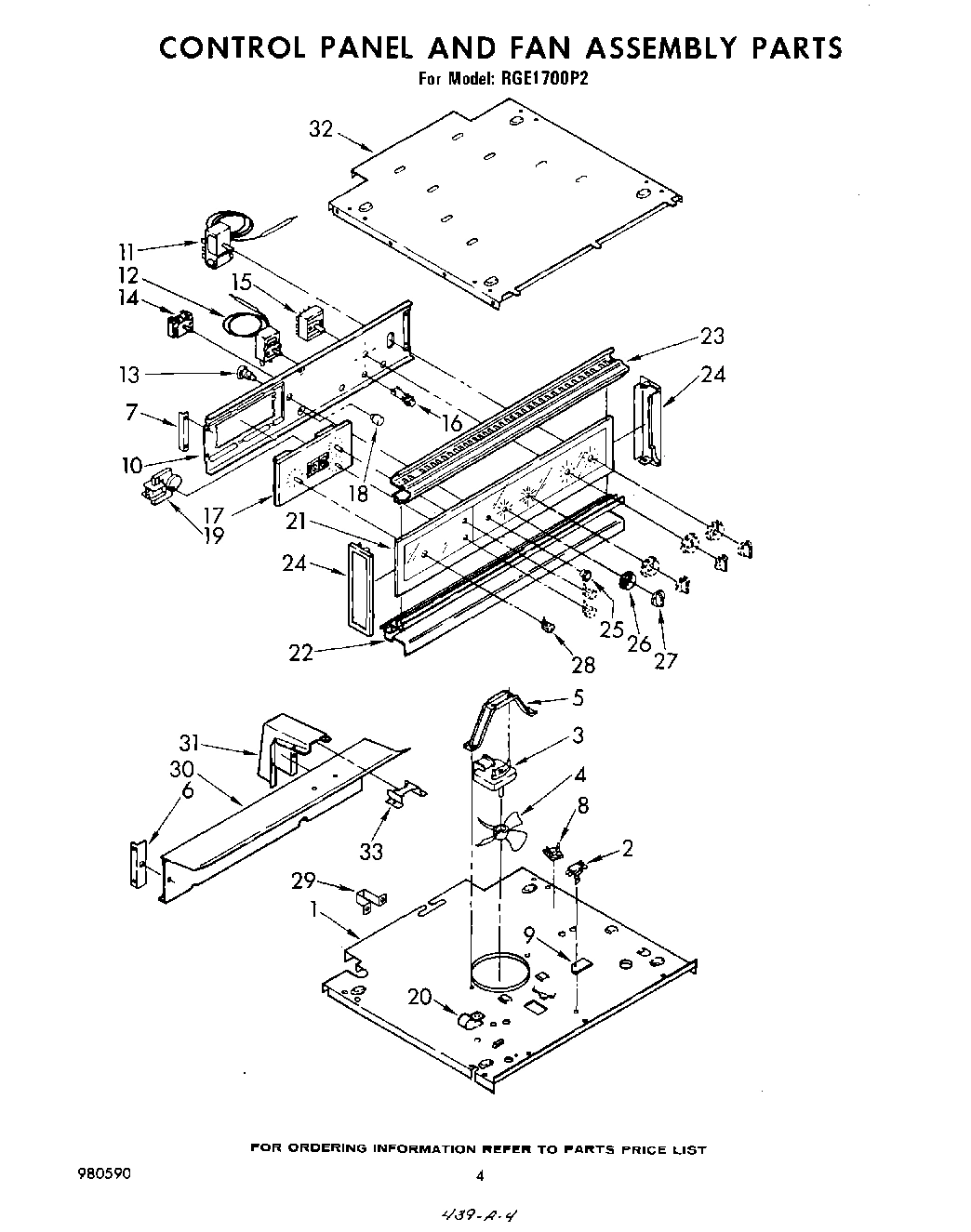

03 - CONTROL PANEL AND FAN ASSEMBLY
Common parts from model Whirlpool RGE1700P2
1
Frame, Oven Door WPL 868552 Contact Us For Availability
1
Frame, Oven Door WPL 868542 Contact Us For Availability
1
Casing, Back WPL 868867 Contact Us For Availability
1
Casing, Fan WPL 868525 Contact Us For Availability
2
Switch, Limit WPL 868527 Contact Us For Availability
3
Motor, Fan (Nut, 6/32 (2)) WPL 271482 Contact Us For Availability
3
Screw, 6-32 x 3/8 (4) WPL 866155 Contact Us For Availability
3
Handle WPL 866415 Contact Us For Availability
3
Motor, Fan (Alternate) WPL 866390 Contact Us For Availability
3
Motor, Fan (Alternate) WPL 877516 Contact Us For Availability
4
Glass, Outer WPL 868223 Contact Us For Availability
4
Fan Blade (Alternate) WPL 866391 Contact Us For Availability
4
Fan Blade (Clip, Retainer) WPL 866392 Contact Us For Availability
4
Fan Blade (Alternate) WPL 877517 Contact Us For Availability
5
Washer (4) WPL 241421 Contact Us For Availability
5
Screw, 10-24 x 3/4 WPL 865884 Contact Us For Availability
5
Liner, Oven Door WPL 877607 Contact Us For Availability
5
Panel, Heat Reflector WPL 868224 Contact Us For Availability
5
Screw,10-24 x 1/2 WPL 680363 Contact Us For Availability
5
Bracket, Fan Motor WPL 866393 Contact Us For Availability
6
Bumper (4) WPL 866444 Contact Us For Availability
6
Liner, Oven Door WPL 868945 Contact Us For Availability
6
Casing, Side (2) WPL 868098 Contact Us For Availability
6
Bracket, Housing (2) WPL 866394 Contact Us For Availability
7
Window WPL 868644 Contact Us For Availability
7
Baffle WPL 868946 Contact Us For Availability
7
Spacer Trim (6) WPL 866382 Contact Us For Availability
7
Support, Control Bracket (2) WPL 866395 Contact Us For Availability
8
Seal, Door WPL 877504 Contact Us For Availability
8
Retainer, Insulation WPL 866379 Contact Us For Availability
9
Window WPL 868797 Contact Us For Availability
9
Trim, Oven Front (2) WPL 866434 Contact Us For Availability
9
Screw, 6-20 x 1-1/8 WPL 834852 Contact Us For Availability
9
Insulator, Switch WPL 868528 Contact Us For Availability
10
Axle, Latch WPL 241564 Contact Us For Availability
10
Panel, Air Wash WPL 868947 Contact Us For Availability
10
Partition, Oven WPL 866092 Contact Us For Availability
10
Panel, Control WPL 868402 Contact Us For Availability
11
Arm Assembly WPL 241313 Contact Us For Availability
11
Plug Button WPL 142001 Contact Us For Availability
11
Oven, Lower (Continuous Clean) WPL 868039 Contact Us For Availability
11
Thermostat, Upper Oven WPL 868954 Contact Us For Availability
12
Retainer, Insulation (2) WPL 866376 Contact Us For Availability
12
``J`` Moulding WPL 868796 Contact Us For Availability
12
Gasket, Oven Door (With Clips) (Alternate) WPL 868003 Contact Us For Availability
12
Gasket, Oven Door (With Clips) (Alternate) WPL 877582 Contact Us For Availability
12
Screw, 6-32 x 3/16 (2) WPL 487428 Contact Us For Availability
12
Thermostat, Lower Oven WPL 868404 Contact Us For Availability
13
Insulator, Limit Switch WPL 834905 Contact Us For Availability
13
Spring, Door WPL 241314 Contact Us For Availability
13
Switch, Push (Oven Light) WPL 866138 Contact Us For Availability
13
Nut, 3/8-27 (2) WPL 98754 Contact Us For Availability
14
Switch Limit (Upper) (Alternate) WPL 868280 Contact Us For Availability
14
Switch Limit (Upper) (Alternate) WPL 868987 Contact Us For Availability
14
Switch Limit (Upper) (Alternate) WPL 868988 Contact Us For Availability
14
Washer, Asbestos (2) WPL 241422 Contact Us For Availability
14
Socket, Light WPL 866133 Contact Us For Availability
14
Switch, Lower Oven Selector WPL 866438 Contact Us For Availability
15
Rod, Oven Light Switch WPL 868526 Contact Us For Availability
15
Screw, 8-32 x 3/16 (2) WPL 486525 Contact Us For Availability
15
Switch, Selector (Bake/Clean) WPL 877518 Contact Us For Availability
16
Plug, Button (2) WPL 142017 Contact Us For Availability
16
switch limit, lower (screw, 4-40 x 1-1/4 (2)) WPL 834903 Contact Us For Availability
16
Switch Limit (Lower) (Alternate) WPL 834906 Contact Us For Availability
16
Switch Limit, Lower (Alternate) WPL 868985 Contact Us For Availability
16
switch limit, lower (alternate) WPL 868986 Contact Us For Availability
16
Light, Pilot (Oven) (2) WPL 868172 Contact Us For Availability
16
Light, Pilot (Clean/Lock) (2) WPL 868433 Contact Us For Availability
17
Retainer, Insulation (Top) WPL 868511 Contact Us For Availability
17
Nut, 10-32 (2) WPL 487836 Contact Us For Availability
17
Timer, Digital (Includes Illus. 19 & 28) WPL 877519 Contact Us For Availability
18
Tube, Oven Vent (Screw, 10-24 x 3/8 (2)) WPL 241428 Contact Us For Availability
18
Tube, Oven Vent (Alternate) WPL 865939 Contact Us For Availability
18
Tube, Oven Vent (Alternate) WPL 868973 Contact Us For Availability
18
Pan, Broiler WPL 868505 Contact Us For Availability
18
Bumper (2) WPL 834956 Contact Us For Availability
19
Tie Bar WPL 868523 Contact Us For Availability
19
Screw, 10-24 x 1/2 (4) WPL 247326 Contact Us For Availability
19
Channel Assembly (2) WPL 866426 Contact Us For Availability
19
Rack, Oven WPL 834731 Contact Us For Availability
19
Motor, Timer WPL 866403 Contact Us For Availability
20
Cam, Door Latch (Pin, Spring) WPL 455105 Contact Us For Availability
20
cam, door latch (alternate) WPL 834483 Contact Us For Availability
20
Cam, Door Latch (Alternate) WPL 868984 Contact Us For Availability
20
Screw, 8-32 x 5/16 WPL 273225 Contact Us For Availability
20
Roller, Door Stop WPL 834471 Contact Us For Availability
20
Casing, Bottom WPL 868096 Contact Us For Availability
20
Clamp WPL 865797 Contact Us For Availability
21
Latch, Oven Door WPL 834484 Contact Us For Availability
21
Rivet, Square Head WPL 241423 Contact Us For Availability
21
Nut, Speed WPL 46363 Contact Us For Availability
21
Rack, Oven (Offset) WPL 834732 Contact Us For Availability
21
Tape, Foam WPL 866454 Contact Us For Availability
21
Glass, Control Panel WPL 868864 Contact Us For Availability
22
WPL 834849 WPL 834849 Contact Us For Availability
22
WPL 868983 WPL 868983 Contact Us For Availability
22
Screw, 10-24 x 1/2 (4) WPL 868430 Contact Us For Availability
22
Pin, Hinge WPL 241334 Contact Us For Availability
22
Bracket, Thermostat Bulb WPL 865959 Contact Us For Availability
22
Base, Control Panel WPL 868531 Contact Us For Availability
23
Screw, 10-24 x 5/8 (5) WPL 595119 Contact Us For Availability
23
WPL 868281 WPL 868281 Contact Us For Availability
23
Arm, Hinge (2) WPL 865639 Contact Us For Availability
23
Vent Tube WPL 868032 Contact Us For Availability
23
Top, Control Panel WPL 868221 Contact Us For Availability
24
WPL 486146 WPL 486146 Contact Us For Availability
24
Spring, Door WPL 241312 Contact Us For Availability
24
Screw, 8-32 x 3/8 (2) WPL 486978 Contact Us For Availability
24
E WPL 866408 Contact Us For Availability
24
WPL 866409 WPL 866409 Contact Us For Availability
25
Unit, Broil WPL 865638 Contact Us For Availability
25
WPL 256158 WPL 256158 Contact Us For Availability
25
WPL 868513 WPL 868513 Contact Us For Availability
25
Catch, Door WPL 877507 Contact Us For Availability
25
WPL 866053 WPL 866053 Contact Us For Availability
26
Hanger, Broil Unit WPL 866429 Contact Us For Availability
26
WPL 868033 WPL 868033 Contact Us For Availability
26
Glass, Inner WPL 868502 Contact Us For Availability
26
WPL 866101 WPL 866101 Contact Us For Availability
27
screw, 10-24 x 7/8 WPL 834649 Contact Us For Availability
27
WPL 868524 WPL 868524 Contact Us For Availability
27
Retainer, Glass WPL 868503 Contact Us For Availability
27
Plate, Conduit WPL 868868 Contact Us For Availability
27
WPL 866098 WPL 866098 Contact Us For Availability
28
WPL 241547 WPL 241547 Contact Us For Availability
28
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
28
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
28
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
28
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
28
Wi WPL 242824 Contact Us For Availability
28
WPL 242825 WPL 242825 Contact Us For Availability
28
WPL 242826 WPL 242826 Contact Us For Availability
28
WPL 242827 WPL 242827 Contact Us For Availability
28
WPL 242828 WPL 242828 Contact Us For Availability
28
WPL 242829 WPL 242829 Contact Us For Availability
28
WPL 242830 WPL 242830 Contact Us For Availability
28
WPL 242832 WPL 242832 Contact Us For Availability
28
WPL 254323 WPL 254323 Contact Us For Availability
28
WPL 261582 WPL 261582 Contact Us For Availability
28
WPL 308500 WPL 308500 Contact Us For Availability
28
WPL 591014 WPL 591014 Contact Us For Availability
28
WPL 799832 WPL 799832 Contact Us For Availability
28
WPL 866338 WPL 866338 Contact Us For Availability
28
WPL 868846 WPL 868846 Contact Us For Availability
28
WPL 868977 WPL 868977 Contact Us For Availability
28
WPL 980590 WPL 980590 Contact Us For Availability
28
WPL 241383 WPL 241383 Contact Us For Availability
29
WPL 868799 WPL 868799 Contact Us For Availability
29
WPL 486608 WPL 486608 Contact Us For Availability
29
WPL 868798 WPL 868798 Contact Us For Availability
30
WPL 877524 WPL 877524 Contact Us For Availability
30
WPL 866411 WPL 866411 Contact Us For Availability
31
WPL 866412 WPL 866412 Contact Us For Availability
32
WPL 868102 WPL 868102 Contact Us For Availability
33
WPL 681151 WPL 681151 Contact Us For Availability
33
WPL 868222 WPL 868222 Contact Us For Availability
× ![]()
