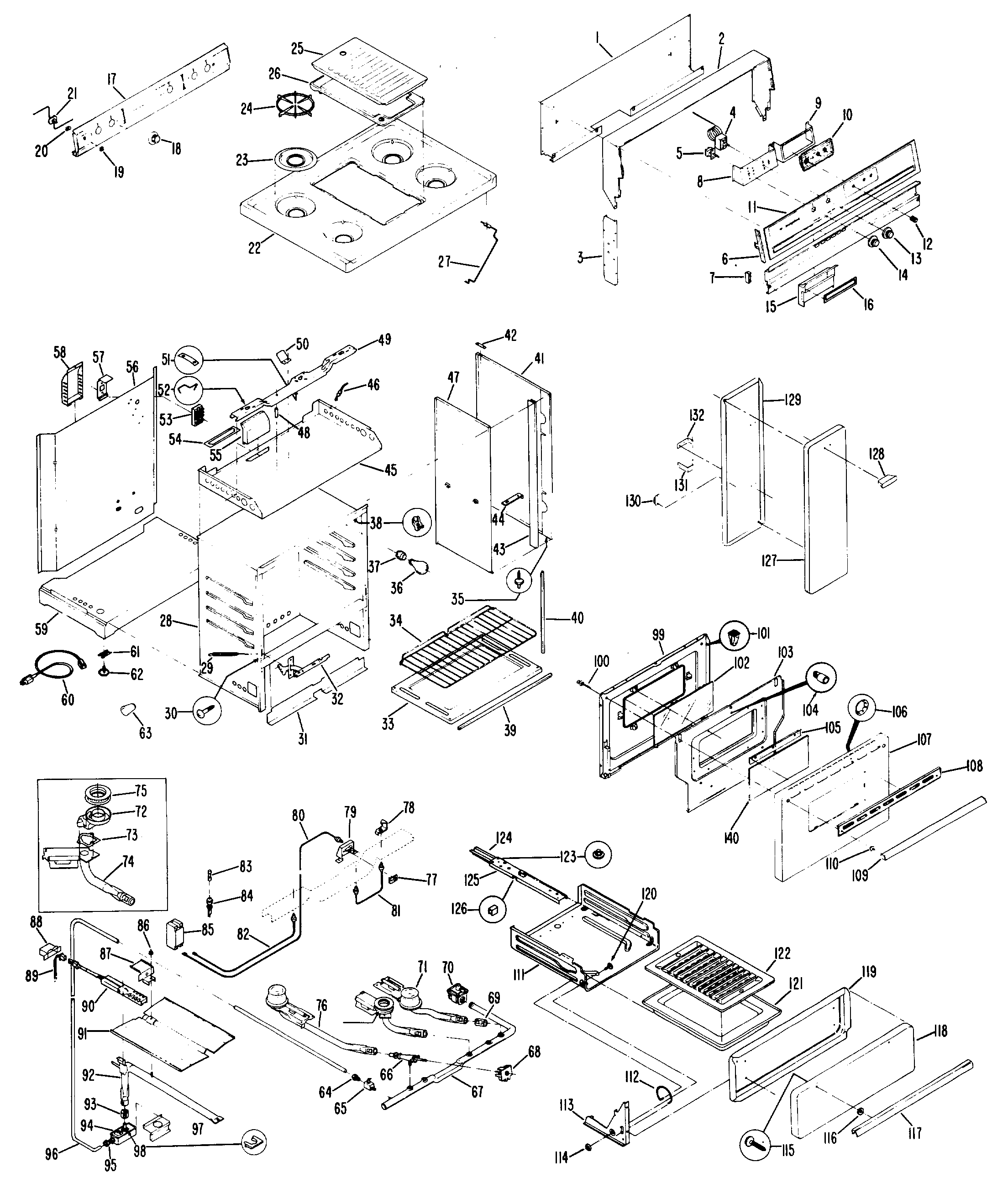

Model Hotpoint RGC657EH2 Gas Range Or Dual Fuel – Common Parts & Diagrams
Common parts from model Hotpoint RGC657EH2 Gas Range Or Dual Fuel
1
GEN WB56X1702 GEN WB56X1702 Contact Us For Availability
2
GEN WB07X1378 GEN WB07X1378 Contact Us For Availability
3
BRACKET-BACKSPLASH MOUNT GEN WB02X4286 Contact Us For Availability
4
GEN WB21X0394 GEN WB21X0394 Contact Us For Availability
5
GEN WB24X0337 GEN WB24X0337 Contact Us For Availability
6
GEN WB02X4278 GEN WB02X4278 Contact Us For Availability
7
END CAP GEN WB07X1374 Contact Us For Availability
8
GEN WB02X4534 GEN WB02X4534 Contact Us For Availability
9
GEN WB02X4276 GEN WB02X4276 Contact Us For Availability
10
CLOCK-RADIAL-3 STEM GEN WB19X0209 Contact Us For Availability
11
GEN WB36X0706 GEN WB36X0706 Contact Us For Availability
12
GEN WB03X0656 GEN WB03X0656 Contact Us For Availability
13
GEN WB03X0661 GEN WB03X0661 Contact Us For Availability
14
GEN WB03X0662 GEN WB03X0662 Contact Us For Availability
15
GEN WB49X0533 GEN WB49X0533 Contact Us For Availability
16
GEN WB02X4334 GEN WB02X4334 Contact Us For Availability
17
GEN WB07X1430 GEN WB07X1430 Contact Us For Availability
18
GEN WB03X0658 GEN WB03X0658 Contact Us For Availability
19
BEZEL LIGHT SWITCH GEN WB01X0626 Contact Us For Availability
20
GEN WB01X0808 GEN WB01X0808 Contact Us For Availability
21
GEN WB24X0330 GEN WB24X0330 Contact Us For Availability
22
GEN WB62X1610 GEN WB62X1610 Contact Us For Availability
22
GEN WB62X1611 GEN WB62X1611 Contact Us For Availability
23
GEN WB32X0084 GEN WB32X0084 Contact Us For Availability
24
GEN WB32X0083 GEN WB32X0083 Contact Us For Availability
25
GEN WB56X1698 GEN WB56X1698 Contact Us For Availability
25
GEN WB56X1699 GEN WB56X1699 Contact Us For Availability
26
GEN WB49X0535 GEN WB49X0535 Contact Us For Availability
27
GEN WB02X4280 GEN WB02X4280 Contact Us For Availability
29
SPRING-OVEN DOOR CAM GEN WB09X0198 Contact Us For Availability
30
GEN WB04X0230 GEN WB04X0230 Contact Us For Availability
31
SHIELD-INSULATION GEN WB49X0521 Contact Us For Availability
32
CAM-OVEN DOOR-LF GEN WB14X0044 Contact Us For Availability
32
HINGE-OVEN DOOR-RIGHT GEN WB14X0045 Contact Us For Availability
33
GEN WB55X0513 GEN WB55X0513 Contact Us For Availability
34
GEN WB48X0180 GEN WB48X0180 Contact Us For Availability
35
GEN WB01X0733 GEN WB01X0733 Contact Us For Availability
37
RECEPTACLE-OVEN LAMP GEN WB08X0241 Contact Us For Availability
38
CLIP-THERM BULB GEN WB01X0706 Contact Us For Availability
39
SEAL-DOOR-TOP & BOTTOM GEN WB02X4206 Contact Us For Availability
40
SEAL-DOOR-SIDE GEN WB02X4207 Contact Us For Availability
41
GEN WB56X1695 GEN WB56X1695 Contact Us For Availability
41
GEN WB56X1697 GEN WB56X1697 Contact Us For Availability
41
PANEL-SIDE-WHITE-RH GEN WB56X1706 Contact Us For Availability
41
PANEL-SIDE-ALMOND-RH GEN WB56X1707 Contact Us For Availability
42
GLIDE-MAIN TOP GEN WB01X0708 Contact Us For Availability
43
CHANNEL-STIFFNER-MAIN BS GEN WB02X4344 Contact Us For Availability
44
GEN WB02X4343 GEN WB02X4343 Contact Us For Availability
45
BURNER BOX GEN WB49X0553 Contact Us For Availability
46
GEN WB01X0047 GEN WB01X0047 Contact Us For Availability
46
GEN WB10X0039 GEN WB10X0039 Contact Us For Availability
46
GEN WB10X0040 GEN WB10X0040 Contact Us For Availability
46
HINGE-COOKTOP GEN WB14X0047 Contact Us For Availability
47
BODYSIDE-INSIDE GEN WB56X1708 Contact Us For Availability
48
SPACER-BURNER SUPPORT GEN WB02X4345 Contact Us For Availability
50
REFECTOR-GRIDDLE BURNER GEN WB02X4347 Contact Us For Availability
51
RETAINER GEN WB01X0729 Contact Us For Availability
52
RETAINER-OVEN BURNER GEN WB02X4270 Contact Us For Availability
53
TERMINAL BLOCK GEN WB17X0189 Contact Us For Availability
54
SHIELD-WOOL GEN WB55X0514 Contact Us For Availability
55
FLUE BOX-LOWER GEN WB49X0554 Contact Us For Availability
56
GEN WB49X0561 GEN WB49X0561 Contact Us For Availability
57
GEN WB02X4348 GEN WB02X4348 Contact Us For Availability
58
COVER-IGNITER GEN WB02X4212 Contact Us For Availability
59
GEN WB49X0555 GEN WB49X0555 Contact Us For Availability
60
CORD-POWER SUPPLY GEN WB18X0214 Contact Us For Availability
61
FASTENER-LEVELING LEG GEN WB01X0710 Contact Us For Availability
62
LEG-LEVELING GEN WB01X0711 Contact Us For Availability
63
GEN WB01X0702 GEN WB01X0702 Contact Us For Availability
64
LOXIT NUT-SHUT OFF VALVE GEN WB01X0713 Contact Us For Availability
65
VALVE SHUT-OFF MANUAL GEN WB21X0390 Contact Us For Availability
66
GEN WB21X0397 GEN WB21X0397 Contact Us For Availability
67
MANIFOLD PIPE GEN WB02X4336 Contact Us For Availability
68
GEN WB24X0334 GEN WB24X0334 Contact Us For Availability
69
MIXER-AIR GEN WB02X4191 Contact Us For Availability
70
GEN WB21X0395 GEN WB21X0395 Contact Us For Availability
71
BURNER-TOP FRONT GEN WB28X0061 Contact Us For Availability
72
BURNER-TOP-GRIDDLE-BUNR GEN WB28X0048 Contact Us For Availability
73
GASKET-GRIDDLE-BURNER GEN WB02X4337 Contact Us For Availability
74
TUBE-VENTURI-GRIDDLE BNR GEN WB28X0049 Contact Us For Availability
75
BURNER HEAD (GRIDD. BURN GEN WB28X0050 Contact Us For Availability
76
BURNER-TOP-REAR GEN WB28X0062 Contact Us For Availability
77
RETAINER-IGNITER GEN WB02X4338 Contact Us For Availability
78
RETAINER-IGNITER GEN WB02X4214 Contact Us For Availability
79
BRACKET-IGNITER GEN WB02X4339 Contact Us For Availability
80
GEN WB02X4340 GEN WB02X4340 Contact Us For Availability
81
BASE-IGNITER-GRIDDLE GEN WB02X4341 Contact Us For Availability
82
GEN WB02X4342 GEN WB02X4342 Contact Us For Availability
83
FUSE-5A-250V GEN WB27X0277 Contact Us For Availability
84
RECEPTACLE-FUSE GEN WB02X4213 Contact Us For Availability
85
IGNITER MODULE BOARD GEN WB21X0389 Contact Us For Availability
86
NUT-BAFFLE MOUNTING GEN WB01X0694 Contact Us For Availability
87
SHIELD-OVEN BOTTOM GEN WB55X0515 Contact Us For Availability
89
HARNESS IGNITOR (FEMALE) GEN WB18X0218 Contact Us For Availability
90
COVER-SAFETY VALVE GEN WB02X4598 Contact Us For Availability
90
TERMINAL BLOCK GEN WB02X4599 Contact Us For Availability
91
GEN WB49X0511 GEN WB49X0511 Contact Us For Availability
92
GEN WB28X0064 GEN WB28X0064 Contact Us For Availability
93
GEN WB02X4195 GEN WB02X4195 Contact Us For Availability
94
GEN WB21 GEN WB21 Contact Us For Availability
× ![]()
