Model Hotpoint RGB506EYWH Gas Range Or Dual Fuel – Common Parts & Diagrams
BODY PARTS
BURNER PARTS

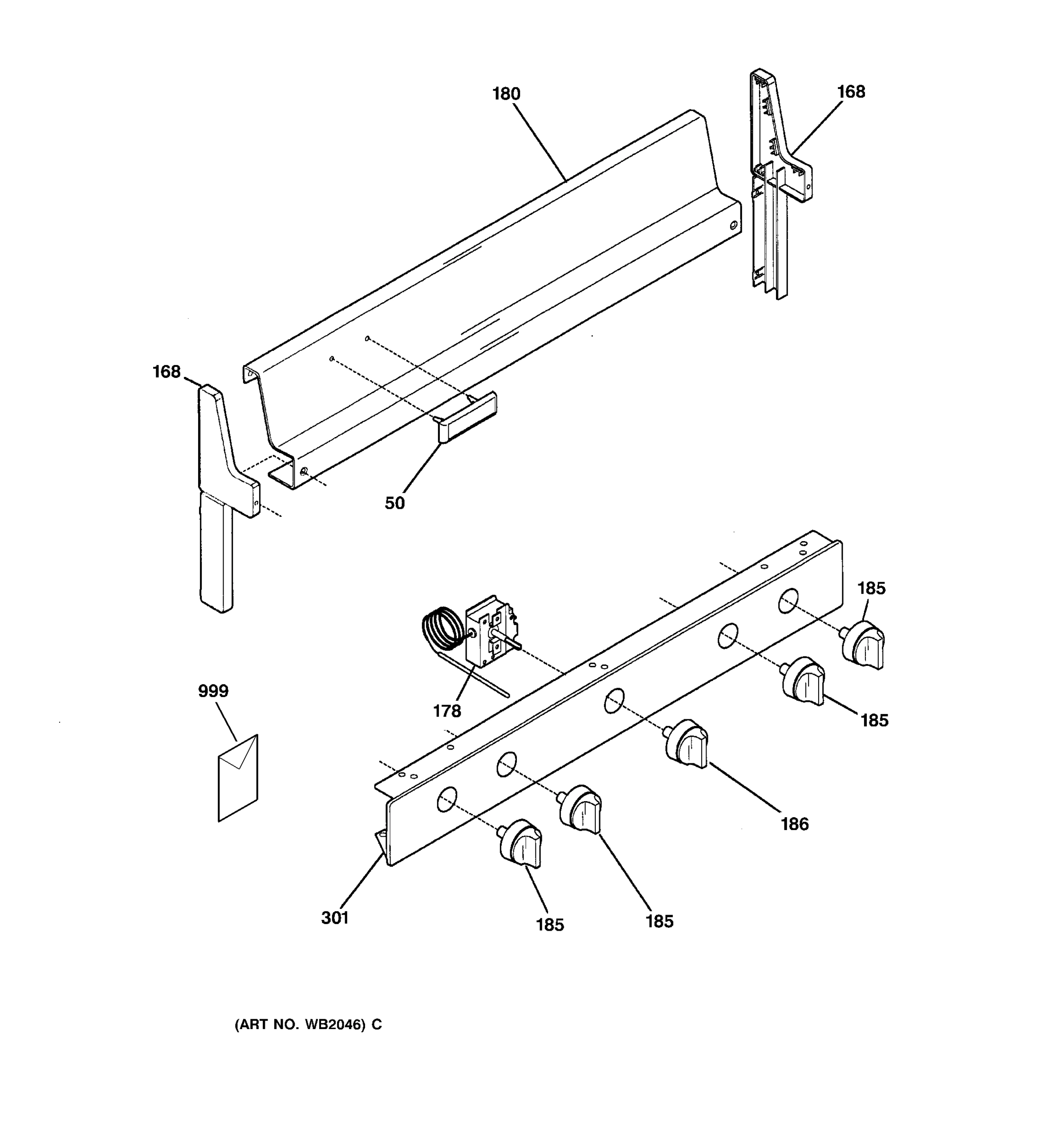

CONTROL PANEL

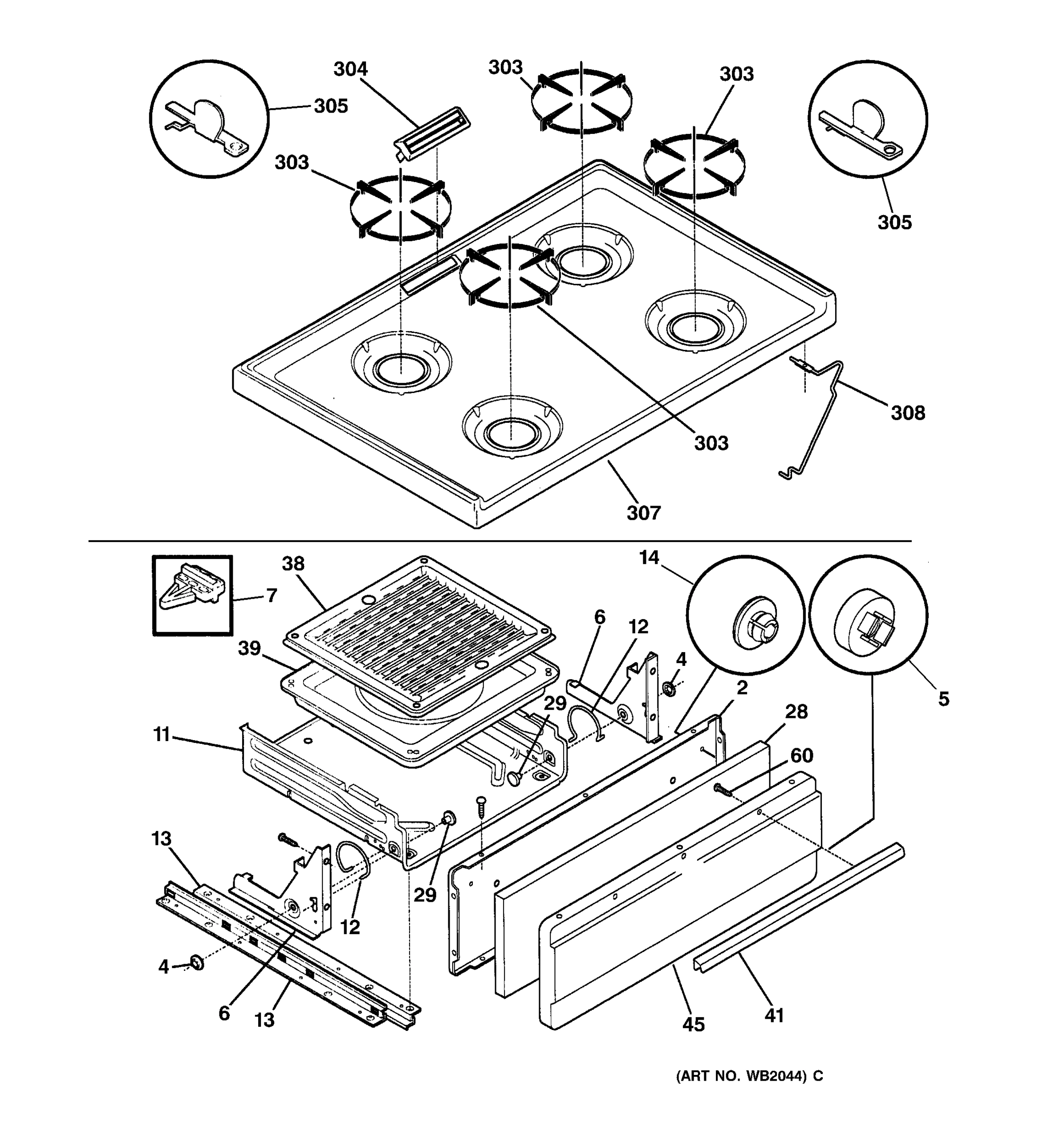

COOKTOP AND DRAWER

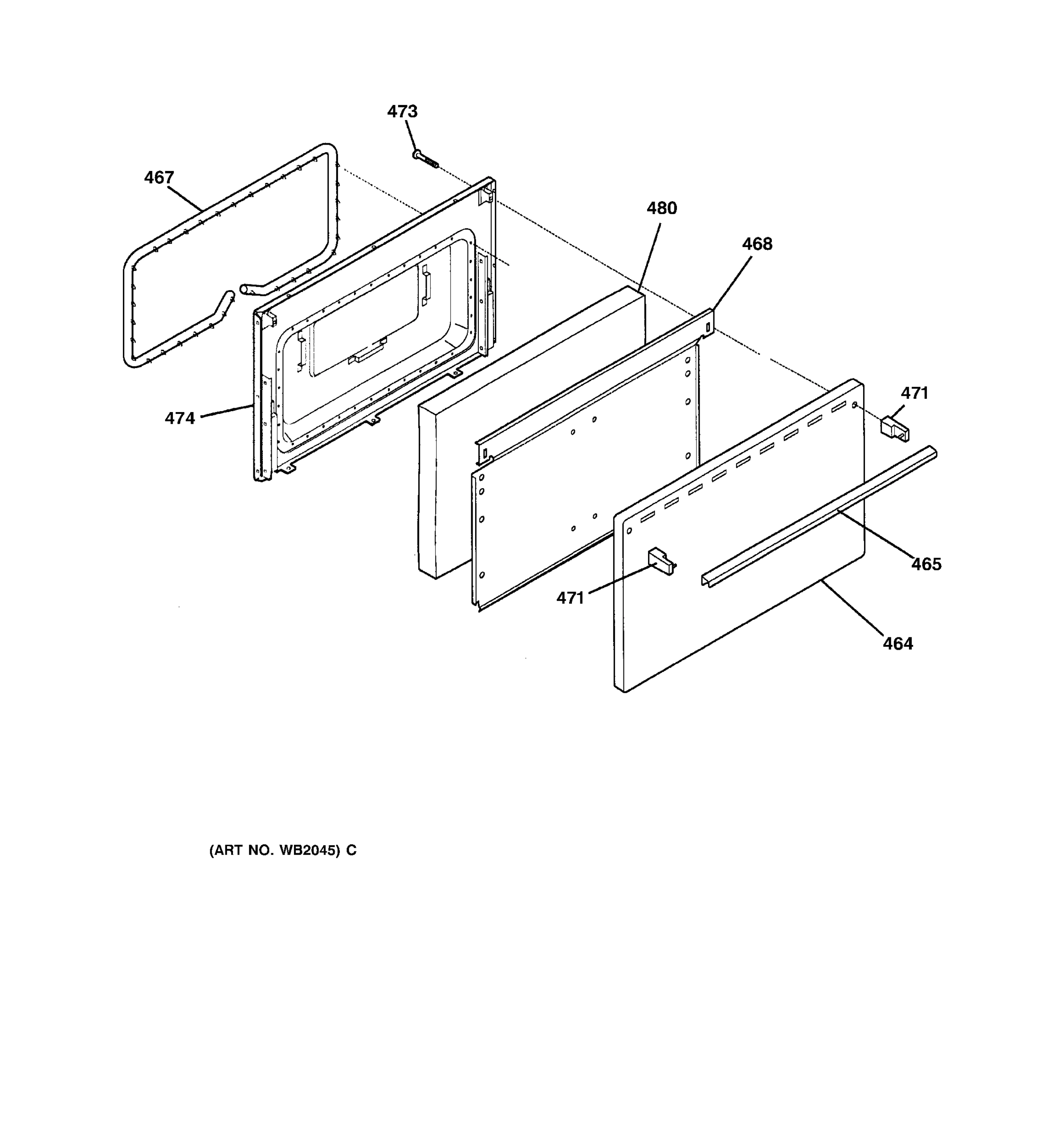

DOOR PARTS
Common parts from model Hotpoint RGB506EYWH Gas Range Or Dual Fuel
2
GEN WB56X10020 GEN WB56X10020 Contact Us For Availability
4
GEN WB01X0698 GEN WB01X0698 Contact Us For Availability
5
FASTENER-SPACER GEN WB02X9052 Contact Us For Availability
6
GEN WB02X10332 GEN WB02X10332 Contact Us For Availability
6
GEN WB02X10333 GEN WB02X10333 Contact Us For Availability
7
GEN WB02X10329 GEN WB02X10329 Contact Us For Availability
8
CLIP-HINGE GEN WB01X1015 Contact Us For Availability
8
GEN WB10X10004 GEN WB10X10004 Contact Us For Availability
10
GEN WB49X10003 GEN WB49X10003 Contact Us For Availability
11
GEN WB55X5349 GEN WB55X5349 Contact Us For Availability
12
GEN WB01X10012 GEN WB01X10012 Contact Us For Availability
12
GEN WB09X5115 GEN WB09X5115 Contact Us For Availability
13
GEN WB39X0066 GEN WB39X0066 Contact Us For Availability
14
GEN WB01X0702 GEN WB01X0702 Contact Us For Availability
15
GEN WB02X10342 GEN WB02X10342 Contact Us For Availability
16
GEN WB63X10002 GEN WB63X10002 Contact Us For Availability
19
GEN WB38X10003 GEN WB38X10003 Contact Us For Availability
21
GEN WB01X0931 GEN WB01X0931 Contact Us For Availability
22
GEN WB18X10011 GEN WB18X10011 Contact Us For Availability
23
GEN WB02X10323 GEN WB02X10323 Contact Us For Availability
24
GEN WB02X10314 GEN WB02X10314 Contact Us For Availability
25
GEN WB38X10002 GEN WB38X10002 Contact Us For Availability
27
GEN WB02X8358 GEN WB02X8358 Contact Us For Availability
28
INSULATION-BROILER DRAWR GEN WB02X4995 Contact Us For Availability
29
GEN WB02X10330 GEN WB02X10330 Contact Us For Availability
30
GEN WB02X10340 GEN WB02X10340 Contact Us For Availability
31
GEN WB56X10016 GEN WB56X10016 Contact Us For Availability
32
GEN WB02X10341 GEN WB02X10341 Contact Us For Availability
34
GEN WB02X8233 GEN WB02X8233 Contact Us For Availability
35
GEN WB63X10001 GEN WB63X10001 Contact Us For Availability
35
GEN WB63X10003 GEN WB63X10003 Contact Us For Availability
36
LEVELING LEG GEN WB01X5823 Contact Us For Availability
36
GEN WB02X8357 GEN WB02X8357 Contact Us For Availability
37
GEN WB48X10001 GEN WB48X10001 Contact Us For Availability
40
GEN WB53X10001 GEN WB53X10001 Contact Us For Availability
41
GEN WB15X10002 GEN WB15X10002 Contact Us For Availability
43
GEN WB01X1094 GEN WB01X1094 Contact Us For Availability
45
GEN WB01X10011 GEN WB01X10011 Contact Us For Availability
45
GEN WB56X10019 GEN WB56X10019 Contact Us For Availability
50
GEN WB02X10318 GEN WB02X10318 Contact Us For Availability
60
*SCREW-HANDLE ASSEMBLY GEN WB02X8205 Contact Us For Availability
168
GEN WB07X10021 GEN WB07X10021 Contact Us For Availability
168
GEN WB07X10022 GEN WB07X10022 Contact Us For Availability
178
GEN WB02X10336 GEN WB02X10336 Contact Us For Availability
178
GEN WB21X10005 GEN WB21X10005 Contact Us For Availability
180
GEN WB07X10023 GEN WB07X10023 Contact Us For Availability
185
GEN WB03X10007 GEN WB03X10007 Contact Us For Availability
186
GEN WB03X10008 GEN WB03X10008 Contact Us For Availability
301
GEN WB07X10024 GEN WB07X10024 Contact Us For Availability
303
GEN WB32X10001 GEN WB32X10001 Contact Us For Availability
304
GEN WB02X10331 GEN WB02X10331 Contact Us For Availability
305
GEN WB02X10335 GEN WB02X10335 Contact Us For Availability
305
BRKT-MAIN TOP HINGE-RH GEN WB10X5200 Contact Us For Availability
307
GEN WB62X10003 GEN WB62X10003 Contact Us For Availability
308
GEN WB02X10334 GEN WB02X10334 Contact Us For Availability
464
GEN WB56X10018 GEN WB56X10018 Contact Us For Availability
465
GEN WB15X10001 GEN WB15X10001 Contact Us For Availability
467
GEN WB02X4984 GEN WB02X4984 Contact Us For Availability
468
GEN WB56X10017 GEN WB56X10017 Contact Us For Availability
471
GEN WB07X10019 GEN WB07X10019 Contact Us For Availability
473
GEN WB01X10010 GEN WB01X10010 Contact Us For Availability
474
GEN WB55X10011 GEN WB55X10011 Contact Us For Availability
480
GEN WB02X10319 GEN WB02X10319 Contact Us For Availability
701
GEN WB02X10328 GEN WB02X10328 Contact Us For Availability
702
BRACKET-BURNER MOUNTING GEN WB02X9364 Contact Us For Availability
703
GEN WB28X10004 GEN WB28X10004 Contact Us For Availability
704
GEN WB02X10339 GEN WB02X10339 Contact Us For Availability
705
GEN WB28X10001 GEN WB28X10001 Contact Us For Availability
705
GEN WB28X10002 GEN WB28X10002 Contact Us For Availability
707
IGNITER TOP BURNER 50" GEN WB02X9366 Contact Us For Availability
707
GEN WB21X10007 GEN WB21X10007 Contact Us For Availability
709
SPARK-MODULE GEN WB21X5265 Contact Us For Availability
710
GEN WB18X10012 GEN WB18X10012 Contact Us For Availability
710
GEN WB24X10007 GEN WB24X10007 Contact Us For Availability
713
GEN WB02X10337 GEN WB02X10337 Contact Us For Availability
714
GEN WB21X10001 GEN WB21X10001 Contact Us For Availability
728
GEN WB02X10317 GEN WB02X10317 Contact Us For Availability
728
GEN WB02X10338 GEN WB02X10338 Contact Us For Availability
730
GEN WB21X5288 GEN WB21X5288 Contact Us For Availability
732
GEN WB21X10006 GEN WB21X10006 Contact Us For Availability
733
GEN WB02X10315 GEN WB02X10315 Contact Us For Availability
734
NUT-BAFFLE MOUNTING GEN WB01X0694 Contact Us For Availability
999
GEN 31-2065 GEN 31-2065 Contact Us For Availability
999
GEN 39-4764 GEN 39-4764 Contact Us For Availability
999
GEN WB01X10009 GEN WB01X10009 Contact Us For Availability
999
GEN WB02X9859 GEN WB02X9859 Contact Us For Availability
× ![]()
