Model Whirlpool RFUA120AAW FREEZER – Common Parts &amp; Diagrams

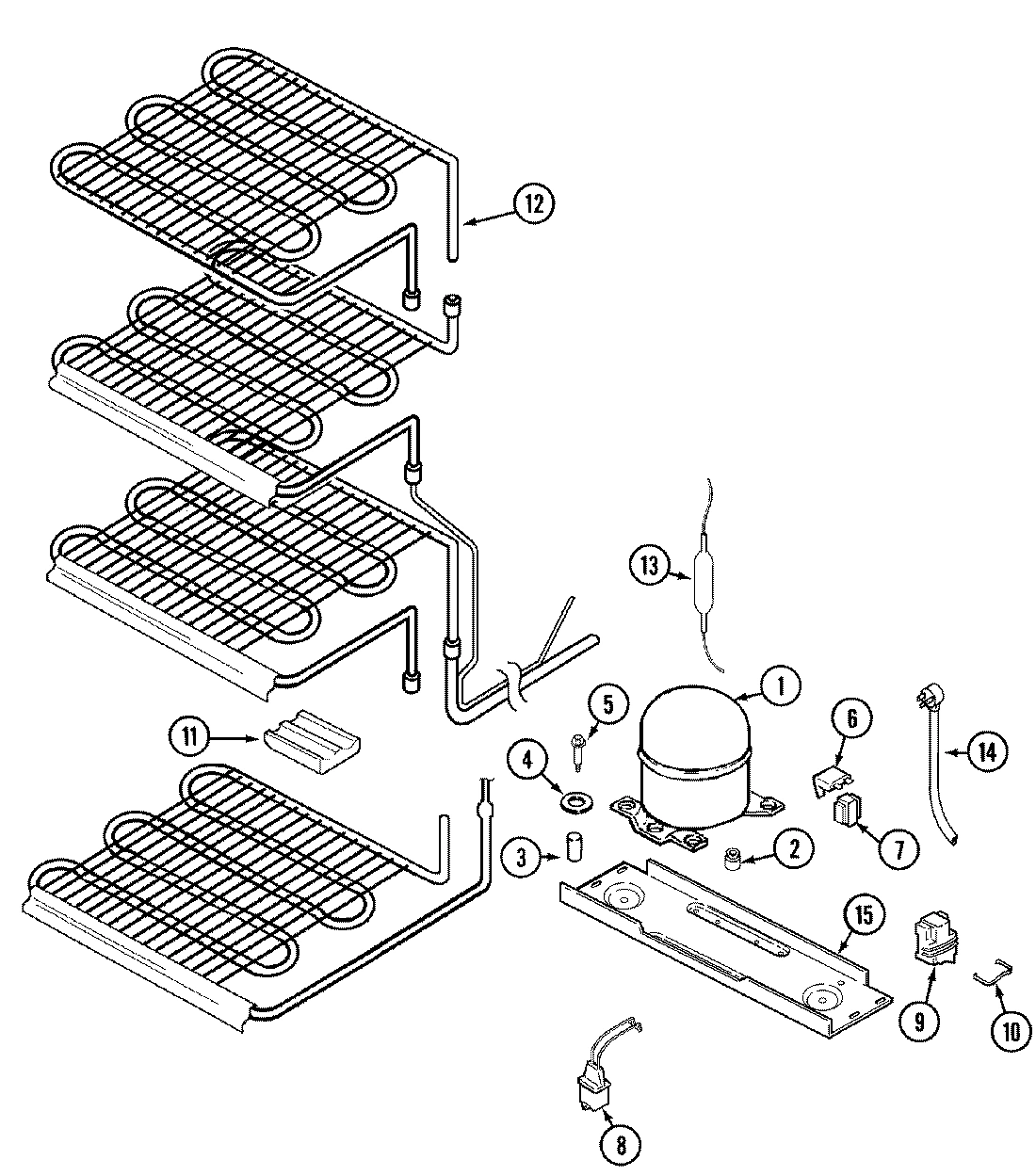

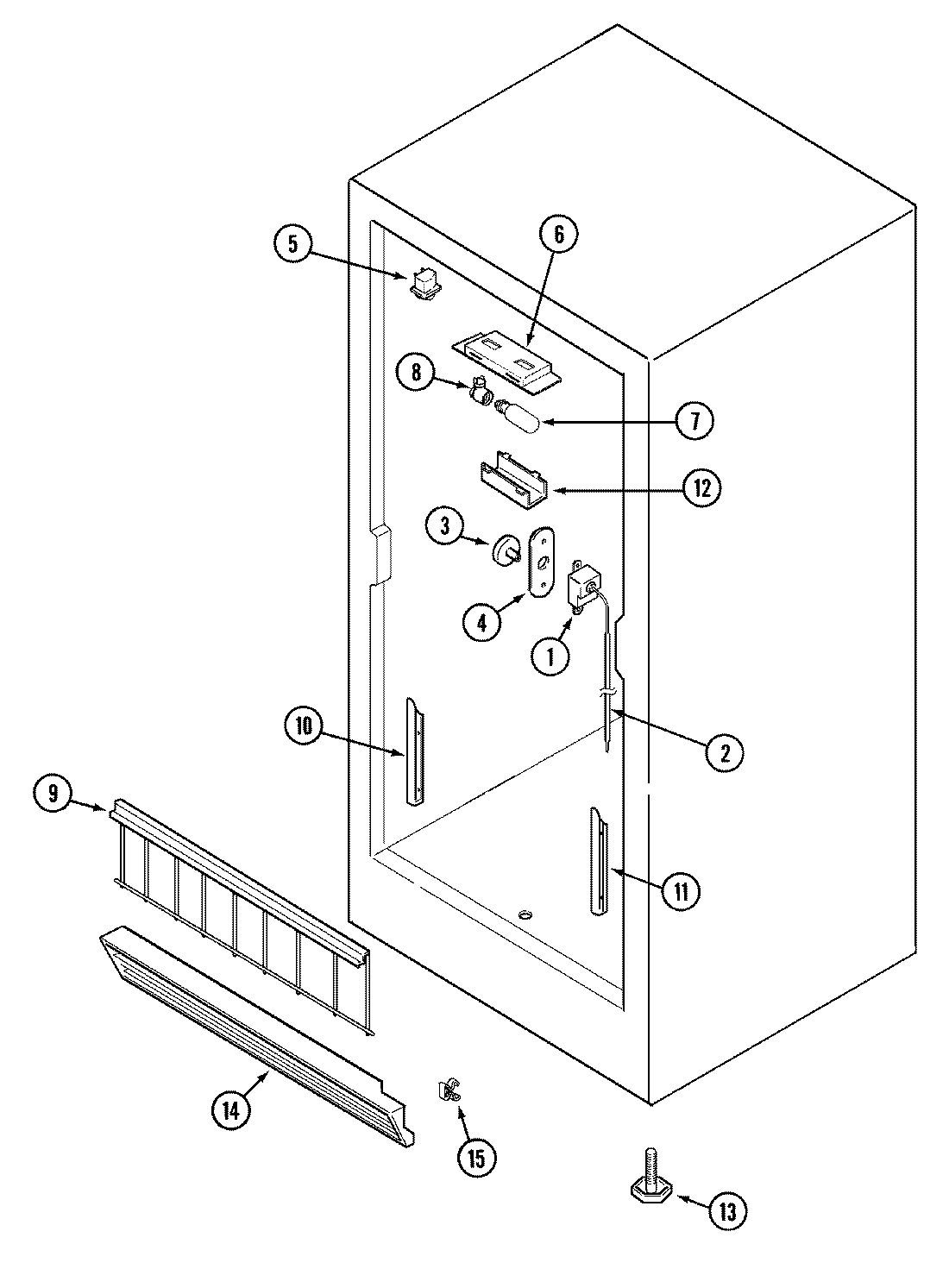

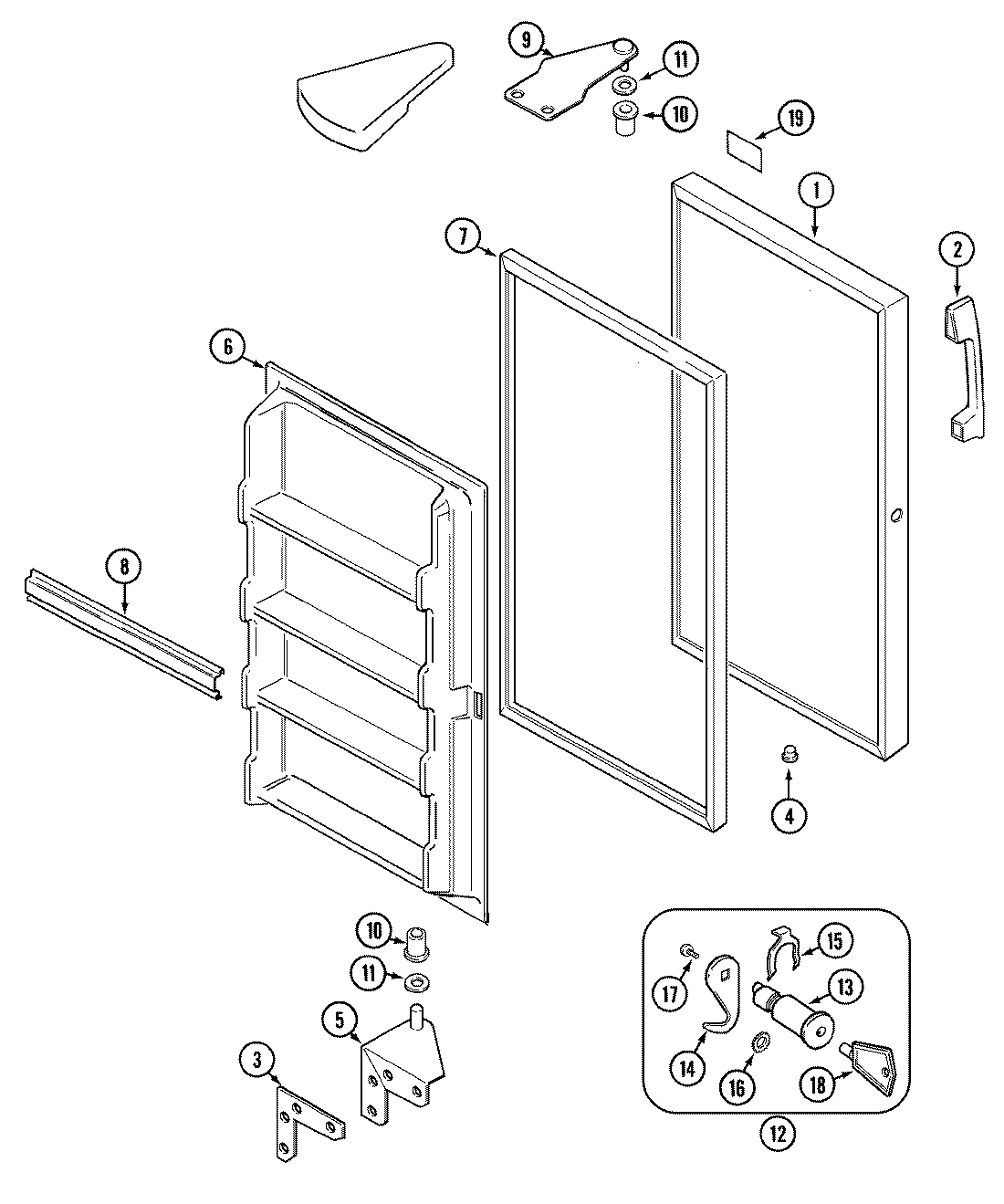

1

W10439652 Whirlpool Refrigerator Compressor Backorder WPL W10439652 $301.93

1

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.96

1

OUTER DOOR PANEL WPL 68001068 Contact Us For Availability

1

PANEL KIT (WHT) WPL 68001282 Contact Us For Availability

1

PANEL KIT (WHT) WPL 68001290 Contact Us For Availability

1

CONTROL, TEMPERATURE WPL 68001065 Contact Us For Availability

1

COMPRESSOR KIT WPL 68001285 Contact Us For Availability

1

COMPRESSOR KIT WPL 68001289 Contact Us For Availability

2

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.84

2

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $2.60

2

HANDLE TRIM WPL 592568 Contact Us For Availability

2

KIT, HANDLE WPL 68001025 Contact Us For Availability

2

HANDLE WPL 68001069 Contact Us For Availability

2

SCREW (2``) WPL 68001197 Contact Us For Availability

2

GROMMET, COMPRESSOR WPL Y09100025 Contact Us For Availability

3

4356846 Whirlpool Refrigerator Sleeve Backorder WPL 4356846 $9.06

3

SHIM WPL Y04529702 Contact Us For Availability

3

KNOB, TEMP. CONTROL WPL 68001063 Contact Us For Availability

4

1-81154 Whirlpool Plate Backorder WPL 1-81154 $6.63

4

3-24898-007 Whirlpool Refrigerator Vent Plug Backorder WPL 3-24898-007 $4.90

4

WPW10068250 Whirlpool Dishwasher Screw Backorder WPL WPW10068250 $3.02

4

WASHER WPL 00541703 Contact Us For Availability

5

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $16.36

5

HINGER, LOWER WPL 68001076 Contact Us For Availability

5

HINGE KIT, LOWER WPL 68001104 Contact Us For Availability

5

SCREW WPL 68001190 Contact Us For Availability

5

SCREW COMP MTG WPL Y04703209 Contact Us For Availability

6

2154436 Whirlpool Refrigerator Start Relay Backorder WPL 2154436 $61.34

6

4318083 Whirlpool Air Conditioner Start Relay Backorder WPL 4318083 $54.23

6

4390598 Whirlpool Refrigerator Screw Backorder WPL 4390598 $9.96

6

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.60

6

INNER PANEL WPL 04774702 Contact Us For Availability

6

LINER KIT WPL 68001283 Contact Us For Availability

6

BRACKET, LIGHT MOUNT WPL Y04855101 Contact Us For Availability

6

RELAY, START WPL 68001202 Contact Us For Availability

7

2183409 Whirlpool Refrigerator Overload Backorder WPL 2183409 $50.31

7

WPA3073101 Whirlpool Light Bulb In Stock WPL WPA3073101 $6.50

7

GASKET KIT (WHT) WPL 68001284 Contact Us For Availability

7

GASKET, DOOR WPL Y09100140 Contact Us For Availability

7

OVERLOAD WPL 68001293 Contact Us For Availability

7

OVERLOAD WPL Y09100134 Contact Us For Availability

8

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $25.41

8

SHELF TRIM WPL 04552107 Contact Us For Availability

8

RECEPTACLE, BULB WPL Y04553701 Contact Us For Availability

8

CAPACITOR, RUN (W/WIRES) WPL 68001204 Contact Us For Availability

8

CAPACITOR, RUN (W/WIRES) WPL 68001212 Contact Us For Availability

9

4390489 Whirlpool Refrigerator Shim Backorder WPL 4390489 $3.84

9

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $34.69

9

WP8204624 Whirlpool Bolt Backorder WPL WP8204624 $9.16

9

HINGE, UPPER WPL 68001077 Contact Us For Availability

9

HINGE KIT, UPPER WPL 68001126 Contact Us For Availability

9

GATE WPL 04944601 Contact Us For Availability

9

GATE (WHT) WPL 68001294 Contact Us For Availability

9

COVER, TERMINAL WPL Y09100115 Contact Us For Availability

10

UPPER BUSHING WPL 660363 Contact Us For Availability

10

CLIP, TERM COVER WPL Y09100116 Contact Us For Availability

11

SUPPORT, GATE (RT) WPL 655871 Contact Us For Availability

11

SCREW, GATE SUPPORT WPL 68001054 Contact Us For Availability

4357145 Whirlpool Freezer Door Lock Backorder WPL 4357145 $18.32

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.60

SHIELD, LIGHT WPL Y04855201 Contact Us For Availability

EVAP. & HEAT EXCHANGER ASSY. WPL 68001286 Contact Us For Availability

EVAP. & HEAT EXCHANGER ASSY. WPL 68001291 Contact Us For Availability

13

W11117769 Whirlpool Refrigerator Leveler Backorder WPL W11117769 $7.24

13

LOCK BODY WPL 68001071 Contact Us For Availability

13

DRIER WPL 139001 Contact Us For Availability

HOOK, LOCK WPL 68001072 Contact Us For Availability

TRIM, TOE SPACE WPL 09100141 Contact Us For Availability

KICKPLATE KIT WPL 68001288 Contact Us For Availability

WIRE HARNESS, MAIN WPL 68001060 Contact Us For Availability

1-80247-101 Whirlpool Refrigerator Clip Backorder WPL 1-80247-101 $4.81

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.60

CLIP, LOCK WPL 68001073 Contact Us For Availability

SCREW WPL 04303701 Contact Us For Availability

PAN, COMPRESSOR MTG. WPL 68001281 Contact Us For Availability

PAN KIT, COMPRESSOR MTG. WPL 68001287 Contact Us For Availability

16

WASHER, LOCK WPL 04841704 Contact Us For Availability

17

WP4159193 Whirlpool Screw Backorder WPL WP4159193 $3.02

18

KEY, LOCK WPL 68001074 Contact Us For Availability

19

NAMEPLATE WPL 68001007 Contact Us For Availability

NI

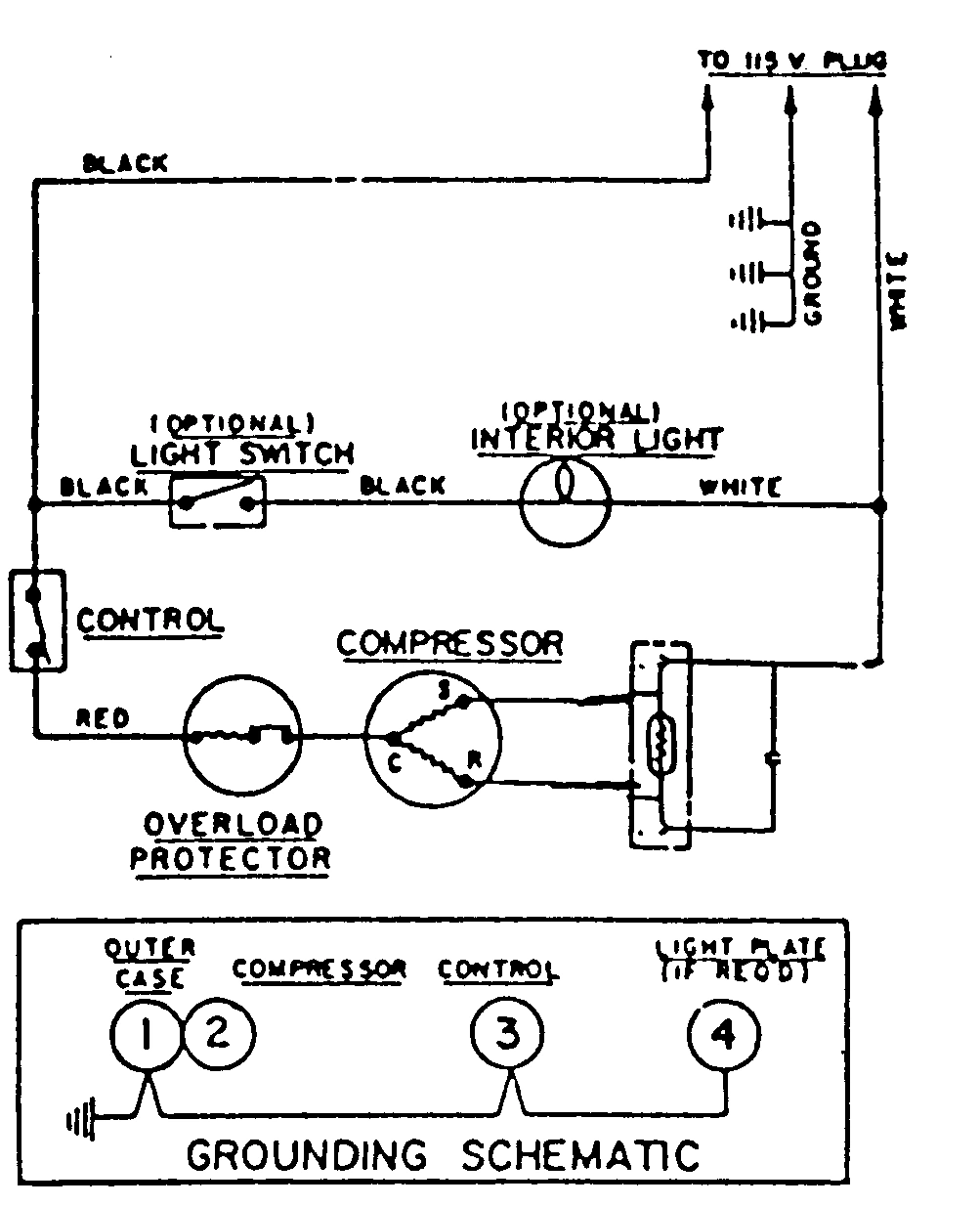

WIRING INFORMATION WPL 15002225 Contact Us For Availability

NI

GUIDE, QUICK REF - ADMIRAL WPL 16002079 Contact Us For Availability

NI

MANUAL, USE & CARE WPL 68001082 Contact Us For Availability
