Model Accelerated Cooking Products RFS18MPS-P2000703M Amana Menumaster RFS18MPS – Common Parts & Diagrams

Common parts from model Accelerated Cooking Products RFS18MPS-P2000703M Amana Menumaster RFS18MPS

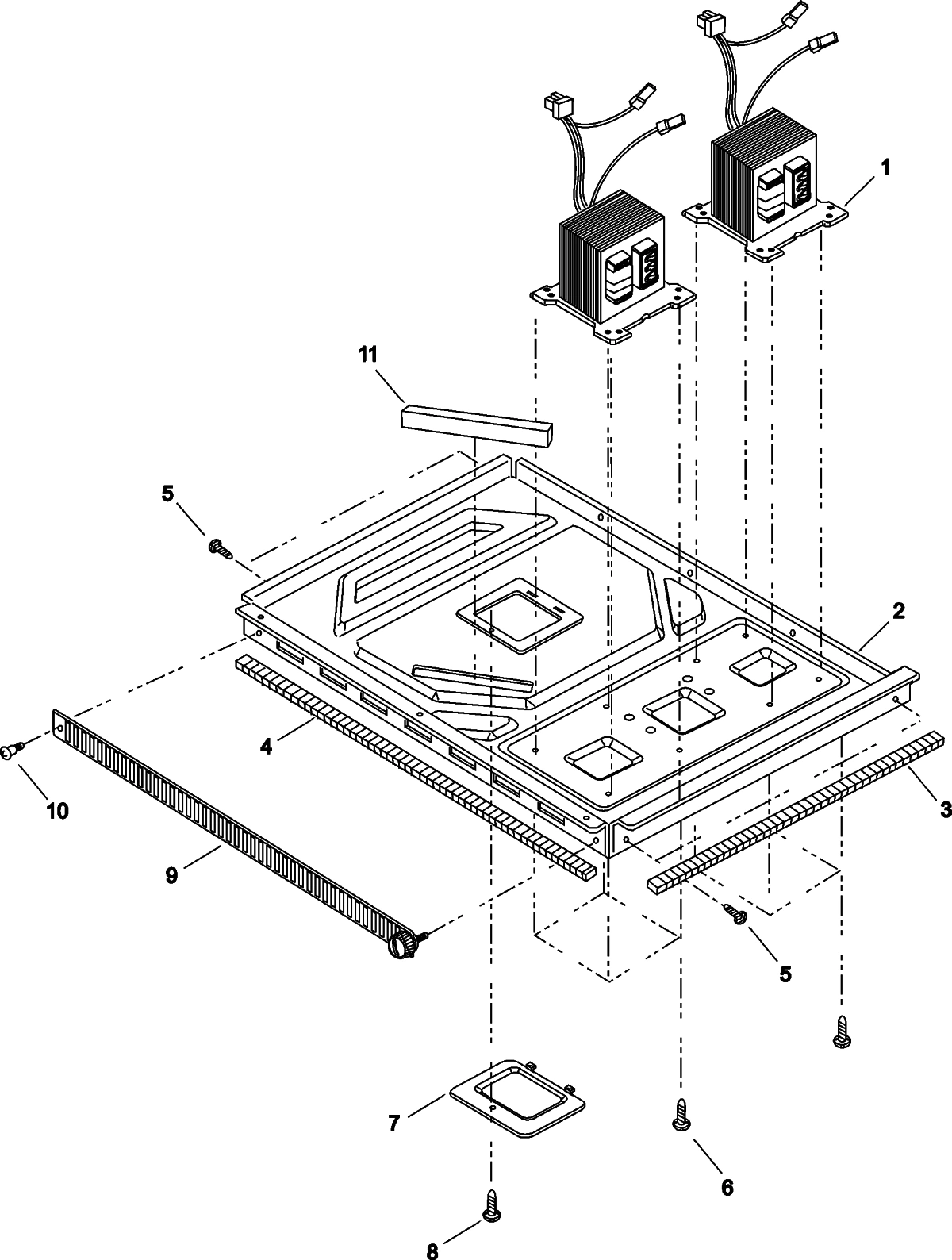

BASE

Print

• This Diagram
• All Diagrams

1

13004401 Amana Screw - TF/Flat RoHS Backorder ACP 13004401 View Details $5.14

View on Model

1

53002003 Amana Antenna Shield In Stock ACP 53002003 View Details $60.90

View on Model

2

20051701 Amana Door Access Lamp Backorder ACP 20051701 View Details $17.81

View on Model

2

54116011 Amana MM Touch Panel Assembly In Stock ACP 54116011 View Details $118.14

View on Model

3

13066801 Amana Inner Window In Stock ACP 13066801 View Details $19.39

View on Model

3

54116028 Amana Lamp Backorder ACP 54116028 View Details $10.02

View on Model

3

SCREW, TRUSS HD S/TAP ACP R0654036 Contact Us For Availability

View on Model

4

53001577 Amana Stainless Steel Wrapper Backorder ACP 53001577 View Details $220.17

View on Model

4

R0000413 Amana Base Pan Gasket 90 Inch In Stock ACP R0000413 View Details $43.09

View on Model

5

SCREW, TRUSS HD ACP R0654183 Contact Us For Availability

View on Model

6

SCREW, TAPPING TRUSS HEAD ACP R0131246 Contact Us For Availability

View on Model

7

PLATE, BACK ACP 20059601 Contact Us For Availability

View on Model

8

12002453 Amana Handle Kit Backorder ACP 12002453 View Details $78.38

View on Model

8

53001610 Amana Gasket Backorder ACP 53001610 View Details $5.14

View on Model

8

53001817 Amana Thermostat Backorder ACP 53001817 View Details $11.29

View on Model

9

20058101 Amana Top Air Duct Backorder ACP 20058101 View Details $17.63

View on Model

9

54116015 Amana Air Filter with Thumb Screw In Stock ACP 54116015 View Details $23.09

View on Model

9

SCREW, PAN HD ACP R0654180 Contact Us For Availability

View on Model

10

54126033 Amana Antenna Motor Backorder ACP 54126033 View Details $39.13

View on Model

11

12002592 Amana Top Antenna Kit In Stock ACP 12002592 View Details $99.35

View on Model

12

20241405 Amana Thermal Cutout Backorder ACP 20241405 View Details $8.36

View on Model

12

54116064 Amana Rivet Assembly Backorder ACP 54116064 View Details $12.46

View on Model

13

12002593 Amana Antenna Kit - Bottom Backorder ACP 12002593 View Details $88.78

View on Model

13

53002030 Amana Interlock Switch Assembly Backorder ACP 53002030 View Details $48.26

View on Model

14

53002009 Amana Ceramic Tray In Stock ACP 53002009 View Details $147.68

View on Model

15

SCREW, BINING HD S/TAP ACP R0654028 Contact Us For Availability

View on Model

15

BRACKET, STACKING ACP 20061201 Contact Us For Availability

View on Model

16

20058601 Amana Rear Air Deflector Backorder ACP 20058601 View Details $7.84

View on Model

16

BRACKET, CAPACITOR, BACK ACP 20060901 Contact Us For Availability

View on Model

17

B5667304 Amana Wire Clip Backorder ACP B5667304 View Details $5.14

View on Model

17

CABLE ASSY, CIRCUIT PROTECTOR ACP 53001725 Contact Us For Availability

View on Model

18

20058501 Amana Cord Retainer Backorder ACP 20058501 View Details $7.20

View on Model

19

20057501 Amana Power Cord Backorder ACP 20057501 View Details $40.42

View on Model

20

53002025 Amana Magnetron In Stock ACP 53002025 View Details $119.93

View on Model

21

FILTER ASSEMBLY ACP 53001565 Contact Us For Availability

View on Model

22

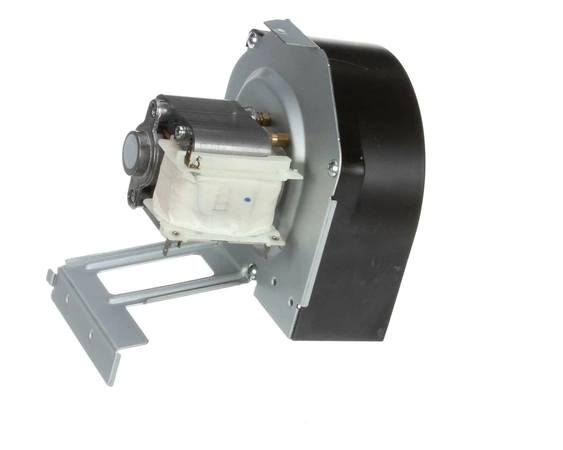

53001595 Amana Blower Motor Assembly Backorder ACP 53001595 View Details $163.79

View on Model

23

HARNESS, MAIN ACP 53002054 Contact Us For Availability

View on Model

25

54116014 Amana MAG Duct Backorder ACP 54116014 View Details $31.07

View on Model

26

20057401 Amana Diode In Stock ACP 20057401 View Details $7.48

View on Model

27

53001596 Amana Fuse Block / Filter Assembly Backorder ACP 53001596 View Details $23.29

View on Model

28

M0805105 Amana 12 AMP Fuse In Stock ACP M0805105 View Details $3.78

View on Model

29

BRACKET, CAPACITOR, FRONT ACP 20061001 Contact Us For Availability

View on Model

30

54116074 Amana Capacitor 0.91 Backorder ACP 54116074 View Details $41.51

View on Model

31

54116016 Amana Right Exhaust Duct Backorder ACP 54116016 View Details $54.58

View on Model

×
