Model Whirlpool RF396PCYW0 – Common Parts & Diagrams
02 - COOKTOP, LIT/OPTIONAL
05 - UNIT, OPTIONAL

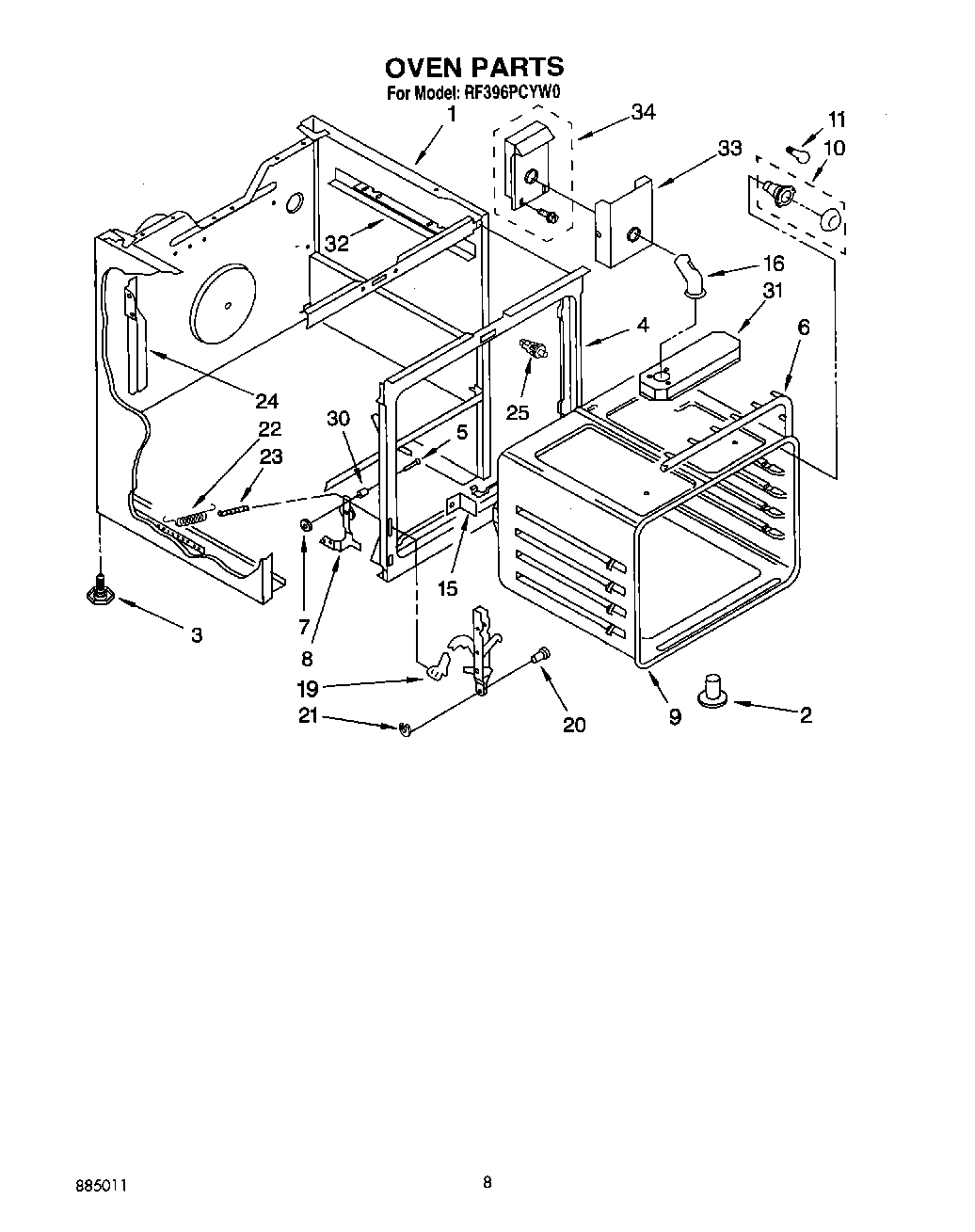

06 - OVEN

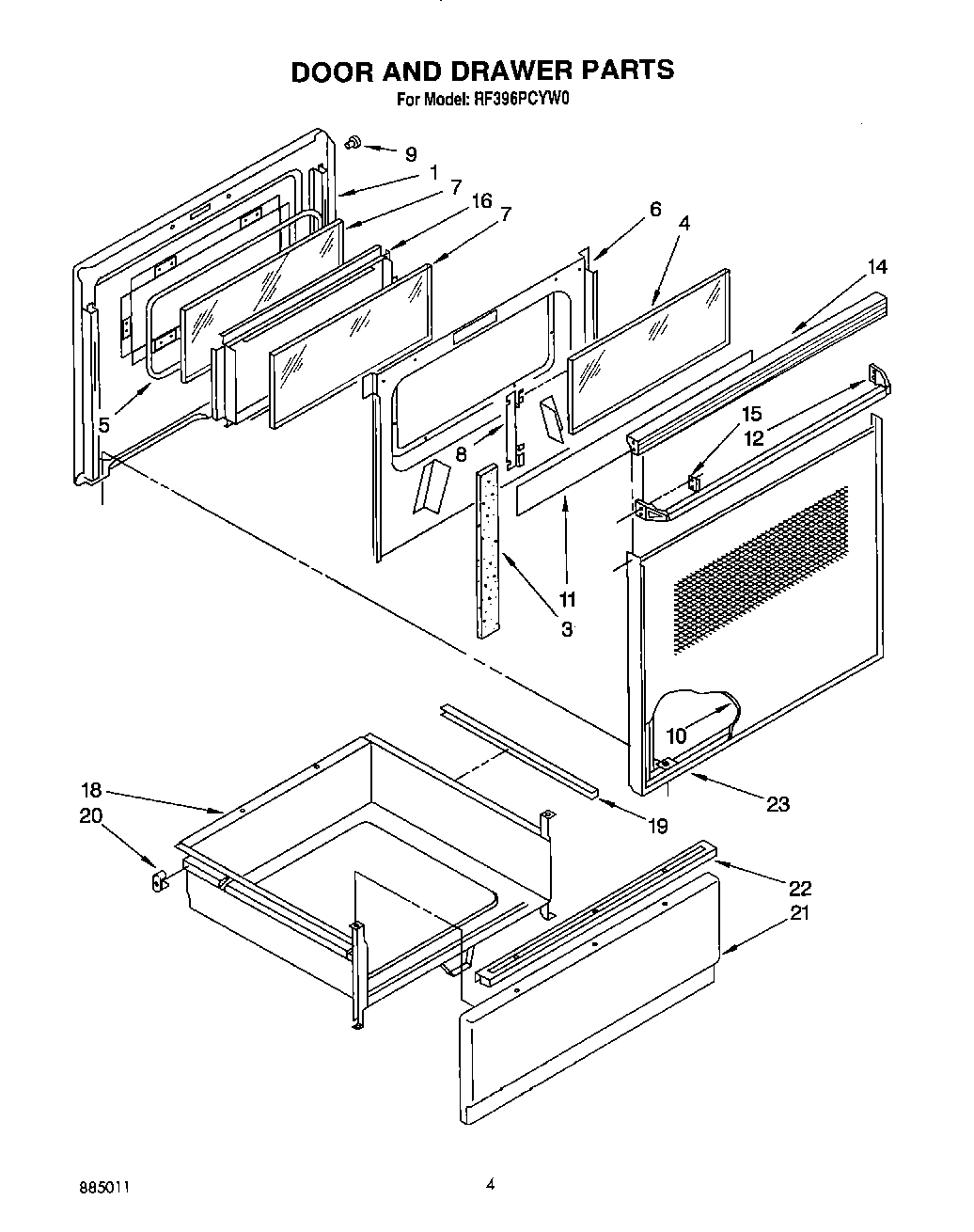

04 - DOOR AND DRAWER

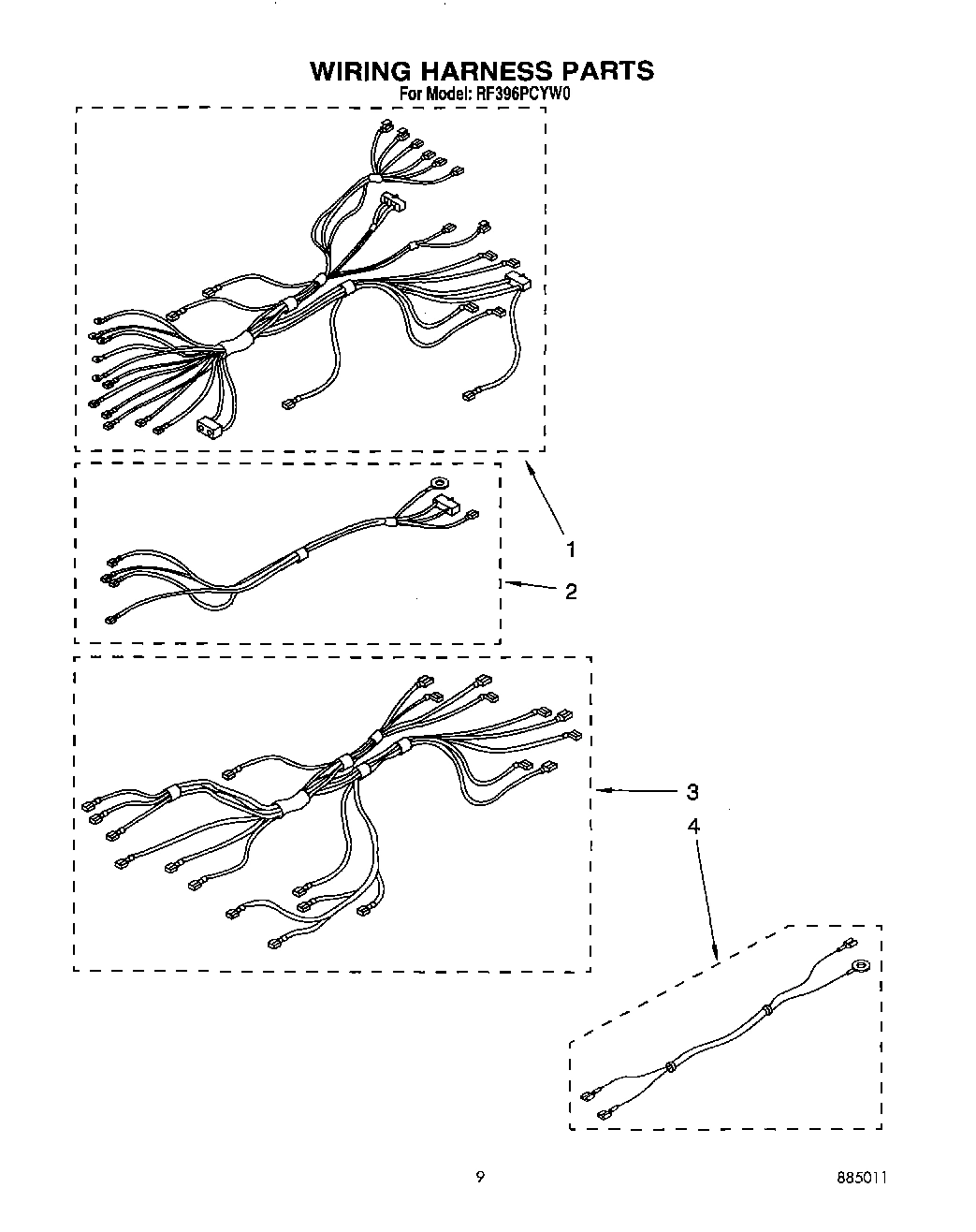

07 - WIRING HARNESS

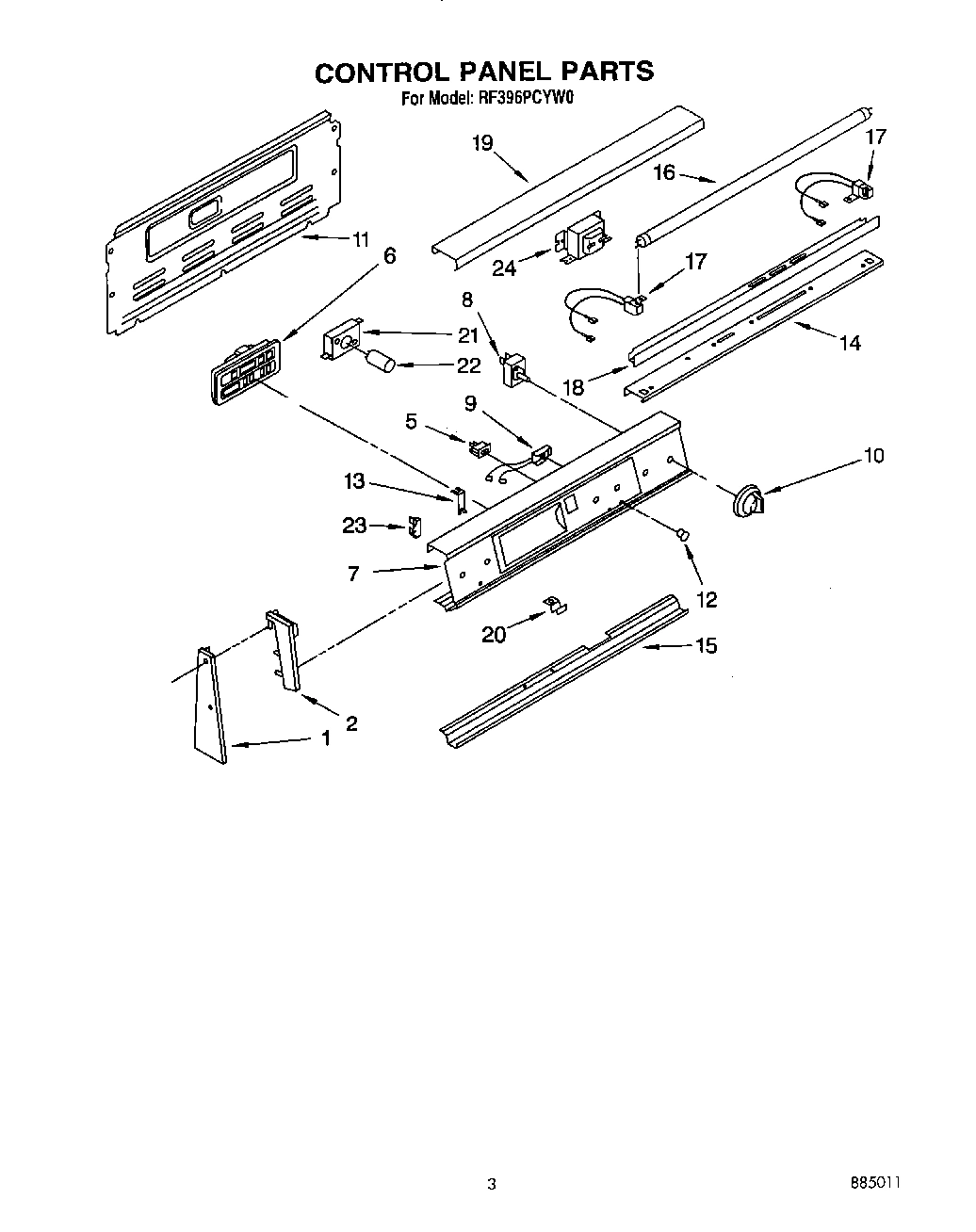

03 - CONTROL PANEL
Common parts from model Whirlpool RF396PCYW0
1
Bracket, Mounting (2) WPL 307981 Contact Us For Availability
1
Main Chassis (White) WPL 330086 Contact Us For Availability
1
Main Chassis (Almond) WPL 330090 Contact Us For Availability
1
Screw, 10-24 x 1/2 (2) WPL 247326 Contact Us For Availability
1
Liner, Door WPL 3172218 Contact Us For Availability
1
Harness, Wire (Oven) WPL 3183406 Contact Us For Availability
1
End Trim L.H. WPL 313190 Contact Us For Availability
1
End Trim R.H. WPL 313191 Contact Us For Availability
2
Rail R.H. WPL 3149255 Contact Us For Availability
2
Rail L.H. (Includes Illus. 3) WPL 3149256 Contact Us For Availability
2
Tube, Vent WPL 3169109 Contact Us For Availability
2
Harness, Wire (Lock Switch) WPL 3183323 Contact Us For Availability
2
End Cap L.H. WPL 313181 Contact Us For Availability
2
End Cap R.H. WPL 313182 Contact Us For Availability
3
Clip, Wire WPL 311311 Contact Us For Availability
3
Glide, Front (2) WPL 3149257 Contact Us For Availability
3
Seal, Fiberglass (2) WPL 3148441 Contact Us For Availability
3
Harness, Cooktop WPL 3169104 Contact Us For Availability
4
Screw (1) WPL 3150537 Contact Us For Availability
4
Frame, Front WPL 3172194 Contact Us For Availability
4
Glass, Clear WPL 3169202 Contact Us For Availability
4
Harness, Wire (Oven Light) WPL 313154 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
Pin, Hinge (2) WPL 307985 Contact Us For Availability
5
Switch, Rocker WPL 3182717 Contact Us For Availability
6
Knob, Latch WPL 3148684 Contact Us For Availability
6
Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability
6
Seal, Door WPL 3148284 Contact Us For Availability
6
Retainer, Insulation WPL 3148159 Contact Us For Availability
6
ERC Timer Control WPL 3182391 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
7
Pushnut (2) WPL 308306 Contact Us For Availability
7
Panel, Control WPL 3182995 Contact Us For Availability
8
Bracket, Service WPL 3150190 Contact Us For Availability
8
Hinge (R.H.) WPL 327890 Contact Us For Availability
8
Hinge (L.H.) WPL 327891 Contact Us For Availability
8
Retainer, Glass (2) WPL 3148187 Contact Us For Availability
9
Indicator Light (2) WPL 313102 Contact Us For Availability
9
Screw (3) WPL 311056 Contact Us For Availability
9
Oven (30`` Pyro) WPL 3176611 Contact Us For Availability
9
Bumper (4) WPL 3148182 Contact Us For Availability
10
Knob, Control (4) (Infinite Switch) WPL 3183118 Contact Us For Availability
10
Spring (8) WPL 3149191 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
10
Glass, Panel (White) WPL 3149049 Contact Us For Availability
10
Glass, Panel (Almond) WPL 3149050 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
11
Foil, Door WPL 3148184 Contact Us For Availability
11
Rear Cover WPL 313195 Contact Us For Availability
12
Handle, Door WPL 3148228 Contact Us For Availability
12
Lens, Amber (2) WPL 313101 Contact Us For Availability
13
Bracket, Timer Support WPL 3183991 Contact Us For Availability
14
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
14
Top, Door WPL 3148223 Contact Us For Availability
14
Trim, Top Socket WPL 3183284 Contact Us For Availability
15
Clip, Mtg (2) WPL 3148282 Contact Us For Availability
15
Rack, Oven (Offset) WPL 308172 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
15
Trim, Bottom WPL 313424 Contact Us For Availability
16
Vent, Oven WPL 3148906 Contact Us For Availability
16
screw (6) WPL 3148443 Contact Us For Availability
16
Frame, Inner Glass WPL 3148234 Contact Us For Availability
16
Lamp, Fluorescent WPL 313110 Contact Us For Availability
17
Bracket, Light WPL 3149032 Contact Us For Availability
17
Screw, 10-32 x .437 (2) WPL 3150532 Contact Us For Availability
17
Coverplate (2) WPL 311982 Contact Us For Availability
17
Socket, Lamp (Light RH) WPL 3183281 Contact Us For Availability
17
Socket, Lamp (Light LH) WPL 3183282 Contact Us For Availability
18
Light, Indicator WPL 3149029 Contact Us For Availability
18
Sensor, Temperature WPL 3148440 Contact Us For Availability
18
Drawer, Utility WPL 327887 Contact Us For Availability
18
Backguard, Lamp WPL 3184112 Contact Us For Availability
19
Shield, Probe WPL 3149262 Contact Us For Availability
19
Channel, Arm (2) WPL 329710 Contact Us For Availability
19
Protector, Drawer Side (2) WPL 309329 Contact Us For Availability
19
Cover, Lamp WPL 3149831 Contact Us For Availability
20
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
20
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
20
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
20
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
20
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
20
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
20
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
20
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
20
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
20
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
20
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
20
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
20
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
20
WPL 242832 WPL 242832 Contact Us For Availability
20
WPL 261582 WPL 261582 Contact Us For Availability
20
WPL 261886 WPL 261886 Contact Us For Availability
20
WPL 261888 WPL 261888 Contact Us For Availability
20
WPL 261890 WPL 261890 Contact Us For Availability
20
WPL 261891 WPL 261891 Contact Us For Availability
20
WPL 285365 WPL 285365 Contact Us For Availability
20
WPL 285366 WPL 285366 Contact Us For Availability
20
WPL 285367 WPL 285367 Contact Us For Availability
20
WPL 285368 WPL 285368 Contact Us For Availability
20
WPL 312804 WPL 312804 Contact Us For Availability
20
WPL 72108 WPL 72108 Contact Us For Availability
20
WPL 72112 WPL 72112 Contact Us For Availability
20
WPL 799832 WPL 799832 Contact Us For Availability
20
WPL 978883 WPL 978883 Contact Us For Availability
20
Glide, Rear (2) WPL 307980 Contact Us For Availability
20
Support Wedge, Bottom WPL 3183290 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
21
Panel Drawer (White) WPL 307935 Contact Us For Availability
21
Panel, Drawer (Almond) WPL 307939 Contact Us For Availability
21
Socket, Starter WPL 3147224 Contact Us For Availability
22
Starter, Lamp WPL 387695 Contact Us For Availability
22
Clip, Mounting WPL 3149190 Contact Us For Availability
22
Handle, Drawer WPL 3169105 Contact Us For Availability
23
screw (3) WPL 307748 Contact Us For Availability
23
Frame, Door WPL 3148235 Contact Us For Availability
24
Support, L.H. Post WPL 313196 Contact Us For Availability
24
Support, R.H. Post WPL 313197 Contact Us For Availability
24
Ballast WPL 660001 Contact Us For Availability
25
Switch, Door (2) WPL 310345 Contact Us For Availability
30
Snubber, Door (2) WPL 309111 Contact Us For Availability
31
Box Vent WPL 3169129 Contact Us For Availability
32
Support, Chassis WPL 3147646 Contact Us For Availability
33
Screw (3) WPL 98520 Contact Us For Availability
33
Shield, Box WPL 3149006 Contact Us For Availability
34
Insulation, Wrapper WPL 3169093 Contact Us For Availability
34
Insulation, Oven BAck WPL 3169094 Contact Us For Availability
34
Vent, Box WPL 3171381 Contact Us For Availability
× ![]()
