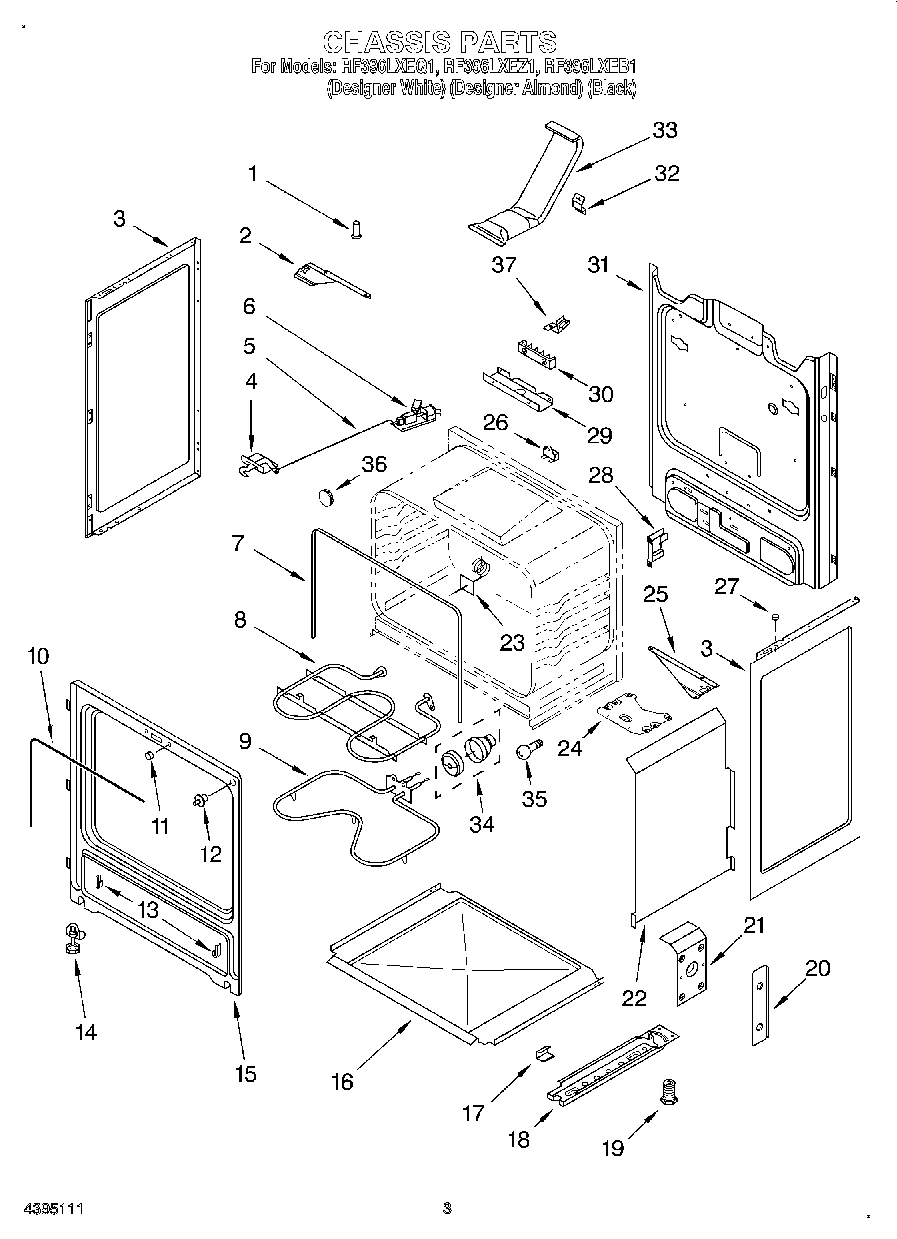

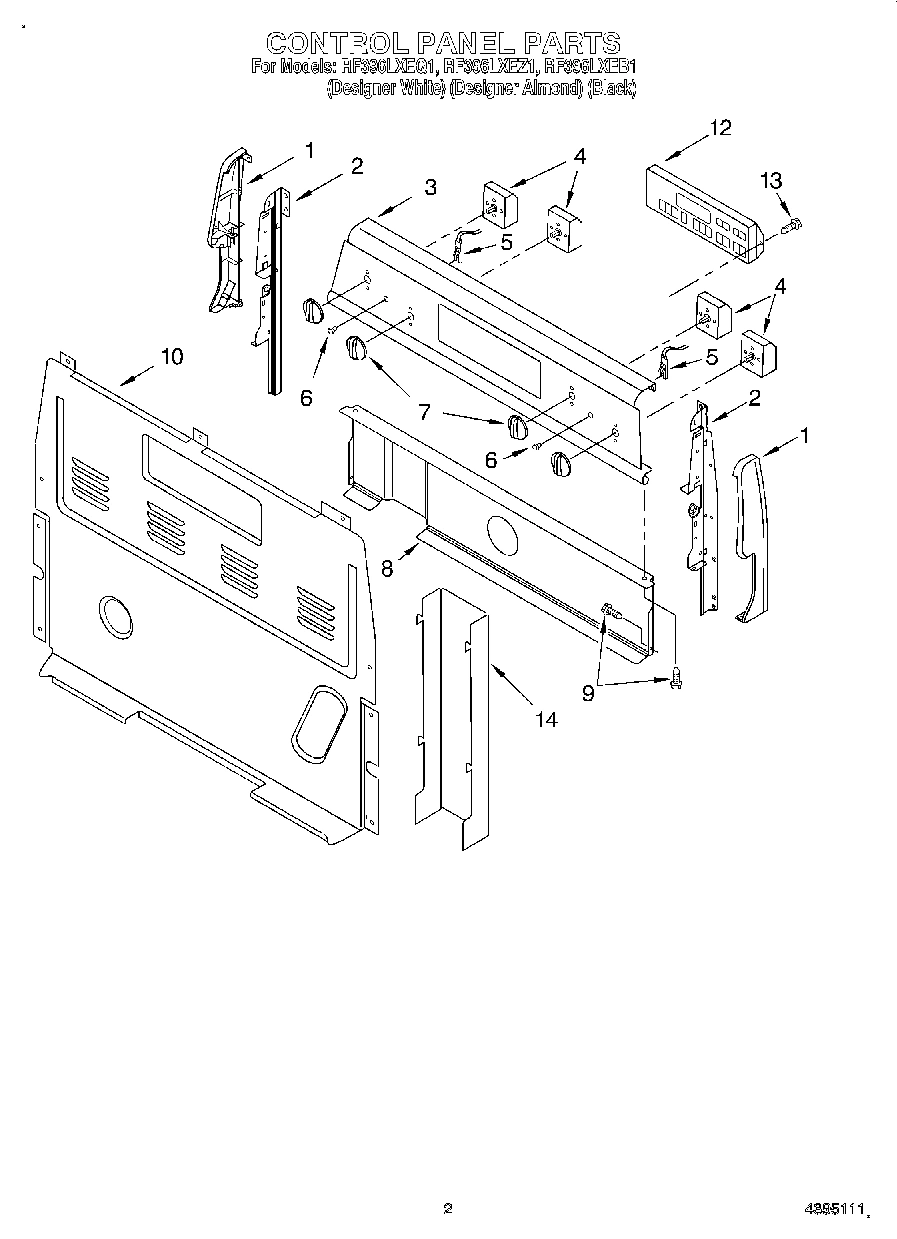

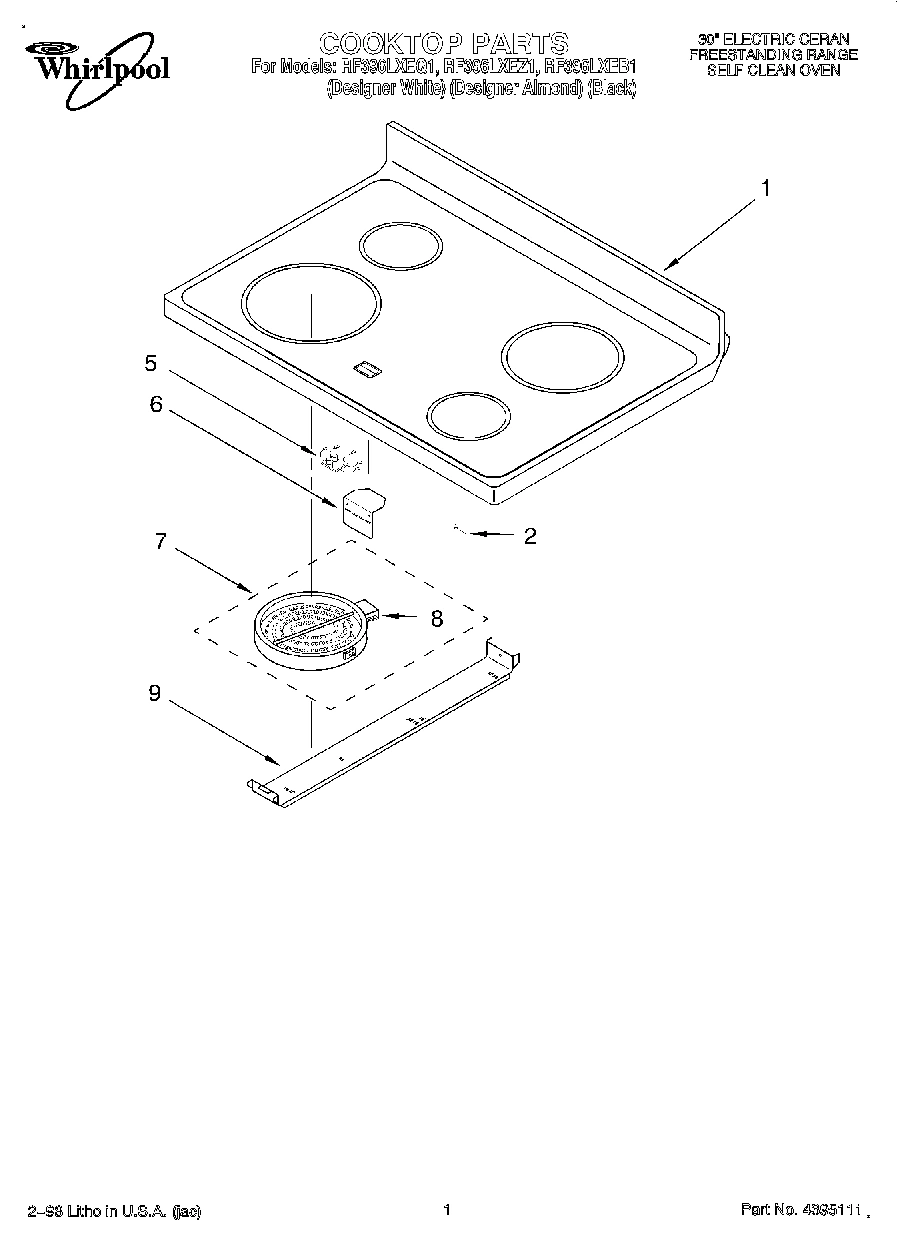

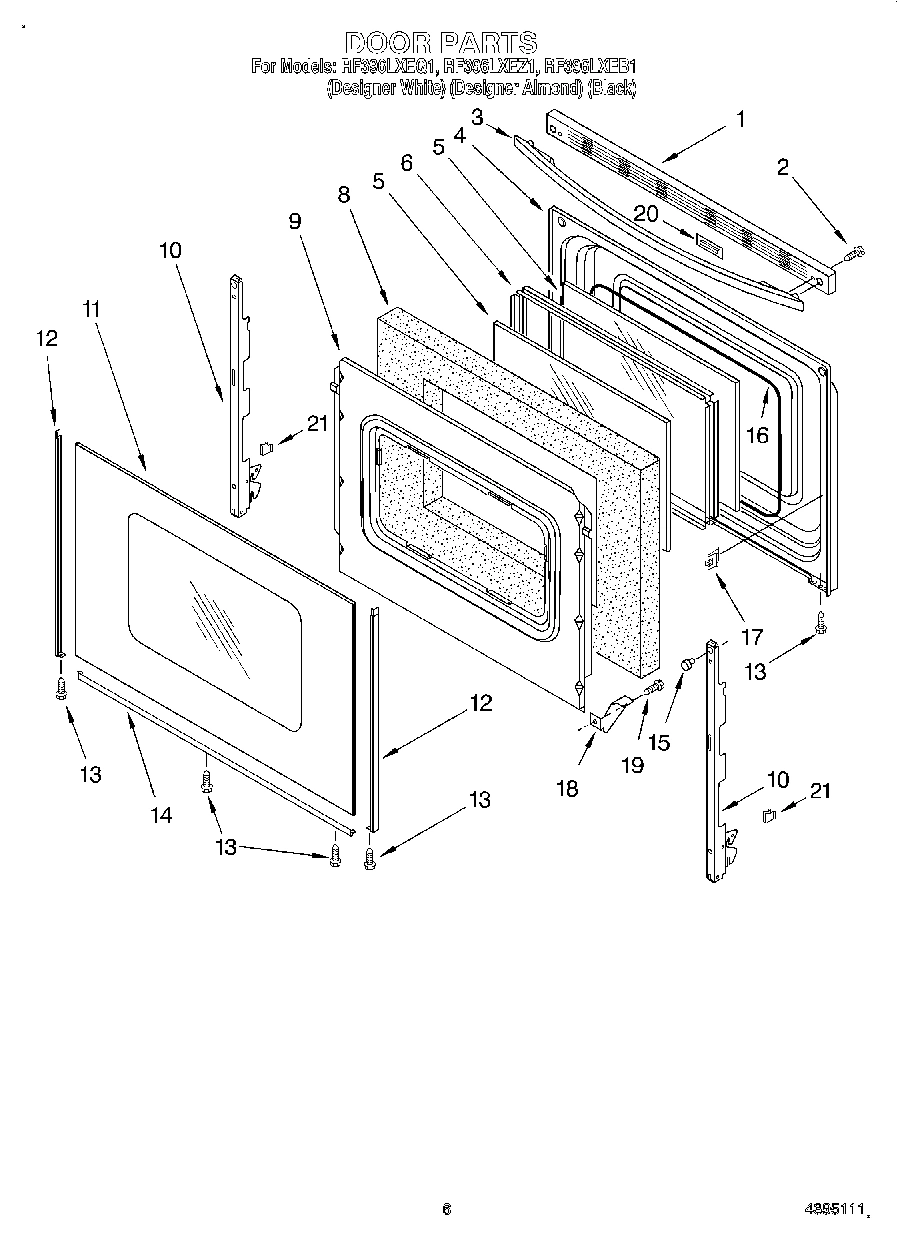

Model Whirlpool RF396LXEB1 – Common Parts &amp; Diagrams

3196696 Whirlpool Clip In Stock WPL 3196696 $6.61

3400964 Whirlpool Range Clip Backorder WPL 3400964 $34.20

814381 Whirlpool Pin In Stock WPL 814381 $3.70

WP3196154 Whirlpool Screw Assembly Backorder WPL WP3196154 $2.51

WPL 3195153 WPL 3195153 Contact Us For Availability

WPL 3196108 WPL 3196108 Contact Us For Availability

WPL 8053721 WPL 8053721 Contact Us For Availability

WPL LIT3191638 WPL LIT3191638 Contact Us For Availability

WPL LIT3195944 WPL LIT3195944 Contact Us For Availability

WPL LIT3195945 WPL LIT3195945 Contact Us For Availability

WPL LIT3196077 WPL LIT3196077 Contact Us For Availability

WPL LIT3196279 WPL LIT3196279 Contact Us For Availability

1

WPW10016370 Whirlpool Door Trim Backorder WPL WPW10016370 $84.11

1

Trim, Door Top (Black) WPL 3196819 Contact Us For Availability

1

Trim, Door Top (Almond) WPL 3196820 Contact Us For Availability

2

WP3195996 Whirlpool Pan Grid Backorder WPL WP3195996 $44.05

2

WP3196164 Whirlpool Screw In Stock WPL WP3196164 $2.64

2

WP3196170 Whirlpool Screw Backorder WPL WP3196170 $2.51

2

Spring, Locator WPL 3149191 Contact Us For Availability

3

WP179051 Whirlpool Screw Backorder WPL WP179051 $2.64

3

WP3196076 Whirlpool Broil Pan Backorder WPL WP3196076 $176.34

3

WPW10202216 Whirlpool Door Handle In Stock WPL WPW10202216 $130.22

3

WPW10202217 Whirlpool Door Handle In Stock WPL WPW10202217 $106.30

3

Panel, Side (2) (Black) WPL 3186075 Contact Us For Availability

3

Handle, Door (Almond) WPL 3195921 Contact Us For Availability

4

WP3148952 Whirlpool Range Infinite Switch In Stock WPL WP3148952 $33.53

4

WP3148955 Whirlpool Infinite Switch Backorder WPL WP3148955 $72.47

4

WP9761013 Whirlpool Door Latch Backorder WPL WP9761013 $90.99

4

Liner, Door WPL 3186292 Contact Us For Availability

5

WP8053948 Whirlpool Door Glass In Stock WPL WP8053948 $68.30

5

Light, Ind. (2) WPL 313102 Contact Us For Availability

5

Rod, Latch WPL 3196715 Contact Us For Availability

6

WP3196068 Whirlpool Light Lens In Stock WPL WP3196068 $3.00

6

WP3196813 Whirlpool Rivet Backorder WPL WP3196813 $4.43

6

WP3196814 Whirlpool Rivet Backorder WPL WP3196814 $4.43

6

WPW10316950 Whirlpool Window Frame Backorder WPL WPW10316950 $30.25

6

Solenoid Assy. WPL 3196125 Contact Us For Availability

7

WP3196231 Whirlpool Knob In Stock WPL WP3196231 $25.94

7

Knob, Infinite (4) (White) WPL 3196232 Contact Us For Availability

7

Knob, Infinite (4) (Almond) WPL 3196233 Contact Us For Availability

7

Seal, Oven Flange WPL 3195737 Contact Us For Availability

8

W10856603 Whirlpool Broil Element In Stock WPL W10856603 $88.31

8

WPW10278991 Whirlpool Insulation Backorder WPL WPW10278991 $42.51

9

W11539580 Whirlpool Retainer Backorder WPL W11539580 $84.51

9

WP3196174 Whirlpool Screw Backorder WPL WP3196174 $2.51

9

WPW10308477 Whirlpool Bake Element In Stock WPL WPW10308477 $38.70

9

Screw (4) WPL 4449746 Contact Us For Availability

10

W11542153 Whirlpool Door Gasket In Stock WPL W11542153 $21.59

10

WP8053807 Whirlpool Range Door Hinge In Stock WPL WP8053807 $49.45

W10877054 Whirlpool Spacer Assembly Backorder WPL W10877054 $28.09

WP8053834 Whirlpool Door Glass Backorder WPL WP8053834 $135.30

WPW10118455 Whirlpool Door Glass Assembly In Stock WPL WPW10118455 $205.13

Glass, Outer Door (Almond) WPL 3195615 Contact Us For Availability

12

WP3196262 Whirlpool Light Switch Backorder WPL WP3196262 $61.59

13

W10491985 Whirlpool Screw Backorder WPL W10491985 $2.51

13

WP3195546 Whirlpool Drawer Glide In Stock WPL WP3195546 $3.70

8184858 Whirlpool Door Trim Backorder WPL 8184858 $64.54

8184859 Whirlpool Range Oven Door Trim Kit (2 In Stock WPL 8184859 $50.93

8184860 Whirlpool Range Door Trim Backorder WPL 8184860 $58.01

WP3196037 Whirlpool Leveling Foot In Stock WPL WP3196037 $27.82

Screw (4) WPL 3196179 Contact Us For Availability

15

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $71.57

15

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

15

Frame, Front WPL 3186156 Contact Us For Availability

16

WP8054068 Whirlpool Retainer Backorder WPL WP8054068 $30.25

16

Seal, Window WPL 3195984 Contact Us For Availability

17

Clip, Panel (6) WPL 3196576 Contact Us For Availability

17

Clip, Glass (6) WPL 3196025 Contact Us For Availability

18

WPW10306546 Whirlpool Base Rail Backorder WPL WPW10306546 $53.16

18

Bracket, Window WPL 3196794 Contact Us For Availability

19

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

20

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $3.93

20

Shield, Outer (2) WPL 3196091 Contact Us For Availability

20

Bracket, Latch WPL 3195914 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $249.73

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

8212471 Whirlpool Oven Paint Backorder WPL 8212471 $35.69

8273888A Whirlpool Range Oven Anchor Anti-Tip In Stock WPL 8273888A $11.69

WPL W10355051 No Longer Available

WP3196925 Whirlpool Clip Assembly Backorder WPL WP3196925 $5.16

WP7101P246-60 Whirlpool Screw Backorder WPL WP7101P246-60 $2.51

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $30.25

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Shield, Inner (2) WPL 3196092 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 WPL 242828 Contact Us For Availability

WPL 242829 WPL 242829 Contact Us For Availability

WPL 242830 WPL 242830 Contact Us For Availability

WPL 242832 WPL 242832 Contact Us For Availability

WPL 261582 WPL 261582 Contact Us For Availability

WPL 261886 WPL 261886 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

22

Retainer, Side (2) WPL 3195717 Contact Us For Availability

23

Sensor, Oven WPL 3148440 Contact Us For Availability

24

Support, Front (2) WPL 3196806 Contact Us For Availability

25

Support, Corner RR WPL 3195987 Contact Us For Availability

26

3196172 Whirlpool Oven Screw Backorder WPL 3196172 $9.59

26

WP3196548 Whirlpool Thermal Fuse In Stock WPL WP3196548 $16.20

28

W10404688 Whirlpool Bracket Support Backorder WPL W10404688 $7.69

29

W11728255 Whirlpool Service Bracket Backorder WPL W11728255 $30.10

30

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

30

WP3400016 Whirlpool Screw Assembly Backorder WPL WP3400016 $2.51

30

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.98

31

Back, Main WPL 8053508 Contact Us For Availability

32

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.51

32

Bracket, Flue WPL 3196437 Contact Us For Availability

33

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

33

WPW10134285 Whirlpool Vent Tube Backorder WPL WPW10134285 $177.61

34

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $36.67

35

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

36

Button, Plug WPL 3196439 Contact Us For Availability

W11244557 Whirlpool Screw Backorder WPL W11244557 $9.59

W11311894 Whirlpool Insulation Backorder WPL W11311894 $39.03

Clip, Ground Wire WPL 313660 Contact Us For Availability

Strap, Ground WPL 3169573 Contact Us For Availability

Insulation, Vent WPL 3196436 Contact Us For Availability
