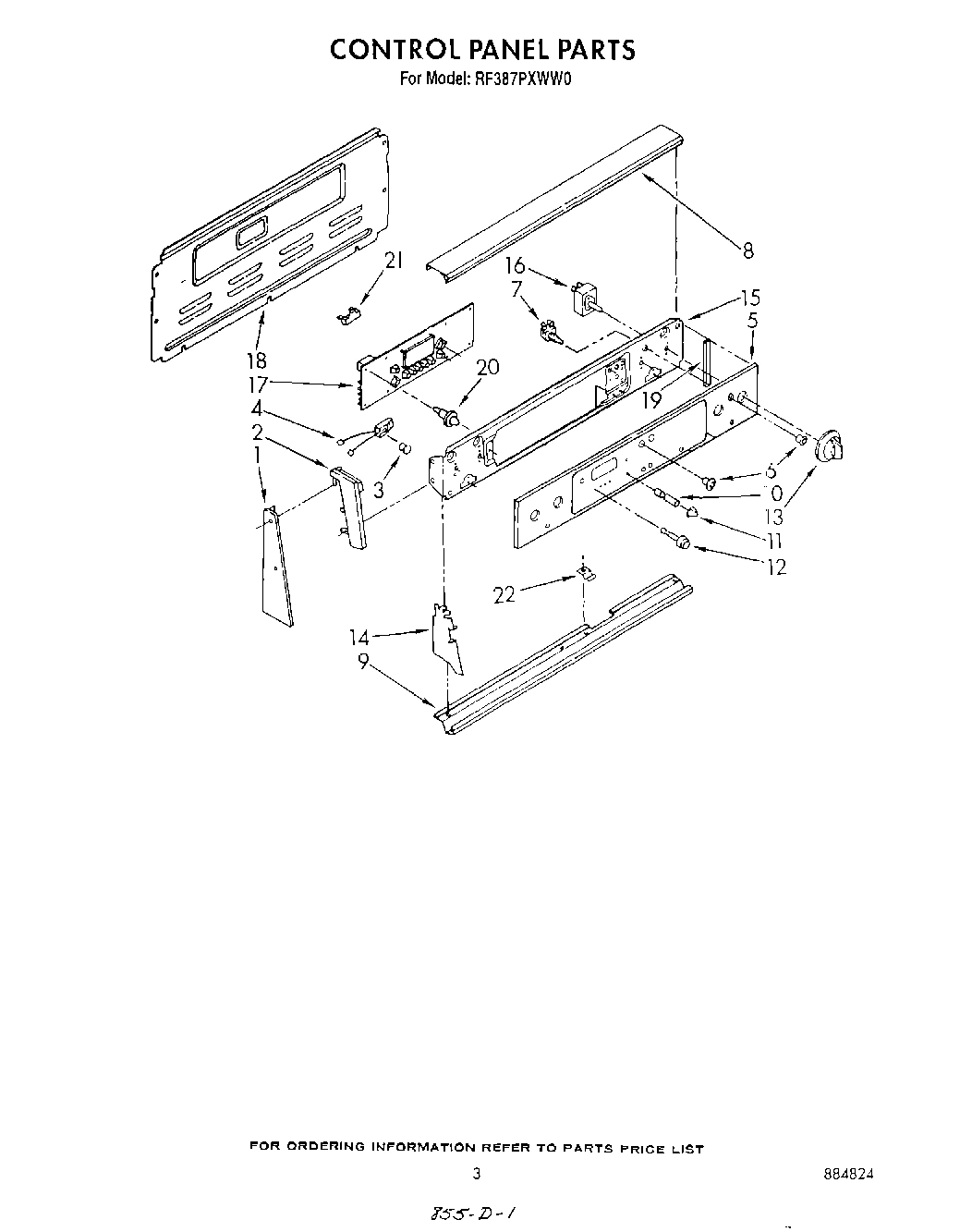

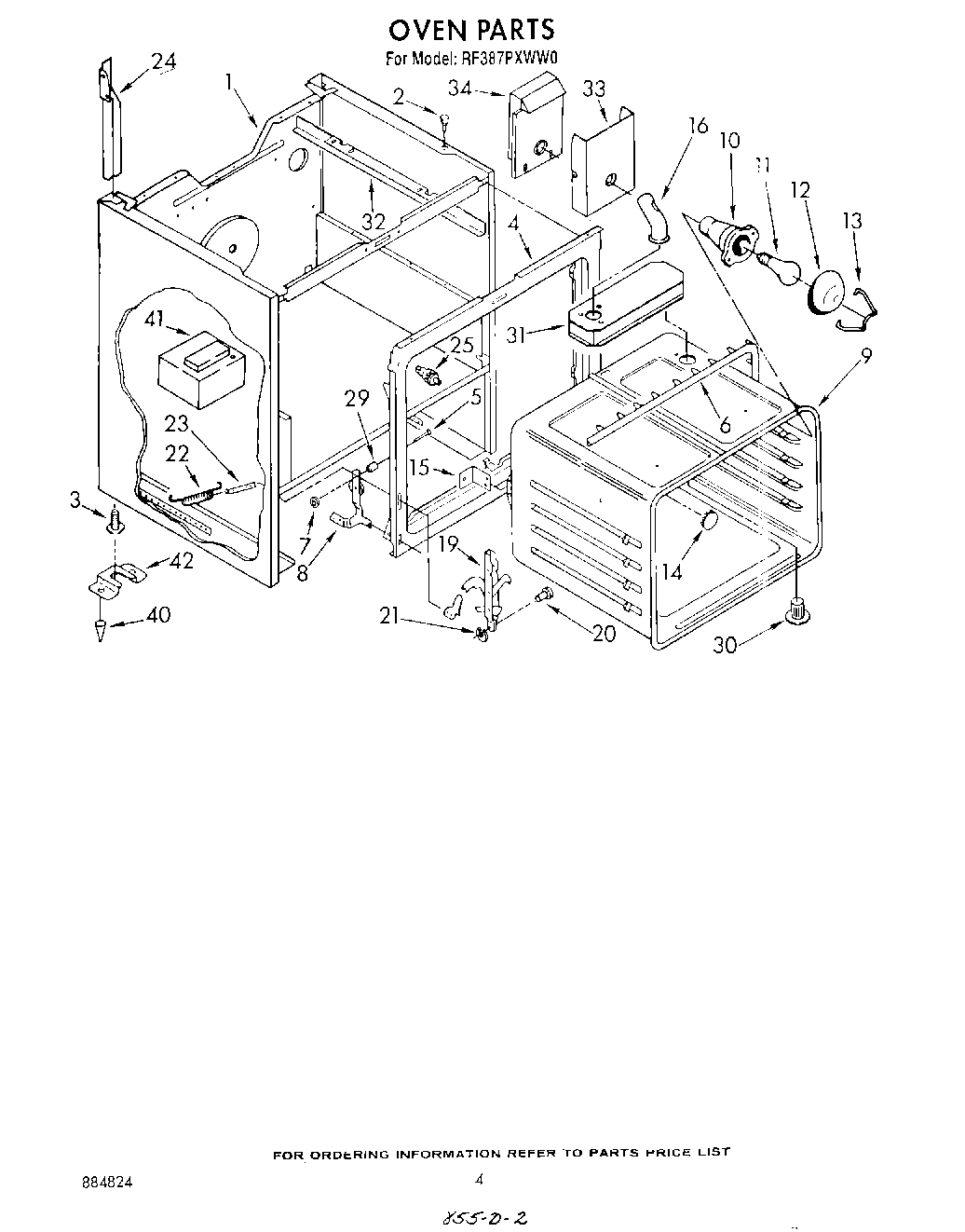

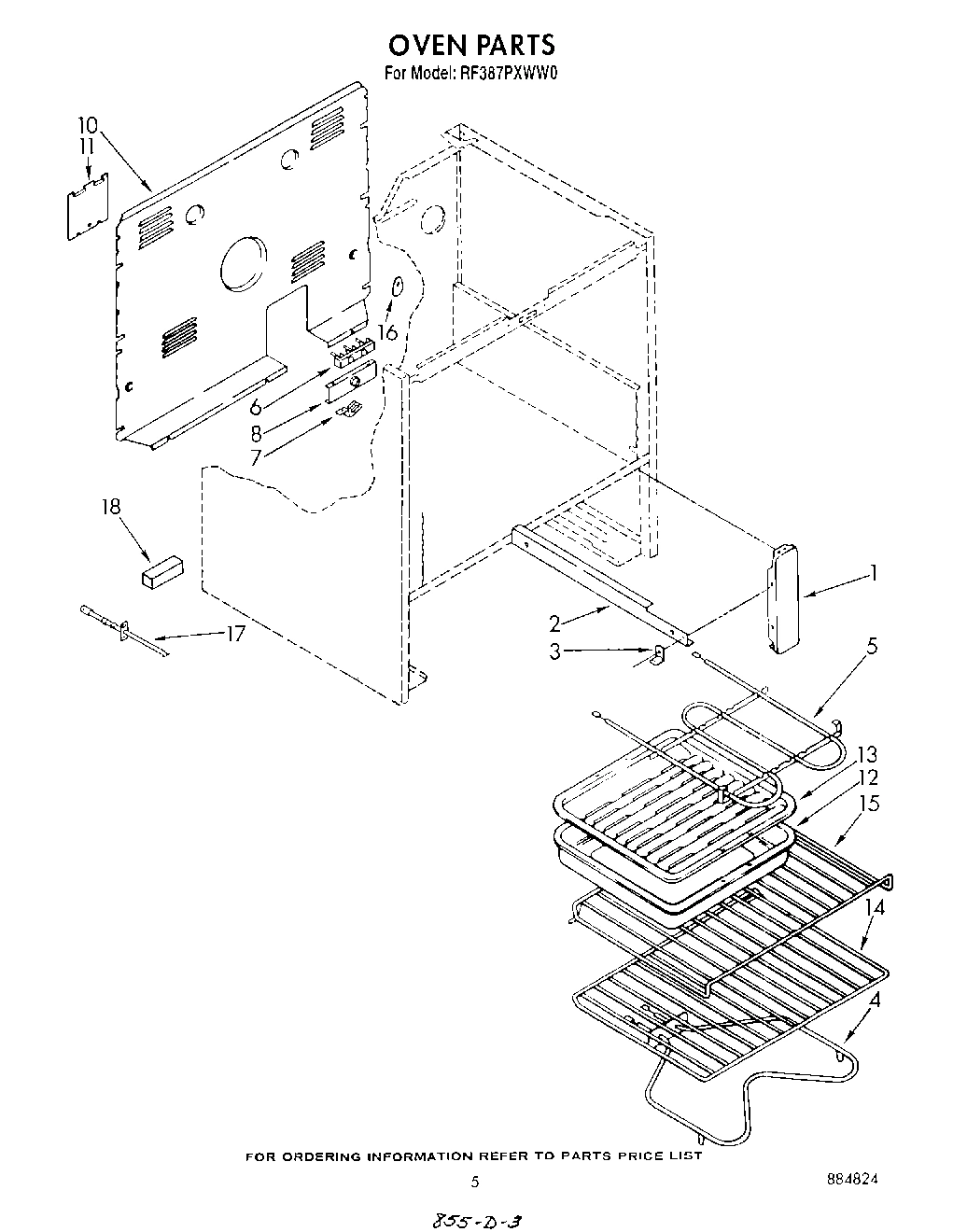

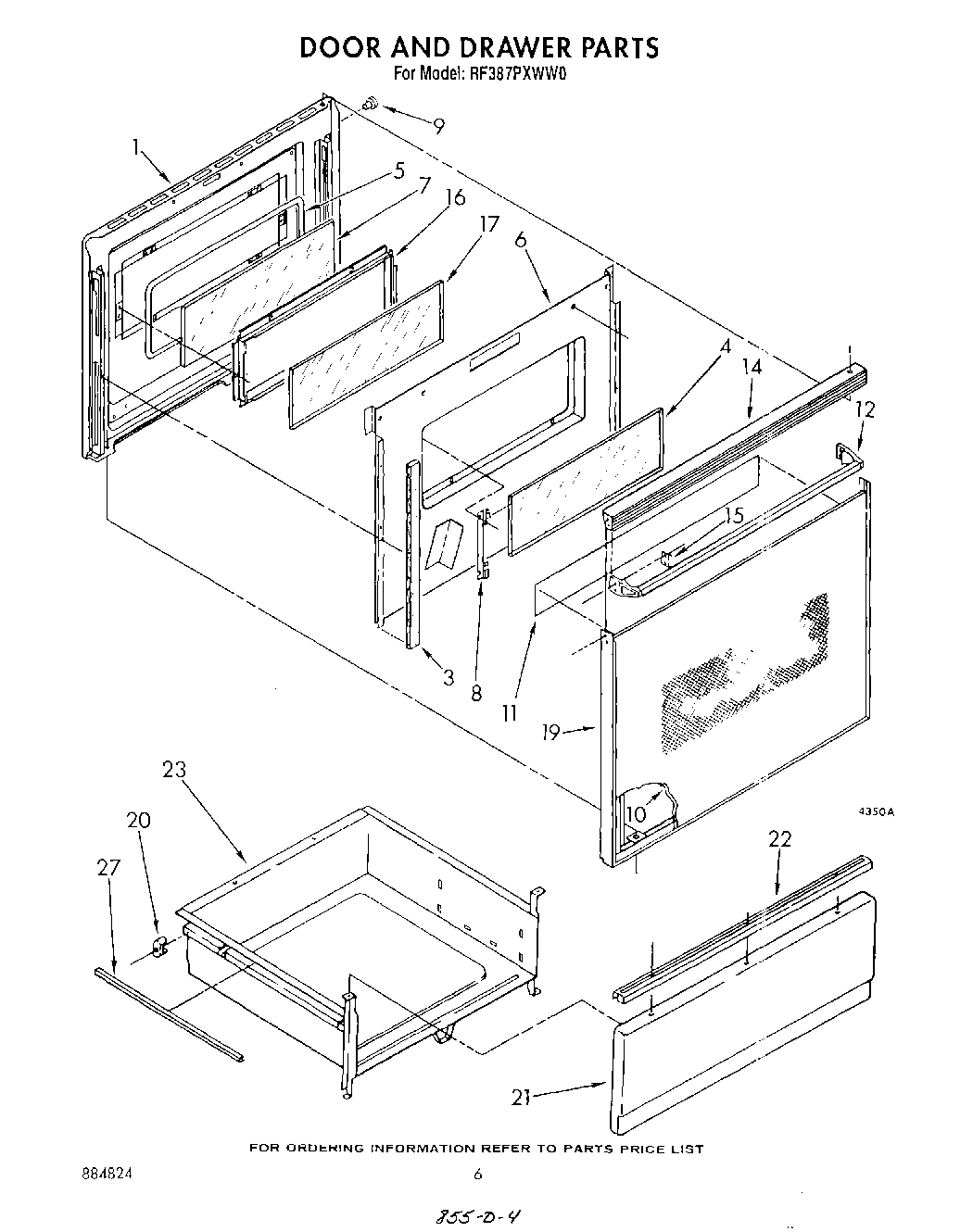

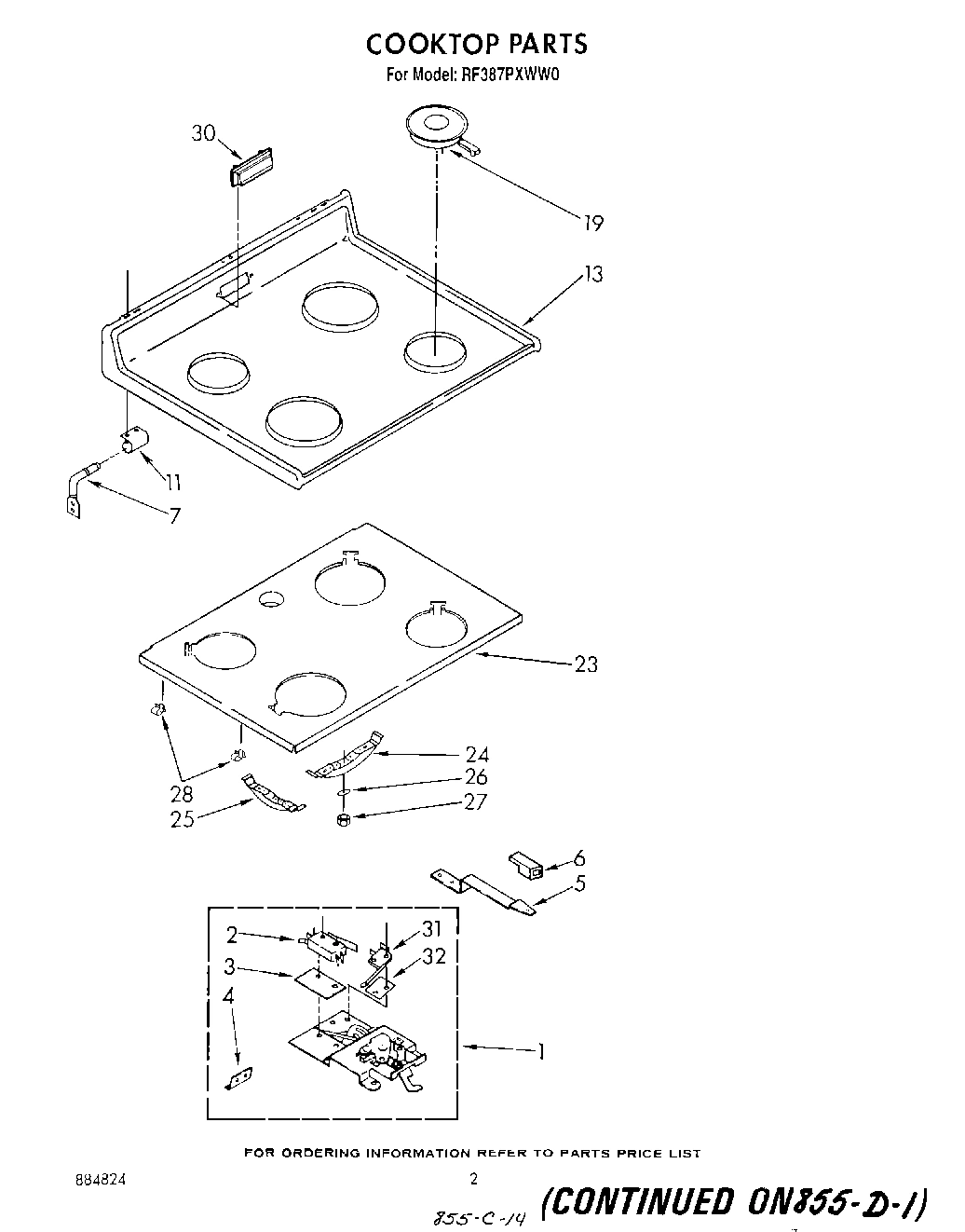

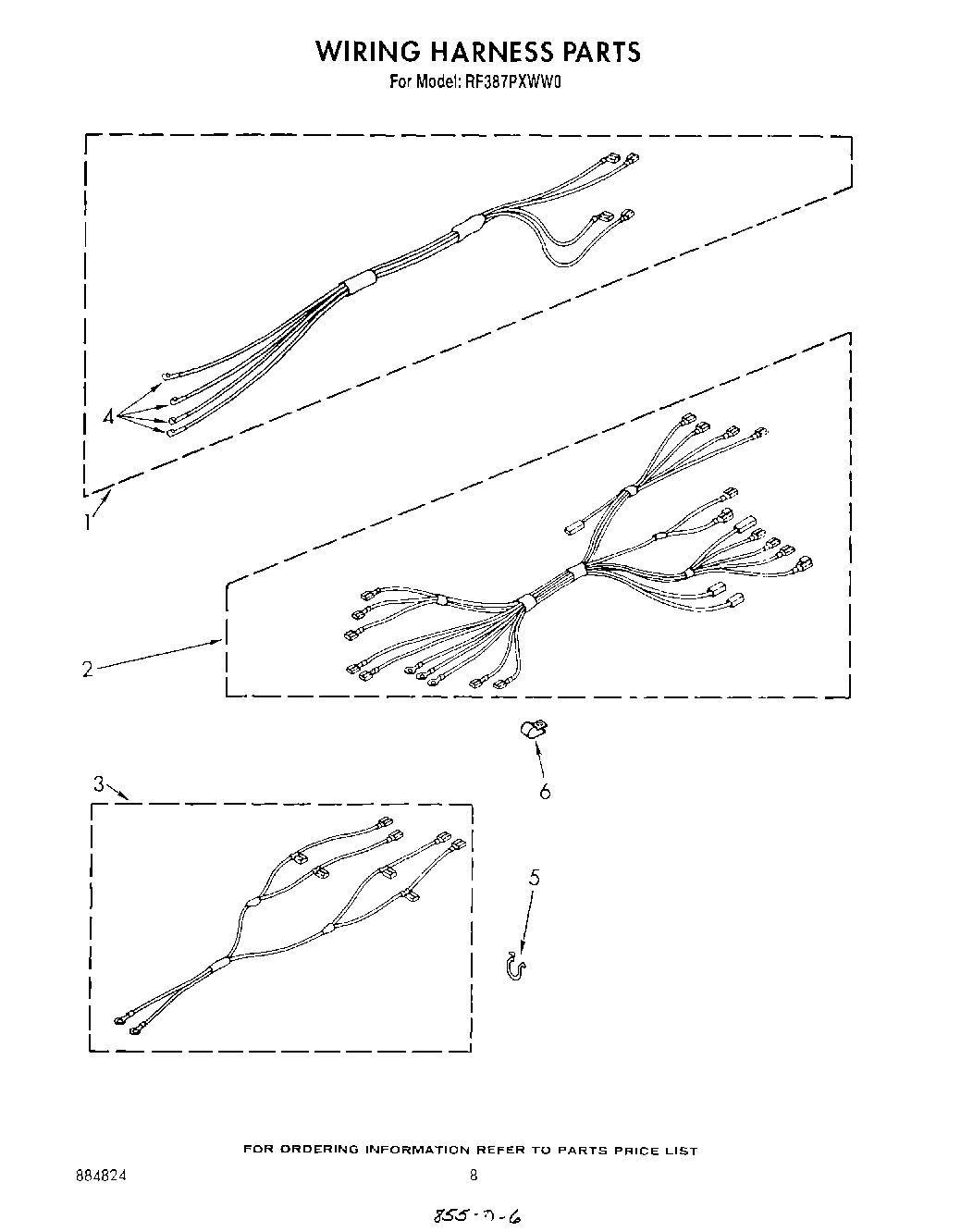

Model Whirlpool RF387PXWN0 – Common Parts &amp; Diagrams

WPL LIT313358 WPL LIT313358 Contact Us For Availability

WPL LIT3148614 WPL LIT3148614 Contact Us For Availability

WPL LIT3149507 WPL LIT3149507 Contact Us For Availability

WPL LIT3149775 WPL LIT3149775 Contact Us For Availability

WPL LIT3149918 WPL LIT3149918 Contact Us For Availability

WPL LIT884824 WPL LIT884824 Contact Us For Availability

Screw, 10-12 x 7/8 (2) WPL 308043 Contact Us For Availability

1

Screw (2) WPL 3149333 Contact Us For Availability

1

Liner, Door WPL 3170706 Contact Us For Availability

1

Latch Assembly (Pyro) WPL 3171149 Contact Us For Availability

1

Bracket, Mounting (2) WPL 307981 Contact Us For Availability

1

Harness, Wire (Suface Units) WPL 3147129 Contact Us For Availability

1

Main Chassis (Scr, 10-24X1/2) WPL 247326 Contact Us For Availability

1

Main Chassis (White) WPL 330086 Contact Us For Availability

1

Main Chassis (Almond) WPL 330090 Contact Us For Availability

2

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

2

Safety Switch WPL 3148725 Contact Us For Availability

2

Screw (2) WPL 98106 Contact Us For Availability

2

Rail R.H. (Includes Illus. 3) WPL 3149255 Contact Us For Availability

2

Rail L.H. (Includes Illus. 3) WPL 3149256 Contact Us For Availability

2

Harness, Wire (Oven) WPL 3148722 Contact Us For Availability

3

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

3

Seal, Foam WPL 3148441 Contact Us For Availability

3

Insulator, Switch WPL 309245 Contact Us For Availability

3

Glide, Front (2) WPL 3149257 Contact Us For Availability

3

Harness, Wire (Oven Light) WPL 313154 Contact Us For Availability

3

Harness, Wire (Lock Switch) WPL 3148700 Contact Us For Availability

4

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $24.28

4

WP313808 Whirlpool Screw In Stock WPL WP313808 $2.51

4

Screw, 6 x 3/8B (2) WPL 309258 Contact Us For Availability

4

Glass, Reflective WPL 3148178 Contact Us For Availability

4

Shield, Latch Terminal WPL 313035 Contact Us For Availability

4

Terminal WPL 3147138 Contact Us For Availability

4

Frame, Front WPL 3170856 Contact Us For Availability

5

16515 Whirlpool Clip Backorder WPL 16515 $11.62

5

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

5

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $63.02

5

Seal, Window WPL 3148183 Contact Us For Availability

5

Screw, 10-24 x 1/2 (2) WPL 308422 Contact Us For Availability

5

Handle, Latch WPL 3147065 Contact Us For Availability

5

Screw, 10-32 x 1/2 (2) WPL 312318 Contact Us For Availability

5

Pin, Hinge WPL 307985 Contact Us For Availability

6

488946 Whirlpool Air Conditioner Clamp Backorder WPL 488946 $10.25

6

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

6

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

6

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

6

Knob, Latch WPL 3148684 Contact Us For Availability

6

Retianer, Insulation WPL 3148159 Contact Us For Availability

6

Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability

6

Seal, Door WPL 3148284 Contact Us For Availability

7

WP3169203 Whirlpool Door Glass Backorder WPL WP3169203 $58.10

7

Pin, Top (2) WPL 307966 Contact Us For Availability

7

Ground Strap WPL 308498 Contact Us For Availability

7

Clip WPL 313660 Contact Us For Availability

7

Pushnut WPL 308306 Contact Us For Availability

8

Retainer, Glass (2) WPL 3148187 Contact Us For Availability

8

Bracket, Service WPL 307970 Contact Us For Availability

8

Hinge (R.H.) WPL 327890 Contact Us For Availability

8

Hinge (L.H.) WPL 327891 Contact Us For Availability

9

Bumper (4) WPL 3148182 Contact Us For Availability

9

Screw (3) WPL 311056 Contact Us For Availability

9

Oven (30`` Pyro) WPL 329002 Contact Us For Availability

Glass, Panel WPL 3148185 Contact Us For Availability

Cover, Rear WPL 3148975 Contact Us For Availability

Socket, Lamp (Alt.) WPL 307856 Contact Us For Availability

Socket, Lamp (Alt.) WPL 310208 Contact Us For Availability

Socket, Lamp WPL 660556 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

Knob, Bit Generator WPL 313523 Contact Us For Availability

Foil, Door WPL 3148184 Contact Us For Availability

Bracket, Top (2) WPL 307965 Contact Us For Availability

Cover, Service WPL 307972 Contact Us For Availability

12

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.51

12

Handle, Door WPL 3148228 Contact Us For Availability

12

Cover, Light WPL 308039 Contact Us For Availability

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

Cooktop (White) WPL 3171372 Contact Us For Availability

Cooktop (Almond) WPL 3171373 Contact Us For Availability

Retainer, Light WPL 308038 Contact Us For Availability

14

Trim, Panel WPL 3148223 Contact Us For Availability

14

Rack, Oven (Straight) WPL 308173 Contact Us For Availability

14

Plug Button WPL 257314 Contact Us For Availability

15

Clip, Mtg (2) WPL 3148282 Contact Us For Availability

15

Rack, Oven (Offset) WPL 308172 Contact Us For Availability

15

Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

Switch, Infinite (8`` Unit (2)) WPL 3148947 Contact Us For Availability

Screw, 8-18 x 5/16 (6) WPL 3148443 Contact Us For Availability

Frame, Glass WPL 3148234 Contact Us For Availability

Screw (2) WPL 307748 Contact Us For Availability

Plate, Cover (2) WPL 311982 Contact Us For Availability

Vent, Oven WPL 3148906 Contact Us For Availability

17

Senor, Hycal WPL 3148440 Contact Us For Availability

18

340184 Whirlpool Screw Backorder WPL 340184 $9.59

WP3147131 Whirlpool Surface Element In Stock WPL WP3147131 $104.26

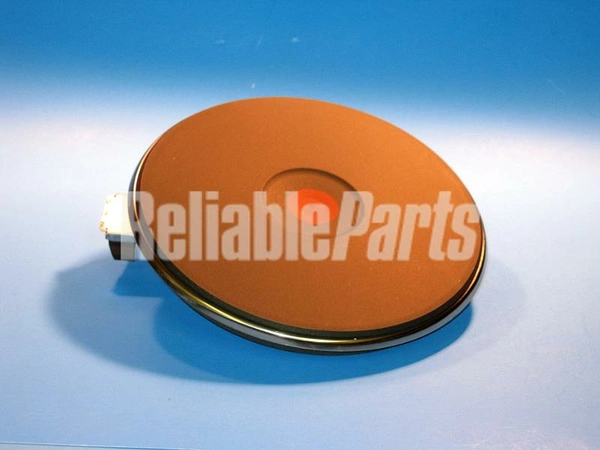

WP3147132 Whirlpool Surface Element Backorder WPL WP3147132 $123.53

Frame, Glass Panel WPL 3148235 Contact Us For Availability

Channel, Arm (2) WPL 329710 Contact Us For Availability

20

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

20

Glide, Rear (2) WPL 307980 Contact Us For Availability

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

Panel Drawer (White) WPL 307935 Contact Us For Availability

Panel, Drawer (Almond) WPL 307939 Contact Us For Availability

Ring, Retainer (2) WPL 307594 Contact Us For Availability

WP308126 Whirlpool Door Spring In Stock WPL WP308126 $12.59

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Support, Bottom WPL 313482 Contact Us For Availability

Handle, Drawer WPL 313337 Contact Us For Availability

23

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

23

Drawer, Utility WPL 327887 Contact Us For Availability

23

Support, Cooktop WPL 3149261 Contact Us For Availability

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

Pad, Sound WPL 302340 Contact Us For Availability

Bracket, Mounting 6`` Surface Unit (2) WPL 3147703 Contact Us For Availability

Support, L.H. Channel WPL 313196 Contact Us For Availability

Support, R.H. Channel WPL 313197 Contact Us For Availability

25

Switch, Door WPL 310345 Contact Us For Availability

25

Bracket, Mounting 8`` Surface Unit (2) WPL 3147704 Contact Us For Availability

26

Spring, Leaf (4) WPL 3147191 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $35.69

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Rotisserie Kit (RCK 81) WPL 242985 Contact Us For Availability

WPL 261582 WPL 261582 Contact Us For Availability

WPL 261886 WPL 261886 Contact Us For Availability

WPL 261887 WPL 261887 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261889 WPL 261889 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 309329 WPL 309329 Contact Us For Availability

WPL 3147861 WPL 3147861 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Nut, Metric (4) WPL 3147189 Contact Us For Availability

28

Clip-Wire (5) WPL 311311 Contact Us For Availability

29

Snubber, Door (2) WPL 309111 Contact Us For Availability

Cover, Vent (Clip, Mtg. (2)) WPL 3149190 Contact Us For Availability

Cover, Vent (White) WPL 3149011 Contact Us For Availability

cover, vent (almond) WPL 3149012 Contact Us For Availability

Eliminator, Smoke WPL 3147241 Contact Us For Availability

31

Switch, Lock WPL 3148669 Contact Us For Availability

31

Box, Vent WPL 3147076 Contact Us For Availability

32

Insulator, Switch WPL 3147864 Contact Us For Availability

32

Screw, 10A x 3/8 (2) WPL 254217 Contact Us For Availability

32

Support, Chassis (2) WPL 3147646 Contact Us For Availability

33

Shield, Box WPL 3149006 Contact Us For Availability

33

Screw (2) WPL 98520 Contact Us For Availability

34

Box, Vent WPL 3171381 Contact Us For Availability

40

Grommet (4) WPL 3148605 Contact Us For Availability

41

Block, Concrete WPL 312804 Contact Us For Availability

42

8273888A Whirlpool Range Oven Anchor Anti-Tip In Stock WPL 8273888A $11.14

42

Insulation WPL 310433 Contact Us For Availability

42

Screw (4) WPL 3148604 Contact Us For Availability
