Model Whirlpool RF386PXGZ2 COOKTOP – Common Parts &amp; Diagrams

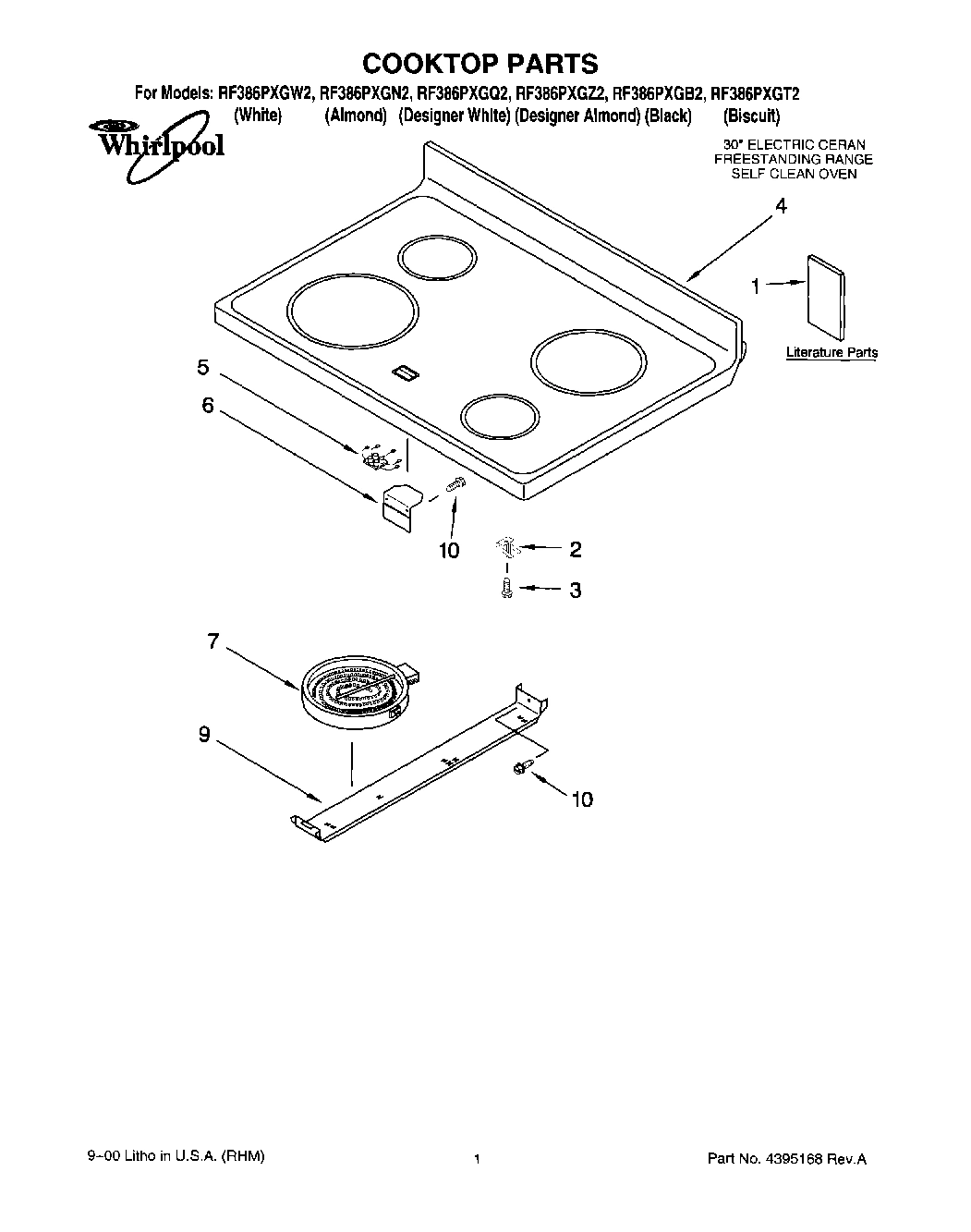

1

WPW10256908 Whirlpool Oven Range Rack In Stock WPL WPW10256908 $63.53

1

Safer Cooking Tips WPL LIT3191638 Contact Us For Availability

1

Literature Parts (Installation Instr (Templat WPL LIT3195945 Contact Us For Availability

1

Literature Parts (Tech Sheet) WPL LIT8053302 Contact Us For Availability

1

Literature Parts (Guide, Use & Care) WPL LIT8053401 Contact Us For Availability

1

Literature Parts (Instructions, Installation) WPL LIT8053714 Contact Us For Availability

1

Trim, Door Top (Black) WPL 3196819 Contact Us For Availability

1

Trim, Door Top (Almond) WPL 3196820 Contact Us For Availability

1

Trim, Door Top (Biscuit) WPL 8272494 Contact Us For Availability

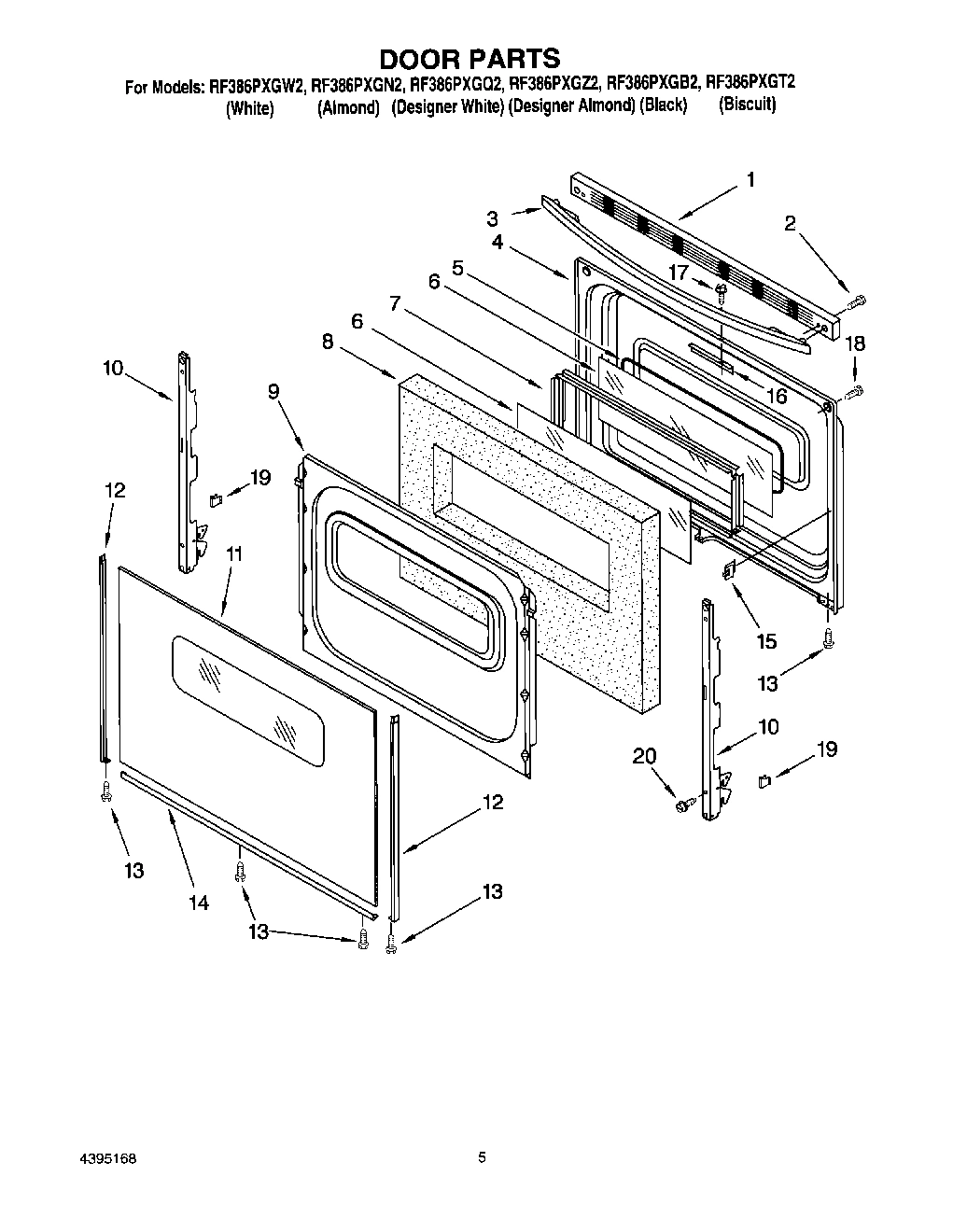

2

WP3195996 Whirlpool Pan Grid Backorder WPL WP3195996 $44.05

2

WP3196164 Whirlpool Screw In Stock WPL WP3196164 $2.64

2

Spring, Locator WPL 3149191 Contact Us For Availability

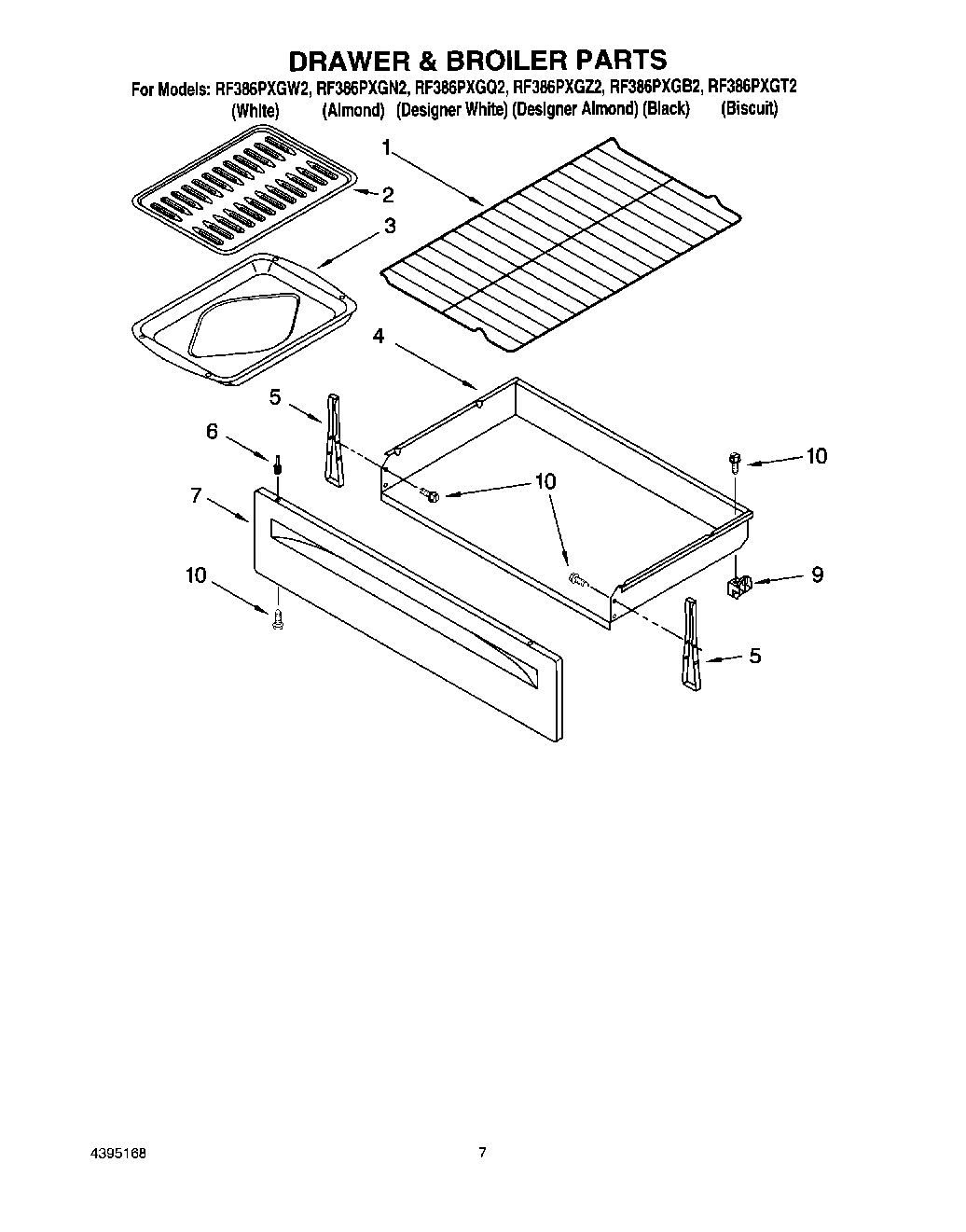

3

WP3196076 Whirlpool Broil Pan Backorder WPL WP3196076 $176.34

3

WP3196170 Whirlpool Screw Backorder WPL WP3196170 $2.51

3

WPW10202216 Whirlpool Door Handle In Stock WPL WPW10202216 $130.22

3

WPW10202217 Whirlpool Door Handle In Stock WPL WPW10202217 $106.30

3

Handle, Door (Almond) WPL 3195921 Contact Us For Availability

3

Handle, Door (Biscuit) WPL 8272495 Contact Us For Availability

4

WP3148952 Whirlpool Range Infinite Switch In Stock WPL WP3148952 $33.53

4

Cooktop (White/Black Glass) WPL 8053541 Contact Us For Availability

4

Cooktop (Almond/Black Glass) WPL 8053542 Contact Us For Availability

4

Cooktop (White/White Glass) WPL 8053543 Contact Us For Availability

4

Cooktop (Almond/Alm Glass) WPL 8053544 Contact Us For Availability

4

Cooktop (Black/Black Glass) WPL 8053545 Contact Us For Availability

4

Cooktop (Biscuit) WPL 8272513 Contact Us For Availability

4

Liner, Door WPL 3186296 Contact Us For Availability

4

Drawer, Storage WPL 8272605 Contact Us For Availability

5

8522415 Whirlpool Range Wind Gasket Backorder WPL 8522415 $30.25

5

W10838990 Whirlpool Mounting Bracket Backorder WPL W10838990 $33.25

5

Light, Indicator (Hot Surface) WPL 8273334 Contact Us For Availability

6

3196815 Whirlpool Range Rivet Backorder WPL 3196815 $9.59

6

WP3196068 Whirlpool Light Lens In Stock WPL WP3196068 $3.00

6

WP3196813 Whirlpool Rivet Backorder WPL WP3196813 $4.43

6

WP3196814 Whirlpool Rivet Backorder WPL WP3196814 $4.43

6

WP9758164 Whirlpool Door Glass Backorder WPL WP9758164 $60.83

6

Bracket, Ind Light WPL 3195810 Contact Us For Availability

7

W10823696 Whirlpool Radiant Surface Element In Stock WPL W10823696 $106.95

7

W10823698 Whirlpool Surface Element Right Rea In Stock WPL W10823698 $120.30

7

W10823711 Whirlpool Surface Element Left Fron In Stock WPL W10823711 $100.91

7

W11219377 Whirlpool Drawer Panel Backorder WPL W11219377 $74.54

7

W11230476 Whirlpool Drawer Panel Backorder WPL W11230476 $74.54

7

W11230488 Whirlpool Drawer Panel Backorder WPL W11230488 $74.54

7

WP3196231 Whirlpool Knob In Stock WPL WP3196231 $25.94

7

Knob, Infinite (4) (White) WPL 3196232 Contact Us For Availability

7

Knob, Infinite (4) (Almond) WPL 3196233 Contact Us For Availability

7

Frame, Glass WPL 3186290 Contact Us For Availability

7

Panel, Drawer Front (Almond) WPL 8053340 Contact Us For Availability

8

WPW10278991 Whirlpool Insulation Backorder WPL WPW10278991 $42.51

9

9761499 Whirlpool Range Retainer Backorder WPL 9761499 $123.51

9

WP8053334 Whirlpool Drawer Glide In Stock WPL WP8053334 $3.88

9

Screw WPL 4449746 Contact Us For Availability

9

Bracket, Element WPL 3196455 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $249.73

285006 Whirlpool Spray In Stock WPL 285006 $28.82

3184020 Whirlpool Oven Wire Backorder WPL 3184020 $30.25

3196696 Whirlpool Clip In Stock WPL 3196696 $6.61

3400964 Whirlpool Range Clip Backorder WPL 3400964 $34.20

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

814381 Whirlpool Pin In Stock WPL 814381 $3.70

8212471 Whirlpool Oven Paint Backorder WPL 8212471 $35.69

8273888A Whirlpool Range Oven Anchor Anti-Tip In Stock WPL 8273888A $11.69

Cleaner, Glass WPL W10355051 No Longer Available

WP3196154 Whirlpool Screw Assembly Backorder WPL WP3196154 $2.51

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $3.93

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WP8053807 Whirlpool Range Door Hinge In Stock WPL WP8053807 $49.45

WP8272473 Whirlpool Rear Cover Backorder WPL WP8272473 $117.64

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $30.25

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

Clip, Ground Wire WPL 313660 Contact Us For Availability

WPL 4392900 WPL 4392900 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 8272999 WPL 8272999 Contact Us For Availability

WPL 8273266 WPL 8273266 Contact Us For Availability

WPL 8273328 WPL 8273328 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WP9762476 Whirlpool Door Glass Backorder WPL WP9762476 $125.53

WP9762477 Whirlpool Glass Door Backorder WPL WP9762477 $130.31

Glass, Outer Door (Almond) WPL 8053483 Contact Us For Availability

Glass, Outer Door (Biscuit) WPL 8273525 Contact Us For Availability

12

WP3196262 Whirlpool Light Switch Backorder WPL WP3196262 $61.59

13

W10491985 Whirlpool Screw Backorder WPL W10491985 $2.51

13

WP3195546 Whirlpool Drawer Glide In Stock WPL WP3195546 $3.70

8184858 Whirlpool Door Trim Backorder WPL 8184858 $64.54

8184859 Whirlpool Range Oven Door Trim Kit (2 In Stock WPL 8184859 $50.93

8184860 Whirlpool Range Door Trim Backorder WPL 8184860 $58.01

WP3196037 Whirlpool Leveling Foot In Stock WPL WP3196037 $27.82

15

Clip, Glass (6) WPL 3196025 Contact Us For Availability

16

WP3400882 Whirlpool Screw In Stock WPL WP3400882 $2.64

16

WP8054068 Whirlpool Retainer Backorder WPL WP8054068 $30.25

16

Bracket, Latch WPL 3195914 Contact Us For Availability

17

Clip, Panel (6) WPL 3196576 Contact Us For Availability

18

WP179051 Whirlpool Screw Backorder WPL WP179051 $2.64

18

WPW10306546 Whirlpool Base Rail Backorder WPL WPW10306546 $53.16

19

WP3196925 Whirlpool Clip Assembly Backorder WPL WP3196925 $5.16

19

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

20

Shield, Outer (2) WPL 3196091 Contact Us For Availability

21

Shield, Inner (2) WPL 3196092 Contact Us For Availability

22

Retainer, Side (2) WPL 3195717 Contact Us For Availability

23

WP8273340 Whirlpool Sensor Backorder WPL WP8273340 $108.44

24

Support, Front (2) WPL 3195736 Contact Us For Availability

25

Support, Corner RR WPL 3195987 Contact Us For Availability

26

WP3196548 Whirlpool Thermal Fuse In Stock WPL WP3196548 $16.20

28

W10404688 Whirlpool Bracket Support Backorder WPL W10404688 $7.69

29

W11728255 Whirlpool Service Bracket Backorder WPL W11728255 $30.10

30

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

30

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.98

31

Back, Main WPL 8272922 Contact Us For Availability

32

Bracket, Flue WPL 3196437 Contact Us For Availability

33

WPW10134285 Whirlpool Vent Tube Backorder WPL WPW10134285 $177.61

34

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $36.67

35

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

37

Strap, Ground WPL 3169573 Contact Us For Availability

38

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.51

41

WP3196174 Whirlpool Screw Backorder WPL WP3196174 $2.51

42

Screw WPL 3196179 Contact Us For Availability

43

WP7101P246-60 Whirlpool Screw Backorder WPL WP7101P246-60 $2.51

44

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

45

3196172 Whirlpool Oven Screw Backorder WPL 3196172 $9.59

46

WP3400016 Whirlpool Screw Assembly Backorder WPL WP3400016 $2.51

47

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

48

W11244557 Whirlpool Screw Backorder WPL W11244557 $9.59

49

8053915 Whirlpool Range Insulation Backorder WPL 8053915 $7.59

49

W11311894 Whirlpool Insulation Backorder WPL W11311894 $39.03
