Model Whirlpool RF380LXPT0 30`` ELECTRIC CERAN FREESTANDING RANGE SELF CLEAN – Common Parts & Diagrams

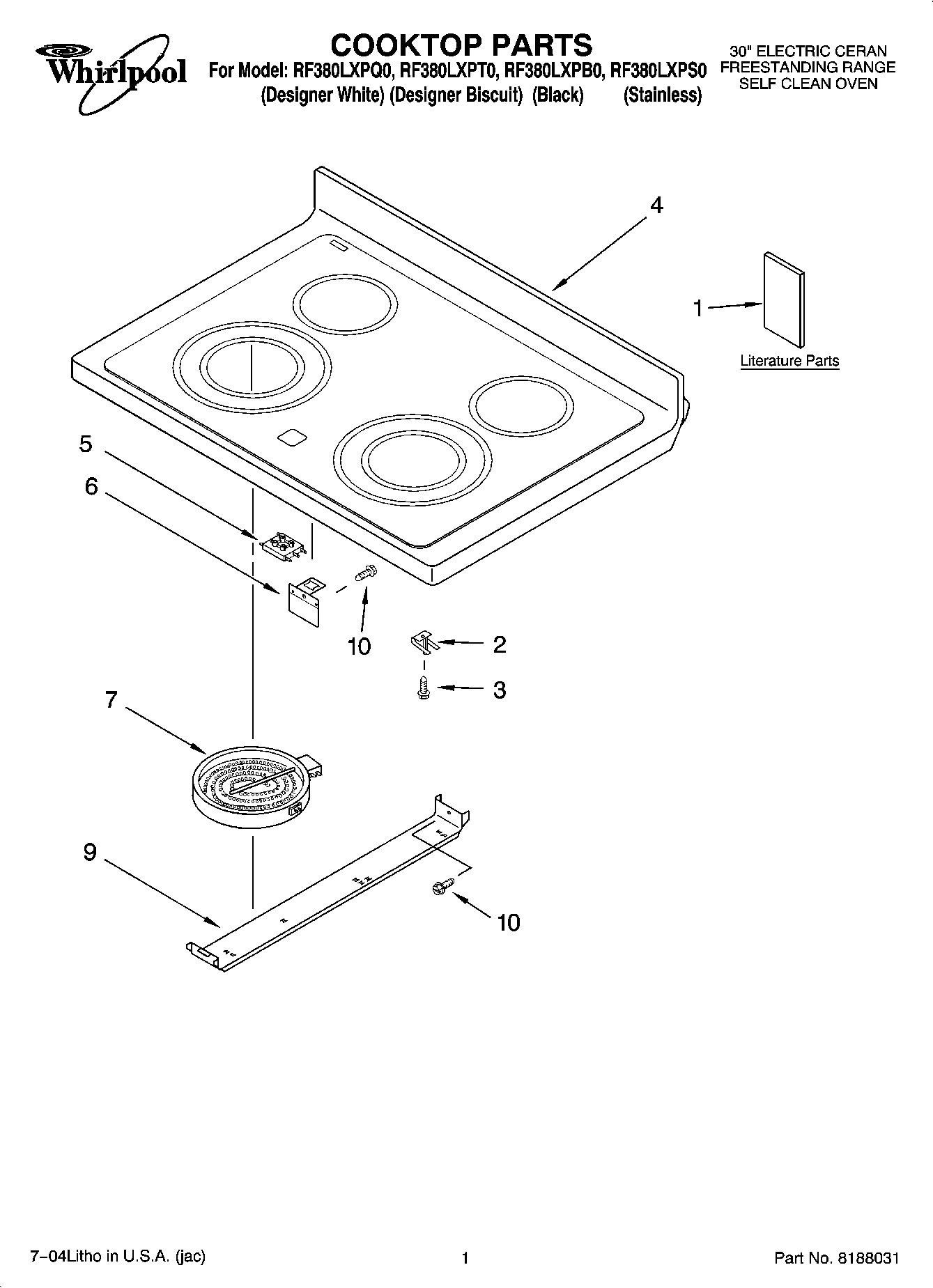

01 - COOKTOP PARTS

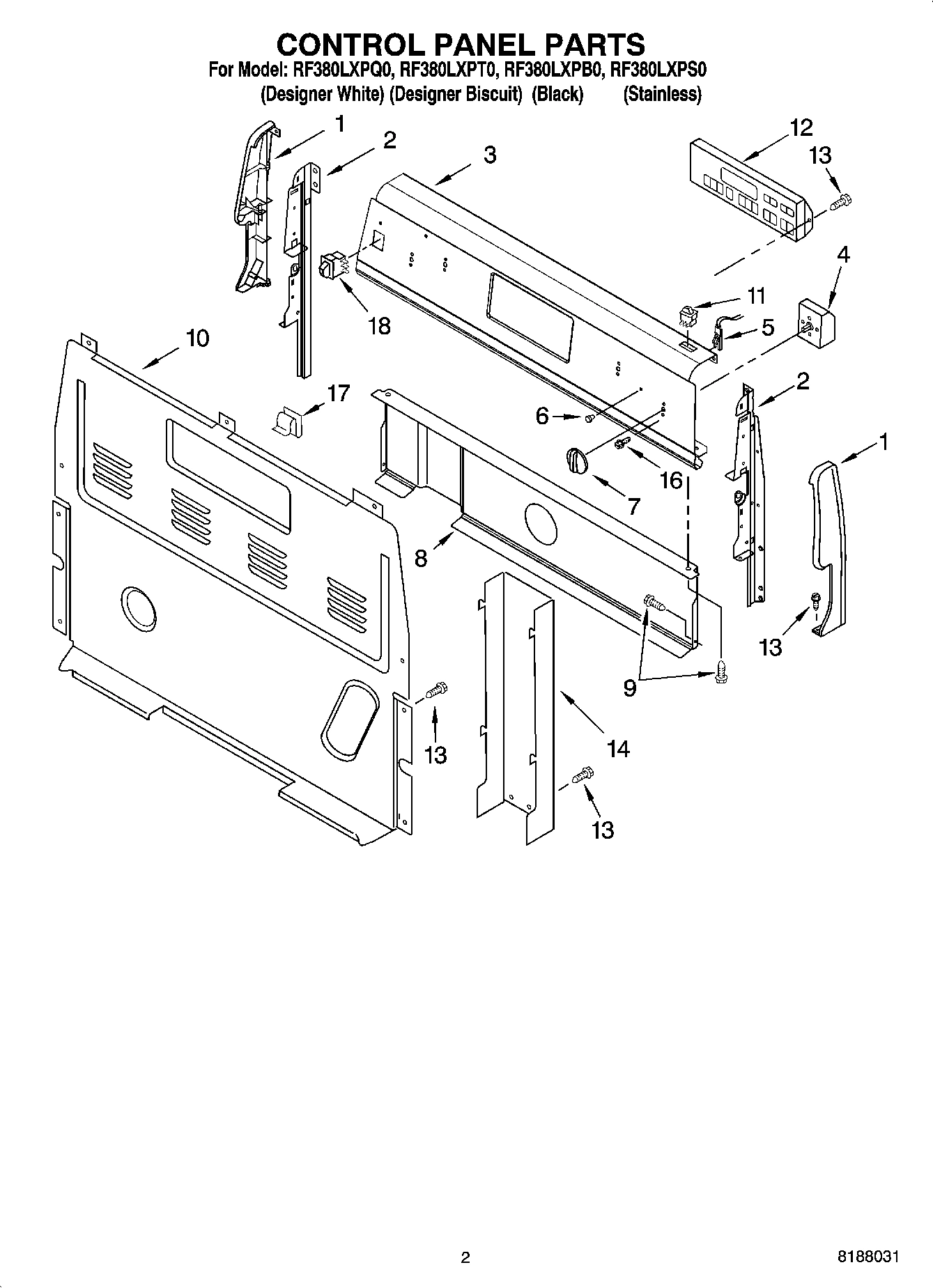

02 - CONTROL PANEL PARTS
04 - DOOR PARTS
03 - CHASSIS PARTS
05 - DRAWER & BROILER PARTS, OPTIONAL PARTS
Common parts from model Whirlpool RF380LXPT0 30`` ELECTRIC CERAN FREESTANDING RANGE SELF CLEAN
PAINT, PRESSURIZE WPL 350930 Contact Us For Availability
WPL 4392899 WPL 4392899 Contact Us For Availability
PAINT, PRESSURIZED SPRAY 12 OZ.) (SUPERIOR BL WPL 285006 Contact Us For Availability
WPL 4392901 WPL 4392901 Contact Us For Availability
WPL 511873 WPL 511873 Contact Us For Availability
WPL 814381 WPL 814381 Contact Us For Availability
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
WPL 799344 WPL 799344 Contact Us For Availability
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
Wire (14 Ga. 200 c Red) WPL 242831 Contact Us For Availability
Grease WPL 261582 Contact Us For Availability
Clip, Ground Wire WPL 313660 Contact Us For Availability
Clip, Wire Harness WPL 3196696 Contact Us For Availability
WPL 4392900 WPL 4392900 Contact Us For Availability
WPL 799832 WPL 799832 Contact Us For Availability
WPL 8316781 WPL 8316781 Contact Us For Availability
WPL 8523718 WPL 8523718 Contact Us For Availability
WPL 8524132 WPL 8524132 Contact Us For Availability
WPL 9757584 WPL 9757584 Contact Us For Availability
WPL 9759003 WPL 9759003 Contact Us For Availability
WPL 9759774 WPL 9759774 Contact Us For Availability
WPL 9759775 WPL 9759775 Contact Us For Availability
WPL ARI161918A WPL ARI161918A Contact Us For Availability
WPL ARI161919A WPL ARI161919A Contact Us For Availability
WPL ARI161920A WPL ARI161920A Contact Us For Availability
WPL ARI161921A WPL ARI161921A Contact Us For Availability
WPL ARI161922A WPL ARI161922A Contact Us For Availability
WPL ARI161923A WPL ARI161923A Contact Us For Availability
WPL ARI161924A WPL ARI161924A Contact Us For Availability
WPL ARI161925A WPL ARI161925A Contact Us For Availability
1
Trim, Door Top (Black) WPL 3196819 Contact Us For Availability
1
Trim, Door Top (Black (S. Model)) WPL 8272243 Contact Us For Availability
1
Trim, Door Top (Biscuit) WPL 8522434 Contact Us For Availability
2
Spring, Locator WPL 3149191 Contact Us For Availability
2
Support, Endcap (Left Hand) WPL 8523408 Contact Us For Availability
2
Support, Endcap (Right Hand) WPL 8523409 Contact Us For Availability
2
Support, Corner LR WPL 8273905 Contact Us For Availability
3
Panel, Backguard (White) WPL 9759847 Contact Us For Availability
3
Panel, Backguard (Biscuit) WPL 9759848 Contact Us For Availability
3
Panel, Backguard (Black) WPL 9759849 Contact Us For Availability
3
Panel, Backguard (Stainless) WPL 9759850 Contact Us For Availability
3
Handle, Door (Biscuit) WPL 8522445 Contact Us For Availability
4
Liner, Door WPL 3186292 Contact Us For Availability
4
Drawer, Storage WPL 8272605 Contact Us For Availability
5
Seal, Window WPL 8522414 Contact Us For Availability
5
Light, Indicator (Hot Surface) WPL 8523739 Contact Us For Availability
5
Rod, Latch WPL 3196961 Contact Us For Availability
6
Rivet, Push (2) (Biscuit) WPL 3196815 Contact Us For Availability
7
Knob, Infinite (4) (Biscuit) WPL 8522567 Contact Us For Availability
7
Seal, Oven Flange WPL 3195737 Contact Us For Availability
8
Shield, Heat WPL 8523280 Contact Us For Availability
9
Screw WPL 4449746 Contact Us For Availability
9
Rail, Drawer (2) (Left) WPL 8274190 Contact Us For Availability
9
Rail, Drawer (2) (Right) WPL 8274191 Contact Us For Availability
10
Hinge, Door (2) (S Model) WPL 8272822 Contact Us For Availability
11
Switch, Rocker (White) WPL 3149360 Contact Us For Availability
11
Switch, Rocker (Biscuit) WPL 8273501 Contact Us For Availability
11
Glass, Outer Door (Biscuit) WPL 9756416 Contact Us For Availability
11
Glass, Outer Door (Stainless) WPL 9756435 Contact Us For Availability
11
Spacer, Glide WPL 8522669 Contact Us For Availability
12
Control, Range (Biscuit) WPL 6610399 Contact Us For Availability
12
Liner, Drawer WPL 8272311 Contact Us For Availability
15
Clip, Glass (4) WPL 3196025 Contact Us For Availability
15
Frame, Front (Non-Serviceable) WPL ARI161916A Contact Us For Availability
17
Clip, Panel (6) WPL 3196576 Contact Us For Availability
17
Panel, Stainless WPL 9755798 Contact Us For Availability
18
Switch, Accusimmer (Black) WPL 8524090 Contact Us For Availability
18
Switch, Accusimmer (White) WPL 8523557 Contact Us For Availability
18
Switch, Accusimmer (Biscuit) WPL 8523558 Contact Us For Availability
18
Handle, Stls Drawer WPL 9757237 Contact Us For Availability
20
Shield, Outer (2) WPL 3196091 Contact Us For Availability
21
Shield, Inner (2) WPL 3196092 Contact Us For Availability
22
Retainer, Side (2) WPL 8523803 Contact Us For Availability
24
Support, Front (2) WPL 3195736 Contact Us For Availability
25
Support, Corner RR WPL 3195987 Contact Us For Availability
31
Back, Main WPL 8274034 Contact Us For Availability
36
Button, Plug WPL 3196439 Contact Us For Availability
42
Screw WPL 3196179 Contact Us For Availability
45
Screw WPL 3196172 Contact Us For Availability
49
Insulation WPL ARI161917A Contact Us For Availability
× ![]()
