Model Whirlpool RF366PXYN2 – Common Parts & Diagrams
04 - OVEN
05 - WIRING HARNESS, LIT/OPTIONAL

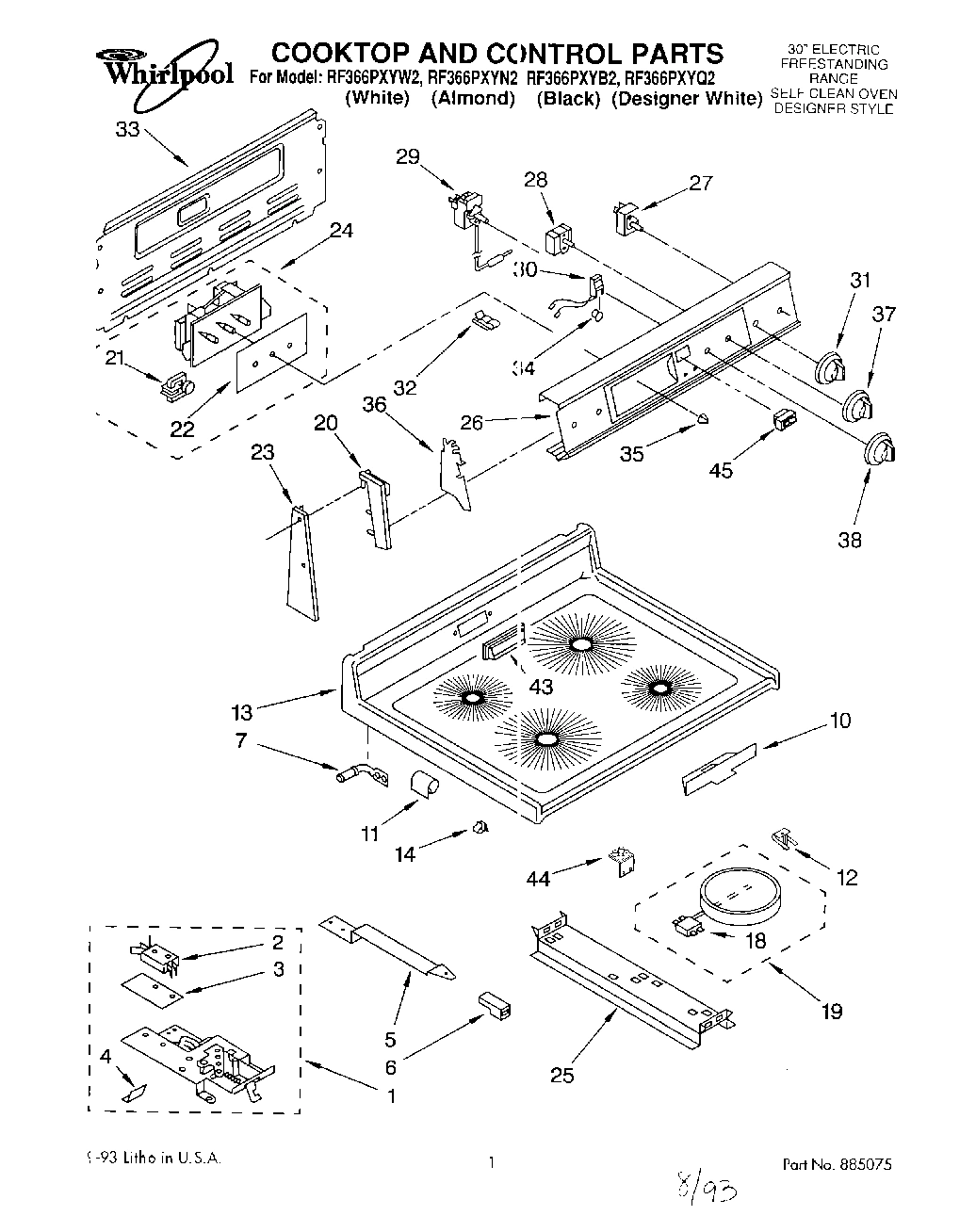

01 - COOKTOP AND CONTROL

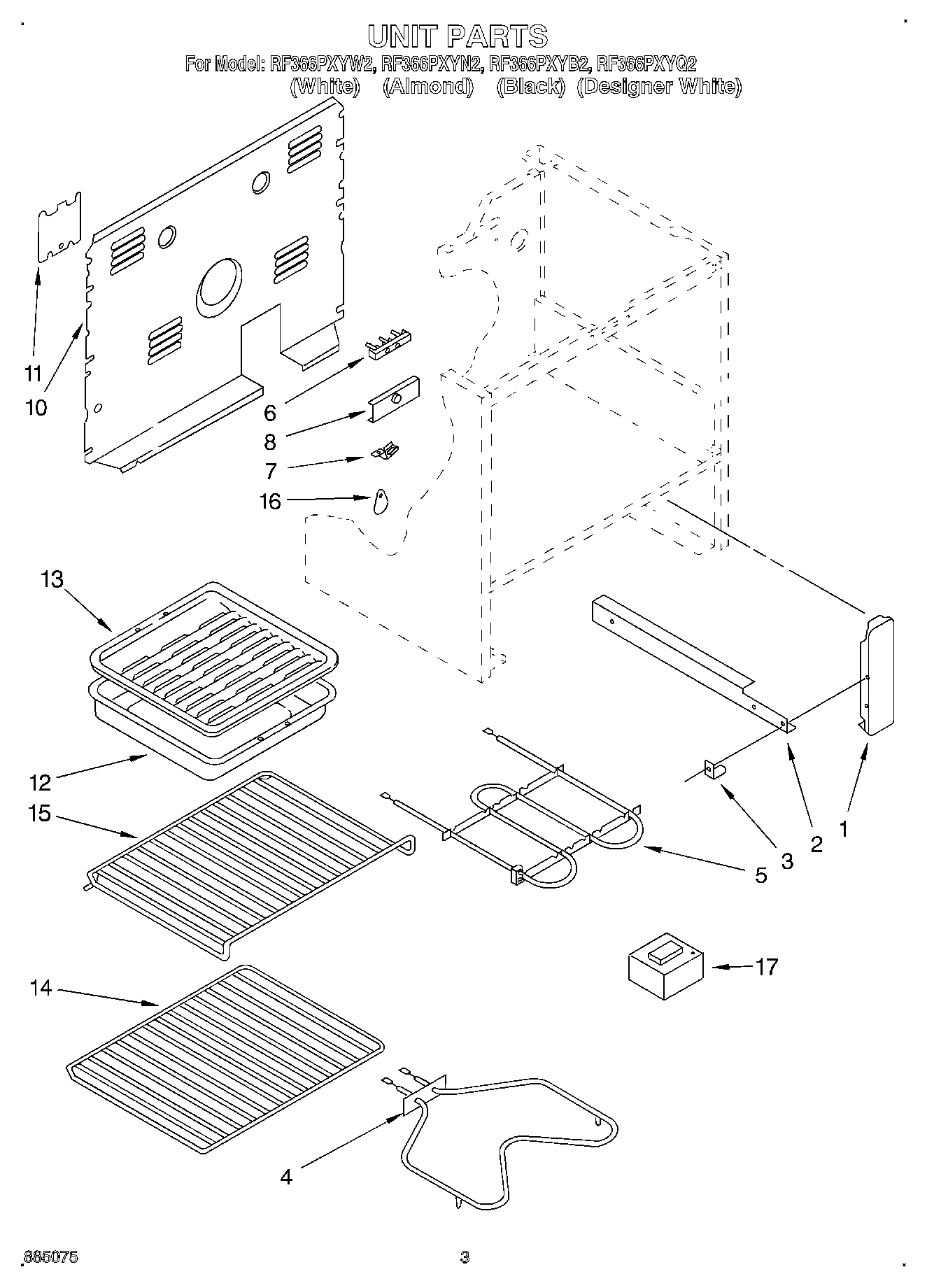

02 - UNIT

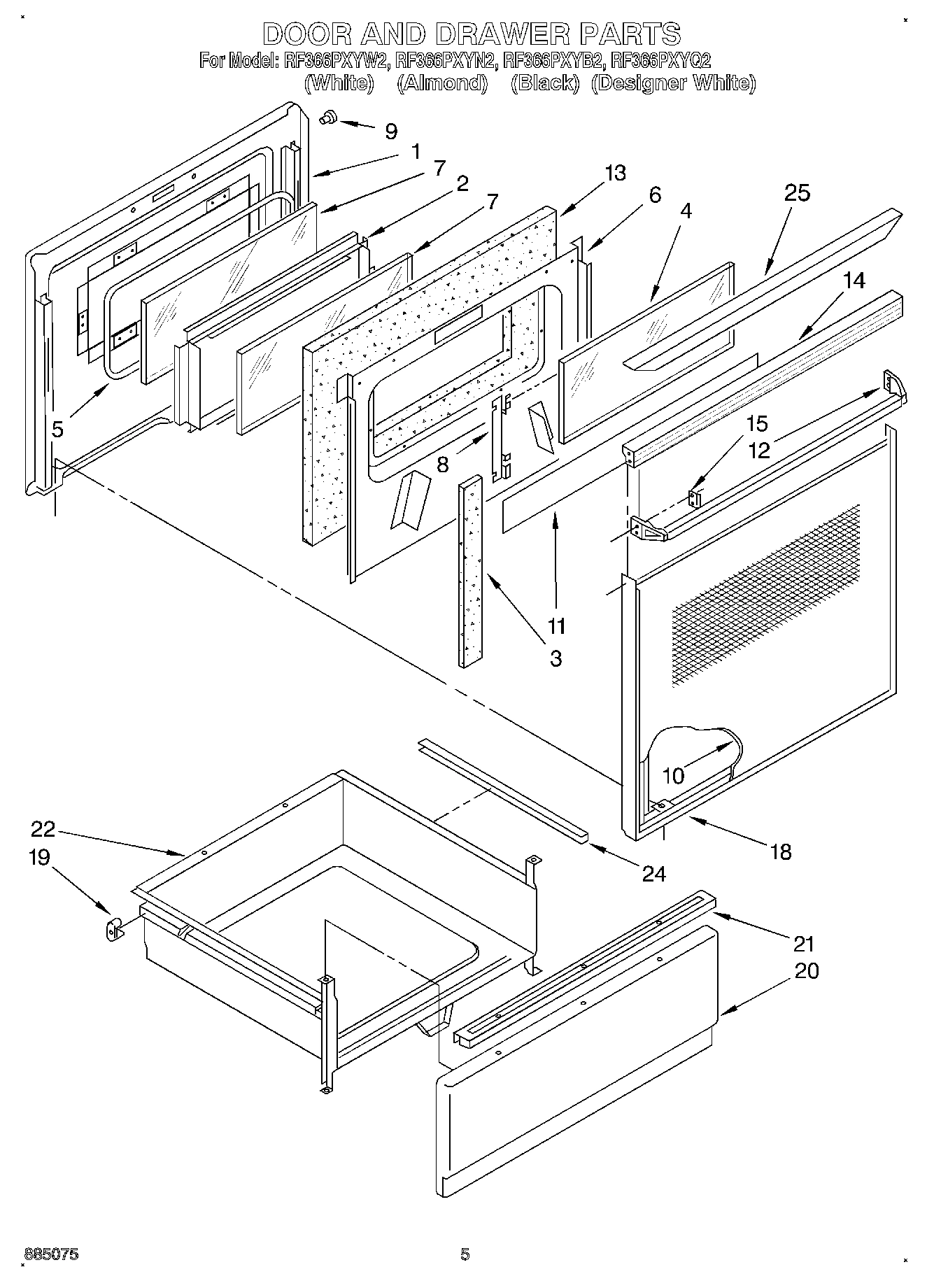

03 - DOOR AND DRAWER
Common parts from model Whirlpool RF366PXYN2
WPL LIT3182687 WPL LIT3182687 Contact Us For Availability
WPL LIT3187321 WPL LIT3187321 Contact Us For Availability
WPL LIT3187477 WPL LIT3187477 Contact Us For Availability
WPL LIT677973 WPL LIT677973 Contact Us For Availability
1
Harness, Wire (Surface Unit) WPL 3169104 Contact Us For Availability
1
Latch Assembly WPL 3171153 Contact Us For Availability
1
Bracket, Mounting (2) WPL 307981 Contact Us For Availability
1
Liner, Door WPL 3172218 Contact Us For Availability
2
Harness, Wire (Oven) WPL 3169150 Contact Us For Availability
2
Safety Switch WPL 308185 Contact Us For Availability
2
Screw (2) WPL 98106 Contact Us For Availability
2
Rail R.H. WPL 3149255 Contact Us For Availability
2
Rail L.H. (Includes Illus. 3) WPL 3149256 Contact Us For Availability
2
Frame, Glass WPL 3148234 Contact Us For Availability
3
Insulator, Switch WPL 309245 Contact Us For Availability
3
Glide, Front (2) WPL 3149257 Contact Us For Availability
3
Seal, Foam WPL 3148441 Contact Us For Availability
4
Harness, Wiring (Oven Light) WPL 313152 Contact Us For Availability
4
Screw, 6 x 3/8B (2) WPL 309258 Contact Us For Availability
4
Shield, Latch Terminal WPL 313035 Contact Us For Availability
4
Glass, Clear WPL 3169202 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
Harness, Wire (Lock Switch) WPL 3169012 Contact Us For Availability
5
Handle, Latch (Screw, 10-24 x 1/2 (2)) WPL 308422 Contact Us For Availability
5
Handle, Latch (Designer White) WPL 3150175 Contact Us For Availability
5
Handle, Latch (Black) WPL 3169081 Contact Us For Availability
6
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
6
WPL 799344 WPL 799344 Contact Us For Availability
6
Latch Knob (Black) WPL 3148684 Contact Us For Availability
6
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
6
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
6
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
6
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
6
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
6
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
6
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
6
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
6
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
6
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
6
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
6
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
6
Grease WPL 261582 Contact Us For Availability
6
Coffee WPL 261886 Contact Us For Availability
6
Coffee (Uncut) WPL 261887 Contact Us For Availability
6
New Avocado WPL 261888 Contact Us For Availability
6
Harvest Gold WPL 261890 Contact Us For Availability
6
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
6
Toast WPL 285365 Contact Us For Availability
6
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
6
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
6
Platinum (Uncut) WPL 285368 Contact Us For Availability
6
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
6
WPL 72112 WPL 72112 Contact Us For Availability
6
WPL 799832 WPL 799832 Contact Us For Availability
6
WPL 978883 WPL 978883 Contact Us For Availability
6
Latch Knob (Designer White) WPL 3150174 Contact Us For Availability
6
Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability
6
Retainer, Insulation WPL 3148159 Contact Us For Availability
7
Pin, Top (2) WPL 307966 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
8
Bracket, Service WPL 3150190 Contact Us For Availability
8
Screw (4) WPL 3148443 Contact Us For Availability
8
Retainer, Glass (2) WPL 3148187 Contact Us For Availability
9
Bumper (4) WPL 3148182 Contact Us For Availability
10
Shield, Probe WPL 3169237 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
10
Glass, Door (Black) WPL 3148185 Contact Us For Availability
10
Glass, Door (White) WPL 3149049 Contact Us For Availability
11
Bracket, Top (2) WPL 307965 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
11
Foil WPL 3169191 Contact Us For Availability
12
Spring, Element (8) WPL 3149191 Contact Us For Availability
12
Handle, Door (Black) WPL 3148228 Contact Us For Availability
12
Handle, Door (Platinum) WPL 3149354 Contact Us For Availability
13
Cooktop (White) WPL 3176527 Contact Us For Availability
13
Cooktop (Almond) WPL 3176528 Contact Us For Availability
13
Cooktop (Black) WPL 3176529 Contact Us For Availability
13
Cooktop (Designer White) WPL 3176530 Contact Us For Availability
13
Insulation, Door WPL 3147951 Contact Us For Availability
14
Clip, Wire WPL 311311 Contact Us For Availability
14
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
14
Top, Door (Black) WPL 3148223 Contact Us For Availability
14
Top, Door (Panoramic Grey) WPL 3149355 Contact Us For Availability
15
Clip (2) WPL 3148282 Contact Us For Availability
15
Rack, Oven (Offset) WPL 308172 Contact Us For Availability
16
Screw, (2) 10-32 x .437 WPL 3150532 Contact Us For Availability
16
Plate, Cover (2) WPL 311982 Contact Us For Availability
17
Cleaner, Glass WPL W10355051 No Longer Available
17
Block, Balance WPL 3149258 Contact Us For Availability
17
Insulation, Wrapper WPL 3169093 Contact Us For Availability
17
Insulation, Oven BAck WPL 3169094 Contact Us For Availability
18
Limiter, Temp. (180 MM - LR) WPL 3149129 Contact Us For Availability
18
Limiter, Temp. (200 MM - RF) WPL 3183972 Contact Us For Availability
18
Limiter, Temp. (250 MM - LF) WPL 3183973 Contact Us For Availability
18
Limiter, Temp. (230 MM - RR) WPL 3183974 Contact Us For Availability
18
screw (3) WPL 307748 Contact Us For Availability
18
Frame, Glass WPL 3148235 Contact Us For Availability
19
Element, Surface (Includes No. 18) (180 MM - WPL 3183646 Contact Us For Availability
19
Element, Surface (Includes No. 18) (200 MM - WPL 3183647 Contact Us For Availability
19
Element, Surface (Includes No. 18) (230 MM - WPL 3183648 Contact Us For Availability
19
Element, Surface (Includes No. 18) (250 MM - WPL 3183649 Contact Us For Availability
19
Glide, Rear WPL 307980 Contact Us For Availability
20
End Cap R.H. WPL 313230 Contact Us For Availability
20
End Cap L.H. WPL 313231 Contact Us For Availability
20
Panel Drawer (White) WPL 307935 Contact Us For Availability
20
Panel, Drawer (Almond) WPL 307939 Contact Us For Availability
20
Panel Drawer (Black) WPL 309923 Contact Us For Availability
21
Handle, Drawer WPL 3169105 Contact Us For Availability
21
Motor, Timer WPL 309822 Contact Us For Availability
22
Glass, Timer WPL 313513 Contact Us For Availability
22
Drawer, Utility WPL 327887 Contact Us For Availability
23
Screw (4) WPL 254225 Contact Us For Availability
23
End Trim L.H. WPL 313190 Contact Us For Availability
23
End Trim R.H. WPL 313191 Contact Us For Availability
24
Timer, Clock (Designer White Mdl) WPL 3169272 Contact Us For Availability
24
Timer, Clock (Black with Chrome) WPL 661458 Contact Us For Availability
24
Protector, Drawer (2) WPL 309329 Contact Us For Availability
25
Switch, Door WPL 310345 Contact Us For Availability
25
Brac WPL 3148809 Contact Us For Availability
25
WPL 98520 WPL 98520 Contact Us For Availability
25
Cap, Top Designer White Mdl WPL 3181363 Contact Us For Availability
26
WPL 312604 WPL 312604 Contact Us For Availability
26
WPL 3184400 WPL 3184400 Contact Us For Availability
26
WPL 3184401 WPL 3184401 Contact Us For Availability
27
WPL 308119 WPL 308119 Contact Us For Availability
28
WPL 3148419 WPL 3148419 Contact Us For Availability
29
WPL 3148933 WPL 3148933 Contact Us For Availability
30
WPL 314031 WPL 314031 Contact Us For Availability
30
WPL 3151662 WPL 3151662 Contact Us For Availability
31
WPL 3183118 WPL 3183118 Contact Us For Availability
31
WPL 3183117 WPL 3183117 Contact Us For Availability
32
WPL 313570 WPL 313570 Contact Us For Availability
33
WPL 3187332 WPL 3187332 Contact Us For Availability
34
WPL 313101 WPL 313101 Contact Us For Availability
36
WPL 313608 WPL 313608 Contact Us For Availability
37
WPL 3183115 WPL 3183115 Contact Us For Availability
37
WPL 3183116 WPL 3183116 Contact Us For Availability
38
WPL 3183104 WPL 3183104 Contact Us For Availability
38
WPL 3183103 WPL 3183103 Contact Us For Availability
43
WPL 3149190 WPL 3149190 Contact Us For Availability
43
WPL 3149011 WPL 3149011 Contact Us For Availability
43
WPL 3149012 WPL 3149012 Contact Us For Availability
43
WPL 3181829 WPL 3181829 Contact Us For Availability
44
WPL 3169188 WPL 3169188 Contact Us For Availability
× ![]()
