Model Whirlpool RF366PXYN1 – Common Parts & Diagrams

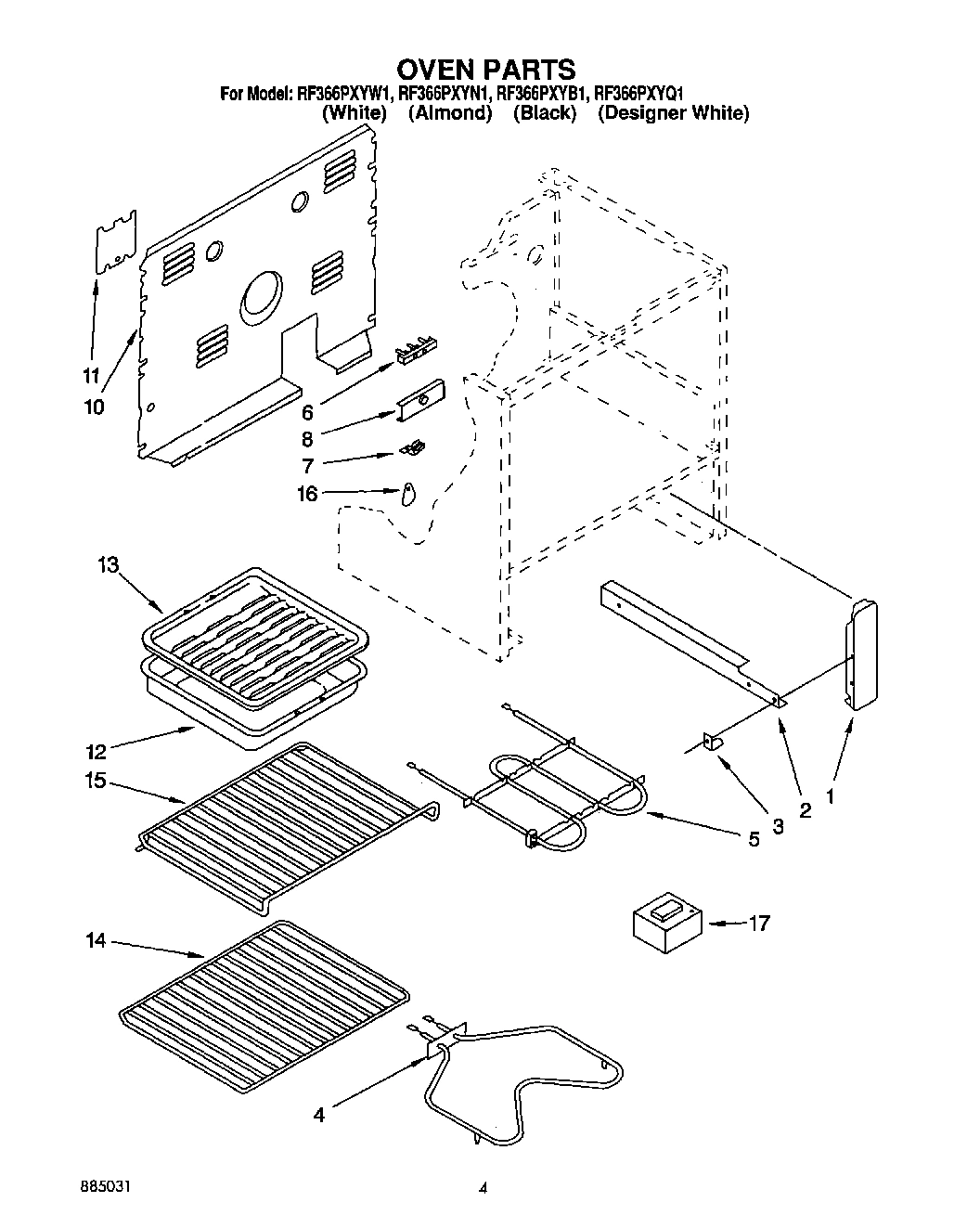

02 - OVEN, OPTIONAL

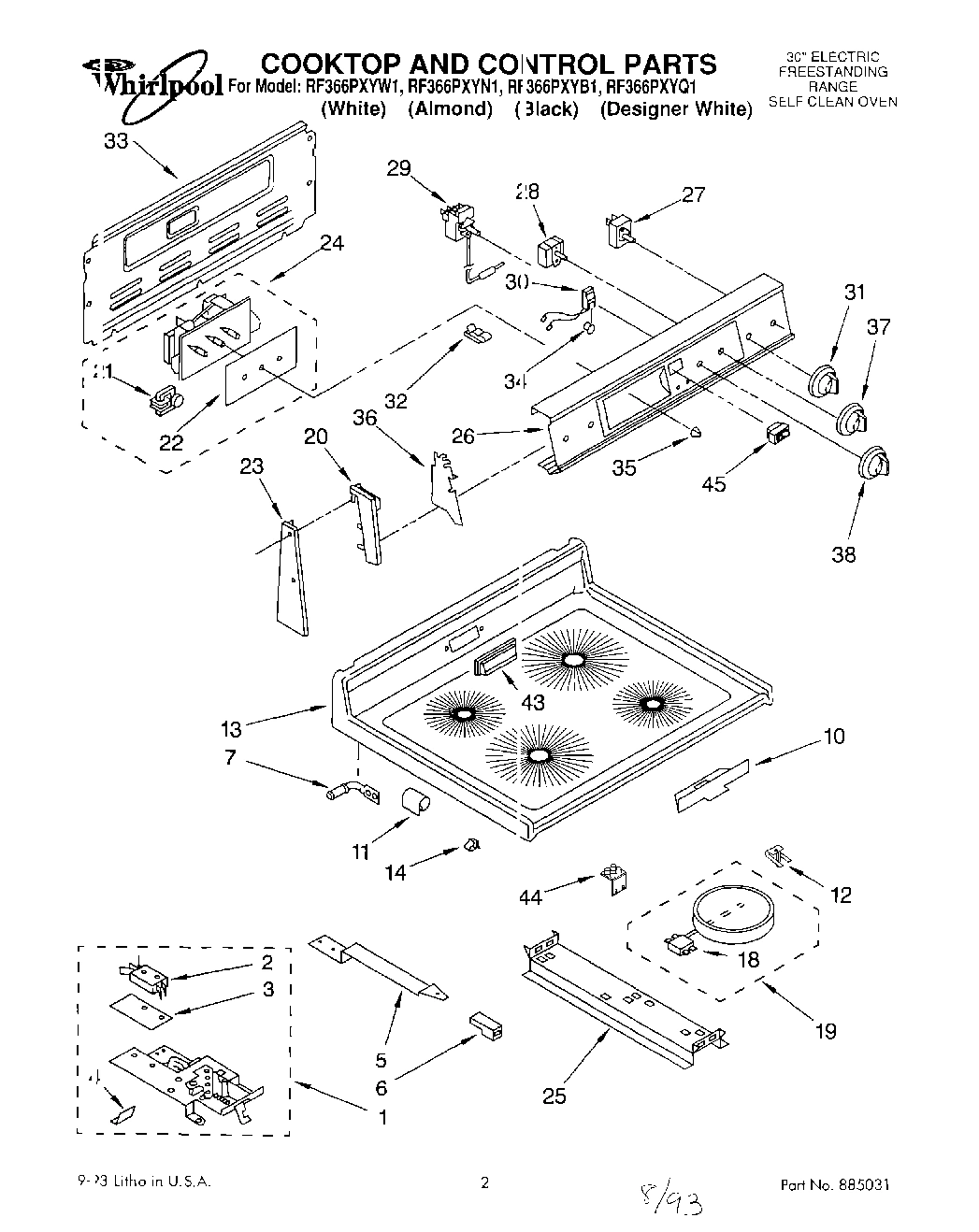

01 - COOKTOP AND CONTROL, LIT/OPTIONAL
03 - DOOR AND DRAWER

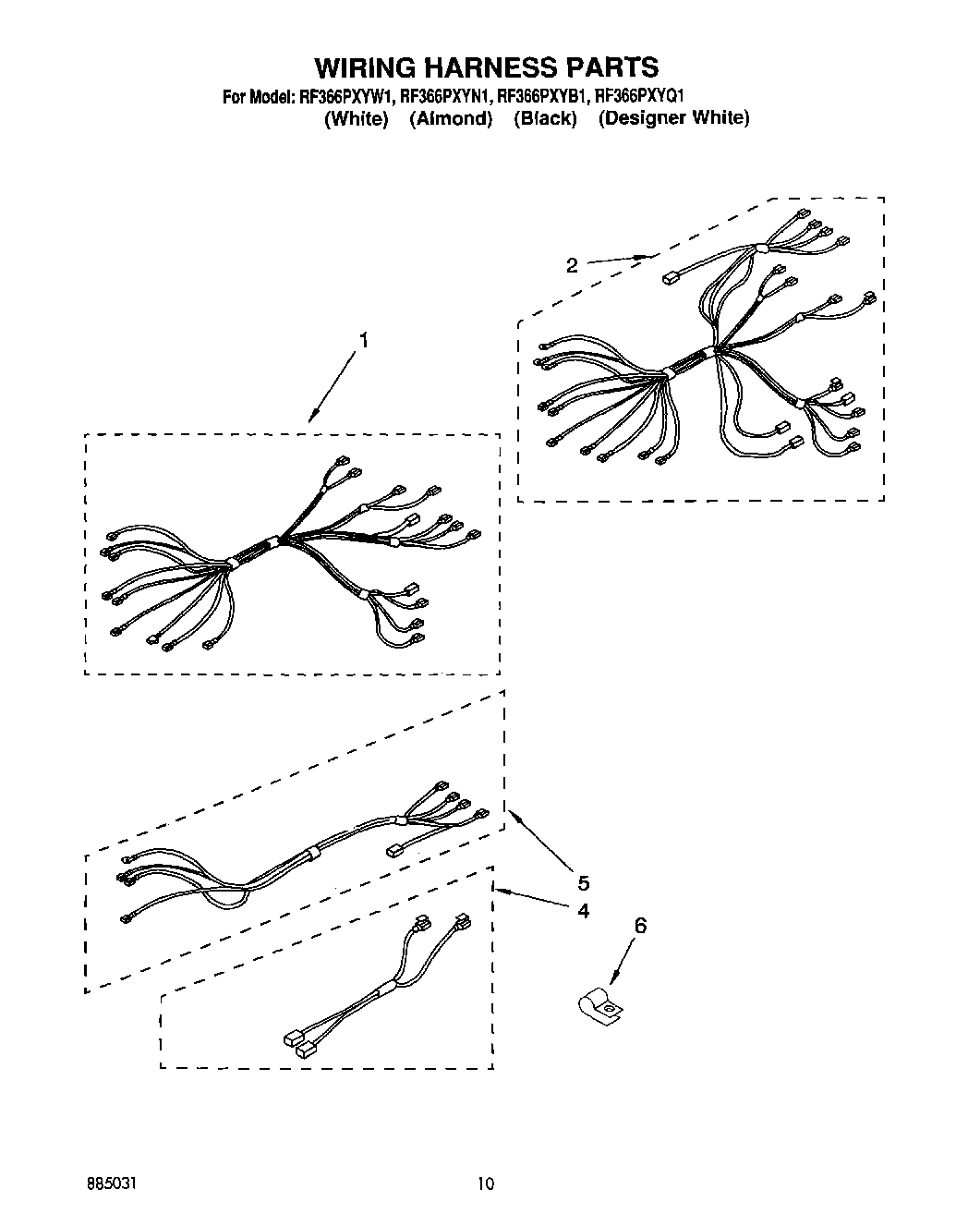

05 - WIRING HARNESS
04 - OVEN UNIT
Common parts from model Whirlpool RF366PXYN1
WPL LIT3147400 WPL LIT3147400 Contact Us For Availability
WPL LIT3150263 WPL LIT3150263 Contact Us For Availability
WPL LIT3181612 WPL LIT3181612 Contact Us For Availability
WPL LIT3182687 WPL LIT3182687 Contact Us For Availability
WPL LIT677973 WPL LIT677973 Contact Us For Availability
WPL LIT885031 WPL LIT885031 Contact Us For Availability
1
Latch Assembly WPL 3171153 Contact Us For Availability
1
Liner, Door WPL 3172218 Contact Us For Availability
1
Harness, Wire (Surface Unit) WPL 3169104 Contact Us For Availability
1
Main Chassis (Screw 10-24x1/2) WPL 247326 Contact Us For Availability
1
Main Chassis (Black) WPL 3181515 Contact Us For Availability
1
Main Chassis (White) WPL 330086 Contact Us For Availability
1
Main Chassis (Almond) WPL 330090 Contact Us For Availability
2
Safety Switch WPL 308185 Contact Us For Availability
2
Screw (2) WPL 98106 Contact Us For Availability
2
Frame, Glass WPL 3148234 Contact Us For Availability
2
Harness, Wire (Oven) WPL 3169150 Contact Us For Availability
3
Insulator, Switch WPL 309245 Contact Us For Availability
3
Seal, Foam WPL 3148441 Contact Us For Availability
4
Screw, 6 x 3/8B (2) WPL 309258 Contact Us For Availability
4
Shield, Latch Terminal WPL 313035 Contact Us For Availability
4
Glass, Clear WPL 3169202 Contact Us For Availability
4
Harness, Wiring (Oven Light) WPL 313152 Contact Us For Availability
4
Screw (1) WPL 3150537 Contact Us For Availability
4
Frame, Front WPL 3176698 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
Handle, Latch (Screw, 10-24 x 1/2 (2)) WPL 308422 Contact Us For Availability
5
Handle, Latch (Designer White) WPL 3150175 Contact Us For Availability
5
Handle, Latch (Black) WPL 3169081 Contact Us For Availability
5
Harness, Wire (Lock Switch) WPL 3169012 Contact Us For Availability
5
Pin, Hinge WPL 307985 Contact Us For Availability
6
Latch Knob (Black) WPL 3148684 Contact Us For Availability
6
Latch Knob (Designer White) WPL 3150174 Contact Us For Availability
6
Retainer, Insulation WPL 3148159 Contact Us For Availability
6
Seal, Door WPL 3169251 Contact Us For Availability
7
Pin, Top (2) WPL 307966 Contact Us For Availability
7
Pushnut WPL 308306 Contact Us For Availability
8
Screw (4) WPL 3148443 Contact Us For Availability
8
Retainer, Glass (2) WPL 3148187 Contact Us For Availability
8
Hinge, R.H. WPL 3176710 Contact Us For Availability
8
Hinge, L.H. WPL 3176711 Contact Us For Availability
9
Bumper (4) WPL 3148182 Contact Us For Availability
9
Screw (3) WPL 311056 Contact Us For Availability
9
Oven (30`` Pyro) WPL 3176611 Contact Us For Availability
10
Shield, Probe WPL 3169237 Contact Us For Availability
10
Glass, Door (Black) WPL 3148185 Contact Us For Availability
10
Glass, Door (White) WPL 3149049 Contact Us For Availability
11
Bracket, Top (2) WPL 307965 Contact Us For Availability
11
Foil WPL 3169191 Contact Us For Availability
12
Spring, Element (8) WPL 3149191 Contact Us For Availability
12
Handle, Door (Black) WPL 3148228 Contact Us For Availability
12
Handle, Door (Platinum) WPL 3149354 Contact Us For Availability
13
Cooktop (White) WPL 3176527 Contact Us For Availability
13
Cooktop (Almond) WPL 3176528 Contact Us For Availability
13
Cooktop (Black) WPL 3176529 Contact Us For Availability
13
Cooktop (Designer White) WPL 3176530 Contact Us For Availability
13
Insulation, Door WPL 3147951 Contact Us For Availability
14
Clip, Wire WPL 311311 Contact Us For Availability
14
Top, Door (Black) WPL 3148223 Contact Us For Availability
14
Top, Door (Panoramic Grey) WPL 3149355 Contact Us For Availability
15
Clip (2) WPL 3148282 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
16
Vent, Oven WPL 3148906 Contact Us For Availability
17
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
17
Coffee WPL 261886 Contact Us For Availability
17
Coffee ( WPL 261887 Contact Us For Availability
17
WPL 261888 WPL 261888 Contact Us For Availability
17
WPL 261890 WPL 261890 Contact Us For Availability
17
WPL 261891 WPL 261891 Contact Us For Availability
17
WPL 285365 WPL 285365 Contact Us For Availability
17
WPL 285366 WPL 285366 Contact Us For Availability
17
WPL 285367 WPL 285367 Contact Us For Availability
17
WPL 285368 WPL 285368 Contact Us For Availability
17
WPL 312804 WPL 312804 Contact Us For Availability
17
WPL 3169093 WPL 3169093 Contact Us For Availability
17
WPL 3169094 WPL 3169094 Contact Us For Availability
17
WPL 72108 WPL 72108 Contact Us For Availability
17
WPL 72112 WPL 72112 Contact Us For Availability
17
WPL 799832 WPL 799832 Contact Us For Availability
17
WPL 978883 WPL 978883 Contact Us For Availability
17
Switch, Broil WPL 314209 Contact Us For Availability
18
Limiter, Temp. (180 MM - LR) WPL 3149129 Contact Us For Availability
18
Limiter, Temp. (200 MM - RF) WPL 3183972 Contact Us For Availability
18
Limiter, Temp. (250 MM - LF) WPL 3183973 Contact Us For Availability
18
Limiter, Temp. (230 MM - RR) WPL 3183974 Contact Us For Availability
18
screw (3) WPL 307748 Contact Us For Availability
18
Frame, Glass WPL 3148235 Contact Us For Availability
18
Screw, No.6 WPL 314215 Contact Us For Availability
18
Switch, Bake WPL 314210 Contact Us For Availability
19
Element, Surface (Includes No. 18) (180 MM - WPL 3183646 Contact Us For Availability
19
Element, Surface (Includes No. 18) (200 MM - WPL 3183647 Contact Us For Availability
19
Element, Surface (Includes No. 18) (230 MM - WPL 3183648 Contact Us For Availability
19
Glide, Rear WPL 307980 Contact Us For Availability
19
Channel, Arm (2) WPL 3176709 Contact Us For Availability
20
End Cap R.H. WPL 313230 Contact Us For Availability
20
End Cap L.H. WPL 313231 Contact Us For Availability
20
Panel Drawer (White) WPL 307935 Contact Us For Availability
20
Panel, Drawer (Almond) WPL 307939 Contact Us For Availability
20
Panel Drawer (Black) WPL 309923 Contact Us For Availability
21
Handle, Drawer WPL 3169105 Contact Us For Availability
21
Motor, Timer WPL 309822 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Glass, Timer WPL 313513 Contact Us For Availability
22
Drawer, Utility WPL 327887 Contact Us For Availability
23
Screw (4) WPL 254225 Contact Us For Availability
23
End Trim L.H. WPL 313190 Contact Us For Availability
23
End Trim R.H. WPL 313191 Contact Us For Availability
24
Timer, Clock (Black with Chrome) WPL 3183063 Contact Us For Availability
24
Timer, Clock (Designer White) WPL 3183064 Contact Us For Availability
24
Protector, Drawer (2) WPL 309329 Contact Us For Availability
24
Support, L.H. Channel WPL 313196 Contact Us For Availability
24
Support, R.H. Channel WPL 313197 Contact Us For Availability
25
Switch, Door WPL 310345 Contact Us For Availability
25
Bracket, WPL 3148809 Contact Us For Availability
25
Cap, Top Designer White Mdl WPL 3181363 Contact Us For Availability
26
WPL 312604 WPL 312604 Contact Us For Availability
26
WPL 3184400 WPL 3184400 Contact Us For Availability
26
WPL 3184401 WPL 3184401 Contact Us For Availability
28
WPL 3148419 WPL 3148419 Contact Us For Availability
29
WPL 3148933 WPL 3148933 Contact Us For Availability
29
Snubber, Door (2) WPL 309111 Contact Us For Availability
30
WPL 314031 WPL 314031 Contact Us For Availability
30
WPL 3150662 WPL 3150662 Contact Us For Availability
30
Tube, Vent WPL 3169109 Contact Us For Availability
31
WPL 3183118 WPL 3183118 Contact Us For Availability
31
WPL 3183117 WPL 3183117 Contact Us For Availability
31
Box Vent WPL 3169129 Contact Us For Availability
32
WPL 313570 WPL 313570 Contact Us For Availability
32
Support, Chassis (2) WPL 3147646 Contact Us For Availability
33
Screw (2) WPL 98520 Contact Us For Availability
33
WPL 313195 WPL 313195 Contact Us For Availability
33
Shield, Box WPL 3149006 Contact Us For Availability
34
WPL 313101 WPL 313101 Contact Us For Availability
34
Box, Vent WPL 3171381 Contact Us For Availability
36
WPL 313608 WPL 313608 Contact Us For Availability
37
WPL 3183115 WPL 3183115 Contact Us For Availability
37
WPL 3183116 WPL 3183116 Contact Us For Availability
38
WPL 3183104 WPL 3183104 Contact Us For Availability
38
WPL 3183103 WPL 3183103 Contact Us For Availability
43
WPL 3149190 WPL 3149190 Contact Us For Availability
43
WPL 3149011 WPL 3149011 Contact Us For Availability
43
WPL 3149012 WPL 3149012 Contact Us For Availability
43
WPL 3181829 WPL 3181829 Contact Us For Availability
44
WPL 3169188 WPL 3169188 Contact Us For Availability
× ![]()
