Model Whirlpool RF366BXVN0 – Common Parts & Diagrams

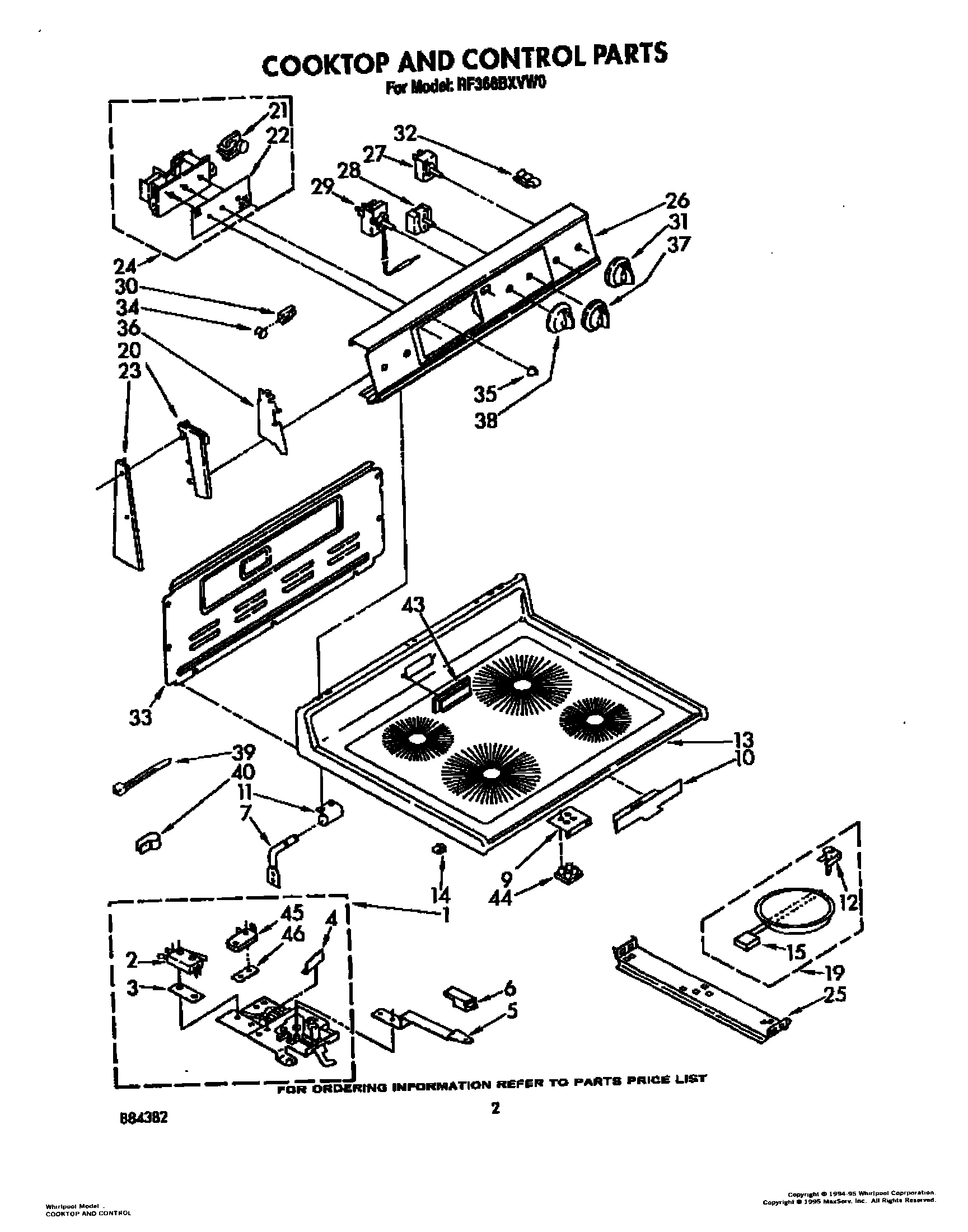

02 - COOKTOP AND CONTROL, LIT/OPTIONAL

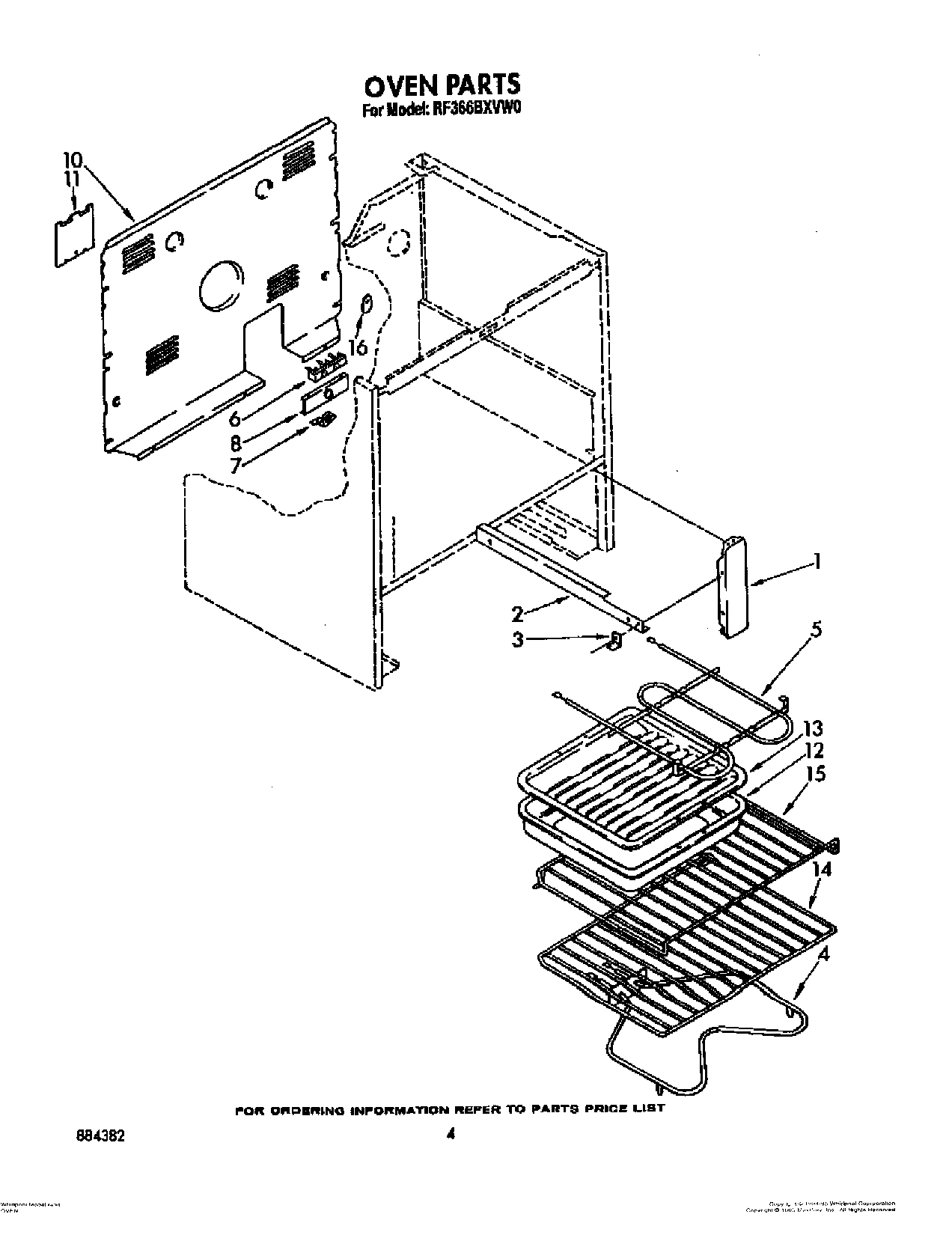

03 - OVEN, OPTIONAL

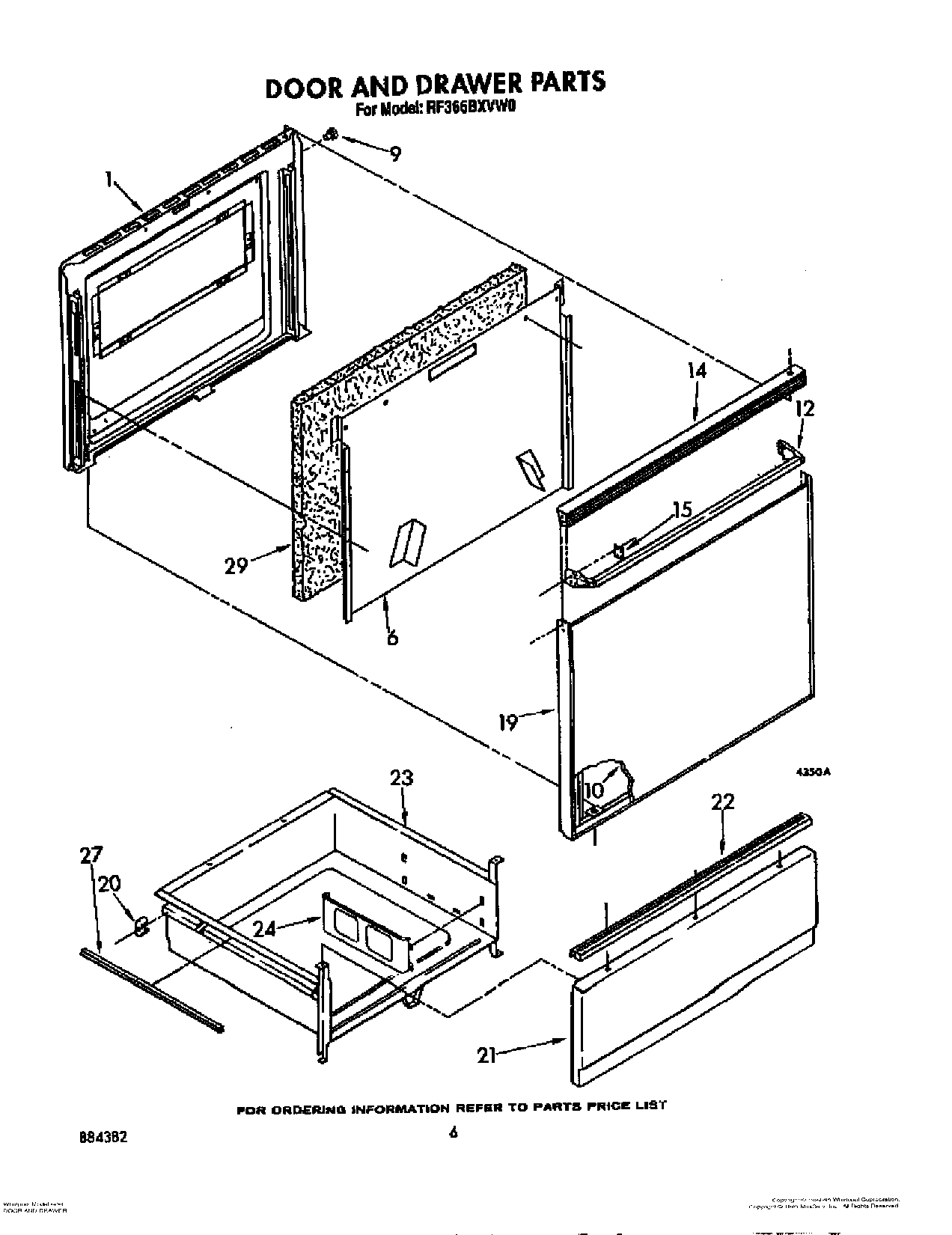

04 - DOOR AND DRAWER

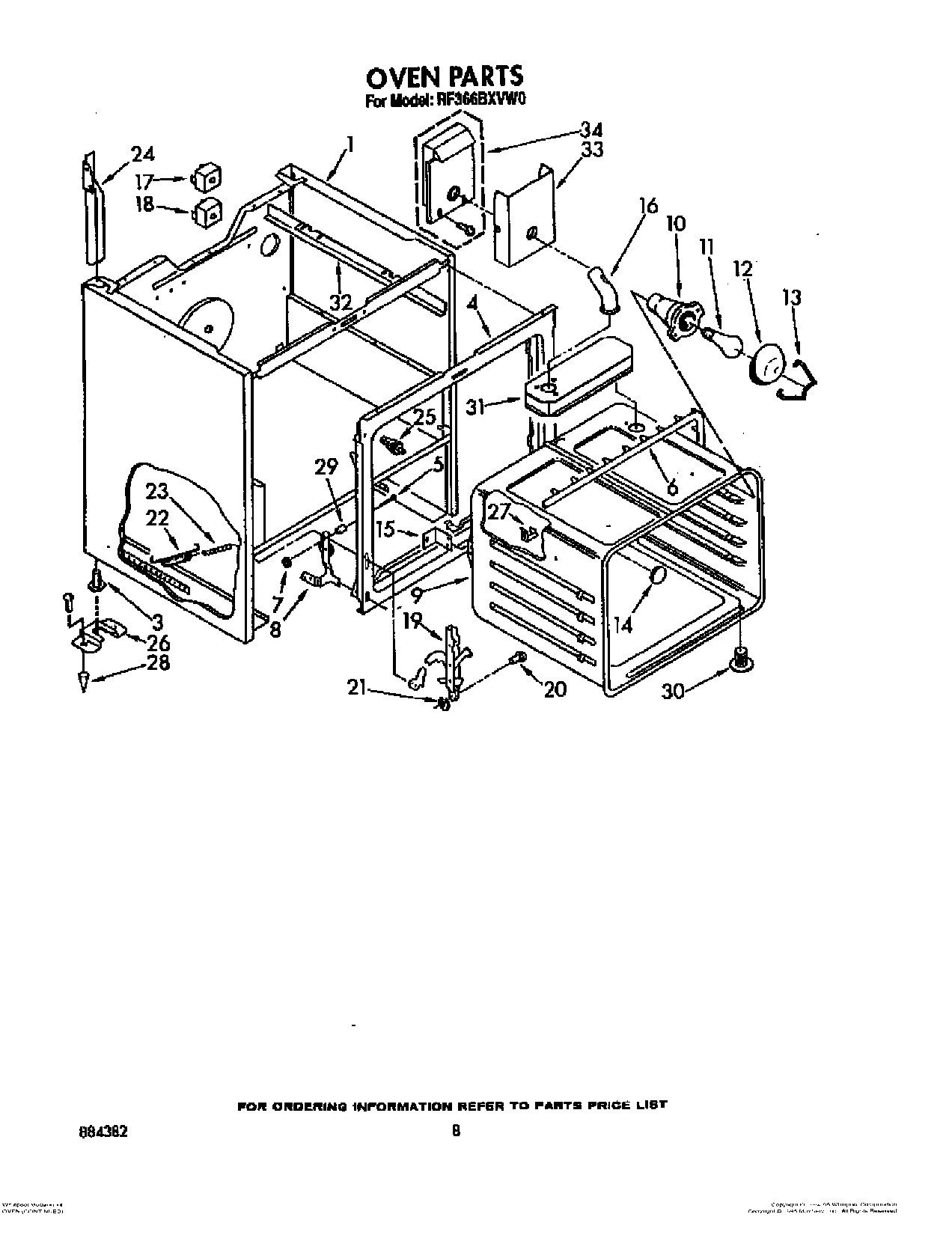

06 - OVEN (CONTINUED)

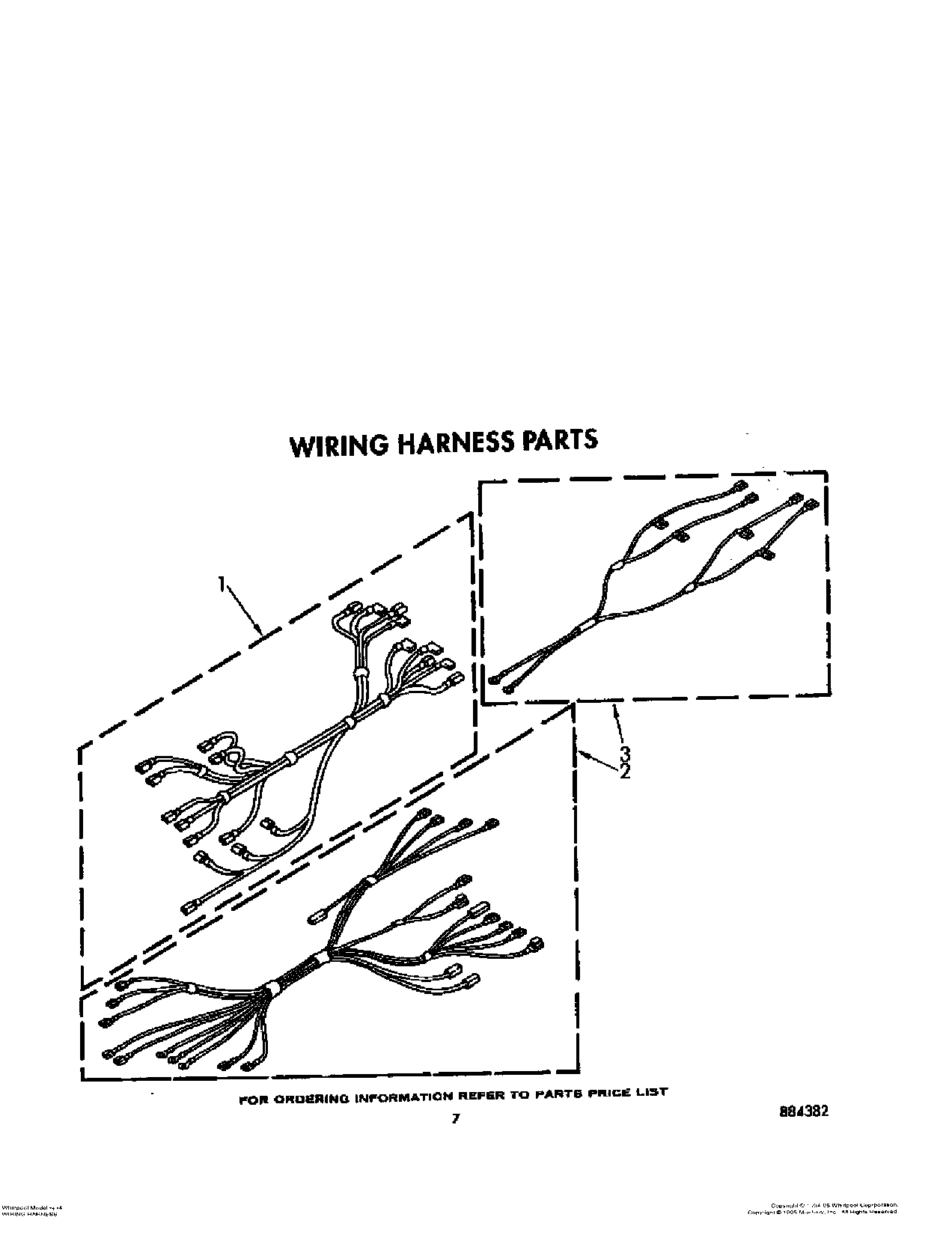

05 - WIRING HARNESS
Common parts from model Whirlpool RF366BXVN0
WPL ARI122882A WPL ARI122882A Contact Us For Availability
Screw, 10-12 x 7/8 (2) WPL 308043 Contact Us For Availability
1
Screw (2) WPL 3149333 Contact Us For Availability
1
Bracket, Mounting (2) WPL 307981 Contact Us For Availability
1
Liner, Door WPL 3170707 Contact Us For Availability
1
Main Chassis (Scr, 10-24X1/2) WPL 247326 Contact Us For Availability
1
Main Chassis (White) WPL 330086 Contact Us For Availability
1
Main Chassis (Almond) WPL 330090 Contact Us For Availability
1
Harness, Wire (Surface Units) WPL 3148913 Contact Us For Availability
2
Rail R.H. WPL 3149255 Contact Us For Availability
2
Rail L.H. (Includes Illus. 3) WPL 3149256 Contact Us For Availability
2
Harness, Wire (Oven) WPL 3148778 Contact Us For Availability
3
Glide, Front (2) WPL 3149257 Contact Us For Availability
3
Harness, Wire (Oven Light) WPL 313154 Contact Us For Availability
3
Harness, Wire (Lock Switch) WPL 3148699 Contact Us For Availability
3
Harness, Wire (Supply) WPL 3149680 Contact Us For Availability
3
Harness, Wire (Latch) WPL 3171162 Contact Us For Availability
4
Frame, Front WPL 3170856 Contact Us For Availability
5
Screw, 10-32 x 1/2 (2) WPL 312318 Contact Us For Availability
5
Pin, Hinge WPL 307985 Contact Us For Availability
6
Knob, Latch WPL 3148684 Contact Us For Availability
6
Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability
6
Retainer, Insulation WPL 3148160 Contact Us For Availability
6
Screw (4) WPL 3148443 Contact Us For Availability
6
Seal, Door WPL 3148284 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
7
Pushnut WPL 308306 Contact Us For Availability
8
Bracket, Service WPL 307970 Contact Us For Availability
8
Hinge (R.H.) WPL 327890 Contact Us For Availability
8
Hinge (L.H.) WPL 327891 Contact Us For Availability
9
Bumper (4) WPL 3148182 Contact Us For Availability
9
Screw (3) WPL 311056 Contact Us For Availability
9
Oven (30`` Pyro) WPL 329002 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
10
Glass, Panel WPL 3148186 Contact Us For Availability
10
Socket, Lamp (Alt.) WPL 307856 Contact Us For Availability
10
Socket, Lamp (Alt.) WPL 310208 Contact Us For Availability
10
Socket, Lamp WPL 660556 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
12
Spring, Element (8) WPL 3149191 Contact Us For Availability
12
Handle, Door WPL 3148228 Contact Us For Availability
12
Cover, Light WPL 308039 Contact Us For Availability
13
Retainer, Light WPL 308038 Contact Us For Availability
14
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
14
Trim, Panel WPL 3148223 Contact Us For Availability
14
Plug Button WPL 257314 Contact Us For Availability
15
Clip, Mtg (2) WPL 3148282 Contact Us For Availability
15
Rack, Oven (Offset) WPL 308172 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
16
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
16
Wire, Splicing 25 Ft. Black 12 Ga. 150~c (Lev WPL 206925 Contact Us For Availability
16
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
16
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
16
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
16
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
16
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
16
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
16
Wire, Splicing 25 Ft. Black 12 Ga. 150~c (Wir WPL 242826 Contact Us For Availability
16
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
16
Wire, Splicing 25 Ft. Black 12 Ga. 150~c (Wir WPL 242829 Contact Us For Availability
16
Wire (14 Ga. 200 c Brow WPL 242830 Contact Us For Availability
16
WPL 242832 WPL 242832 Contact Us For Availability
16
WPL 242985 WPL 242985 Contact Us For Availability
16
WPL 261582 WPL 261582 Contact Us For Availability
16
WPL 261886 WPL 261886 Contact Us For Availability
16
WPL 261887 WPL 261887 Contact Us For Availability
16
WPL 261888 WPL 261888 Contact Us For Availability
16
WPL 261890 WPL 261890 Contact Us For Availability
16
WPL 261891 WPL 261891 Contact Us For Availability
16
WPL 285365 WPL 285365 Contact Us For Availability
16
WPL 285366 WPL 285366 Contact Us For Availability
16
WPL 285367 WPL 285367 Contact Us For Availability
16
WPL 285368 WPL 285368 Contact Us For Availability
16
WPL 311982 WPL 311982 Contact Us For Availability
16
WPL 3147861 WPL 3147861 Contact Us For Availability
16
WPL 72108 WPL 72108 Contact Us For Availability
16
WPL 72112 WPL 72112 Contact Us For Availability
16
WPL 799832 WPL 799832 Contact Us For Availability
16
WPL 978883 WPL 978883 Contact Us For Availability
16
Vent, Oven WPL 3148906 Contact Us For Availability
17
Switch, Broil WPL 314209 Contact Us For Availability
18
Screw, No.6 WPL 314215 Contact Us For Availability
18
Switch, Bake WPL 314210 Contact Us For Availability
19
Frame, Glass Panel WPL 3148235 Contact Us For Availability
19
Channel, Arm (2) WPL 329710 Contact Us For Availability
20
End Cap R.H. WPL 313230 Contact Us For Availability
20
End Cap L.H. WPL 313231 Contact Us For Availability
20
Screw, 10x1/2 (2) WPL 307748 Contact Us For Availability
20
Glide, Rear (2) WPL 307980 Contact Us For Availability
21
Motor, Timer WPL 309822 Contact Us For Availability
21
Panel Drawer (White) WPL 307935 Contact Us For Availability
21
Panel, Drawer (Almond) WPL 307939 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
22
Glass, Timer WPL 313513 Contact Us For Availability
22
Handle, Drawer WPL 313337 Contact Us For Availability
23
Screw (4) WPL 254225 Contact Us For Availability
23
End Trim L.H. WPL 313188 Contact Us For Availability
23
End Trim R.H. WPL 313189 Contact Us For Availability
23
Drawer, Utility WPL 327887 Contact Us For Availability
24
Timer, Clock WPL 3149505 Contact Us For Availability
24
Rack, Literature WPL 357645 Contact Us For Availability
24
Support, L.H. Channel WPL 313196 Contact Us For Availability
24
Support, R.H. Channel WPL 313197 Contact Us For Availability
25
Switch, Door WPL 310345 Contact Us For Availability
25
Bracket, Mounting WPL 3148809 Contact Us For Availability
26
Screw (4) WPL 312604 Contact Us For Availability
26
Panel, Control WPL 3148843 Contact Us For Availability
26
screw (2) WPL 3148604 Contact Us For Availability
27
Protector, Drawer WPL 309329 Contact Us For Availability
28
Nut (2) WPL 3147832 Contact Us For Availability
28
Switch, Selector WPL 312288 Contact Us For Availability
28
Anchor, Plastic WPL 3148605 Contact Us For Availability
29
Thermostat, Oven WPL 3148933 Contact Us For Availability
29
Insulation WPL 3147951 Contact Us For Availability
29
Snubber, Door (2) WPL 309111 Contact Us For Availability
30
WPL 314031 WPL 314031 Contact Us For Availability
30
Light, Indicator (Top Elements (2)) WPL 313102 Contact Us For Availability
30
WPL 3148719 WPL 3148719 Contact Us For Availability
30
Eliminator, Smoke WPL 3147241 Contact Us For Availability
31
WPL 330171 WPL 330171 Contact Us For Availability
31
Box, Vent WPL 3147076 Contact Us For Availability
32
WPL 313570 WPL 313570 Contact Us For Availability
32
Screw, 10A x 3/8 (2) WPL 254217 Contact Us For Availability
32
Support, Chassis (2) WPL 3147646 Contact Us For Availability
33
WPL 313195 WPL 313195 Contact Us For Availability
33
Screw (2) WPL 98520 Contact Us For Availability
33
Shield, Box WPL 3149006 Contact Us For Availability
34
WPL 313101 WPL 313101 Contact Us For Availability
34
Box, Vent WPL 3171381 Contact Us For Availability
35
WPL 313311 WPL 313311 Contact Us For Availability
36
WPL 313608 WPL 313608 Contact Us For Availability
37
WPL 330172 WPL 330172 Contact Us For Availability
38
WPL 330169 WPL 330169 Contact Us For Availability
39
WPL 3149157 WPL 3149157 Contact Us For Availability
43
WPL 3149190 WPL 3149190 Contact Us For Availability
43
WPL 3149011 WPL 3149011 Contact Us For Availability
43
WPL 3149012 WPL 3149012 Contact Us For Availability
44
WPL 3149029 WPL 3149029 Contact Us For Availability
45
WPL 3148669 WPL 3148669 Contact Us For Availability
46
WPL 313489 WPL 313489 Contact Us For Availability
46
WPL 3147864 WPL 3147864 Contact Us For Availability
× ![]()
