Model Whirlpool RF364PXDW0 30`` ELECTRIC CERAN FREESTANDING RANGE SELF CLEAN – Common Parts & Diagrams
04 - OVEN
05 - WIRING HARNESS, LIT/OPTIONAL

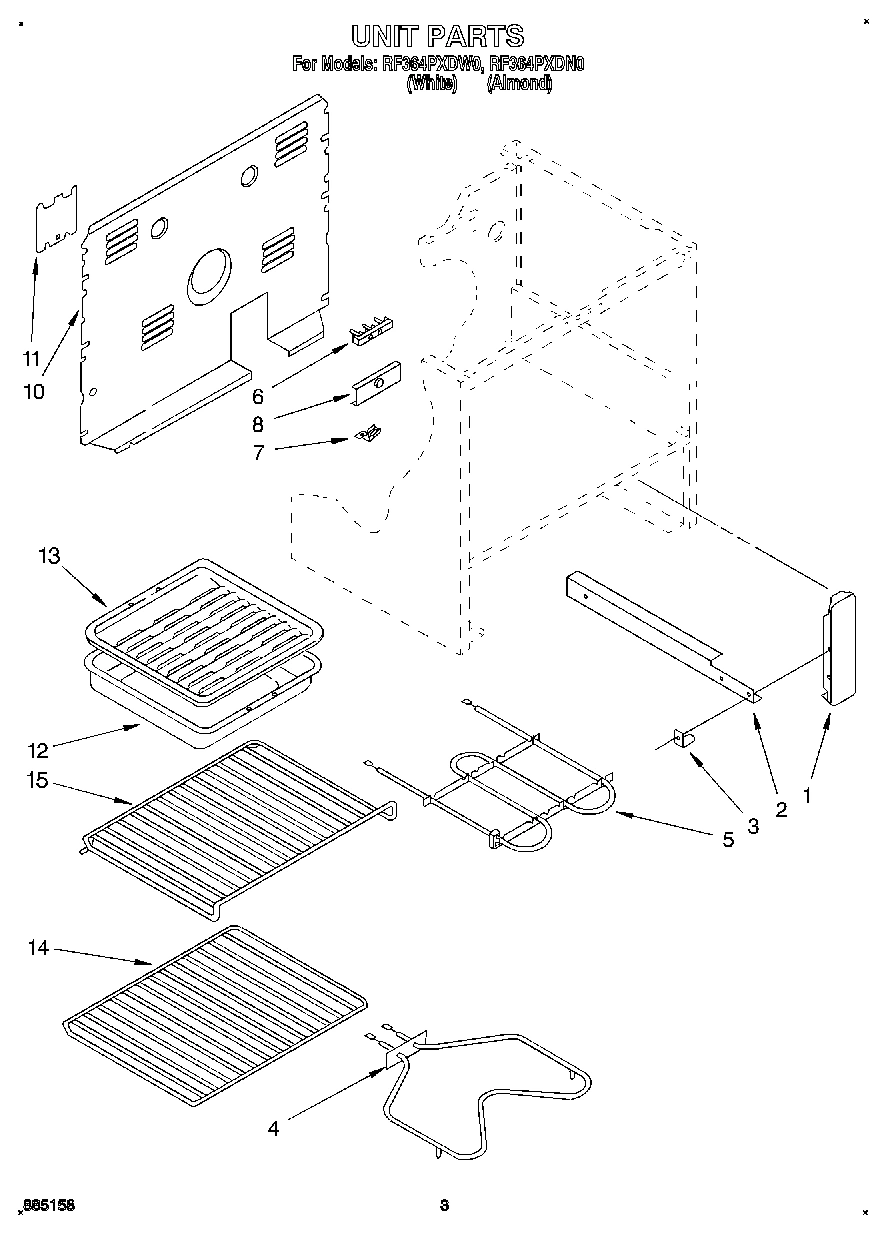

02 - UNIT

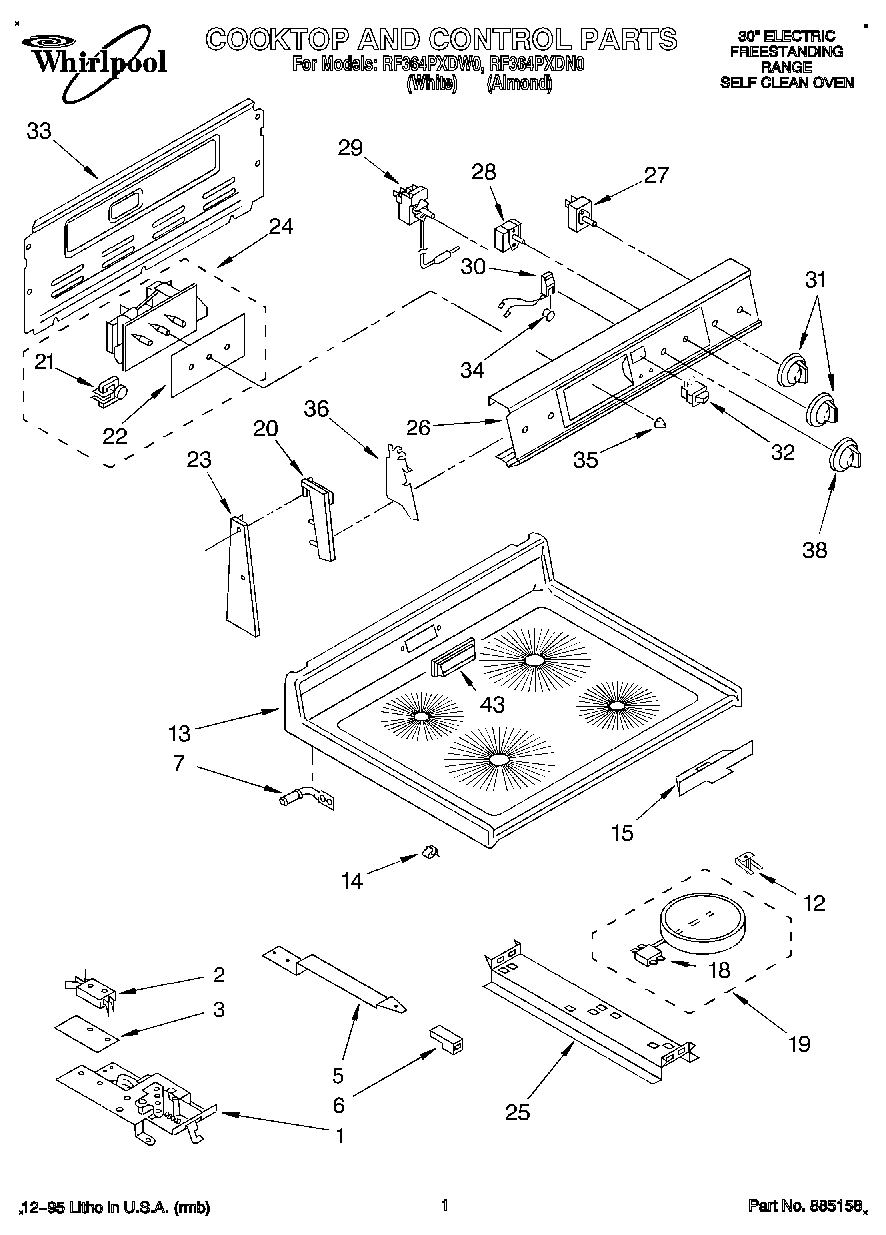

01 - COOKTOP AND CONTROL

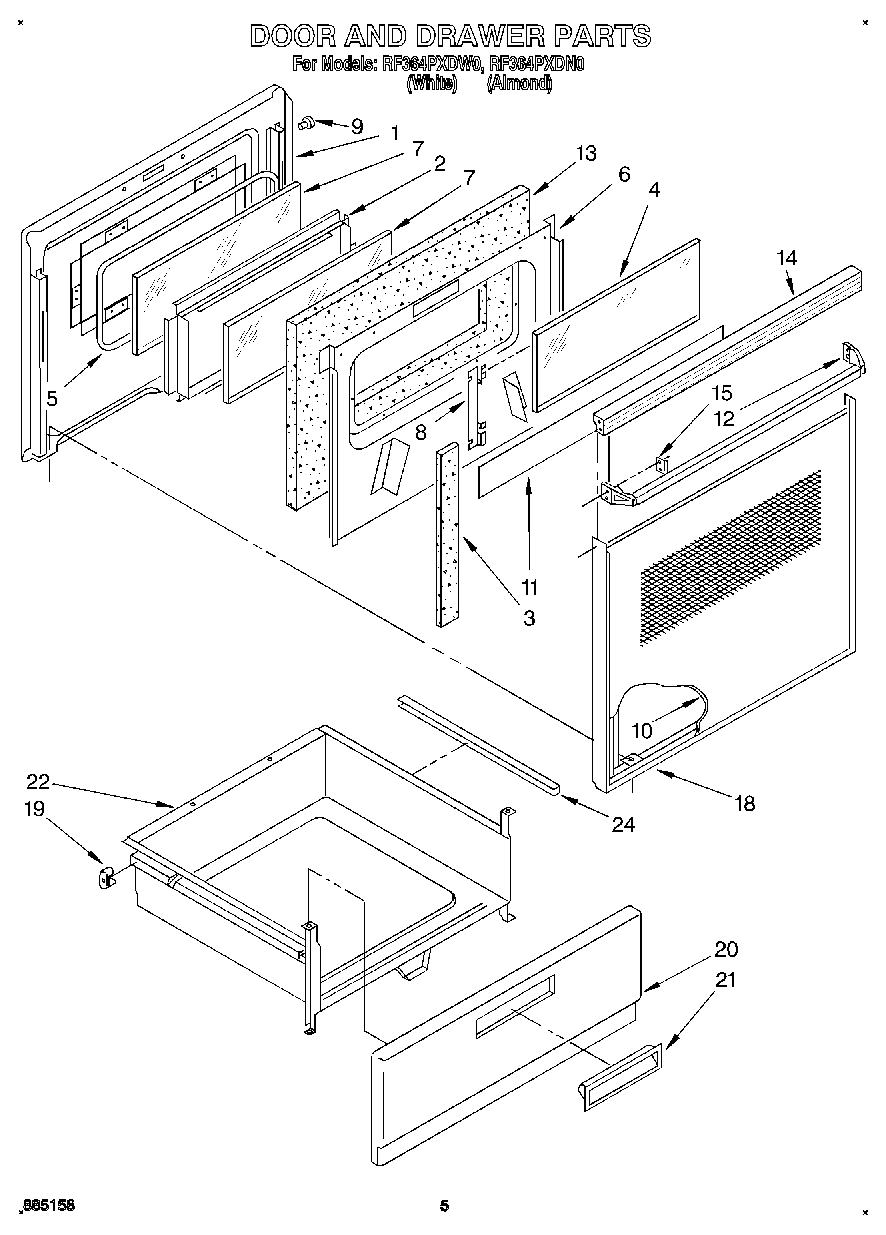

03 - DOOR AND DRAWER
Common parts from model Whirlpool RF364PXDW0 30`` ELECTRIC CERAN FREESTANDING RANGE SELF CLEAN
WPL LIT3169514 WPL LIT3169514 Contact Us For Availability
WPL LIT3189985 WPL LIT3189985 Contact Us For Availability
WPL LIT3190503 WPL LIT3190503 Contact Us For Availability
WPL LIT677973 WPL LIT677973 Contact Us For Availability
1
Harness, Wire (Surface Unit) WPL 3169550 Contact Us For Availability
1
Bracket, Mounting (2) WPL 3169420 Contact Us For Availability
1
Latch Mechanism WPL 3148668 Contact Us For Availability
1
Liner, Door WPL 3172218 Contact Us For Availability
2
Harness, Wire (Oven) WPL 3169505 Contact Us For Availability
2
Rail R.H. WPL 3149255 Contact Us For Availability
2
Rail L.H. (Includes Illus. 3) WPL 3149256 Contact Us For Availability
2
Safety Switch WPL 3169497 Contact Us For Availability
2
Screw (2) WPL 3169547 Contact Us For Availability
2
Frame, Inner Glass WPL 3148234 Contact Us For Availability
3
Clip, Snap-In WPL 3169449 Contact Us For Availability
3
Screw (2) WPL 307748 Contact Us For Availability
3
Glide, Front (2) WPL 3149257 Contact Us For Availability
3
Insulator, Switch WPL 3169498 Contact Us For Availability
3
Seal, Foam WPL 3148441 Contact Us For Availability
4
Harness, Wire (Oven Light) WPL 313154 Contact Us For Availability
4
Glass, Clear WPL 3169202 Contact Us For Availability
5
Seal, Window WPL 3148183 Contact Us For Availability
5
Harness, Wire (Lock Switch) WPL 3169450 Contact Us For Availability
5
Screw, 10-32 x 7/16 (2) WPL 3150532 Contact Us For Availability
5
Handle, Latch (Screw, 10-24 x 1/2 (2)) WPL 308422 Contact Us For Availability
5
Handle, Latch (Black) WPL 3169081 Contact Us For Availability
6
Latch Knob (Black) WPL 3148684 Contact Us For Availability
6
Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability
6
Retainer, Insulation WPL 3148159 Contact Us For Availability
6
Screw (4) WPL 3148443 Contact Us For Availability
7
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
7
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
7
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
7
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
7
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
7
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
7
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
7
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
7
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
7
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
7
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
7
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
7
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
7
Grease WPL 261582 Contact Us For Availability
7
Coffee WPL 261886 Contact Us For Availability
7
Coffee (Uncut) WPL 261887 Contact Us For Availability
7
New Avocado WPL 261888 Contact Us For Availability
7
Harvest Gold WPL 261890 Contact Us For Availability
7
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
7
Toast WPL 285365 Contact Us For Availability
7
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
7
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
7
Platinum (Uncut) WPL 285368 Contact Us For Availability
7
Paint, T WPL 72108 Contact Us For Availability
7
WPL 72112 WPL 72112 Contact Us For Availability
7
WPL 799832 WPL 799832 Contact Us For Availability
7
WPL 978883 WPL 978883 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
7
Strap, Ground WPL 3169573 Contact Us For Availability
7
Pin, Top (2) WPL 3169384 Contact Us For Availability
8
Bracket, Service WPL 3150190 Contact Us For Availability
8
Screw (4) WPL 3185647 Contact Us For Availability
8
Retainer, Glass WPL 3148187 Contact Us For Availability
9
Bumper (4) WPL 3148182 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
10
Glass, Outer WPL 3188739 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
11
Foil WPL 3169191 Contact Us For Availability
12
Handle, Door WPL 3188695 Contact Us For Availability
12
Spring, Element (8) WPL 3149191 Contact Us For Availability
13
Cooktop (Almond) WPL 3176849 Contact Us For Availability
13
Cooktop (White) WPL 3184124 Contact Us For Availability
13
Insulation, Door WPL 3147951 Contact Us For Availability
14
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
14
Clip, Wire WPL 311311 Contact Us For Availability
14
Top, Door Vent WPL 3188692 Contact Us For Availability
15
Clip (2) WPL 3148282 Contact Us For Availability
15
Rack, Oven (Offset) WPL 308172 Contact Us For Availability
15
Insulation, Wrapper WPL 3169093 Contact Us For Availability
15
Insulation, Oven BAck WPL 3169094 Contact Us For Availability
15
Shield, Probe WPL 3183510 Contact Us For Availability
18
Limiter, Temp. (1700W - RF) WPL 3169553 Contact Us For Availability
18
Limiter, Temp. (2100W - RR) WPL 3169554 Contact Us For Availability
18
Screw (4) WPL 3149253 Contact Us For Availability
18
Frame, Outer Glass WPL 3188997 Contact Us For Availability
19
Element, Surface (Includes No. 18) (1700W - R WPL 3169544 Contact Us For Availability
19
Element, Surface (Includes No. 18) (2100W - R WPL 3169545 Contact Us For Availability
19
Glide, Rear WPL 307980 Contact Us For Availability
20
End Cap R.H. WPL 3187791 Contact Us For Availability
20
End Cap L.H. WPL 3187792 Contact Us For Availability
20
Panel, Drawer (White) WPL 3169430 Contact Us For Availability
20
Panel, Drawer (Almond) WPL 3169431 Contact Us For Availability
21
Motor, Timer WPL 309822 Contact Us For Availability
21
Handle, Snap-In (White) WPL 3150612 Contact Us For Availability
21
Handle, Snap-In (Almond) WPL 3150613 Contact Us For Availability
22
Glass, Timer WPL 3169549 Contact Us For Availability
22
Drawer, Utility WPL 327887 Contact Us For Availability
23
Screw (4) WPL 3169366 Contact Us For Availability
23
End Trim R.H. WPL 3183092 Contact Us For Availability
23
End Trim L.H. WPL 3183093 Contact Us For Availability
24
Timer, Clock (Black with Chrome) WPL 661458 Contact Us For Availability
24
Protector, Drawer (2) WPL 309329 Contact Us For Availability
25
Switch, Door WPL 310345 Contact Us For Availability
25
Screw WPL 3149333 Contact Us For Availability
25
Bracket, Mounting WPL 3183087 Contact Us For Availability
26
Control Panel WPL 3190500 Contact Us For Availability
28
Screw (2) WPL 308119 Contact Us For Availability
28
Switch, Selector (5 Position) WPL 3169311 Contact Us For Availability
29
Thermostat, Oven WPL 3169526 Contact Us For Availability
30
Light, Indicator (Oven WPL 314031 Contact Us For Availability
30
WPL 3148719 WPL 3148719 Contact Us For Availability
30
WPL 3169457 WPL 3169457 Contact Us For Availability
32
WPL 3182717 WPL 3182717 Contact Us For Availability
33
WPL 3187332 WPL 3187332 Contact Us For Availability
34
WPL 313101 WPL 313101 Contact Us For Availability
36
WPL 313608 WPL 313608 Contact Us For Availability
38
WPL 3188724 WPL 3188724 Contact Us For Availability
43
WPL 3149190 WPL 3149190 Contact Us For Availability
43
WPL 3149011 WPL 3149011 Contact Us For Availability
43
WPL 3149012 WPL 3149012 Contact Us For Availability
× ![]()
