Model Whirlpool RF364BXEZ0 – Common Parts & Diagrams

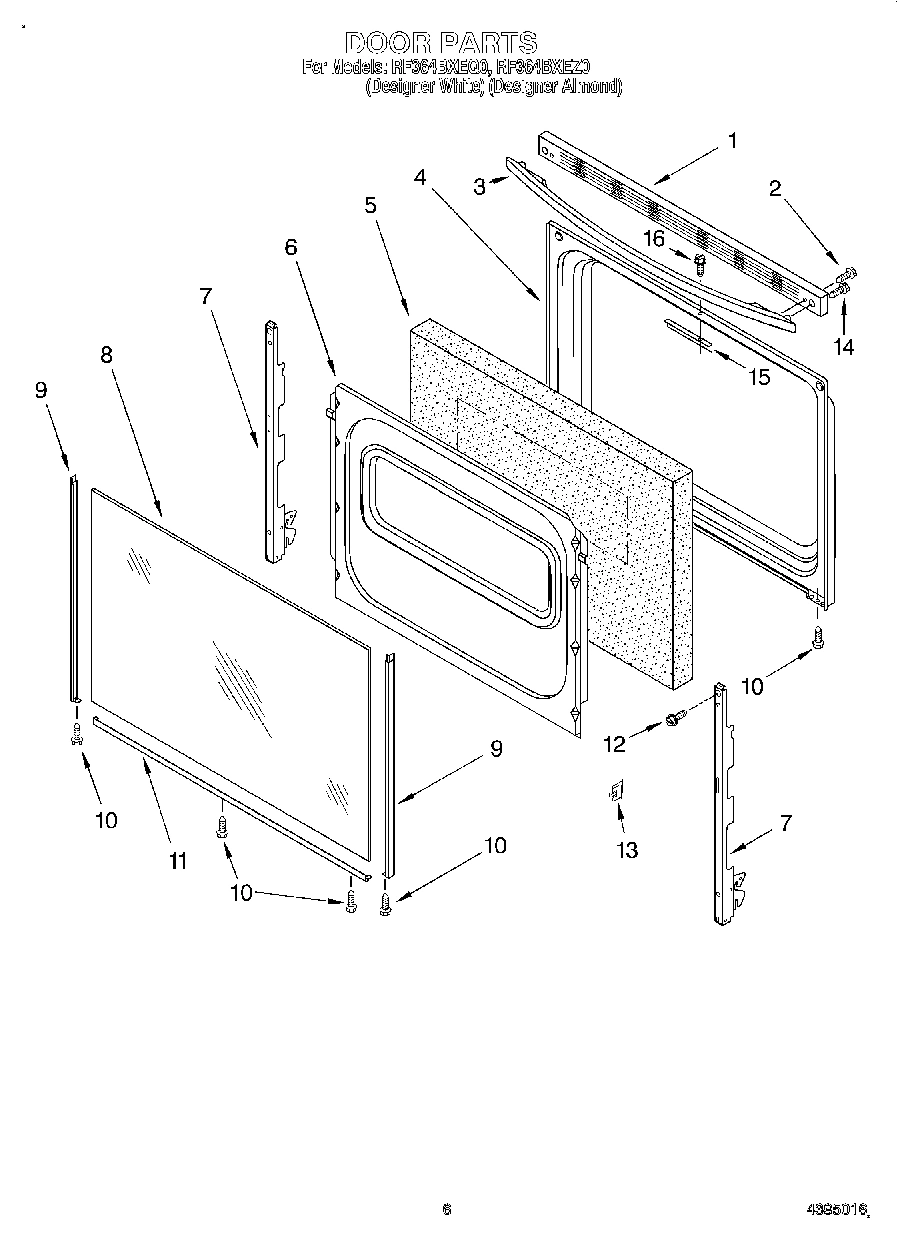

05 - DOOR, OPTIONAL
04 - DRAWER AND BROILER
02 - CONTROL PANEL
01 - COOKTOP, LITERATURE
03 - CHASSIS
Common parts from model Whirlpool RF364BXEZ0
Instructions, Installation WPL LIT3195944 Contact Us For Availability
Installation Instr (Templet) WPL LIT3195945 Contact Us For Availability
Tech Sheet WPL LIT3196148 Contact Us For Availability
Guide, Use & Care WPL LIT3196276 Contact Us For Availability
1
Endcap (LH White) WPL 3186190 Contact Us For Availability
1
Endcap (RH White) WPL 3186191 Contact Us For Availability
1
Endcap (LH Almond) WPL 3186192 Contact Us For Availability
1
Endcap (RH Almond) WPL 3186193 Contact Us For Availability
1
Cooktop (White) WPL 3196422 Contact Us For Availability
1
Cooktop (Almond) WPL 3196423 Contact Us For Availability
1
Tube, Oven Vent WPL 3169110 Contact Us For Availability
2
Spring, Locator WPL 3149191 Contact Us For Availability
2
Support, Endcap (Left Hand) WPL 3186198 Contact Us For Availability
2
Support, Endcap (Right Hand) WPL 3186199 Contact Us For Availability
2
Support, Corner LR WPL 3196156 Contact Us For Availability
3
Panel, Backguard (White) WPL 3186165 Contact Us For Availability
3
Panel, Backguard (Almond) WPL 3186166 Contact Us For Availability
3
Panel, Side (2) (White) WPL 3186073 Contact Us For Availability
3
Panel, Side (2) (Almond) WPL 3186074 Contact Us For Availability
4
Drawer, Storage WPL 3186096 Contact Us For Availability
4
Switch, Infinite (Screw (8)) WPL 3196171 Contact Us For Availability
5
Light, Ind. (2) WPL 313102 Contact Us For Availability
5
Light, Indicator (Hot Surface) WPL 3196085 Contact Us For Availability
5
Rod, Latch WPL 3196715 Contact Us For Availability
6
Solenoid Assy. WPL 3196125 Contact Us For Availability
6
Screw, Panel (2) (Almond) WPL 3196559 Contact Us For Availability
6
Bracket, Ind Light WPL 3196103 Contact Us For Availability
7
Knob, Infinite (4) (White) WPL 3196232 Contact Us For Availability
7
Knob, Infinite (4) (Almond) WPL 3196233 Contact Us For Availability
7
Panel, Drawer Front (Almond) WPL 3195094 Contact Us For Availability
7
Element, Surface (Includes No. 8) (1400 W - R WPL 3189894 Contact Us For Availability
7
Element, Surface (Includes No. 8) (2000 W - L WPL 3196429 Contact Us For Availability
7
Seal, Oven Flange WPL 3195737 Contact Us For Availability
8
Shield, Heat WPL 3195212 Contact Us For Availability
8
Limiter, Temp. (1400 W - RF) WPL 3190253 Contact Us For Availability
8
Limiter, Temp. (2000 W - LF) WPL 3190254 Contact Us For Availability
9
Screw (4) WPL 4449746 Contact Us For Availability
9
Bracket, Element WPL 3196454 Contact Us For Availability
12
Switch, Door WPL 3195993 Contact Us For Availability
12
Control, Range (White) WPL 3195169 Contact Us For Availability
12
Control, Range (Almond) WPL 3195170 Contact Us For Availability
14
Screw (4) WPL 3196179 Contact Us For Availability
15
Frame, Front WPL 3186156 Contact Us For Availability
16
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
16
WPL 799344 WPL 799344 Contact Us For Availability
16
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
16
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
16
Grease WPL 261582 Contact Us For Availability
16
Coffee WPL 261886 Contact Us For Availability
16
New Avocado WPL 261888 Contact Us For Availability
16
Harvest Gold WPL 261890 Contact Us For Availability
16
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
16
WPL 285365 WPL 285365 Contact Us For Availability
16
WPL 285366 WPL 285366 Contact Us For Availability
16
WPL 285367 WPL 285367 Contact Us For Availability
16
WPL 285368 WPL 285368 Contact Us For Availability
16
WPL 313660 WPL 313660 Contact Us For Availability
16
WPL 3196108 WPL 3196108 Contact Us For Availability
16
WPL 3196132 WPL 3196132 Contact Us For Availability
16
WPL 3196151 WPL 3196151 Contact Us For Availability
16
WPL 3196387 WPL 3196387 Contact Us For Availability
16
WPL 72108 WPL 72108 Contact Us For Availability
16
WPL 72112 WPL 72112 Contact Us For Availability
16
WPL 799832 WPL 799832 Contact Us For Availability
16
WPL 978883 WPL 978883 Contact Us For Availability
17
Clip, Panel (6) WPL 3196576 Contact Us For Availability
20
Shield, Outer (2) WPL 3196091 Contact Us For Availability
21
Shield, Inner (2) WPL 3196092 Contact Us For Availability
22
Retainer, Side (2) WPL 3195717 Contact Us For Availability
23
Sensor, Oven WPL 3148440 Contact Us For Availability
24
Support, Front (2) WPL 3195736 Contact Us For Availability
25
Support, Corner RR WPL 3195987 Contact Us For Availability
31
Back, Main WPL 3195707 Contact Us For Availability
32
Bracket, Flue WPL 3196437 Contact Us For Availability
36
Button, Plug WPL 3196439 Contact Us For Availability
37
Strap, Ground WPL 3169573 Contact Us For Availability
37
Insulation, Vent WPL 3196436 Contact Us For Availability
× ![]()
