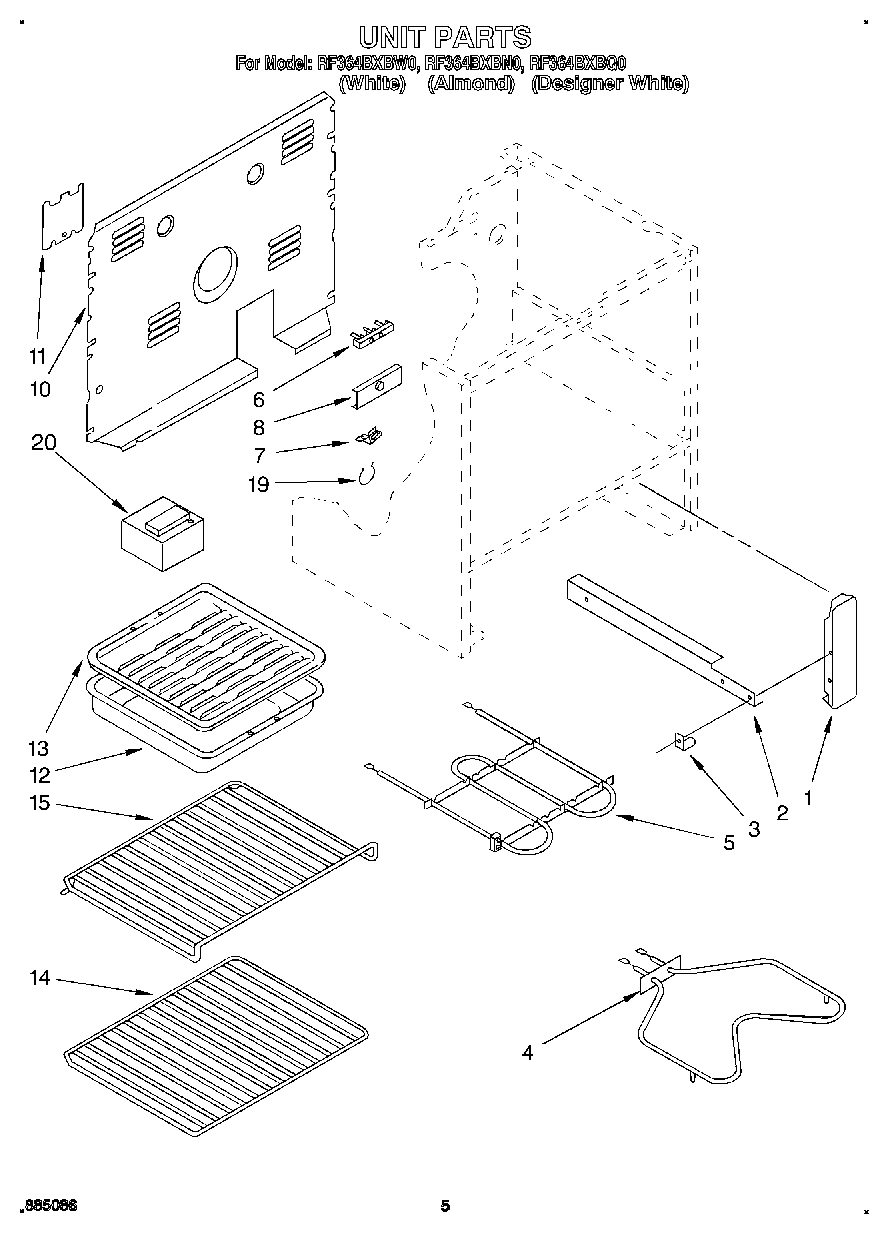

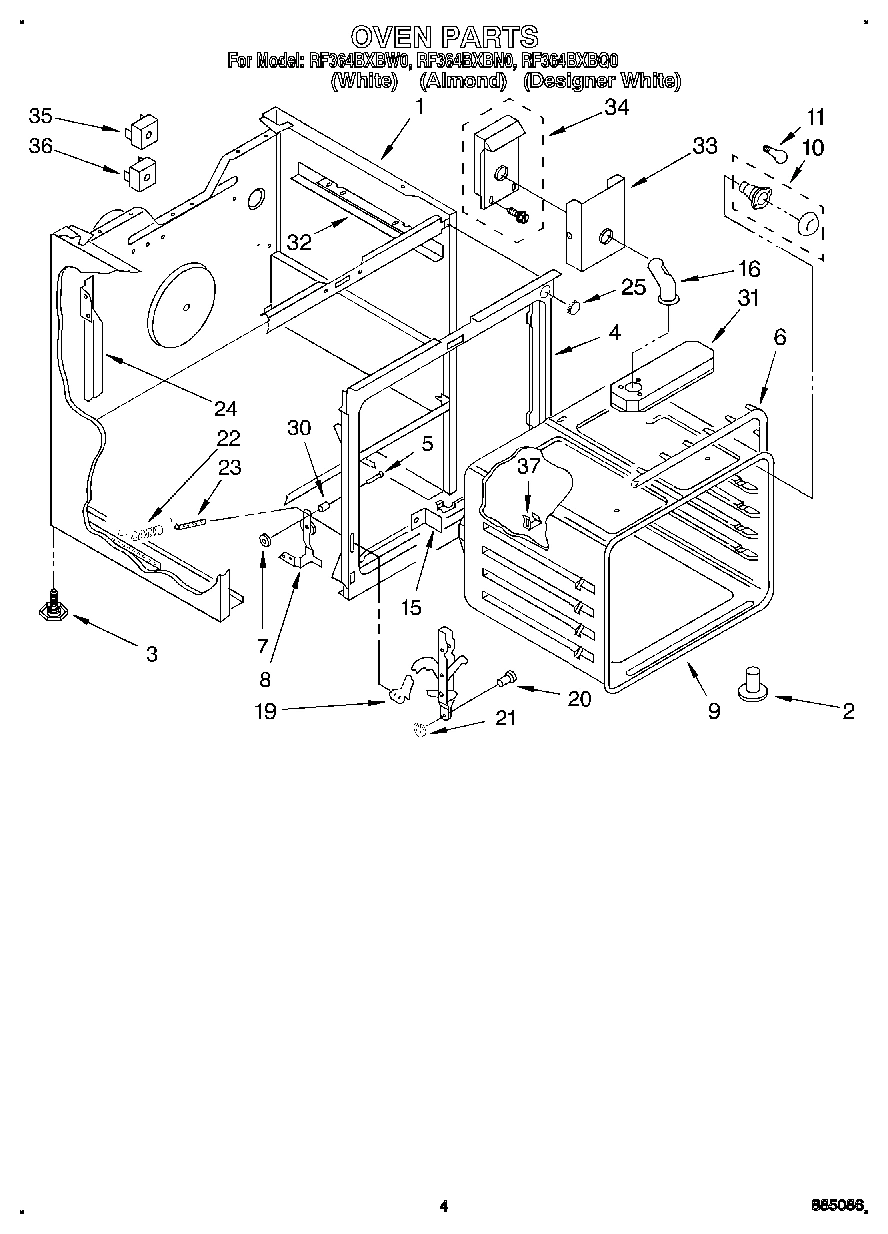

Model Whirlpool RF364BXBW0 – Common Parts &amp; Diagrams

WPL 241430 WPL 241430 Contact Us For Availability

Installation Instr (Templet) WPL LIT3150400 Contact Us For Availability

Wiring Diagram WPL LIT3183629 Contact Us For Availability

Instructions, Installation WPL LIT3187321 Contact Us For Availability

Use and Care Guide WPL LIT3187474 Contact Us For Availability

WPL LIT677973 WPL LIT677973 Contact Us For Availability

1

Bracket, Mounting (2) WPL 307981 Contact Us For Availability

1

Latch Asm Complete WPL 3171153 Contact Us For Availability

1

End Trim R.H. WPL 3183090 Contact Us For Availability

1

End Trim L.H. WPL 3183091 Contact Us For Availability

1

Liner, Oven Door WPL 3172219 Contact Us For Availability

1

Harness, Wire (Oven) WPL 3169335 Contact Us For Availability

2

Rail R.H. WPL 3149255 Contact Us For Availability

2

Rail L.H. (Includes Illus. 3) WPL 3149256 Contact Us For Availability

2

Safety Switch WPL 308185 Contact Us For Availability

2

Screw (2) WPL 98106 Contact Us For Availability

2

Screw, 8BT x 1/4 (4) WPL 254225 Contact Us For Availability

2

End Cap Designer White Mdl WPL 313230 Contact Us For Availability

2

End Cap Designer White Mdl WPL 313231 Contact Us For Availability

2

End Cap R.H. WPL 3150441 Contact Us For Availability

2

End Cap L.H. WPL 3150442 Contact Us For Availability

2

Screw (4) WPL 3148443 Contact Us For Availability

2

Retainer, Insulation WPL 3148160 Contact Us For Availability

2

Harness, (Lock Switch) WPL 3169012 Contact Us For Availability

3

Glide, Front (2) WPL 3149257 Contact Us For Availability

3

Insulator, Switch WPL 309245 Contact Us For Availability

3

Motor, Timer WPL 309822 Contact Us For Availability

3

Bumper, Door (4) WPL 3148182 Contact Us For Availability

3

Harness, (Cooktop) WPL 3183408 Contact Us For Availability

4

3149360 Whirlpool Light Switch Backorder WPL 3149360 $36.12

4

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $24.28

4

WP4314961 Whirlpool Lite Switch Backorder WPL WP4314961 $30.38

4

Screw (2) WPL 309258 Contact Us For Availability

4

Shield, Terminal WPL 313035 Contact Us For Availability

4

Panel, Glass WPL 3148186 Contact Us For Availability

4

Designer White Mdl WPL 3149051 Contact Us For Availability

5

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $63.02

5

Screw, 10-32 x 7/16 (2) WPL 3150532 Contact Us For Availability

5

Screw (2) WPL 308422 Contact Us For Availability

5

Designer White Mdl WPL 3150175 Contact Us For Availability

5

Handle, Latch WPL 3169081 Contact Us For Availability

5

Glass, Timer WPL 313513 Contact Us For Availability

5

Handle, Door WPL 3148228 Contact Us For Availability

5

Designer White Mdl WPL 3149354 Contact Us For Availability

6

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

6

285006 Whirlpool Spray In Stock WPL 285006 $27.45

6

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

6

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

6

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

6

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

6

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

6

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

6

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

6

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

6

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

6

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $35.69

6

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

6

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

6

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

6

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

6

Knob, Latch WPL 3148684 Contact Us For Availability

6

Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability

6

Knob, Latch (Designer White Mdl.) WPL 3150174 Contact Us For Availability

6

Clip, Wire WPL 311311 Contact Us For Availability

6

Clamp, Wire WPL 313570 Contact Us For Availability

6

Door Top WPL 3148223 Contact Us For Availability

6

Designer White Mdl WPL 3149355 Contact Us For Availability

6

Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability

6

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

6

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

6

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

6

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

6

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

6

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

6

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

6

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

6

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

6

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

6

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

6

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

6

Grease WPL 261582 Contact Us For Availability

6

Coffee WPL 261886 Contact Us For Availability

6

New Avocado WPL 261888 Contact Us For Availability

6

Harvest Gold WPL 261890 Contact Us For Availability

6

Harvest Gold (Uncut) WPL 261891 Contact Us For Availability

6

Toast WPL 285365 Contact Us For Availability

6

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

6

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

6

Platinum (Uncut) WPL 285368 Contact Us For Availability

6

Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability

6

Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability

6

WPL 799832 WPL 799832 Contact Us For Availability

6

WPL 978883 WPL 978883 Contact Us For Availability

7

Clip, Handle (2) WPL 3148282 Contact Us For Availability

7

Ground Strap WPL 308498 Contact Us For Availability

7

Clip WPL 313660 Contact Us For Availability

7

Designer White Mdl WPL 3169272 Contact Us For Availability

7

Timer, Control WPL 661458 Contact Us For Availability

8

WP3169181 Whirlpool Knob In Stock WPL WP3169181 $9.28

8

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.51

8

screw (3) WPL 307748 Contact Us For Availability

8

Bracket, Service WPL 3150190 Contact Us For Availability

8

Limiter, Temp. (1700W, RF-LR) WPL 3169339 Contact Us For Availability

8

Limiter, Temp. (2100W, LF-RR) WPL 3169340 Contact Us For Availability

8

Frame, Door WPL 3148235 Contact Us For Availability

9

Element, Surface (Includes No.8) (1700W, RF-L WPL 3183647 Contact Us For Availability

9

Element, Surface (Includes No.8) (2100W, LF-R WPL 3183648 Contact Us For Availability

9

Screw 8-18 x 5/8 (4) WPL 312604 Contact Us For Availability

9

Panel, Control WPL 3183817 Contact Us For Availability

9

Designer White Mdl WPL 3183818 Contact Us For Availability

9

Glide, Rear (2) WPL 307980 Contact Us For Availability

WP3148952 Whirlpool Oven Infinite Switch In Stock WPL WP3148952 $33.53

WP3148953 Whirlpool Oven Infinite Switch In Stock WPL WP3148953 $34.61

WP486754 Whirlpool Compactor Screw Backorder WPL WP486754 $2.51

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

Spring (8) WPL 3149191 Contact Us For Availability

Cover, Rear WPL 3148975 Contact Us For Availability

Switch, Infinite (Screw, 8-32 x 1/4 (8)) WPL 308119 Contact Us For Availability

Panel, Drawer (White) WPL 3150676 Contact Us For Availability

Panel, Drawer (Almond) WPL 3150677 Contact Us For Availability

Screw (4) WPL 3149333 Contact Us For Availability

Cover, Service WPL 307972 Contact Us For Availability

Bracket, Element Support WPL 3183087 Contact Us For Availability

Switch, Selector (5 Position) WPL 3148419 Contact Us For Availability

Handle, Snap-In (White) WPL 3150612 Contact Us For Availability

Handle, Snap-In (Almond) WPL 3150613 Contact Us For Availability

12

WP313808 Whirlpool Screw In Stock WPL WP313808 $2.51

12

Thermostat, 0ven WPL 3185625 Contact Us For Availability

12

Drawer, Utility WPL 327887 Contact Us For Availability

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

Indicator Light (1) WPL 314031 Contact Us For Availability

Cooktop (White) WPL 3184122 Contact Us For Availability

Cooktop (Almond Mdl.) WPL 3184123 Contact Us For Availability

Cooktop (Designer White) WPL 3184124 Contact Us For Availability

Indicator Light (Light, (1)) WPL 3148719 Contact Us For Availability

Indicator Light (1) WPL 3150662 Contact Us For Availability

Protector (2) WPL 309329 Contact Us For Availability

Knob, Control (4) (Infinite Switch) WPL 3183118 Contact Us For Availability

Designer White Mdl WPL 3183117 Contact Us For Availability

Rack, Oven (Straight) WPL 308173 Contact Us For Availability

Insulation WPL 3147951 Contact Us For Availability

Designer White Mdl WPL 3183104 Contact Us For Availability

Knob, Control (Thermostat) WPL 3183103 Contact Us For Availability

Rack, Oven (Offset) WPL 308172 Contact Us For Availability

Cap-Top (Designer White) (Only) WPL 3181363 Contact Us For Availability

16

Cover, Vent (White) WPL 3149011 Contact Us For Availability

16

cover, vent (almond) WPL 3149012 Contact Us For Availability

17

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

17

Rear Cover Control Panel WPL 3187332 Contact Us For Availability

18

Lens, Amber (3) WPL 313101 Contact Us For Availability

16515 Whirlpool Clip Backorder WPL 16515 $11.62

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Shield, Probe WPL 3183510 Contact Us For Availability

Shield, Glass (2) WPL 313608 Contact Us For Availability

340184 Whirlpool Screw Backorder WPL 340184 $9.59

8273888A Whirlpool Range Oven Anchor Anti-Tip In Stock WPL 8273888A $11.14

W10355051 Whirlpool Cooktop Cleaner Affresh ( In Stock WPL W10355051 $5.93

WA906B Whirlpool Cooktop Glass Scraper Backorder WPL WA906B $3.50

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

Knob, Control (Selector) WPL 3183115 Contact Us For Availability

Block, Balance WPL 3149258 Contact Us For Availability

Designer White Mdl WPL 3183116 Contact Us For Availability

21

Bracket, Cooktop (Right) WPL 3169294 Contact Us For Availability

21

Bracket, Cooktop (Left) WPL 3169295 Contact Us For Availability

22

Spring, Oven Door (2) WPL 308127 Contact Us For Availability

22

Clip, Mounting (2) (Vent Cover) WPL 3149190 Contact Us For Availability

23

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

36

Switch, Bake WPL 314210 Contact Us For Availability

37

98005642 Whirlpool Clip Backorder WPL 98005642 $28.80

37

Insulation, Wrapper WPL 3169093 Contact Us For Availability

37

Insulation, Oven BAck WPL 3169094 Contact Us For Availability
