Model Whirlpool RF327PXVW0 – Common Parts & Diagrams
06 - WIRING HARNESS
02 - COOKTOP
03 - CONTROL PANEL

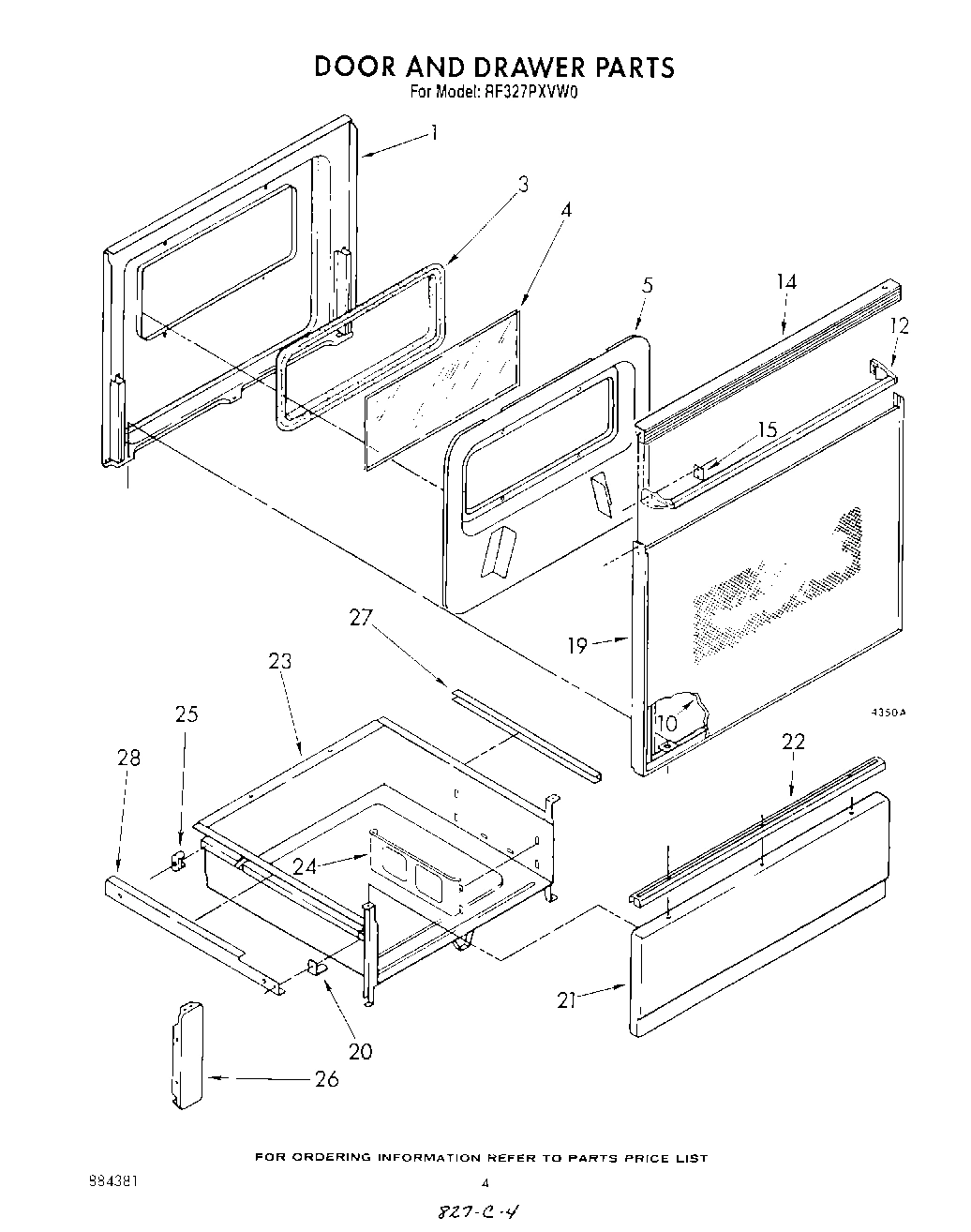

04 - DOOR AND DRAWER , LITERATURE AND OPTIONAL

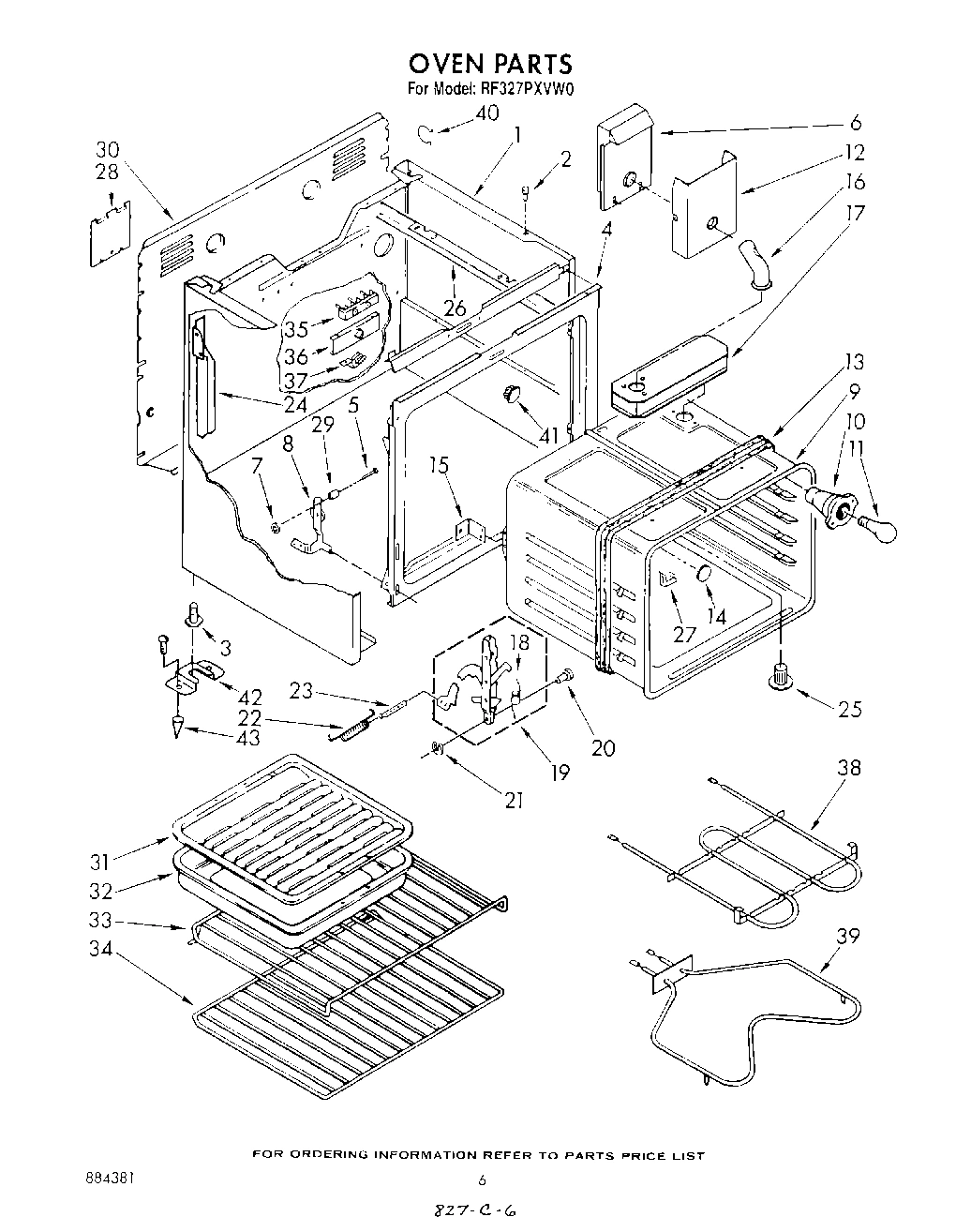

05 - OVEN
Common parts from model Whirlpool RF327PXVW0
WPL 308043 WPL 308043 Contact Us For Availability
1
Liner, Door WPL 3170710 Contact Us For Availability
1
Main Chassis (White) WPL 330086 Contact Us For Availability
1
Main Chassis (Almond) WPL 330090 Contact Us For Availability
3
Seal, Window WPL 3148183 Contact Us For Availability
4
Frame, Front WPL 3171800 Contact Us For Availability
5
Retainer, Insulation WPL 3148179 Contact Us For Availability
5
Screw (4) WPL 3148443 Contact Us For Availability
5
Pin, Hinge WPL 307985 Contact Us For Availability
6
Box, Vent WPL 3171381 Contact Us For Availability
7
Pushnut WPL 308306 Contact Us For Availability
8
Hinge (R.H.) WPL 327890 Contact Us For Availability
8
Hinge (L.H.) WPL 327891 Contact Us For Availability
9
Screw (3) WPL 311056 Contact Us For Availability
9
Oven (30`` Pyro) WPL 329001 Contact Us For Availability
10
Panel, Glass WPL 3148185 Contact Us For Availability
10
Socket, Lamp (Alt.) WPL 307856 Contact Us For Availability
10
Socket, Lamp (Alt.) WPL 310208 Contact Us For Availability
10
Socket, Lamp WPL 660556 Contact Us For Availability
11
Clip, Vent (2) WPL 3149190 Contact Us For Availability
12
Handle, Door WPL 3148228 Contact Us For Availability
12
Shield, Vent WPL 3149006 Contact Us For Availability
12
Screw (2) WPL 98520 Contact Us For Availability
13
Seal, Heat WPL 309107 Contact Us For Availability
14
Top, Door WPL 3148223 Contact Us For Availability
14
Plug Button WPL 257314 Contact Us For Availability
15
Clip, Mtg (2) WPL 3148282 Contact Us For Availability
15
Screw 8-18 x 5/8 (4) WPL 312604 Contact Us For Availability
15
Panel, Control WPL 3148834 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
16
Vent, Oven WPL 3148906 Contact Us For Availability
17
Box, Vent WPL 3147076 Contact Us For Availability
18
Switch, Selector (3 Position) WPL 313061 Contact Us For Availability
18
Spring, Door Stop WPL 308207 Contact Us For Availability
19
Thermostat, Oven Pyro (Alt.) WPL 310864 Contact Us For Availability
19
Thermostat, Oven Pyro (Alt.) WPL 311498 Contact Us For Availability
19
Thermostat, Oven Pyro WPL 661150 Contact Us For Availability
19
Frame, Panel WPL 3148235 Contact Us For Availability
19
Channel, Arm (2) WPL 329712 Contact Us For Availability
20
Light, Indicator (1) (Oven) (Includes Illus. WPL 314031 Contact Us For Availability
20
Glide, Front (2) WPL 3149257 Contact Us For Availability
21
Light, Indicator (Surface Unit) (2) (Includes WPL 313102 Contact Us For Availability
21
Panel Drawer (White) WPL 307935 Contact Us For Availability
21
Panel, Drawer (Almond) WPL 307939 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
22
Handle, Drawer WPL 313337 Contact Us For Availability
23
Drawer, Utility WPL 327887 Contact Us For Availability
24
Rack, Literature WPL 357645 Contact Us For Availability
24
Support, L.H. Channel WPL 313196 Contact Us For Availability
24
Support, R.H. Channel WPL 313197 Contact Us For Availability
25
Glide, Rear (2) WPL 307980 Contact Us For Availability
25
Eliminator, Smoke WPL 3147242 Contact Us For Availability
26
Braket, Mtg. (2) WPL 307981 Contact Us For Availability
26
Screw (2) WPL 254217 Contact Us For Availability
26
Support, Chassis WPL 3147646 Contact Us For Availability
27
Protector, Side (2) WPL 309329 Contact Us For Availability
28
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
28
WPL 307748 WPL 307748 Contact Us For Availability
28
Wire, Splicing 25` 14 Ga. 150~c (Leveler (Thi WPL 206925 Contact Us For Availability
28
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
28
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
28
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
28
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
28
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
28
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
28
Wire, Splicing 25` 14 Ga. 150~c (White) WPL 242826 Contact Us For Availability
28
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
28
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
28
Wire, Splicing 25` 14 Ga. 150~c (Red 12 Ga. 2 WPL 242829 Contact Us For Availability
28
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
28
Wire, Splicing 25` 14 Ga. 150~c (Yellow Paint WPL 242832 Contact Us For Availability
28
WPL 242985 WPL 242985 Contact Us For Availability
28
WPL 261582 WPL 261582 Contact Us For Availability
28
WPL 261748 WPL 261748 Contact Us For Availability
28
WPL 261886 WPL 261886 Contact Us For Availability
28
WPL 261887 WPL 261887 Contact Us For Availability
28
WPL 261888 WPL 261888 Contact Us For Availability
28
WPL 261889 WPL 261889 Contact Us For Availability
28
WPL 261890 WPL 261890 Contact Us For Availability
28
WPL 261891 WPL 261891 Contact Us For Availability
28
WPL 285365 WPL 285365 Contact Us For Availability
28
WPL 285366 WPL 285366 Contact Us For Availability
28
WPL 285367 WPL 285367 Contact Us For Availability
28
WPL 285368 WPL 285368 Contact Us For Availability
28
WPL 3147861 WPL 3147861 Contact Us For Availability
28
WPL 3149255 WPL 3149255 Contact Us For Availability
28
WPL 3149256 WPL 3149256 Contact Us For Availability
28
WPL 72108 WPL 72108 Contact Us For Availability
28
WPL 72112 WPL 72112 Contact Us For Availability
28
WPL 799832 WPL 799832 Contact Us For Availability
28
WPL 978883 WPL 978883 Contact Us For Availability
28
Cover, Service WPL 307972 Contact Us For Availability
29
Snubber, Door (2) WPL 309111 Contact Us For Availability
30
Knob, Control (4) WPL 330177 Contact Us For Availability
30
Panel, Rear WPL 3148975 Contact Us For Availability
33
Rack, Oven (Offset) WPL 308172 Contact Us For Availability
34
Screw (2) WPL 310410 Contact Us For Availability
34
Knob, Control WPL 330176 Contact Us For Availability
34
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
35
Screw (2) WPL 98884 Contact Us For Availability
36
Braket, Service WPL 307970 Contact Us For Availability
37
Tube Clip WPL 313570 Contact Us For Availability
37
Strap, Ground WPL 308498 Contact Us For Availability
37
Clip WPL 313660 Contact Us For Availability
39
Rear Cover Control Panel WPL 313195 Contact Us For Availability
39
Screw (2) WPL 246127 Contact Us For Availability
41
Lens, Amber (3) WPL 313101 Contact Us For Availability
41
Plu WPL 308535 Contact Us For Availability
42
Spring, Knob WPL 313311 Contact Us For Availability
42
WPL 3148604 WPL 3148604 Contact Us For Availability
43
WPL 3148605 WPL 3148605 Contact Us For Availability
50
Shield, Glass (2) WPL 313608 Contact Us For Availability
52
Knob, Control WPL 330180 Contact Us For Availability
× ![]()
