Model Whirlpool RF317PXVN0 – Common Parts &amp; Diagrams

WP313808 Whirlpool Screw In Stock WPL WP313808 $2.51

WPL LIT313358 WPL LIT313358 Contact Us For Availability

WPL LIT3148056 WPL LIT3148056 Contact Us For Availability

WPL LIT3148060 WPL LIT3148060 Contact Us For Availability

WPL LIT3148535 WPL LIT3148535 Contact Us For Availability

WPL LIT3148614 WPL LIT3148614 Contact Us For Availability

WPL LIT884334 WPL LIT884334 Contact Us For Availability

1

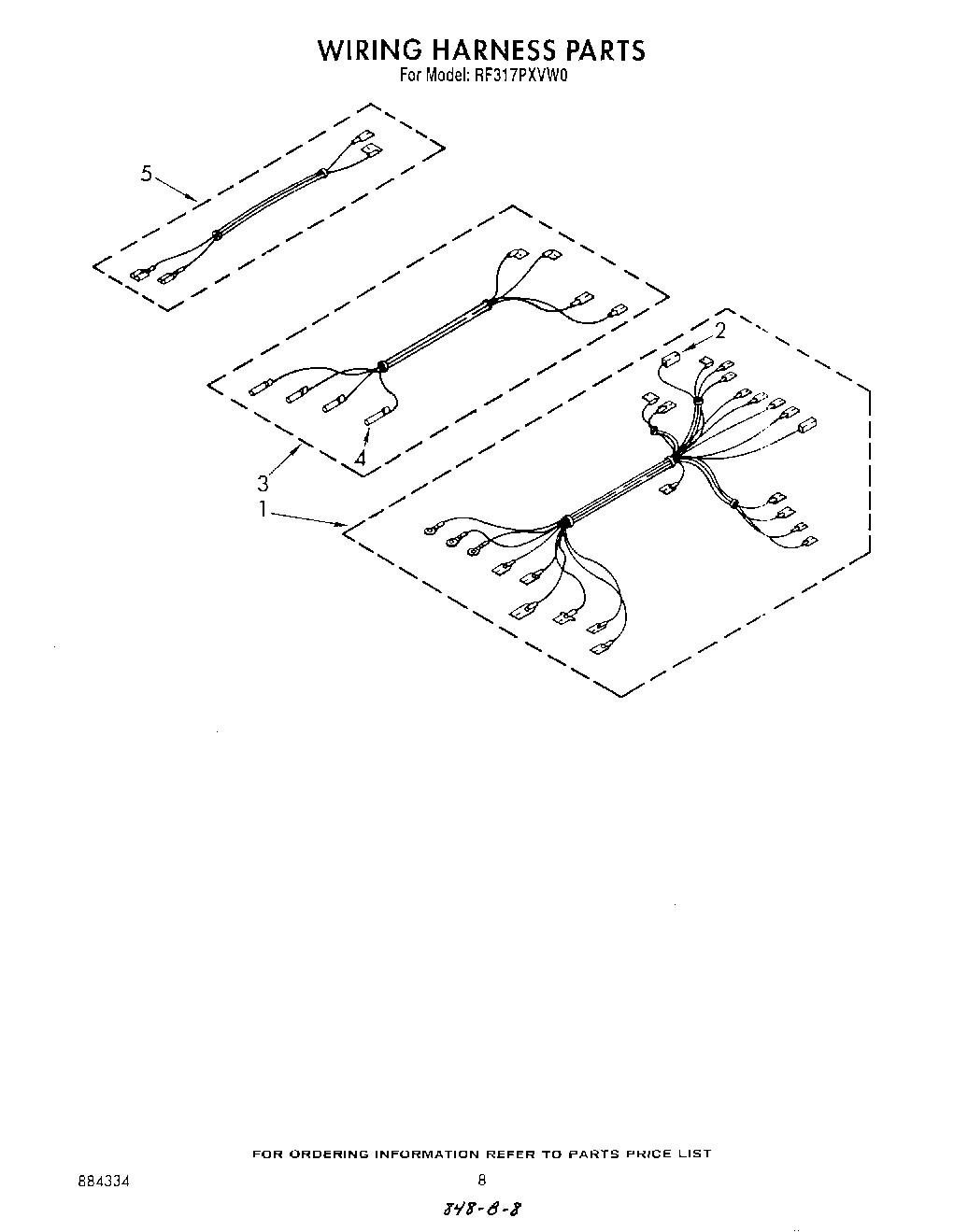

Harness, Wiring (Oven) WPL 313151 Contact Us For Availability

1

End Trim L.H. WPL 313188 Contact Us For Availability

1

End Trim R.H. WPL 313189 Contact Us For Availability

1

Cooktop (White) WPL 3171372 Contact Us For Availability

1

Cooktop (Almond) WPL 3171373 Contact Us For Availability

1

Cooktop (Gold) WPL 3171376 Contact Us For Availability

1

Screw, 10A x 1/2 (4) WPL 311056 Contact Us For Availability

1

Liner, Door WPL 3170708 Contact Us For Availability

2

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

2

Block, Disconnect WPL 351297 Contact Us For Availability

2

Screw, 8BT x 1/4 (4) WPL 254225 Contact Us For Availability

2

End Cap R.H. WPL 313230 Contact Us For Availability

2

End Cap L.H. WPL 313231 Contact Us For Availability

2

Bracket, Cooktop WPL 307965 Contact Us For Availability

3

WP3147131 Whirlpool Surface Element In Stock WPL WP3147131 $104.26

3

WP3147132 Whirlpool Surface Element Backorder WPL WP3147132 $123.53

3

Seal, Window WPL 3148183 Contact Us For Availability

3

Harness, Supply WPL 3147129 Contact Us For Availability

4

Terminal WPL 3147138 Contact Us For Availability

4

Knob, Control (Selector) WPL 330173 Contact Us For Availability

4

Cooktop Support WPL 3149261 Contact Us For Availability

4

Glass, Inner WPL 3148179 Contact Us For Availability

5

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

5

Harness, Wiring (Oven Light) WPL 313152 Contact Us For Availability

5

Clip, Wire (4) WPL 311311 Contact Us For Availability

5

Retainer, Insulation WPL 3148287 Contact Us For Availability

5

Screw (4) WPL 3148443 Contact Us For Availability

6

Bracket, Mounting 6``(2) WPL 3147703 Contact Us For Availability

7

Bracket, Mounting 8`` (2) WPL 3147704 Contact Us For Availability

8

Spring, Leaf (4) WPL 3147191 Contact Us For Availability

9

Nut (4) WPL 3147189 Contact Us For Availability

Timer, Clock Includes No.11 WPL 3148053 Contact Us For Availability

Cover, Vent (White) WPL 3149011 Contact Us For Availability

cover, vent (almond) WPL 3149012 Contact Us For Availability

Cover, Vent (Gold) WPL 3149015 Contact Us For Availability

Panel, Glass WPL 3148185 Contact Us For Availability

11

Clip, Vent (2) WPL 3149190 Contact Us For Availability

11

Motor, Timer WPL 309822 Contact Us For Availability

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.51

Glass, Timer WPL 313513 Contact Us For Availability

Pin, Hinge (2) WPL 307966 Contact Us For Availability

Handle, Door WPL 3148229 Contact Us For Availability

13

Seal, Heat WPL 309107 Contact Us For Availability

14

Top, Door WPL 3148223 Contact Us For Availability

15

Clip, Mtg (2) WPL 3148282 Contact Us For Availability

15

Screw 8-18 x 5/8 (4) WPL 312604 Contact Us For Availability

15

Panel, Control WPL 313239 Contact Us For Availability

17

WP3148952 Whirlpool Oven Infinite Switch In Stock WPL WP3148952 $33.53

17

WP3148953 Whirlpool Oven Infinite Switch In Stock WPL WP3148953 $34.61

18

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

18

Switch, Selector WPL 313062 Contact Us For Availability

Thermostat, Oven (Alt.) WPL 310864 Contact Us For Availability

Thermostat, Oven (Alt.) WPL 311498 Contact Us For Availability

Thermostat, Oven WPL 661150 Contact Us For Availability

Frame, Panel WPL 3148235 Contact Us For Availability

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

Light, Indicator (Oven On) WPL 314031 Contact Us For Availability

Light, Indicator (Surface Unit (2)) WPL 313102 Contact Us For Availability

Glide, Front (2) WPL 3149257 Contact Us For Availability

21

Panel Drawer (White) WPL 307935 Contact Us For Availability

21

Panel, Drawer (Gold) WPL 307938 Contact Us For Availability

21

Panel, Drawer (Almond) WPL 307939 Contact Us For Availability

22

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

22

Spring, Oven Door (2) WPL 308127 Contact Us For Availability

22

Handle, Drawer WPL 313337 Contact Us For Availability

23

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

23

WP4314961 Whirlpool Lite Switch Backorder WPL WP4314961 $30.38

23

Drawer, Utility WPL 327887 Contact Us For Availability

24

Knob, Control (4) (Surface Unit) WPL 330171 Contact Us For Availability

24

Rack, Literature WPL 357645 Contact Us For Availability

Screw (2) WPL 310410 Contact Us For Availability

Knob, Control (Thermostat) WPL 330170 Contact Us For Availability

Screw (2) WPL 307748 Contact Us For Availability

Glide, Rear (2) WPL 307980 Contact Us For Availability

screw, 10a x 3/8 WPL 254217 Contact Us For Availability

Support, Chassis WPL 3147646 Contact Us For Availability

Tube Clip WPL 313570 Contact Us For Availability

Bracket, Mtg. (2) WPL 307981 Contact Us For Availability

27

98005642 Whirlpool Clip Backorder WPL 98005642 $28.80

27

Rear Cover Control Panel WPL 313195 Contact Us For Availability

27

Protector, Side (2) WPL 309329 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Cover, Service WPL 307972 Contact Us For Availability

Lens, Amber (3) WPL 313101 Contact Us For Availability

Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, Splicing 25` 14 Ga. 150~c (White) WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Splicing 25` 14 Ga. 150~c (Red 12 Ga. 2 WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Splicing 25` 14 Ga. 150~c (Yellow) WPL 242832 Contact Us For Availability

Rotisserie Kit (RCK 81) WPL 242985 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

Touch WPL 261748 Contact Us For Availability

WPL 261886 WPL 261886 Contact Us For Availability

WPL 261887 WPL 261887 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261889 WPL 261889 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 3147861 WPL 3147861 Contact Us For Availability

WPL 3149255 WPL 3149255 Contact Us For Availability

WPL 3149256 WPL 3149256 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

29

WP3169181 Whirlpool Knob In Stock WPL WP3169181 $9.28

29

Snubber, Door (2) WPL 309111 Contact Us For Availability

29

Spring, Knob WPL 313311 Contact Us For Availability

30

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

30

Panel, Rear WPL 3148975 Contact Us For Availability

30

Shield, Glass (2) WPL 313608 Contact Us For Availability

31

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

33

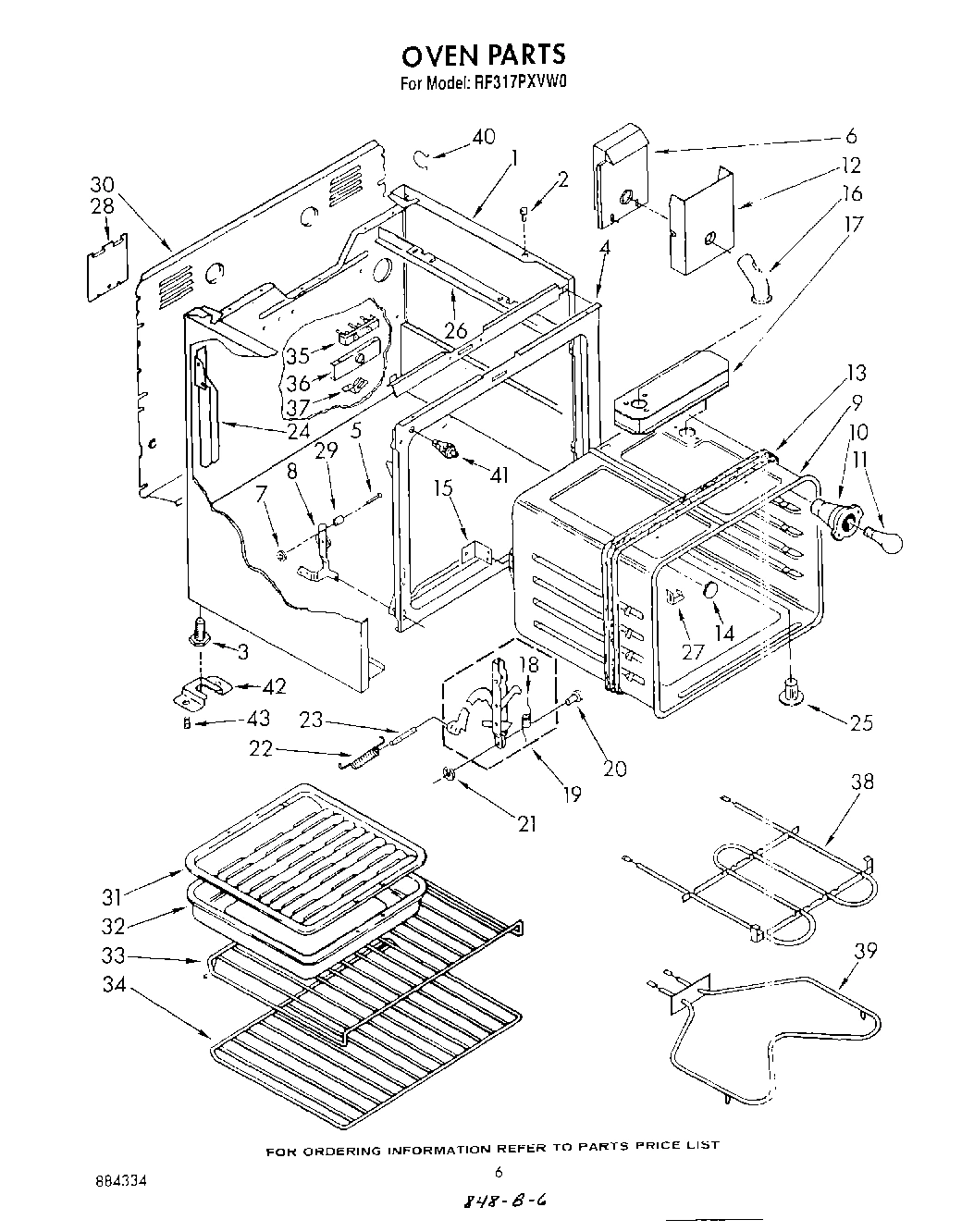

Rack, Oven (Offset) WPL 308172 Contact Us For Availability

34

Rack, Oven (Straight) WPL 308173 Contact Us For Availability

35

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

35

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

35

Screw (2) WPL 98884 Contact Us For Availability

36

Braket, Service WPL 307970 Contact Us For Availability

37

Strap, Ground WPL 308498 Contact Us For Availability

37

Clip WPL 313660 Contact Us For Availability

38

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $63.02

39

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $24.28

39

WPL 312318 WPL 312318 Contact Us For Availability

40

16515 Whirlpool Clip Backorder WPL 16515 $11.62

41

WPL 310345 WPL 310345 Contact Us For Availability

42

8273888A Whirlpool Range Oven Anchor Anti-Tip In Stock WPL 8273888A $11.14

42

WPL 3148604 WPL 3148604 Contact Us For Availability

43

WPL 3148605 WPL 3148605 Contact Us For Availability
