Model Whirlpool RF316PXYN0 – Common Parts & Diagrams
03 - CONTROL PANEL
05 - UNIT, OPTIONAL

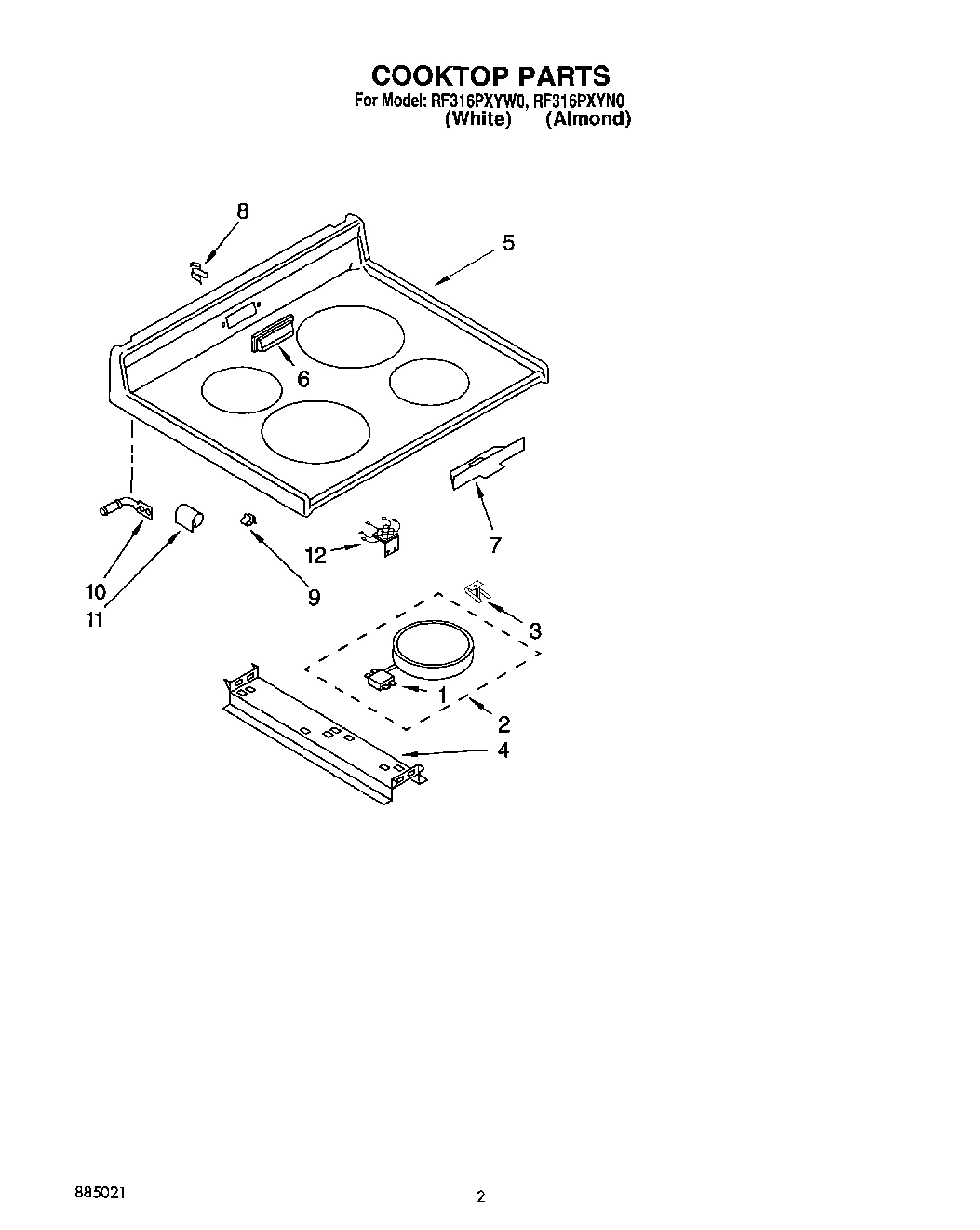

02 - COOKTOP, LIT/OPTIONAL

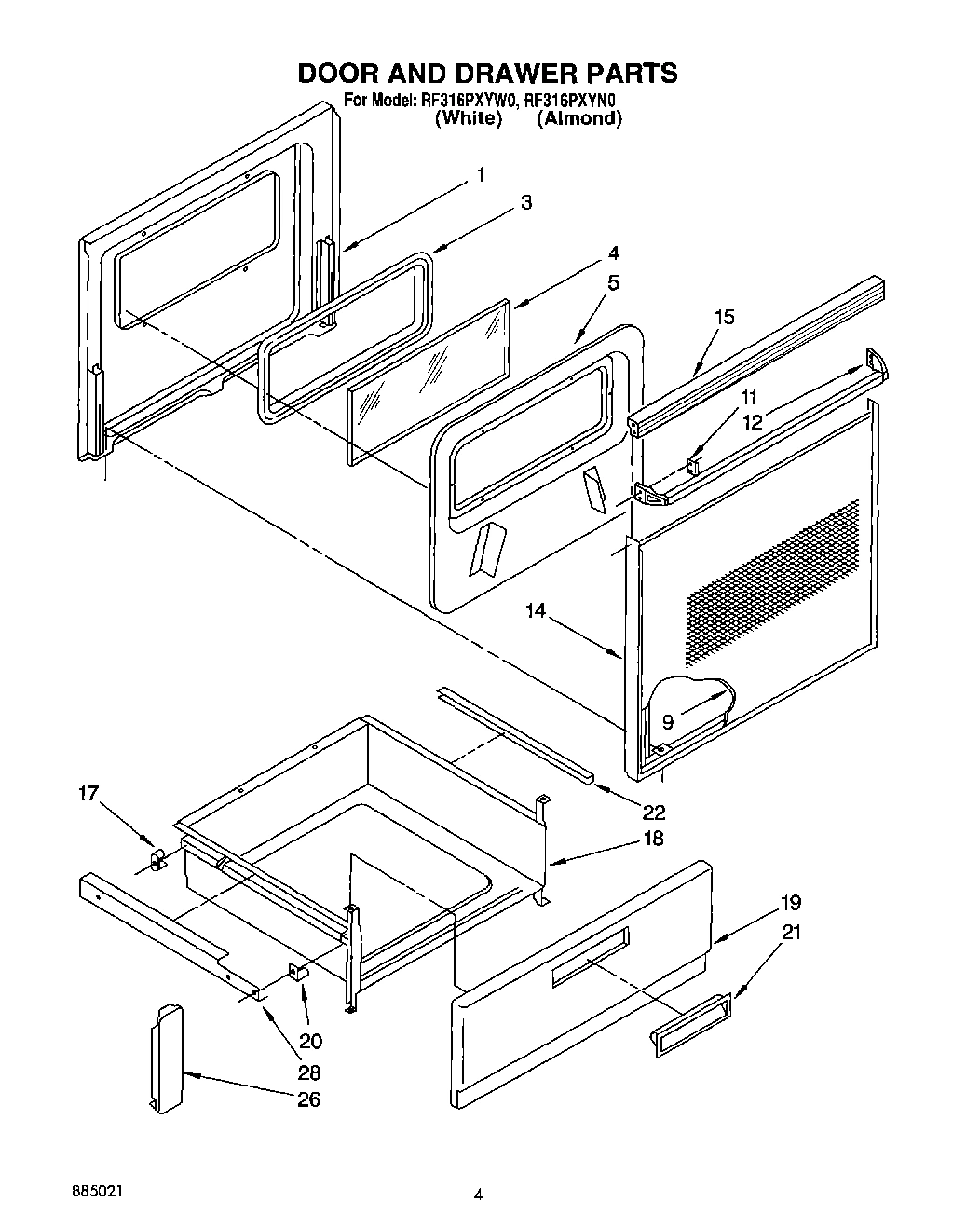

04 - DOOR AND DRAWER

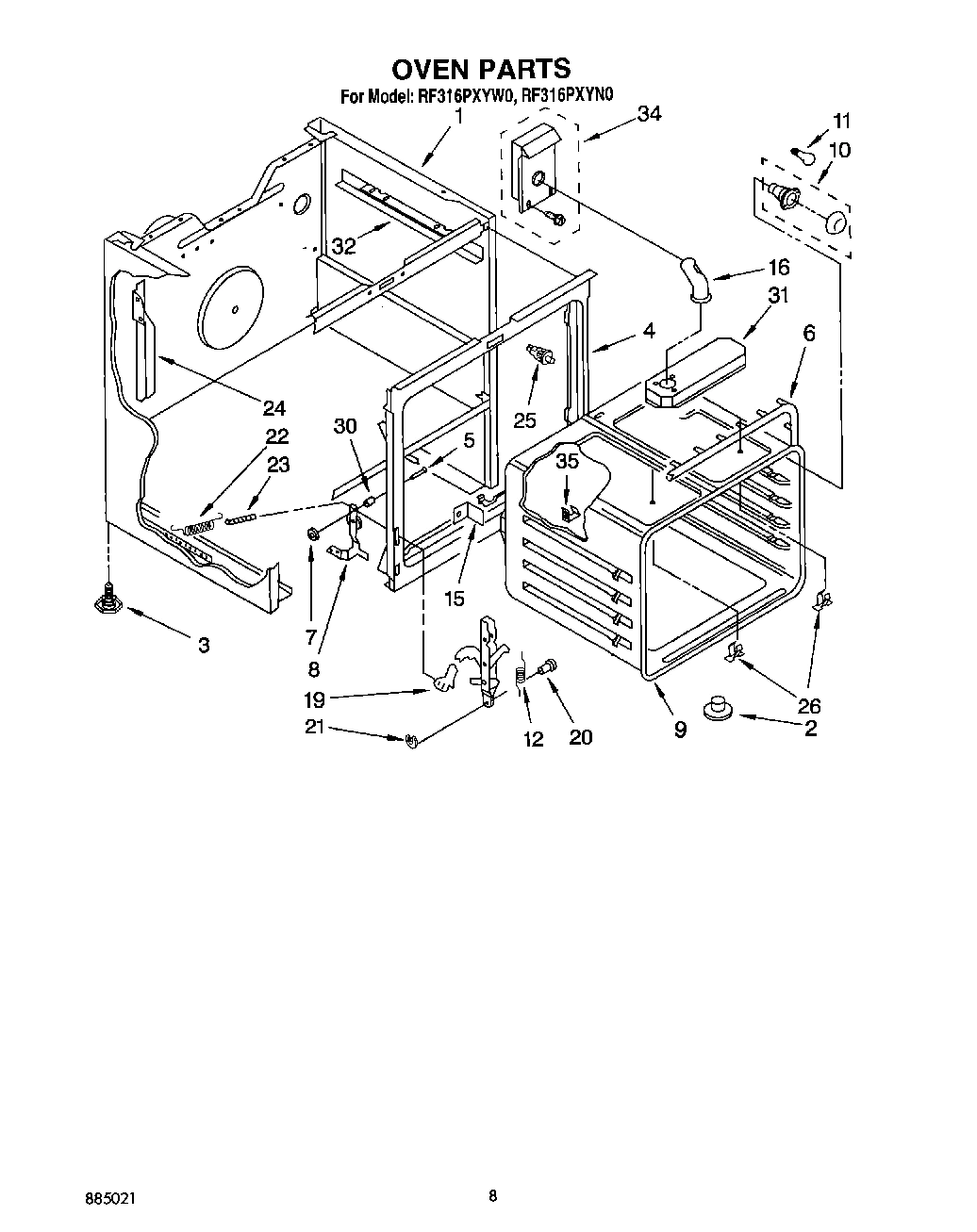

06 - OVEN

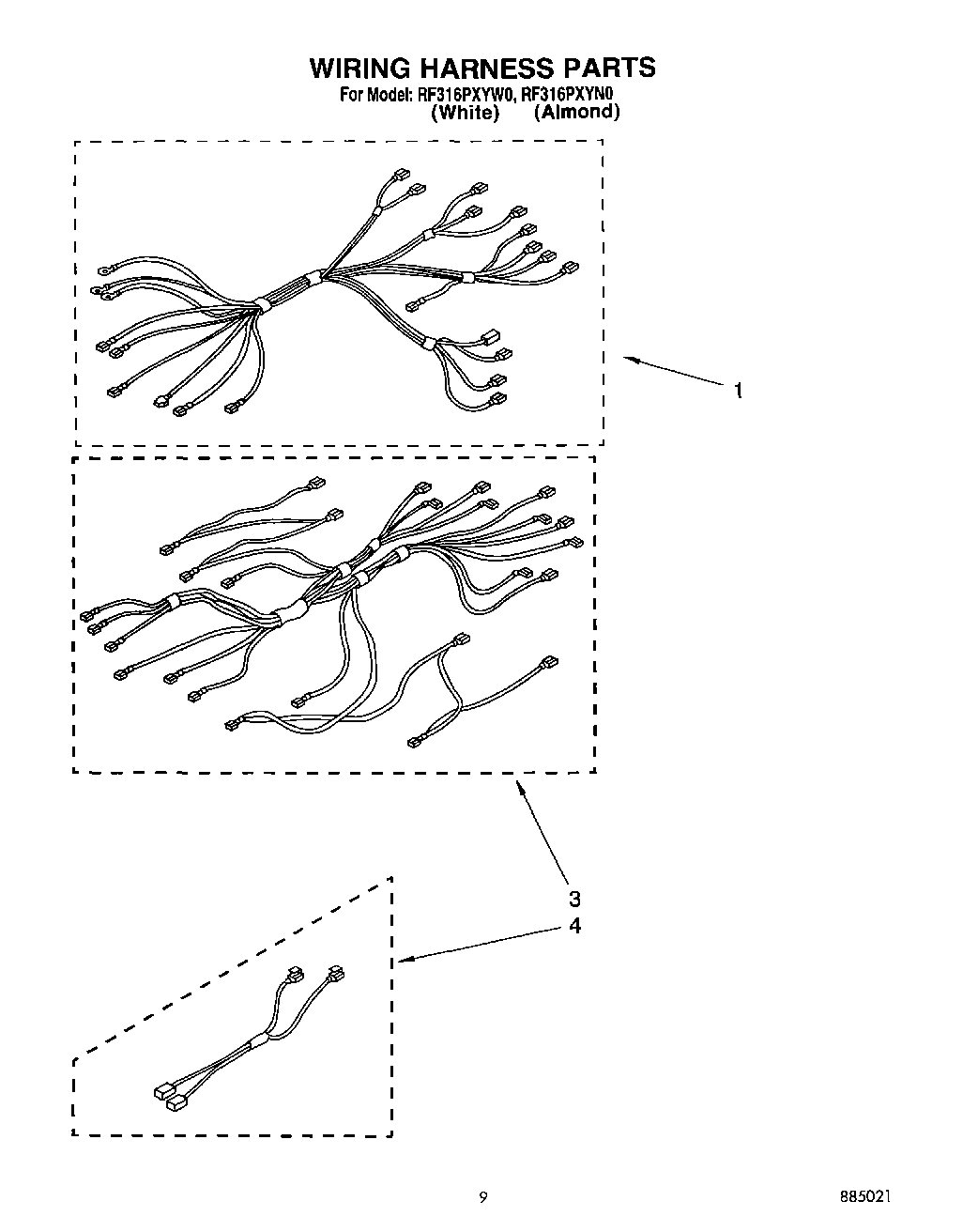

07 - WIRING HARNESS
Common parts from model Whirlpool RF316PXYN0
Instructions, Installation WPL LIT3147395 Contact Us For Availability
Use and Care Guide WPL LIT3169014 Contact Us For Availability
Wiring Diagram WPL LIT3181471 Contact Us For Availability
Video, Ceran Cooktop WPL LIT3182687 Contact Us For Availability
Repair Parts List WPL LIT885021 Contact Us For Availability
1
Limiter, Temp. (180 MM - LR) WPL 3149129 Contact Us For Availability
1
Limiter, Temp. (200 MM - RF) WPL 3183972 Contact Us For Availability
1
Limiter, Temp. (250 MM - LF) WPL 3183973 Contact Us For Availability
1
Limiter, Temp. (230 MM - RR) WPL 3183974 Contact Us For Availability
1
Liner, Door WPL 3172220 Contact Us For Availability
1
Main Chassis (White) WPL 330086 Contact Us For Availability
1
Main Chassis (Almond) WPL 330090 Contact Us For Availability
1
Harness, (Oven) WPL 3169149 Contact Us For Availability
2
Element, Surface (Includes No.1) (180 MM - LR WPL 3183646 Contact Us For Availability
2
Element, Surface (Includes No.1) (200 MM - RF WPL 3183647 Contact Us For Availability
2
Element, Surface (Includes No.1) (230 MM - RR WPL 3183648 Contact Us For Availability
2
Element, Surface (Includes No.1) (250 MM - LF WPL 3183649 Contact Us For Availability
2
Tube, Vent WPL 3169144 Contact Us For Availability
3
Seal, Glass WPL 3148183 Contact Us For Availability
3
Spring (8) WPL 3149191 Contact Us For Availability
3
Clip, Wire WPL 311311 Contact Us For Availability
3
Harness, Cooktop WPL 3169104 Contact Us For Availability
4
Bracket, (2) Element Support WPL 3148809 Contact Us For Availability
4
Glass, Inner WPL 3148179 Contact Us For Availability
4
Screw (1) WPL 3150537 Contact Us For Availability
4
Frame, Front WPL 3176681 Contact Us For Availability
4
Harness, Wiring (Oven Light) WPL 313152 Contact Us For Availability
5
Cooktop (White) WPL 3176527 Contact Us For Availability
5
Cooktop (Almond) WPL 3176528 Contact Us For Availability
5
Screw, 8-18 x 5/16 WPL 3148443 Contact Us For Availability
5
Retainer, WPL 3148287 Contact Us For Availability
5
Pin, Hinge (2) WPL 307985 Contact Us For Availability
6
Seal, Door WPL 309107 Contact Us For Availability
6
Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability
6
Cover, Vent (White) WPL 3149011 Contact Us For Availability
6
cover, vent (almond) WPL 3149012 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
7
Shield, Probe WPL 3149262 Contact Us For Availability
7
Pushnut (2) WPL 308306 Contact Us For Availability
8
Clip, Mounting WPL 3149190 Contact Us For Availability
8
Bracket, Service WPL 3150190 Contact Us For Availability
8
Hinge (R.H.) WPL 327890 Contact Us For Availability
8
Hinge (L.H.) WPL 327891 Contact Us For Availability
9
Outer Glass WPL 3148185 Contact Us For Availability
9
Screw (3) WPL 311056 Contact Us For Availability
9
Oven (30`` Pyro) WPL 3176611 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
10
Pin, Hinge (2) WPL 307966 Contact Us For Availability
11
Clip (2) WPL 3148282 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
11
Bracket, Hinge (2) WPL 307965 Contact Us For Availability
12
Screw (2) WPL 98520 Contact Us For Availability
12
Hot Light Assembly WPL 3169188 Contact Us For Availability
12
Handle, Oven Door WPL 3148228 Contact Us For Availability
12
Spring, Door Stop WPL 308207 Contact Us For Availability
13
Indicator Light (2) WPL 314031 Contact Us For Availability
14
Knob, Control (4) (Infinite Switch) WPL 3183118 Contact Us For Availability
14
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
14
Frame, Door WPL 3148235 Contact Us For Availability
15
Screw WPL 3149333 Contact Us For Availability
15
Rack, Oven (Offset) 10-32 x .437 (2) WPL 308172 Contact Us For Availability
15
Top, Door Frame WPL 3148223 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
16
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
16
Vent, Oven WPL 3148906 Contact Us For Availability
17
Glide, Rear WPL 307980 Contact Us For Availability
18
Drawer, Utility WPL 327887 Contact Us For Availability
19
Panel, Drawer (White) WPL 3150676 Contact Us For Availability
19
Panel, Drawer (Almond) WPL 3150677 Contact Us For Availability
19
Channel, Arm (2) WPL 329712 Contact Us For Availability
20
WPL W10355051 No Longer Available
20
Knob, Control (Selector) WPL 3183112 Contact Us For Availability
20
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
20
WPL 799344 WPL 799344 Contact Us For Availability
20
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
20
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
20
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
20
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
20
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
20
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
20
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
20
14 Ga. 200`C (Wire, White) WPL 242826 Contact Us For Availability
20
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
20
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
20
14 Ga. 150`C (Wire, Red) WPL 242829 Contact Us For Availability
20
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
20
14 Ga. 150`C (Wire, Yellow) WPL 242832 Contact Us For Availability
20
WPL 261582 WPL 261582 Contact Us For Availability
20
WPL 261886 WPL 261886 Contact Us For Availability
20
WPL 261888 WPL 261888 Contact Us For Availability
20
WPL 261890 WPL 261890 Contact Us For Availability
20
WPL 261891 WPL 261891 Contact Us For Availability
20
WPL 285365 WPL 285365 Contact Us For Availability
20
WPL 285366 WPL 285366 Contact Us For Availability
20
WPL 285367 WPL 285367 Contact Us For Availability
20
WPL 285368 WPL 285368 Contact Us For Availability
20
WPL 312804 WPL 312804 Contact Us For Availability
20
WPL 72108 WPL 72108 Contact Us For Availability
20
WPL 72112 WPL 72112 Contact Us For Availability
20
WPL 799832 WPL 799832 Contact Us For Availability
20
WPL 978883 WPL 978883 Contact Us For Availability
20
Glide, Front (2) WPL 3149257 Contact Us For Availability
21
Handle, Snap-In (White) WPL 3150612 Contact Us For Availability
21
Handle, Snap-In (Almond) WPL 3150613 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
22
Protector, Drawer (2) WPL 309329 Contact Us For Availability
24
Support, L.H. Post WPL 313196 Contact Us For Availability
24
Support, R.H. Post WPL 313197 Contact Us For Availability
25
Switch, Door (2) WPL 310345 Contact Us For Availability
26
Bracket, Rail (2) WPL 307981 Contact Us For Availability
26
Plug, Button (2) WPL 3169107 Contact Us For Availability
28
Rail, Slide (R.H.) WPL 3149255 Contact Us For Availability
28
Rail, Slide (L.H. (Includes No. 20)) WPL 3149256 Contact Us For Availability
30
Snubber, Door (2) WPL 309111 Contact Us For Availability
31
Box Vent WPL 3169129 Contact Us For Availability
32
Support, Chassis WPL 3147646 Contact Us For Availability
34
Vent, Box WPL 3171381 Contact Us For Availability
35
Insulation, Wrapper WPL 309961 Contact Us For Availability
× ![]()
