Model Whirlpool RF316PXXB0 – Common Parts & Diagrams
07 - WIRING HARNESS
03 - CONTROL PANEL

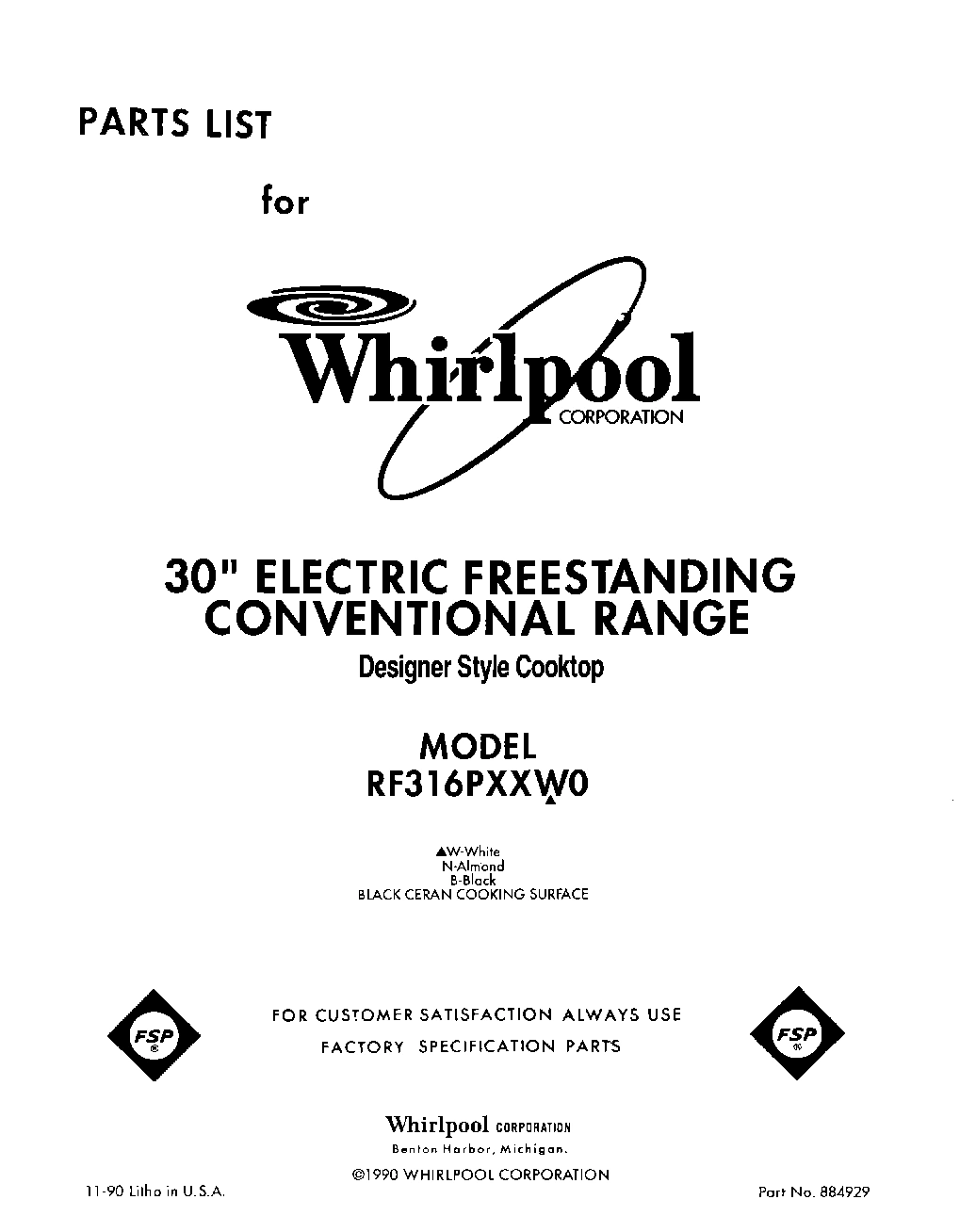

01 - FRONT COVER

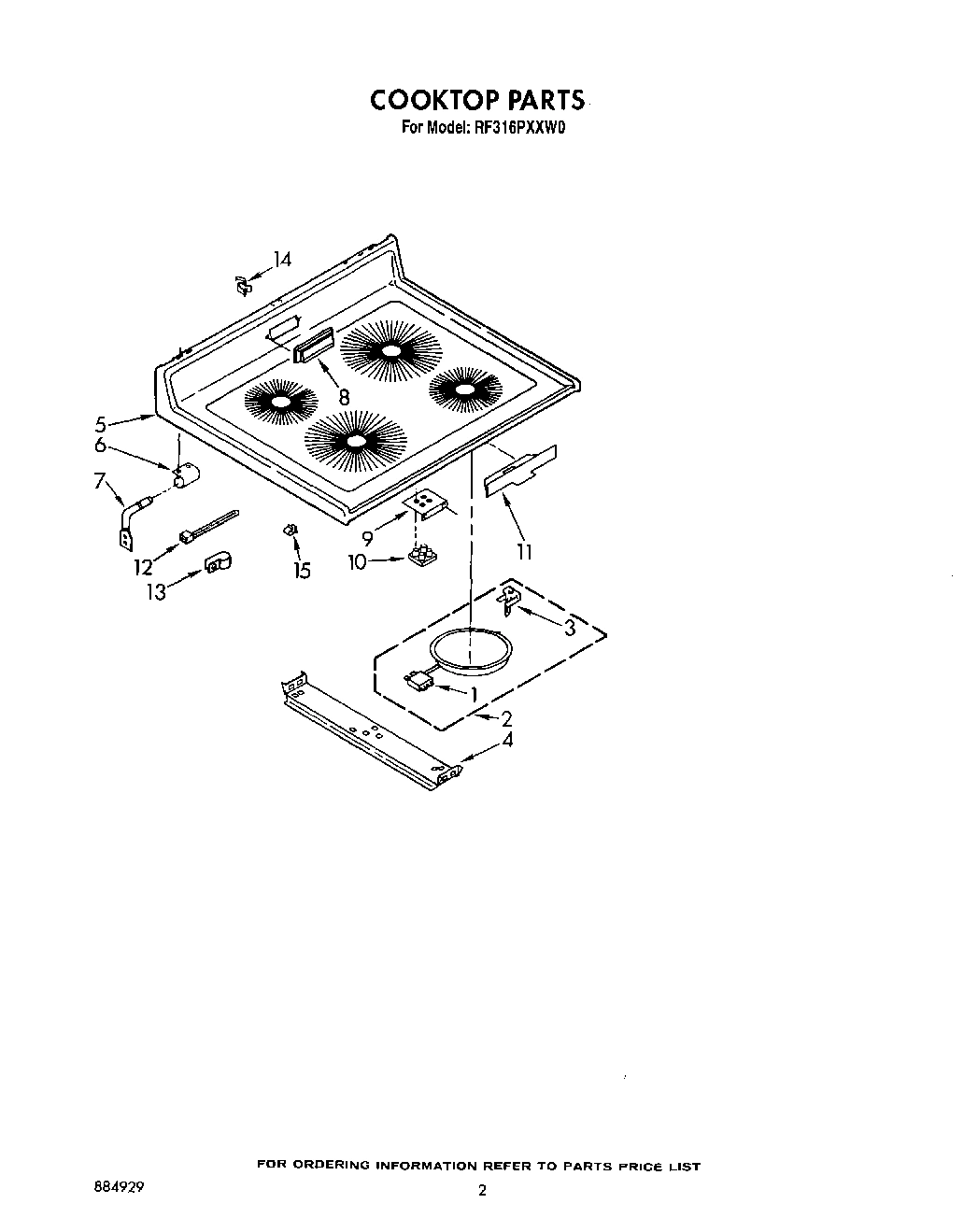

02 - COOKTOP, LIT/OPTIONAL

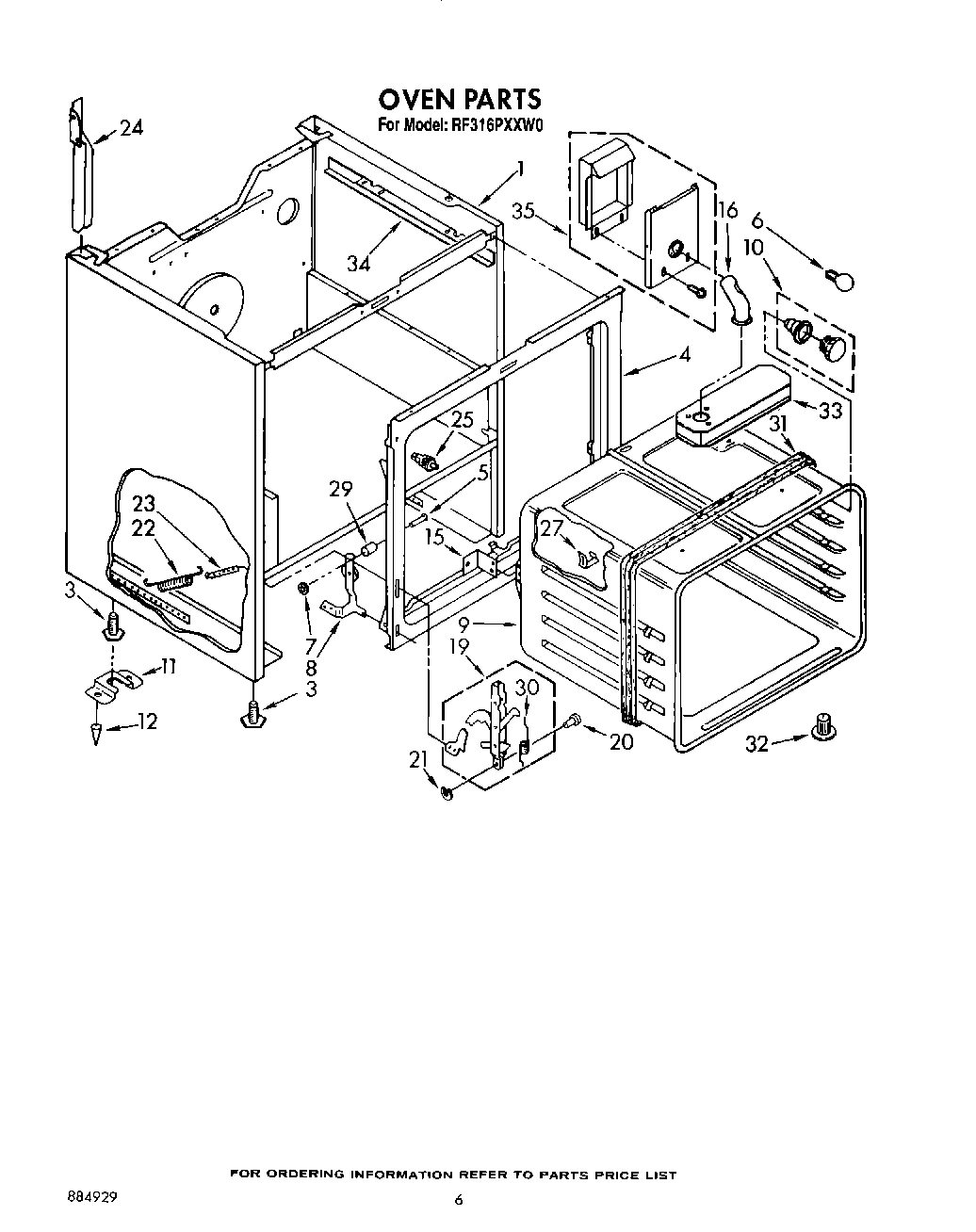

05 - OVEN

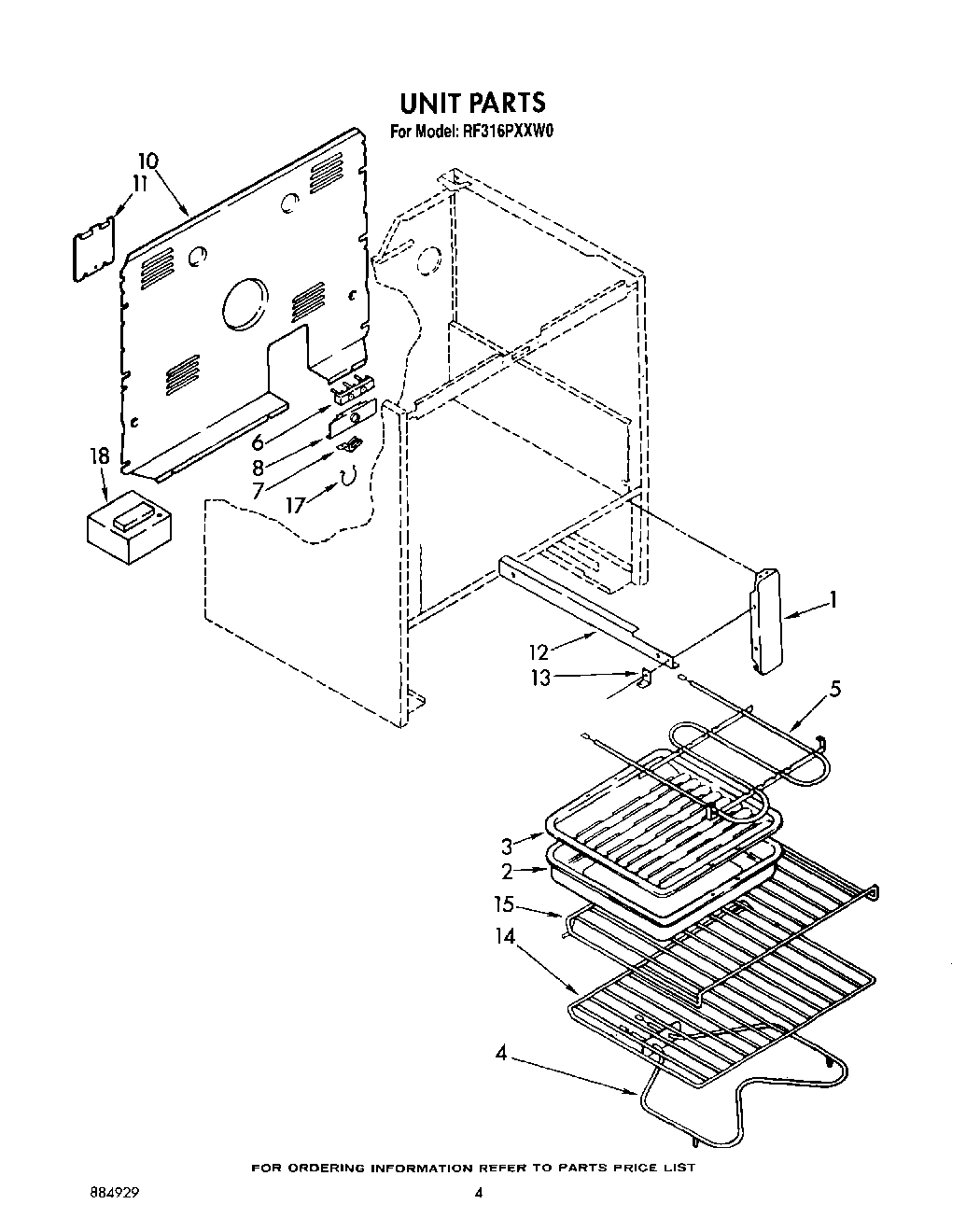

04 - UNIT, OPTIONAL

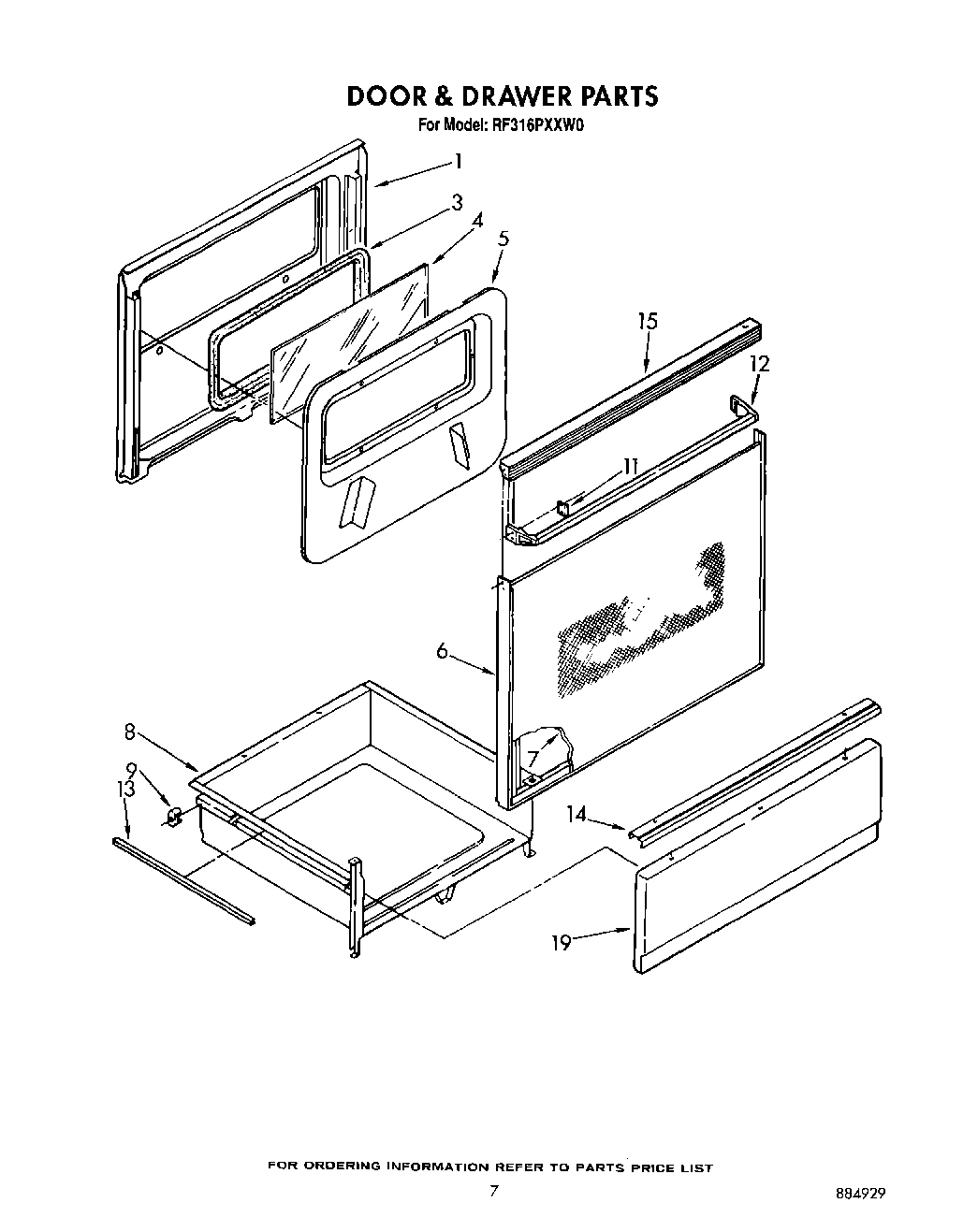

06 - DOOR AND DRAWER
Common parts from model Whirlpool RF316PXXB0
Instructions, Installation WPL LIT3147389 Contact Us For Availability
Cooking Guide WPL LIT3149507 Contact Us For Availability
Use & Care Guide WPL LIT3150265 Contact Us For Availability
Wiring Diagram WPL LIT3181471 Contact Us For Availability
Repair Parts List WPL LIT884929 Contact Us For Availability
1
Limiter, Temp. (230 MM - RR) WPL 3149123 Contact Us For Availability
1
Limiter, Temp. (180 MM - LR) WPL 3149125 Contact Us For Availability
1
Limiter, Temp. (200 MM - RF) WPL 3149126 Contact Us For Availability
1
Limiter, Temp. (250 mm (LF)) WPL 3149127 Contact Us For Availability
1
Main Chassis (Black) WPL 3181515 Contact Us For Availability
1
Main Chassis (White) WPL 330086 Contact Us For Availability
1
Main Chassis (Almond) WPL 330090 Contact Us For Availability
1
Bracket, Mounting (2) WPL 307981 Contact Us For Availability
1
Liner, Door WPL 3172220 Contact Us For Availability
2
Element, Surface (Includes No. 1, No. 3) (180 WPL 3148825 Contact Us For Availability
2
Element, Surface (Includes No. 1, No. 3) (200 WPL 3148826 Contact Us For Availability
2
Element, Surface (Includes No. 1, No. 3) (230 WPL 3148827 Contact Us For Availability
3
Seal, Door WPL 3148183 Contact Us For Availability
3
Spring (8) WPL 3149191 Contact Us For Availability
4
Bracket, Top WPL 3148809 Contact Us For Availability
4
Frame, Front WPL 3172204 Contact Us For Availability
4
Glass, Liner WPL 3148179 Contact Us For Availability
5
Cooktop (White) WPL 3176523 Contact Us For Availability
5
cooktop (almond) WPL 3176524 Contact Us For Availability
5
Cooktop (Black) WPL 3176525 Contact Us For Availability
5
Pin, Hinge WPL 307985 Contact Us For Availability
5
Screw, 10-32 x 7/16 (2) WPL 3150532 Contact Us For Availability
5
Retainer, Insulation WPL 3148287 Contact Us For Availability
5
screw (6) WPL 3148443 Contact Us For Availability
6
Bracket, Hinge (2) WPL 307965 Contact Us For Availability
6
Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability
6
Frame, Door WPL 3148235 Contact Us For Availability
7
Pin, Hinge (2) WPL 307966 Contact Us For Availability
7
Pushnut WPL 308306 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
7
Glass, Outer Door WPL 3148185 Contact Us For Availability
8
Cover, Vent (Black) WPL 3149010 Contact Us For Availability
8
Cover, Vent (White) WPL 3149011 Contact Us For Availability
8
cover, vent (almond) WPL 3149012 Contact Us For Availability
8
Hinge (R.H.) WPL 327890 Contact Us For Availability
8
Hinge (L.H.) WPL 327891 Contact Us For Availability
8
Bracket, Sericce WPL 3150190 Contact Us For Availability
8
Drawer, Utility WPL 327887 Contact Us For Availability
9
Bracket, Light WPL 3149032 Contact Us For Availability
9
Screw (2) WPL 311056 Contact Us For Availability
9
Screw WPL 3150537 Contact Us For Availability
9
Oven (30`` Conv) WPL 3172546 Contact Us For Availability
9
Glide, Rear (2) WPL 307980 Contact Us For Availability
10
Light, Indicator WPL 3149029 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
11
Clip (2) WPL 3148282 Contact Us For Availability
11
Shield, Probe WPL 3150346 Contact Us For Availability
11
Screw WPL 3148604 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
12
Tie, Cable WPL 3149157 Contact Us For Availability
12
Anchor, Plastic WPL 3148605 Contact Us For Availability
12
Rail, Drawer (R.H.) WPL 3149255 Contact Us For Availability
12
Rail, Drawer (L.H.) WPL 3149256 Contact Us For Availability
12
Handle, Oven Door WPL 3148228 Contact Us For Availability
13
Screw WPL 98520 Contact Us For Availability
13
Glide, Drawer (2) WPL 3149257 Contact Us For Availability
13
Protector (2) WPL 309329 Contact Us For Availability
14
Clip, Mounting WPL 3149190 Contact Us For Availability
14
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
14
Handle, Drawer WPL 313337 Contact Us For Availability
15
Screw (2) WPL 3149333 Contact Us For Availability
15
Clip, Wire WPL 311311 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
15
Rack, Offset WPL 308172 Contact Us For Availability
15
Top, Door WPL 3148223 Contact Us For Availability
16
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
16
Vent, Oven WPL 3148906 Contact Us For Availability
18
WPL W10355051 No Longer Available
18
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
18
WPL 799344 WPL 799344 Contact Us For Availability
18
Leveler (Thinner) (2 Oz.) Paint, Bulk 1 Qt. WPL 206925 Contact Us For Availability
18
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
18
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
18
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
18
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
18
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
18
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
18
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
18
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
18
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
18
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
18
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
18
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
18
Grease WPL 261582 Contact Us For Availability
18
Rotisserie Kit WPL 261881 Contact Us For Availability
18
Coffee WPL 261886 Contact Us For Availability
18
Co WPL 261887 Contact Us For Availability
18
WPL 261888 WPL 261888 Contact Us For Availability
18
WPL 261890 WPL 261890 Contact Us For Availability
18
WPL 261891 WPL 261891 Contact Us For Availability
18
WPL 285365 WPL 285365 Contact Us For Availability
18
WPL 285366 WPL 285366 Contact Us For Availability
18
WPL 285367 WPL 285367 Contact Us For Availability
18
WPL 285368 WPL 285368 Contact Us For Availability
18
WPL 312804 WPL 312804 Contact Us For Availability
18
WPL 72108 WPL 72108 Contact Us For Availability
18
WPL 72112 WPL 72112 Contact Us For Availability
18
WPL 799832 WPL 799832 Contact Us For Availability
18
WPL 978883 WPL 978883 Contact Us For Availability
19
Channel, Arm (2) WPL 329712 Contact Us For Availability
19
Panel Drawer (White) WPL 307935 Contact Us For Availability
19
Panel, Drawer (Almond) WPL 307939 Contact Us For Availability
19
Panel Drawer (Black) WPL 309923 Contact Us For Availability
20
Light, Indicator (Oven Unit On) WPL 314031 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
22
Knob, Control (Thermostat) WPL 3149987 Contact Us For Availability
24
Support, Channel (L.H.) WPL 313196 Contact Us For Availability
24
Support, Channel (R.H.) WPL 313197 Contact Us For Availability
25
Switch, Door WPL 310345 Contact Us For Availability
27
Knob, Control (Selector) WPL 3149985 Contact Us For Availability
29
Snubber, Door (2) WPL 309111 Contact Us For Availability
30
Spring, Door Stop WPL 308207 Contact Us For Availability
31
Seal, Rubber WPL 309107 Contact Us For Availability
32
Eliminator, Smoke WPL 3147242 Contact Us For Availability
33
Box, Vent WPL 3147076 Contact Us For Availability
34
Support, Chassis WPL 3147646 Contact Us For Availability
35
Box Vent (Rear) WPL 3171381 Contact Us For Availability
× ![]()
