Model Whirlpool RF314PXYN0 – Common Parts & Diagrams
02 - COOKTOP, LIT/OPTIONAL
04 - DOOR AND DRAWER

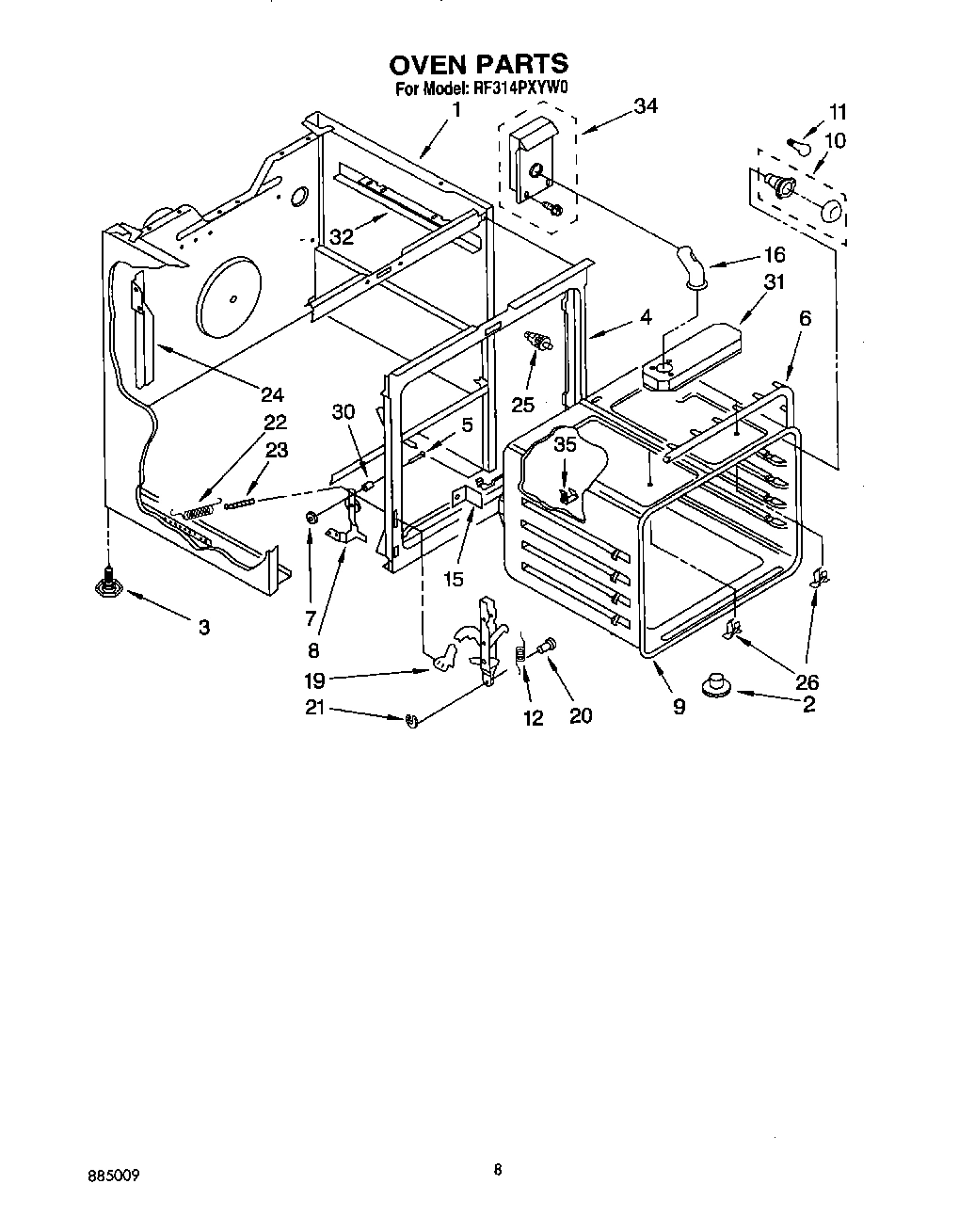

06 - OVEN

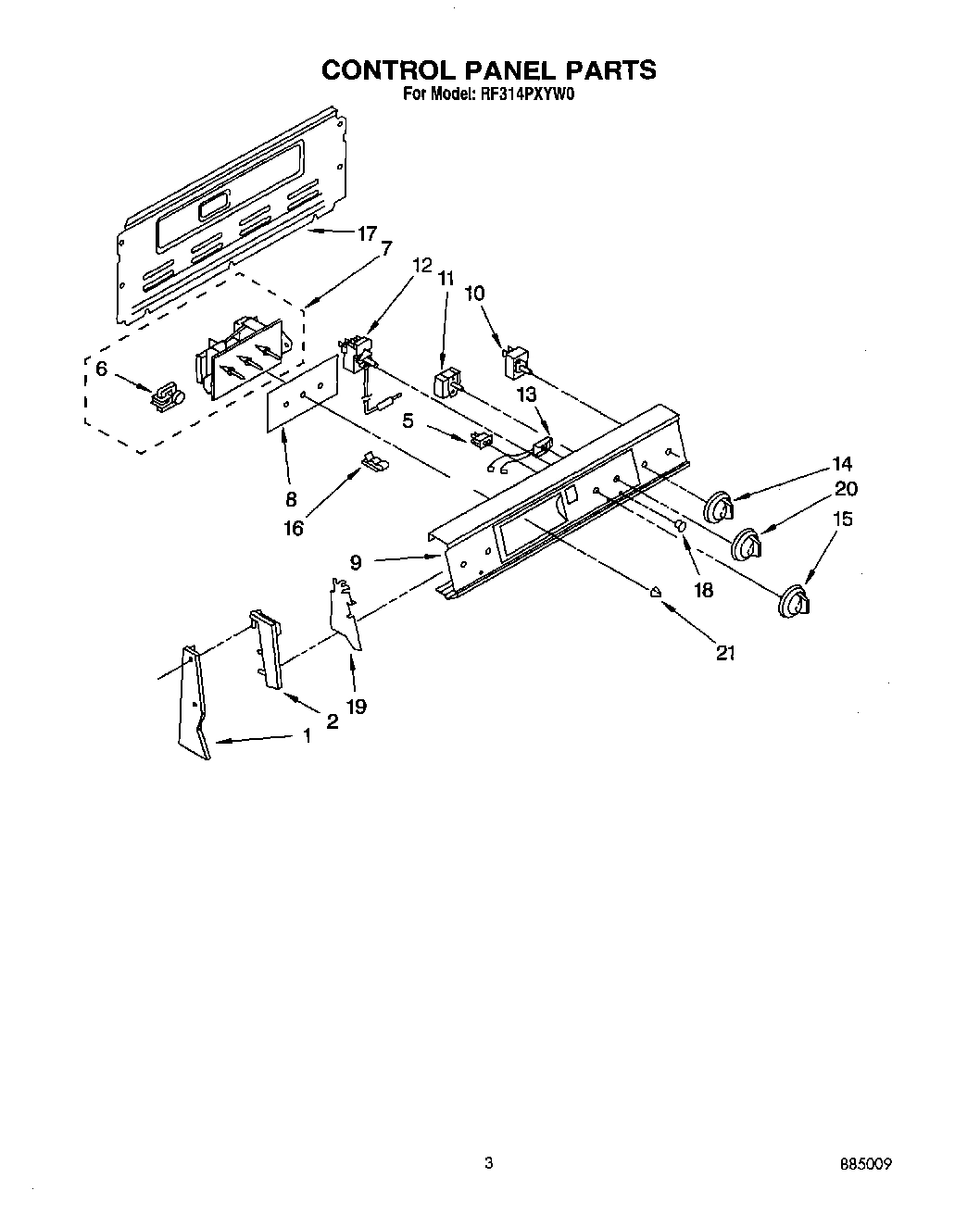

03 - CONTROL PANEL

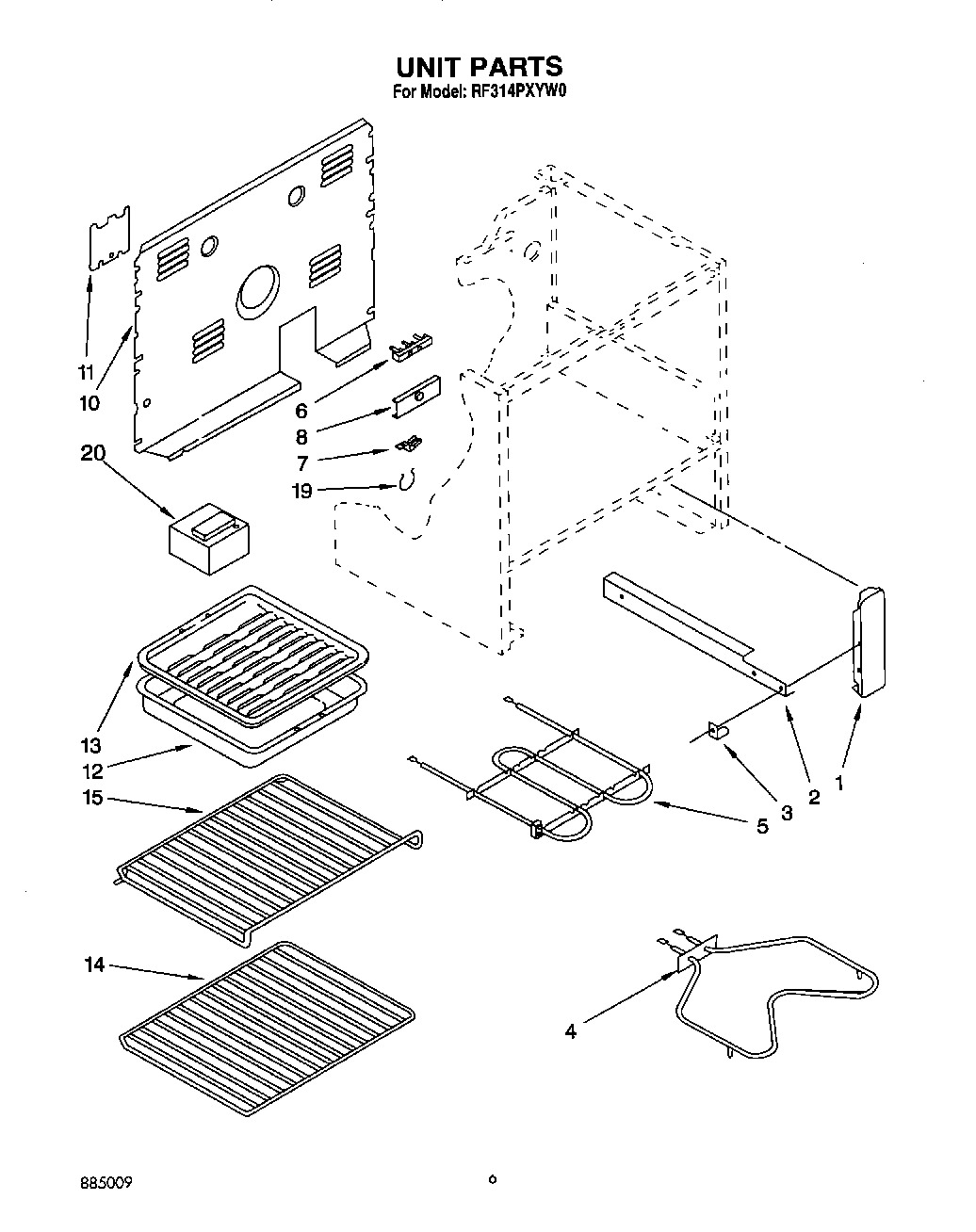

05 - UNIT, OPTIONAL

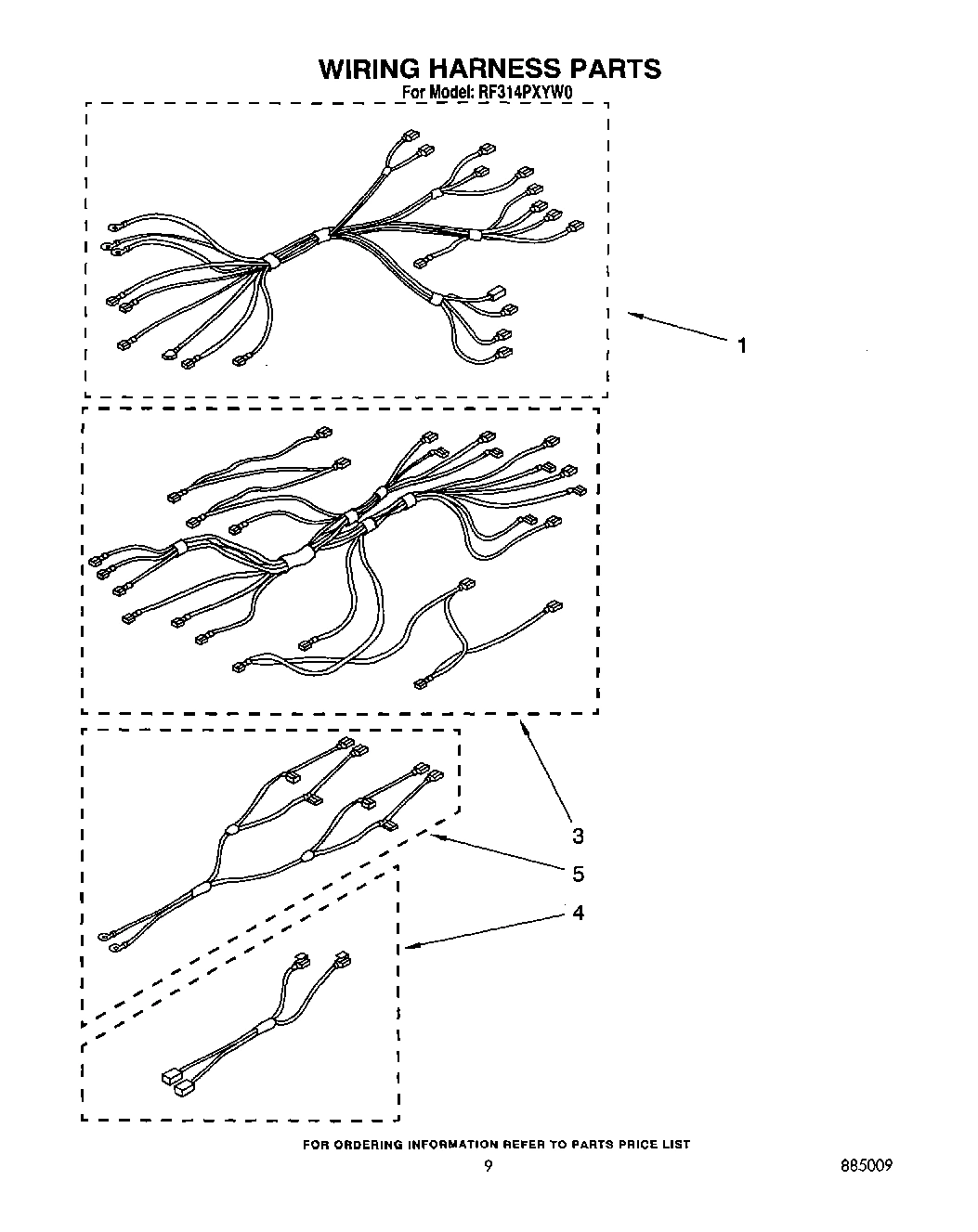

07 - WIRING HARNESS
Common parts from model Whirlpool RF314PXYN0
1
Bracket, Mounting (2) WPL 307981 Contact Us For Availability
1
Main Chassis (White) WPL 330086 Contact Us For Availability
1
Main Chassis (Almond) WPL 330090 Contact Us For Availability
1
End Trim R.H. WPL 3183090 Contact Us For Availability
1
End Trim L.H. WPL 3183091 Contact Us For Availability
1
Harness, (Oven) WPL 3181473 Contact Us For Availability
2
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
2
Rail R.H. WPL 3149255 Contact Us For Availability
2
Rail L.H. (Includes Illus. 3) WPL 3149256 Contact Us For Availability
2
Tube, Vent WPL 3169144 Contact Us For Availability
2
Screw, 8BT x 1/4 (4) WPL 254225 Contact Us For Availability
2
End Cap R.H. WPL 3150441 Contact Us For Availability
2
End Cap L.H. WPL 3150442 Contact Us For Availability
3
Seal, Glass WPL 3148183 Contact Us For Availability
3
Spring (8) WPL 3149191 Contact Us For Availability
3
Glide, Front (2) WPL 3149257 Contact Us For Availability
3
Clip, Wire WPL 311311 Contact Us For Availability
3
Harness, (Cooktop) WPL 3183408 Contact Us For Availability
4
Screw (1) WPL 3150537 Contact Us For Availability
4
Frame, Front WPL 3172204 Contact Us For Availability
4
Harness, Wiring (Oven Light) WPL 313152 Contact Us For Availability
5
Pin, Hinge (2) WPL 307985 Contact Us For Availability
5
Screw, 10-32 x 7/16 (2) WPL 3150532 Contact Us For Availability
5
Harness, Supply WPL 313147 Contact Us For Availability
6
Seal, Door WPL 309107 Contact Us For Availability
6
Motor, Timer WPL 309822 Contact Us For Availability
6
Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability
7
Pushnut (2) WPL 308306 Contact Us For Availability
7
Timer, Control WPL 3183063 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
8
Clip, Mounting WPL 3149190 Contact Us For Availability
8
Hinge (R.H.) WPL 327890 Contact Us For Availability
8
Hinge (L.H.) WPL 327891 Contact Us For Availability
8
Glass, Timer WPL 313513 Contact Us For Availability
8
Bracket, Service WPL 3150190 Contact Us For Availability
9
Screw (3) WPL 311056 Contact Us For Availability
9
Oven (30`` Pyro) WPL 3176611 Contact Us For Availability
9
Screw 8-18 x 5/8 (4) WPL 312604 Contact Us For Availability
9
Panel, Control WPL 3183816 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
11
Clip (2) WPL 3148282 Contact Us For Availability
11
Switch, Selector (4 Position) WPL 3149886 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
12
Spring, Door Stop WPL 308207 Contact Us For Availability
12
Thermostat, 0ven WPL 661150 Contact Us For Availability
13
Indicator Light (2) WPL 314031 Contact Us For Availability
13
Indicator Light (1) WPL 3150662 Contact Us For Availability
14
Knob, Control (4) (Infinite Switch) WPL 3183118 Contact Us For Availability
14
Rack, Oven (Straight) WPL 308173 Contact Us For Availability
15
Screw WPL 3149333 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
15
Knob, Control (Thermostat) WPL 3183106 Contact Us For Availability
15
Rack, Oven (Offset) 10-32 x .437 (2) WPL 308172 Contact Us For Availability
16
Vent, Oven WPL 3148906 Contact Us For Availability
16
Tube Clip WPL 313570 Contact Us For Availability
17
Rear Cover Control Panel WPL 313195 Contact Us For Availability
18
Lens, Amber (3) WPL 313101 Contact Us For Availability
19
Channel, Arm (2) WPL 329712 Contact Us For Availability
19
Shield, Glass (2) WPL 313608 Contact Us For Availability
20
WPL W10355051 No Longer Available
20
Knob, Control (Selector) WPL 3183112 Contact Us For Availability
20
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
20
WPL 799344 WPL 799344 Contact Us For Availability
20
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
20
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
20
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
20
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
20
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
20
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
20
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
20
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
20
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
20
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
20
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
20
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
20
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
20
WPL 261582 WPL 261582 Contact Us For Availability
20
WPL 261886 WPL 261886 Contact Us For Availability
20
WPL 261888 WPL 261888 Contact Us For Availability
20
WPL 261890 WPL 261890 Contact Us For Availability
20
WPL 261891 WPL 261891 Contact Us For Availability
20
WPL 285365 WPL 285365 Contact Us For Availability
20
WPL 285366 WPL 285366 Contact Us For Availability
20
WPL 285367 WPL 285367 Contact Us For Availability
20
WPL 285368 WPL 285368 Contact Us For Availability
20
WPL 312804 WPL 312804 Contact Us For Availability
20
WPL 72108 WPL 72108 Contact Us For Availability
20
WPL 72112 WPL 72112 Contact Us For Availability
20
WPL 799832 WPL 799832 Contact Us For Availability
20
WPL 978883 WPL 978883 Contact Us For Availability
21
Handle, Snap-In (White) WPL 3150612 Contact Us For Availability
21
Handle, Snap-In (Almond) WPL 3150613 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
22
Protector, Drawer (2) WPL 309329 Contact Us For Availability
24
Support, L.H. Post WPL 313196 Contact Us For Availability
24
Support, R.H. Post WPL 313197 Contact Us For Availability
25
Switch, Door (2) WPL 310345 Contact Us For Availability
26
Plug, Button (2) WPL 3169107 Contact Us For Availability
30
Snubber, Door (2) WPL 309111 Contact Us For Availability
31
Box Vent WPL 3169129 Contact Us For Availability
32
Support, Chassis WPL 3147646 Contact Us For Availability
34
Vent, Box WPL 3171381 Contact Us For Availability
35
Insulation, Wrapper WPL 309961 Contact Us For Availability
35
Insulation, Oven BAck WPL 3169094 Contact Us For Availability
× ![]()
