Model Whirlpool RF301OXTW01 30`` ELECTRIC FREESTANDING STANDARD CLEAN RANGE – Common Parts & Diagrams
01 - COOKTOP PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)

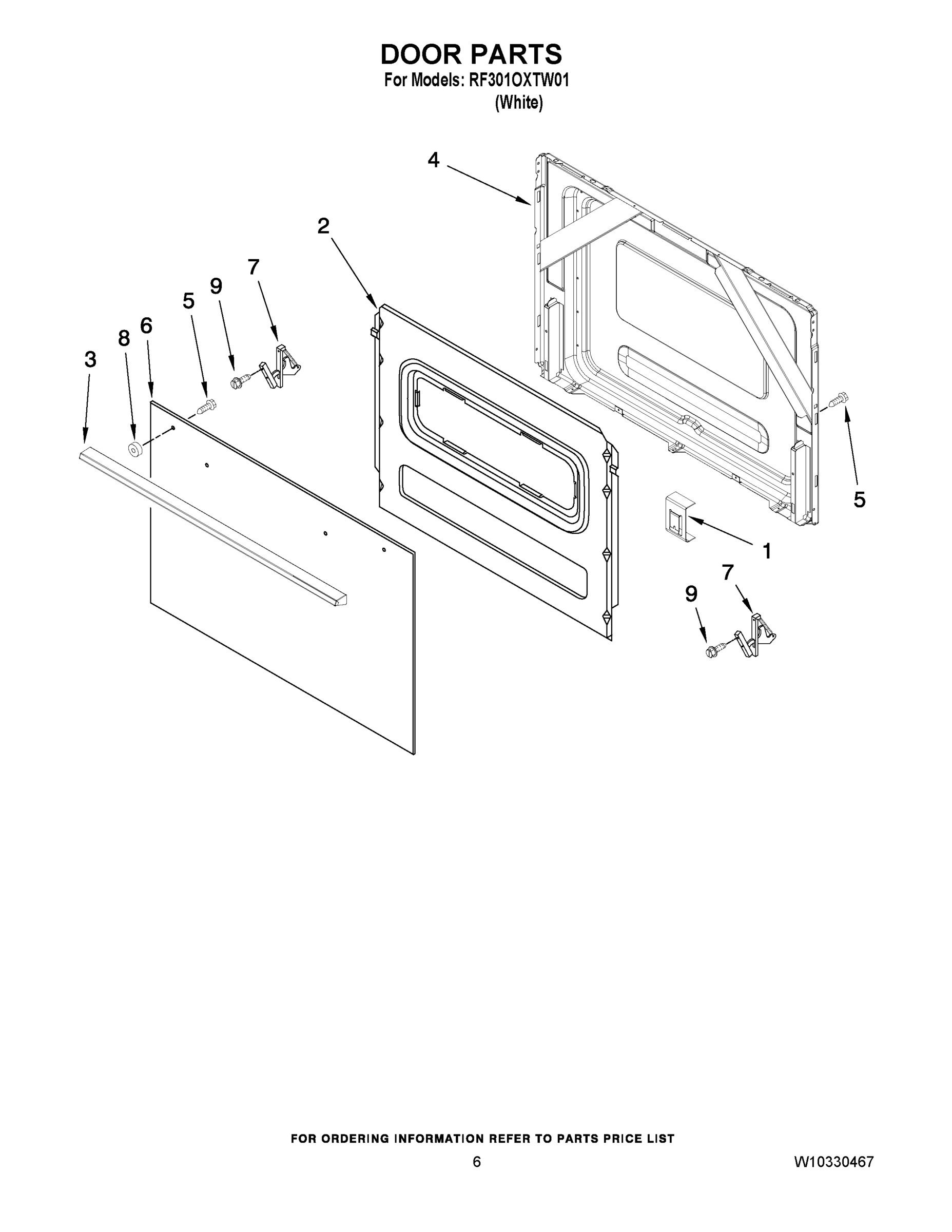

05 - DOOR PARTS

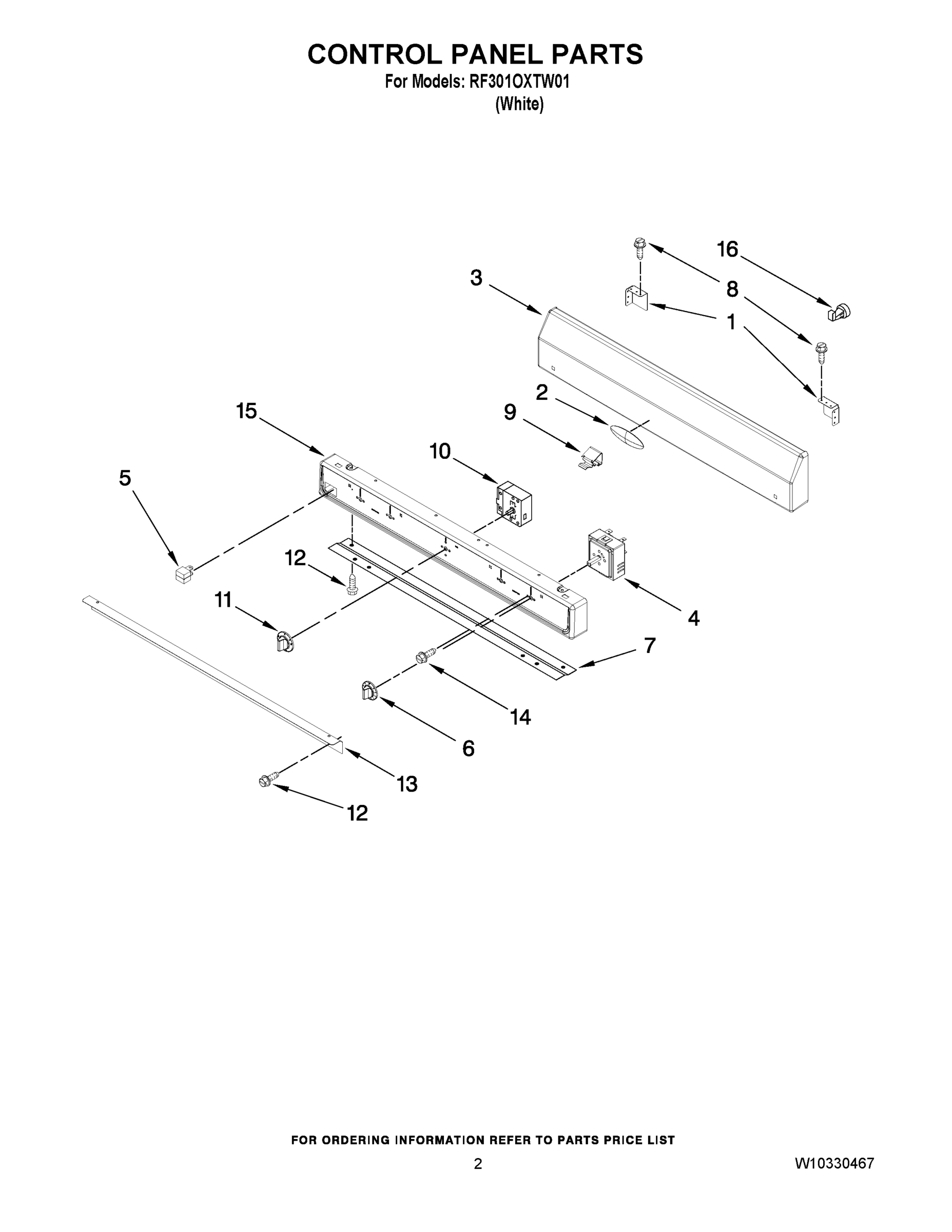

02 - CONTROL PANEL PARTS

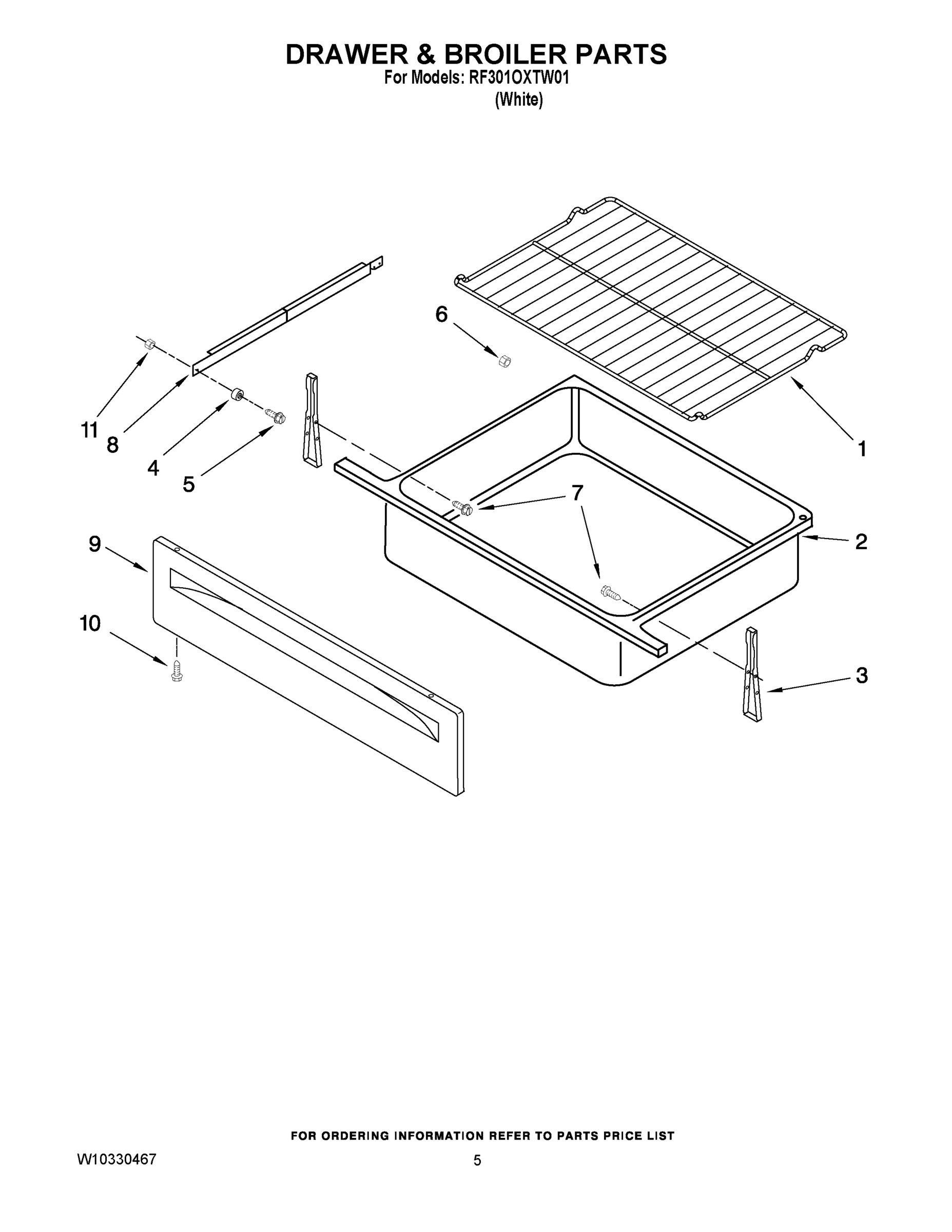

04 - DRAWER & BROILER PARTS

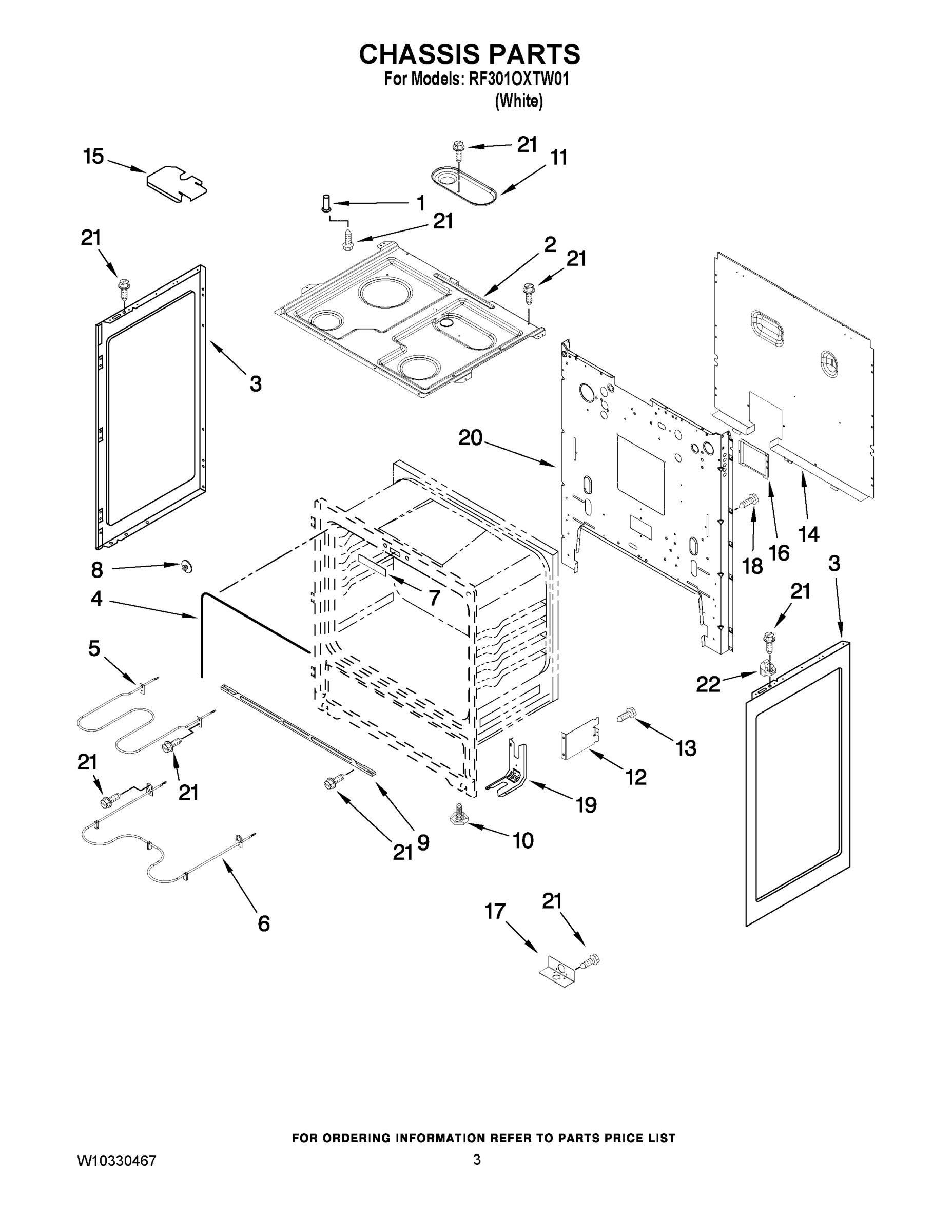

03 - CHASSIS PARTS
Common parts from model Whirlpool RF301OXTW01 30`` ELECTRIC FREESTANDING STANDARD CLEAN RANGE
1
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
1
BRACKET, BACKGUARD WPL 3801F75351 Contact Us For Availability
1
Rack, Oven (2) WPL 7801P05460 Contact Us For Availability
1
VENT TUBE WPL 8026P06860 Contact Us For Availability
2
Nameplate WPL 8303811 Contact Us For Availability
2
INSULATION, DOOR WPL 7002P31860 Contact Us For Availability
2
Drawer, Storage WPL 3405F03380 Contact Us For Availability
2
BOX, BURNER (BOTTOM) WPL 4011F48451 Contact Us For Availability
3
HANDLE, DOOR WPL 2411F01371 Contact Us For Availability
3
PANEL, BACKGUARD WPL 2602F27171 Contact Us For Availability
3
BRACKET, DRAWER(2) WPL 3801F88751 Contact Us For Availability
3
PANEL, SIDE (2) WPL 2618F19471 Contact Us For Availability
4
ROLLER, DRAWER WPL W10272883 Contact Us For Availability
4
LINER-DOOR WPL 2402W24219 Contact Us For Availability
4
SWITCH, INFINITE (RF) WPL 7403P37260 Contact Us For Availability
4
SWITCH, INFINITE (LF/LR/RR) WPL 7403P37360 Contact Us For Availability
4
SEAL, OVEN DOOR WPL 7212P04360 Contact Us For Availability
5
SCREW WPL 7101P48360 Contact Us For Availability
5
LIGHT, INDICATOR WPL 7407P15460 Contact Us For Availability
5
Shaft, Roller WPL 7118P03260 Contact Us For Availability
6
PANEL, OVEN DOOR WPL 2401F09671 Contact Us For Availability
6
KNOB, INFINITE (4) WPL 7737P03060 Contact Us For Availability
6
NUT, LOCK (W/WASHER) WPL 7103P08260 Contact Us For Availability
6
ELEMENT, BAKE WPL 7406P42560 Contact Us For Availability
7
ELEMENT, SURFACE (6`` (3) LF/LR/RR) WPL 7406P47560 Contact Us For Availability
7
ELEMENT, SURFACE (8``(1) RF) WPL 7406P47660 Contact Us For Availability
7
HINGE, DOOR WPL 7106P07860 Contact Us For Availability
7
BRACKET, CONTROL CONTROL PANEL WPL 3801F25151 Contact Us For Availability
7
PLUG, DOOR WPL 7718P02760 Contact Us For Availability
8
RUNNER, DRAWER WPL W10182835 Contact Us For Availability
8
SPACER, HANDLE WPL 8010P08960 Contact Us For Availability
8
SPACER, SIDE PNL WPL 8004P02460 Contact Us For Availability
9
Screw WPL 7101P28260 Contact Us For Availability
9
CLIP WPL 7112P16160 Contact Us For Availability
9
PANEL, DRAWER WPL 2416F05971 Contact Us For Availability
9
SUPPORT, BROIL WPL 3807F49445 Contact Us For Availability
10
THERMOSTAT WPL 7404P13660 Contact Us For Availability
10
Screw WPL 7101P07260 Contact Us For Availability
10
SCREW (LEG LEVELER) WPL 7101P50760 Contact Us For Availability
11
KNOB, THERMOSTAT WPL 7735P05660 Contact Us For Availability
11
Nut, Lock WPL 7103P13960 Contact Us For Availability
11
COVER, BOX WPL 4005F43245 Contact Us For Availability
12
SCREW WPL 7101P24660 Contact Us For Availability
12
SUPPORT, OVEN REAR WPL 3807F40051 Contact Us For Availability
13
SUPPORT, UPPER FRONT PANEL WPL 3807F41980 Contact Us For Availability
13
Screw WPL 7101P37660 Contact Us For Availability
14
Screw WPL 7101P30960 Contact Us For Availability
14
COVER, MAIN WPL 4005F81251 Contact Us For Availability
15
PANEL, UPPER FRONT WPL 2614N16009 Contact Us For Availability
15
COVER, LOCK HOLE WPL 4005F56751 Contact Us For Availability
16
SPACER WPL 8010P06960 Contact Us For Availability
16
COVER, TERMINAL BLOCK WPL 4005F74751 Contact Us For Availability
18
SCREW WPL 7101P51760 Contact Us For Availability
19
BRACKET, ANTI TIP WPL 3801F65651 Contact Us For Availability
20
BACK, MAIN WPL W10177185 Contact Us For Availability
21
Screw WPL 7101P43460 Contact Us For Availability
22
SPACER, MAIN TOP (LEFT) WPL 8010P08760 Contact Us For Availability
22
SPACER, MAIN TOP (RIGHT) WPL 8010P08860 Contact Us For Availability
NI
Cleaner, Glass WPL W10355051 No Longer Available
NI
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
NI
HARNESS, WIRE (SWITCH PANEL) WPL 5171P27860 Contact Us For Availability
NI
HARNESS, WIRE (CONTROL PANEL) WPL 5175P24960 Contact Us For Availability
NI
INSULATION, WRAP WPL 7002P21160 Contact Us For Availability
NI
INSULATION, BACK WPL 7002P21660 Contact Us For Availability
× ![]()
